Amana ARRS6550WW (BOM: P1130697NWW)

Model: ARRS6550WW (BOM: P1130697NWW)

Save Part Not Listed?
product name

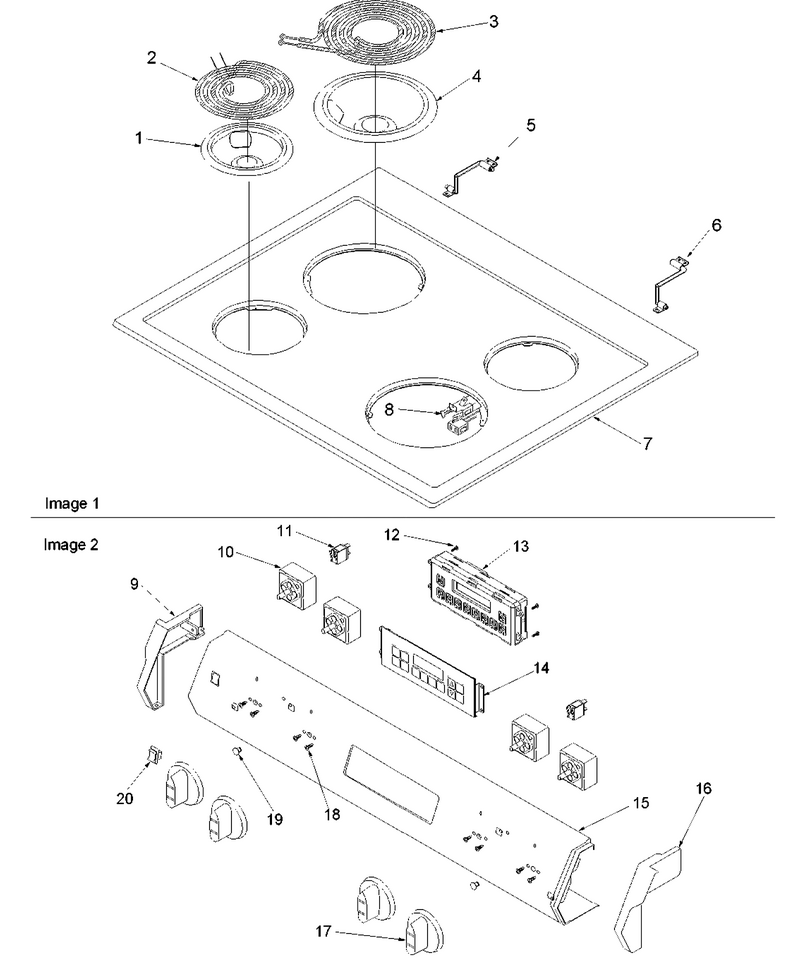

03 - Main Top And Backguard

...
...
NI
Screw, No.6-20 X .375 Panhd(Blk) WPL-31750315
...
1
Bowl-Drip WPL-W10291024
...
2
Elmnt-Surf WPL-WPW10259868
...
3
Elmnt-Surf WPL-WPW10259865
...
4
Bowl-Drip WPL-W10291024
...
5
Hinge, Main Top (Lt) WPL-31769702
...
6
Hinge, Main Top (Rt) WPL-31769701
...
7
Maintop, Elec. (White) WPL-315554W
...
8
Receptacle WPL-330031
...
9
End Cap, Cont Pnl (Lt-Wht) WPL-31742702W
...
10
Switch- In WPL-WP74011243
...
11
Light-Ind WPL-WP903115
...
12
Screw WPL-W11245710
...
13
Erc3 (Electric) WPL-Y0315570
...
14
Overlay, Erc3 Mylar WPL-315851W
...
15
Panel, Control (White) WPL-316358W
...
16
End Cap, Cont Pnl (Rt-Wht) WPL-31742705W
...
17
Knob, Infinite Sw (Wht) WPL-31905405W
...
18
Screw, No.8-32 X 1/4 WPL-31750714
...
19
Lens, Indicator WPL-Y0316265
...
20
Switch, Rocker WPL-301491W

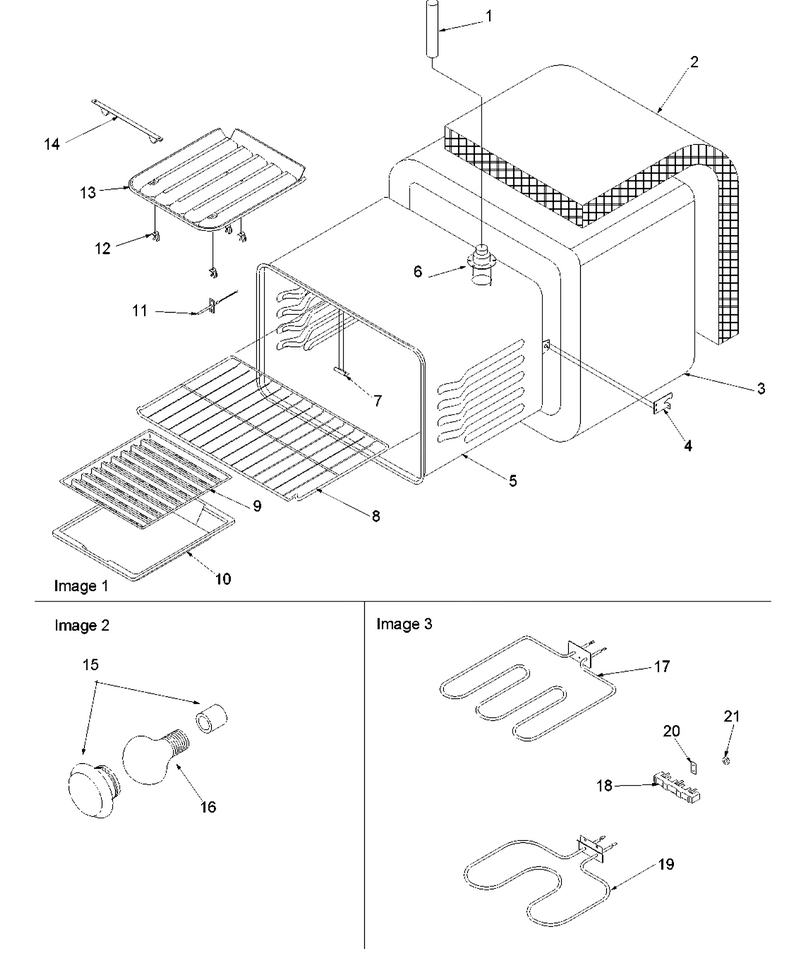

02 - Cavity

...
...
NI
Rivet, Pop WPL-Y0097822
...
1
Tube, Vent WPL-0316041
...
2
Insulation, Top (Rr) WPL-31976601
...
3
Insulation, Wrapper WPL-31976501
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Oven Shell (El. W/lt) WPL-31821101CG
...
6
Smoke Eliminator WPL-Y0058526
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Sensor WPL-WPY0314907
...
12
Bracket, Mounting WPL-0315402
...
13
Reflector, Broil Element WPL-Y0315403
...
14
Bracket, Reflector Mounting WPL-Y0061557
...
15
Oven Light Assy WPL-31823701
...
16
Light Bulb WPL-8009
...
17
Element- B WPL-WPY0061732
...
18
Block-Term WPL-WP8203546
...
19
Element- B WPL-WP77001094
...
20
Block-Term WPL-WPW10245259
...
21
Hex Nut (Nkl) WPL-31750124

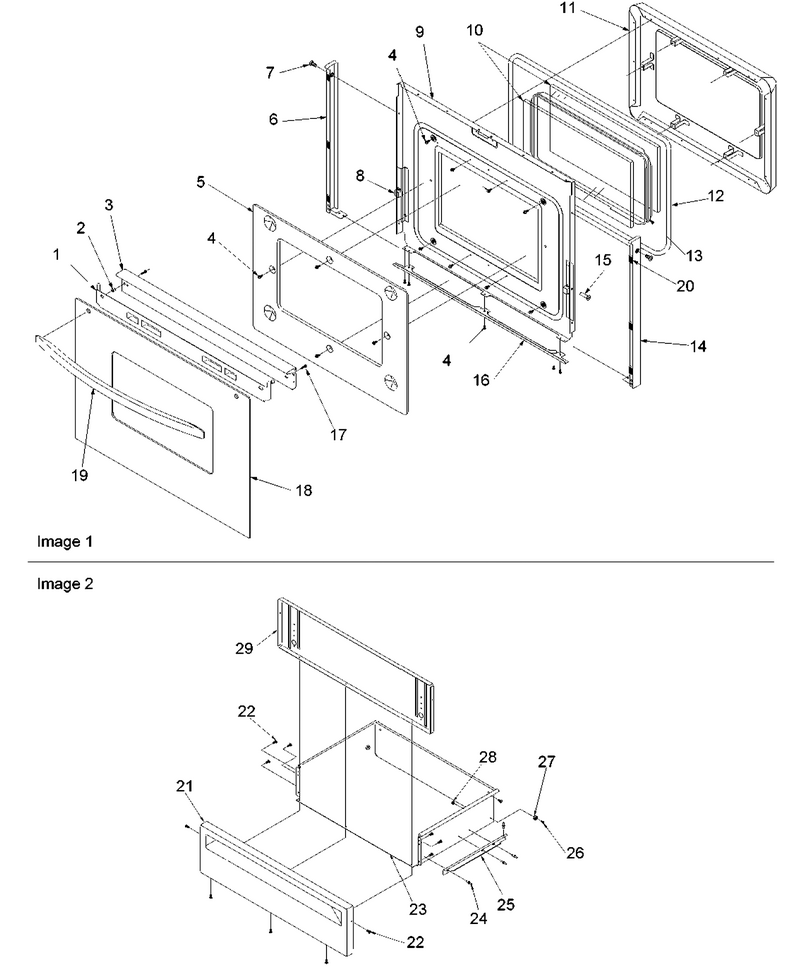

04 - Oven Door And Storage Drawer

...
...
NI
Insulation, Door Pad-Long WPL-31975501
...
1
Assy, Glass Heat Shield WPL-31833201
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Wht) WPL-32054203W
...
4
Screw WPL-W11245710
...
5
Shield, Heat WPL-Y0309068
...
6
End Cap, Door (Lt-Wht) WPL-309523W
...
7
Screw WPL-W11245710
...
8
Bumper, Rubber WPL-Y0309627
...
9
Backer, Oven Door WPL-317023CG
...
10
Glass, Door WPL-Y0317019
...
11
Pad, Oven Door WPL-317021CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Frame, Window Pack WPL-Y0317020
...
14
End Cap, Door (Rt-Wht) WPL-309522W
...
15
Rivet, Pop WPL-Y0302648
...
16
Support- G WPL-R9800243
...
17
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
18
Glass, Oven Door (Wht) WPL-316238W
...
19
Handle- Ov WPL-77001119
...
20
Tape, Foam WPL-0043184
...
21
Panel, Drawer (Wht) WPL-309176W
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut, Lock WPL-22004193
...
29
Liner, Drawer Panel (Blk) WPL-31927401B

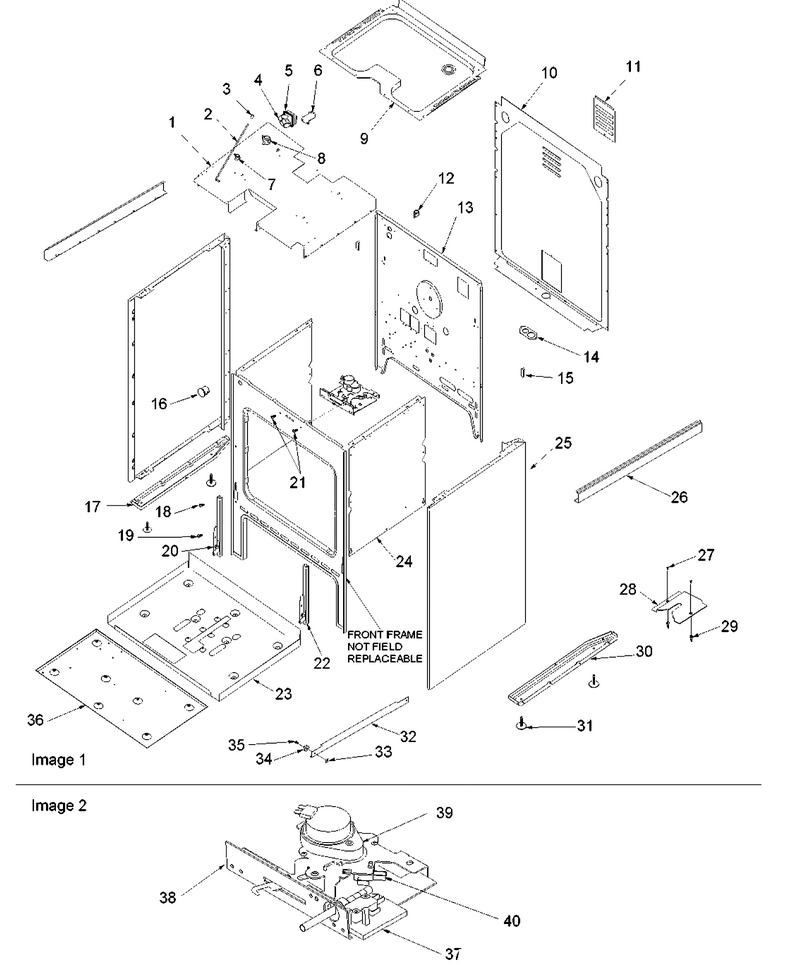

01 - Cabinet

...
...
NI
Screw, No.10-32x1/2 (Pan Ph Hd) WPL-31750517
...
1
Retainer, Top Insulation WPL-31723601
...
2
Prop Rod, Main Top WPL-Y0316701
...
3
Rod Tip, Rubber WPL-Y0042002
...
4
Blade, Fan WPL-Y0314375
...
5
Fan Assy, Cooling (W/blade) WPL-Y0309884
...
6
Bracket, Z Fan WPL-0314183
...
7
Control, Limit WPL-31933003
...
8
Thermostat, High Limit WPL-Y0316699
...
9
Baffle, Drip (Cg) WPL-316050CG
...
10
Cover, Rear WPL-31757101
...
11
Plate, Access WPL-31757201
...
12
Timerman WPL-Y0041869
...
13
Retainer, Rear WPL-31791201
...
14
Plate, Main Inlet Wire WPL-0058311
...
15
Cable, Clip Esm WPL-Y0091587
...
16
Plug, Button (3/4``-Blk) WPL-Y0315328
...
17
Brace, Leveling Leg (Lt) WPL-31854501
...
18
Screw WPL-WP7101P126-60
...
19
Screw WPL-WP4159193
...
20
Hinge, Oven Door (Lt) WPL-31715201
...
21
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
22
Hinge-Door WPL-R0706011
...
23
Retainer, Insulation (Bottom) WPL-Y0309061
...
24
Retainer, Insulation (Side) WPL-0304282
...
25
Panel, Side (Wht) WPL-31825104W
...
26
Filler Strip (Wht) WPL-316325W
...
27
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
28
Bracket, Anti Tip WPL-31945201
...
29
Anchor, Plastic WPL-Y0301555
...
30
Brace, Leveling Leg (Rt) WPL-31854502
...
31
Leg,leveling Xxx WPL-314187B
...
32
Track, Mounting WPL-32075601
...
33
Nut, Lock WPL-22004193
...
34
Roller, Drawer WPL-31733401
...
35
Bolt, Shoulder 10-32 WPL-31750717
...
36
Shield, Heat WPL-Y0315146
...
37
Switch, Plunger WPL-31899001
...
38
Bracket, Latch Mounting WPL-31848301
...
39
Assy, Auto Latch & Switch WPL-31797301
...
40
Switch, Micro WPL-31899201
