Amana ARR6420CC (BOM: P1143849NCC)

Model: ARR6420CC (BOM: P1143849NCC)

Save Part Not Listed?
product name

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Baffle, Drip (Enamel) WPL-31836001CG
...
2
Retainer, Rear (Elec) WPL-31733901
...
3
Switch, Hi Limit WPL-Y0053584
...
4
Cover, Rear WPL-31757101
...
5
Plate, Access WPL-31757201
...
6
Plate, Main Inlet Wire WPL-0058311
...
7
Cable, Clip Esm WPL-Y0091587
...
8
Retainer, Insulation (Bottom) WPL-Y0309061
...
9
Panel, Side (Bsq) WPL-31825105C
...
10
Plug, Button (3/4``-Blk) WPL-Y0315328
...
11
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
12
Brace, Leveling Leg (Lt) WPL-31854501
...
13
Hinge, Oven Door (Lt) WPL-31715201
...
14
Hinge-Door WPL-R0706011
...
15
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
16
Screw WPL-WP4159193
...
17
Nut, Lock WPL-22004193
...
18
Roller, Drawer WPL-31733401
...
19
Bolt, Shoulder 10-32 WPL-31750717
...
20
Track, Mounting WPL-32075601
...
21
Screw WPL-W11245710
...
22
Leg,leveling Xxx WPL-314187B
...
23
Brace, Leveling Leg (Rt) WPL-31854502
...
24
Anchor, Plastic WPL-Y0301555
...
25
Bracket, Anti Tip WPL-31945201
...
26
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
27
Latch, Door WPL-31933401
...
28
Switch, Micro WPL-31899201
...
29
Switch, Plunger WPL-31933601
...
30
Bracket, Latch Mounting WPL-31848301
...
31
Screw WPL-W11245710

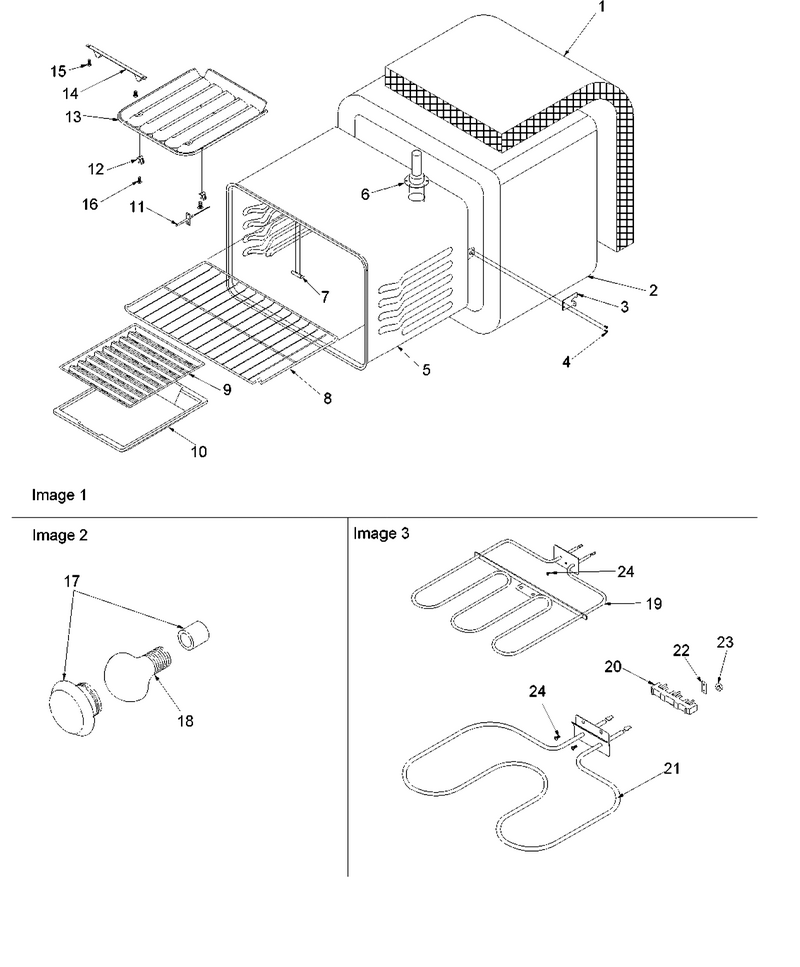

02 - Cavity

...
...
1
Insulation, Rear WPL-31975901
...
2
Insulation, Wrapper WPL-31975801
...
3
Bracket, Oven Cavity WPL-Y0058852
...
4
Screw WPL-WP693995
...
5
Oven Shell (El. W/lt) WPL-31821301CG
...
6
Smoke Eliminator, Tall WPL-Y0316951
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Sensor WPL-WP31968201
...
12
Bracket, Mounting WPL-0315402
...
13
Reflector, Broil Element WPL-Y0315403
...
14
Bracket, Reflector Mounting WPL-Y0061557
...
15
Screw WPL-W11245710
...
16
Rivet, Pop WPL-Y0097822
...
17
Oven Light Assy WPL-31823701
...
18
Light Bulb WPL-8009
...
19
Element- B WPL-WPY0061732
...
20
Block-Term WPL-WP8203546
...
21
Element- B WPL-WP77001094
...
22
Block-Term WPL-WPW10245259
...
23
Hex Nut (Nkl) WPL-31750124
...
24
Screw WPL-WP7101P126-60

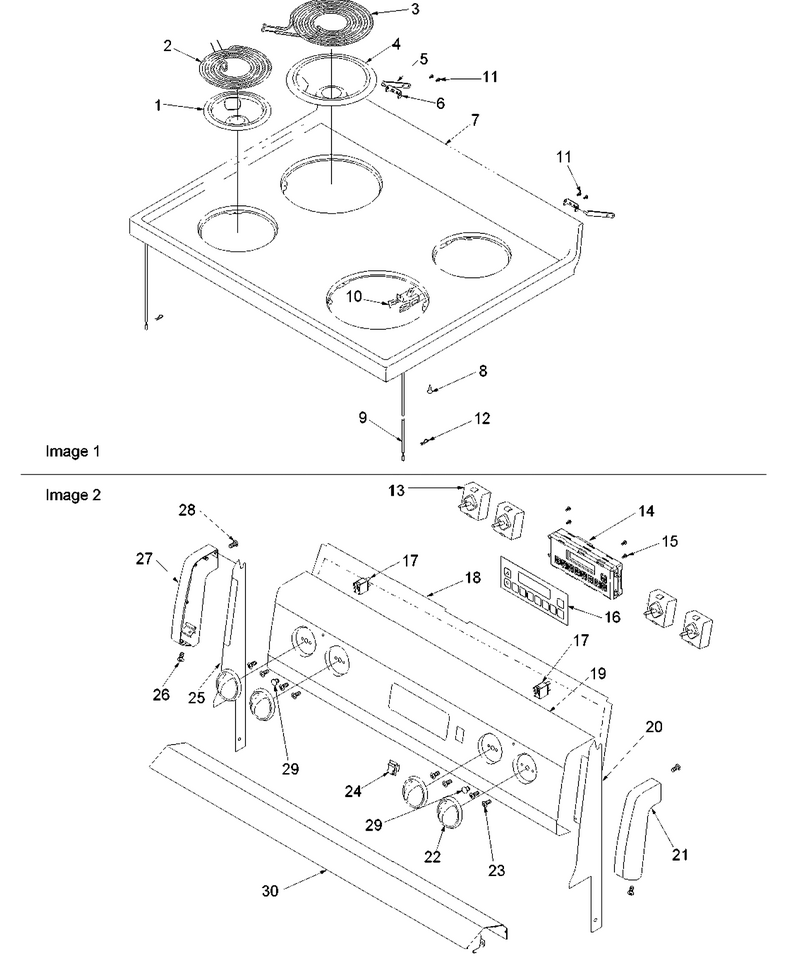

03 - Main Top And Backguard

...
...
NI
Harness, Coil Elem R.h. WPL-31918201
...
1
Bowl-Drip WPL-W10290353RW
...
2
Elmnt-Surf WPL-WPW10259868
...
3
Elmnt-Surf WPL-WPW10259865
...
4
Bowl-Drip WPL-W10290350RW
...
5
Pin, Hinge WPL-Y0315931
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Top, Main (Bisque) WPL-306899C
...
8
Spacer, Snap-In WPL-31717001
...
9
Support, Maintop WPL-Y0315430
...
10
Receptacle WPL-330031
...
11
Screw WPL-W11245710
...
12
Sub 71668 Pin WPL-0091607
...
13
Switch, Infinite Csi (Y) WPL-31926701
...
14
Erc3 (Electric) WPL-Y0315570
...
15
Screw WPL-WP693995
...
16
Overlay,mylar-Erc 3(Bisque) WPL-315851C
...
17
Light-Ind WPL-WP903115
...
18
Cover, Upper Rear WPL-0315887
...
19
Pnl, Bkgd Arr6420 WPL-31920503CC
...
20
Bkgd Support,rh(Bisque) WPL-315876C
...
21
End Cap, Rh(Bisque) WPL-315841C
...
22
Knob, Infinite Switch (Bsq) WPL-31760104C
...
23
Screw, No.8-32 X 1/4 WPL-31750714
...
24
Switch,rocker(Bisque) WPL-301491C
...
25
Bkgd Support,lh(Bisque) WPL-315877C
...
26
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
27
End Cap, Lh(Bisque) WPL-315843C
...
28
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
29
Lens, Indicator WPL-Y0316265
...
30
Shield, Bkgd Trim Heat WPL-31722704B

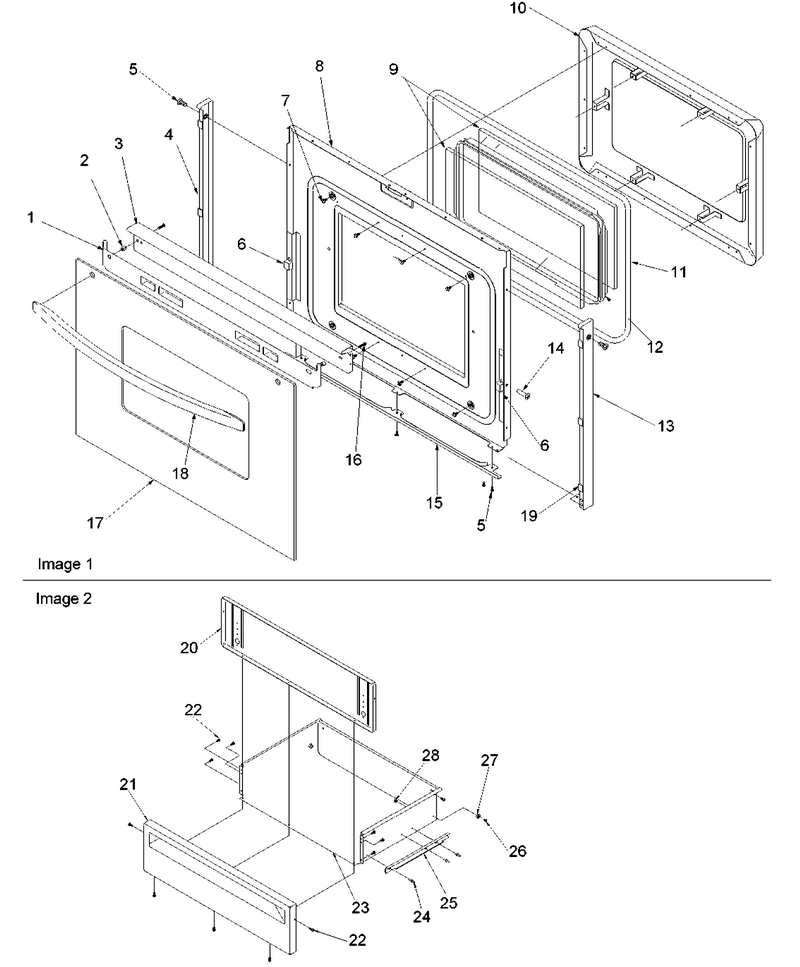

04 - Oven Door And Storage Drawer

...
...
NI
Label, Cleaning Caution Fr/eng WPL-Y0309434
...
1
Assy, Glass Heat Shield WPL-31854101
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Bsq) WPL-32054202C
...
4
End Cap, Lt (Bsq) WPL-309458C
...
5
Screw WPL-W11245710
...
6
Bumper, Rubber WPL-Y0309627
...
7
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
8
Backer, Oven Door (Elec) WPL-317028CG
...
9
Glass, Door WPL-Y0317019
...
10
Pad, Oven Door WPL-317021CG
...
11
Gasket, Oven Door (67``) WPL-31715902
...
12
Frame, Window Pack WPL-Y0317020
...
13
End Cap, Rt (Bsq) WPL-309457C
...
14
Rivet, Pop WPL-Y0302648
...
15
Support, Glass (Bsq) WPL-309460C
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass,door(Bisque) WPL-315944C
...
18
Handle, Oven Door (Bsq) WPL-31689505C
...
19
Tape, Foam WPL-0043184
...
20
Liner, Drawer Panel (Blk) WPL-31930601B
...
21
Panel, Drawer (Chr) WPL-309177C
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut, Lock WPL-22004193
