Amana ARR6400W (BOM: P1143415N W)

Model: ARR6400W (BOM: P1143415N W)

Save Part Not Listed?
product name

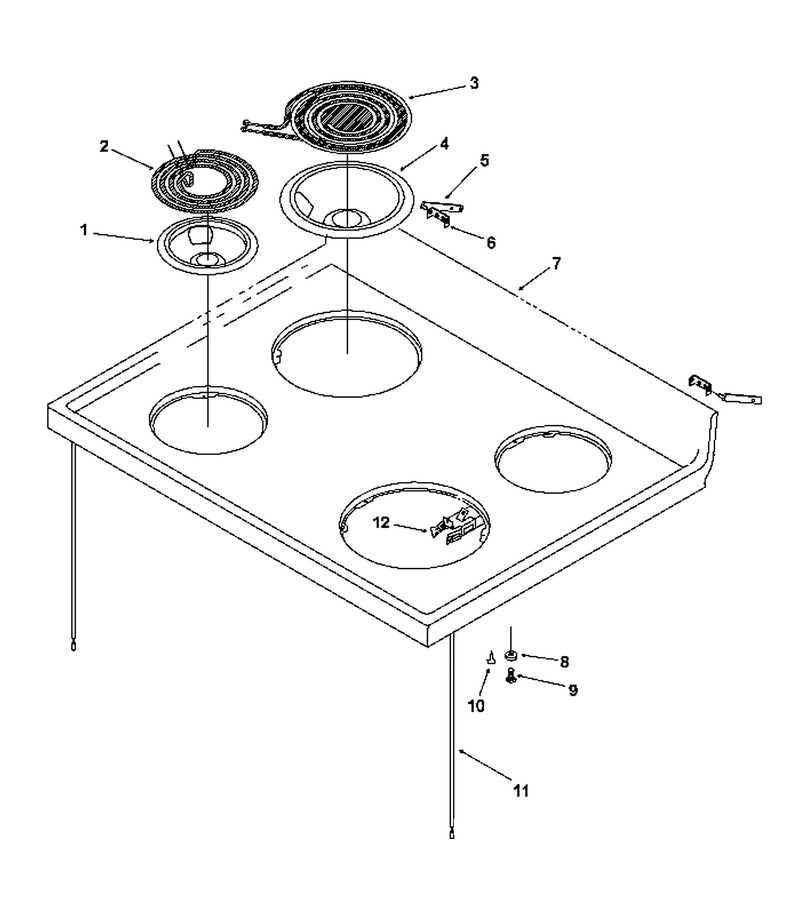

04 - Main Top

...
...
NI
Clip, Element Retainer WPL-Y0307930
...
1
Bowl-Drip WPL-W10290353RW
...
2
Elmnt-Surf WPL-WPW10259868
...
3
Elmnt-Surf WPL-WPW10259865
...
4
Bowl-Drip WPL-W10290350RW
...
5
Pin, Hinge WPL-Y0315931
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Main Top-Electric Upswept WPL-306899W
...
9
Screw WPL-W11245710
...
10
Spacer, Snap-In WPL-31717001
...
11
Support, Maintop WPL-Y0315430
...
12
Receptacle WPL-330031

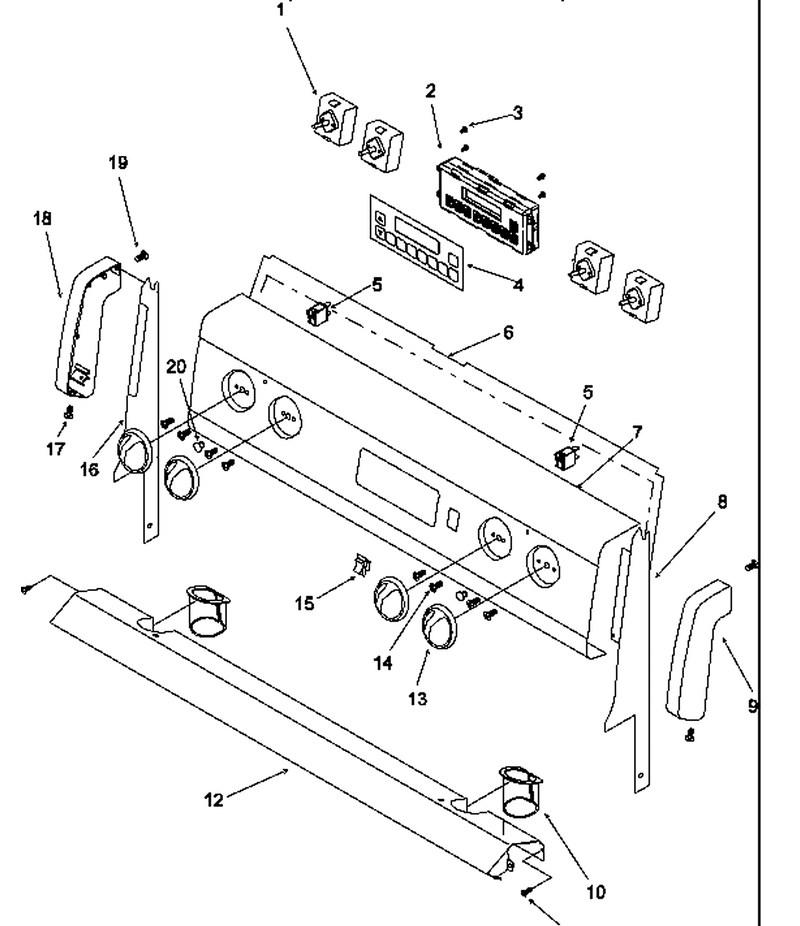

01 - Backguard

...
...
NI
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
1
Switch- In WPL-WP74011243
...
2
Erc3 (Electric) WPL-Y0315570
...
3
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
4
Overlay, Mylar Erc (Blk) WPL-315851B
...
5
Light-Ind WPL-WP903115
...
6
Cover, Upper Rear WPL-0315887
...
7
Pnl, Backguard ( Erc Elect) WPL-316264B
...
8
Bkgd. Support-Rh WPL-315876B
...
9
End Cap WPL-WP315841B
...
10
Bushing, Wire WPL-0316548
...
11
Screw WPL-74009538
...
12
Shield, Bkgd Trim Heat WPL-315874B
...
13
Knob, Infinite Sw (Black) WPL-315845B
...
14
Screw, No.8-32 X 3/16`` WPL-Y0316546
...
15
Switch, Rocker WPL-Y0063997
...
16
Bkgd. Support-Lh WPL-315877B
...
17
Screw WPL-74009538
...
18
End Cap WPL-WP315843B
...
19
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
20
Lens, Indicator WPL-Y0316265

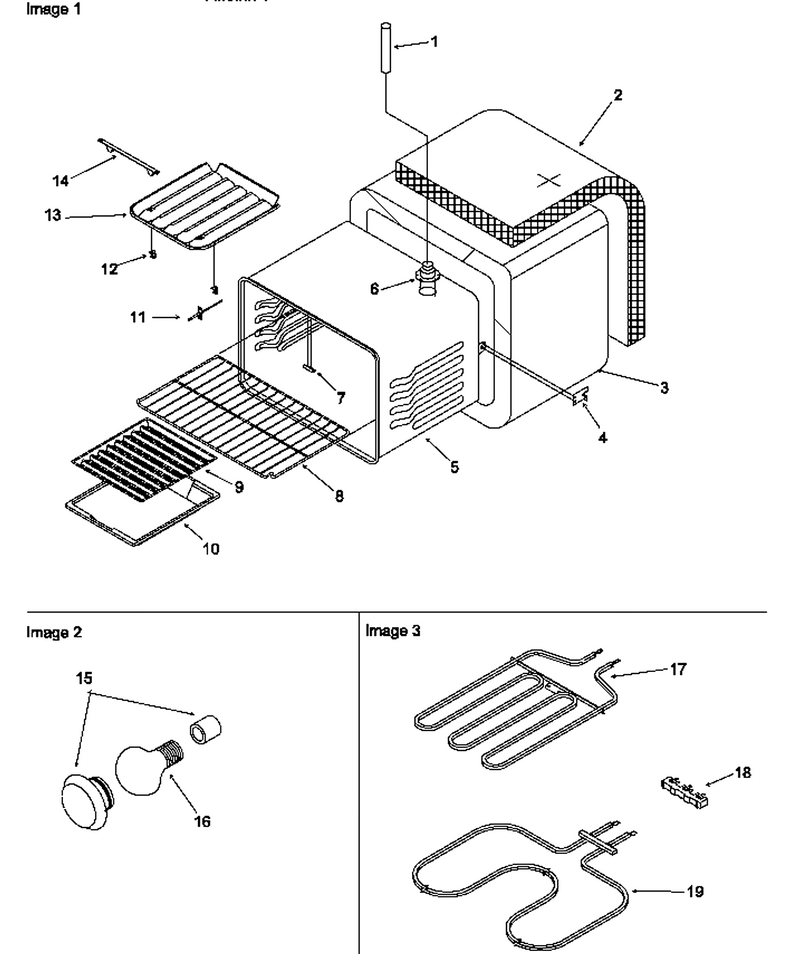

03 - Cavity

...
...
NI
Block-Term WPL-WPW10245259
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Oven Shell (El. W/lt) WPL-316953CG
...
6
Smoke Eliminator, Tall WPL-Y0316951
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Sensor WPL-WPY0314907
...
12
Bracket, Mounting WPL-0315402
...
13
Reflector, Broil Element WPL-Y0315403
...
14
Bracket, Reflector Mounting WPL-Y0061557
...
15
Light- Ove WPL-WP74011278
...
16
Light Bulb WPL-8009
...
17
Element- B WPL-WPY0061732
...
18
Block-Term WPL-WP8203546
...
19
Element- B WPL-WP77001094

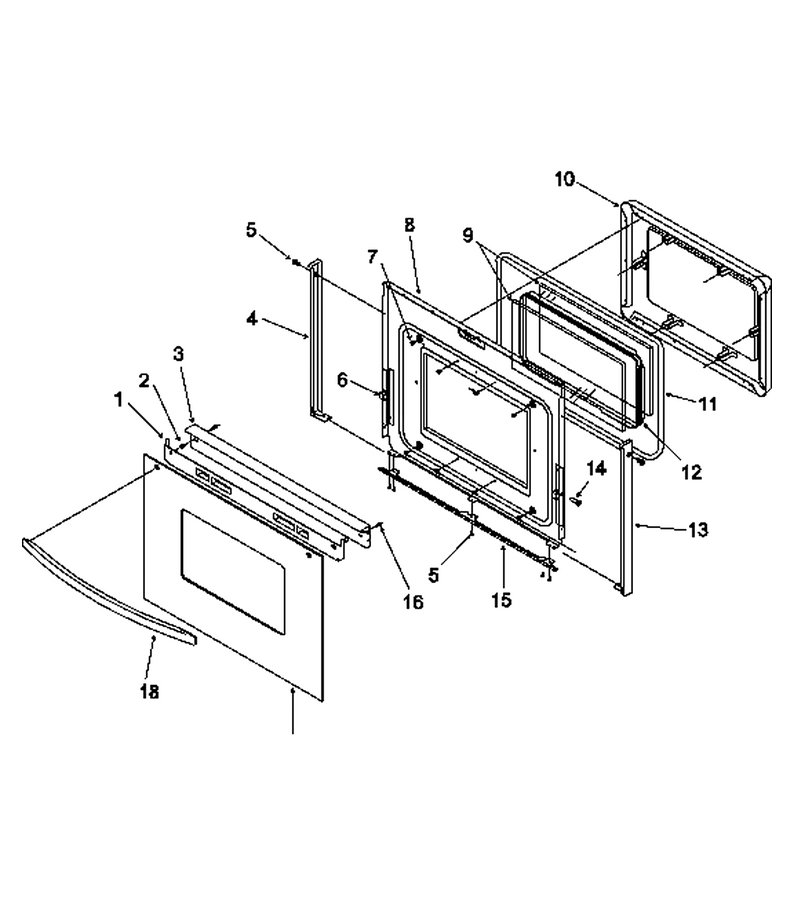

05 - Oven Door

...
...
NI
Insulation, Oven Door WPL-31977701
...
1
Assy, Glass Heat Shield WPL-316981B
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Blk) WPL-32054201B
...
4
End Cap, Lt (Blk) WPL-309458B
...
5
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
6
Bumper, Rubber WPL-Y0309627
...
7
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
8
Backer, Oven Door (Elec) WPL-317028CG
...
9
Glass Window 18`` X 11`` X 3/16`` WPL-Y0309074
...
10
Pad, Oven Door WPL-317021CG
...
11
Gasket, Oven Door (67``) WPL-31715902
...
12
Frame, Window Pack WPL-Y0309071
...
13
End Cap, Rt (Blk) WPL-309457B
...
14
Rivet, Pop WPL-Y0302648
...
15
Asy- Door WPL-12002810
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass, Oven Dr (Black) WPL-315944B
...
18
Handle, Oven Door (Blk) WPL-77001118

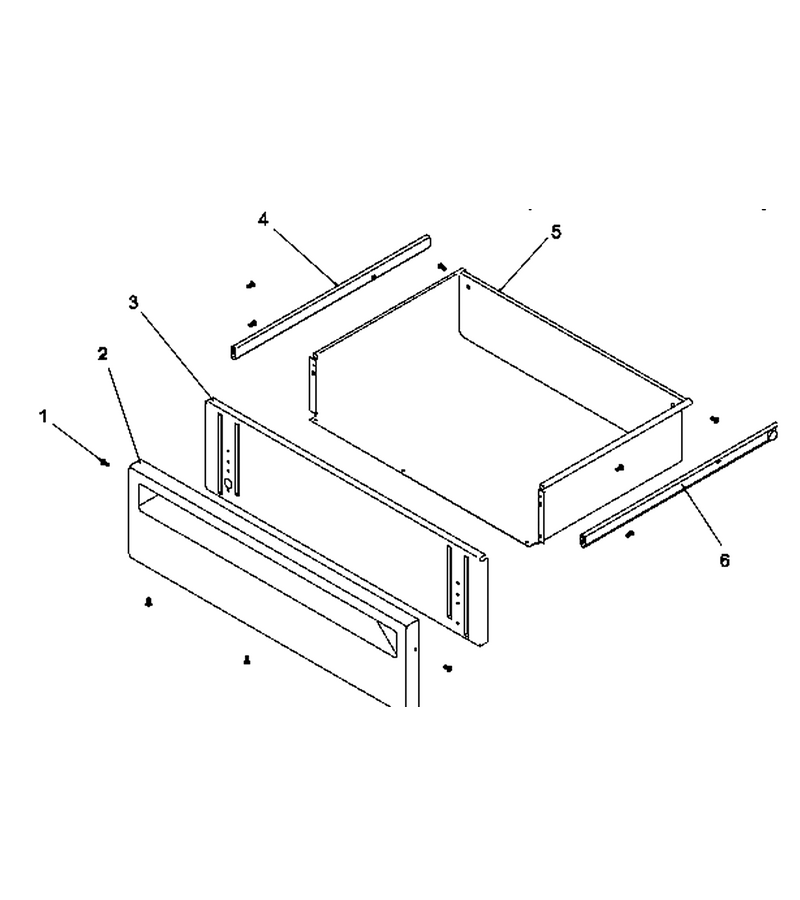

06 - Storage Drawer

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Screw WPL-W11245710
...
2
Panel, Drawer (Wht) WPL-309177W
...
3
Liner, Drawer Panel (Blk) WPL-31930601B
...
4
Runner Storage Dwr-Lh WPL-0314664
...
5
Drawer, Storage (Wht) WPL-32059403W
...
6
Runner Storage Dwr-Rh WPL-Y0314665

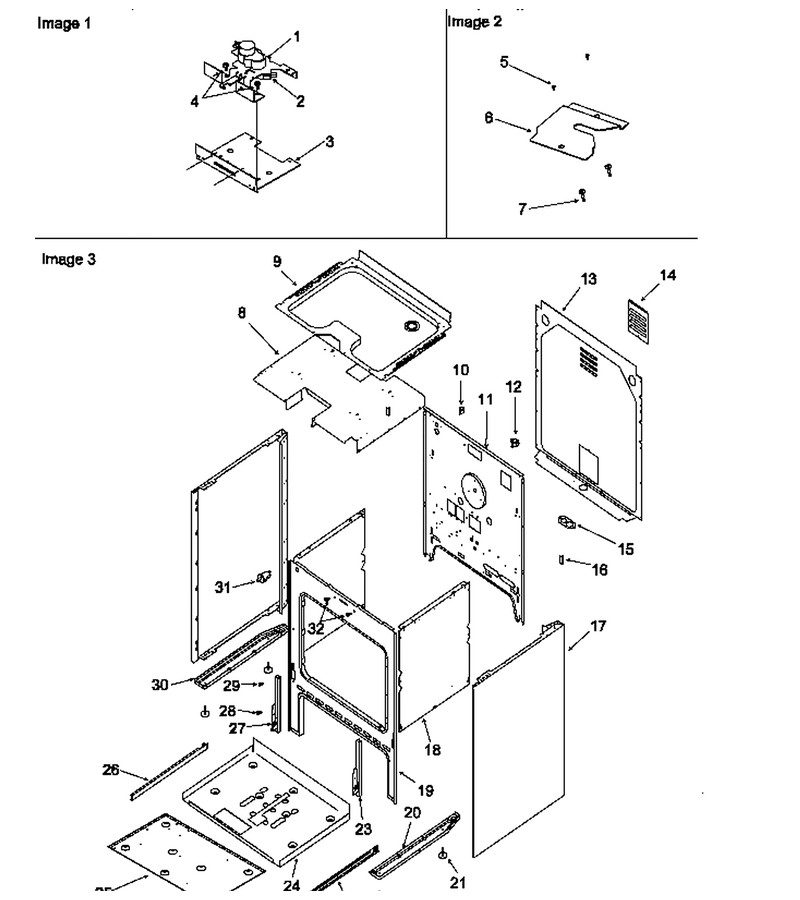

02 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Latch, Auto WPL-Y0315908
...
2
Switch WPL-0316767
...
3
Bracket, Latch Mounting WPL-31848301
...
4
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
5
Screw Cabinet Trim WPL-Y0041813
...
6
Bracket, Anti Tip WPL-31945201
...
7
Anchor, Plastic WPL-Y0301555
...
8
Retainer, Top Insulation WPL-31723601
...
9
Baffle, Drip (Enamel) WPL-31836001CG
...
10
Wire Clip WPL-Y0041875
...
11
Retainer, Rear (Elec) WPL-31733901
...
12
Switch, Hi Limit WPL-Y0053584
...
13
Cover, Rear WPL-31757101
...
14
Plate, Access WPL-31757201
...
15
Plate, Main Inlet Wire WPL-0058311
...
16
Cable, Clip Esm WPL-Y0091587
...
17
Panel, Side (Wht) WPL-31825104W
...
18
Retainer, Insulation (Side) WPL-0304282
...
20
Brace, Leveling Leg (Rt) WPL-31854502
...
21
Leg,leveling Xxx WPL-314187B
...
22
Track, Storage Dwr Rh WPL-0314663
...
23
Hinge-Door WPL-R0706011
...
24
Retainer, Insulation (Bottom) WPL-Y0309061
...
26
Track, Storage Dwr Lh WPL-Y0314662
...
27
Kit, Door Hinge(Lh-Hs) WPL-Y0317067
...
30
Brace, Leveling Leg (Lt) WPL-31854501
...
31
Switch, Oven Door WPL-Y0305797
...
32
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
