Amana ARR629L,W (BOM: P1142616NL,)

Model: ARR629L,W (BOM: P1142616NL,)

Save Part Not Listed?
product name

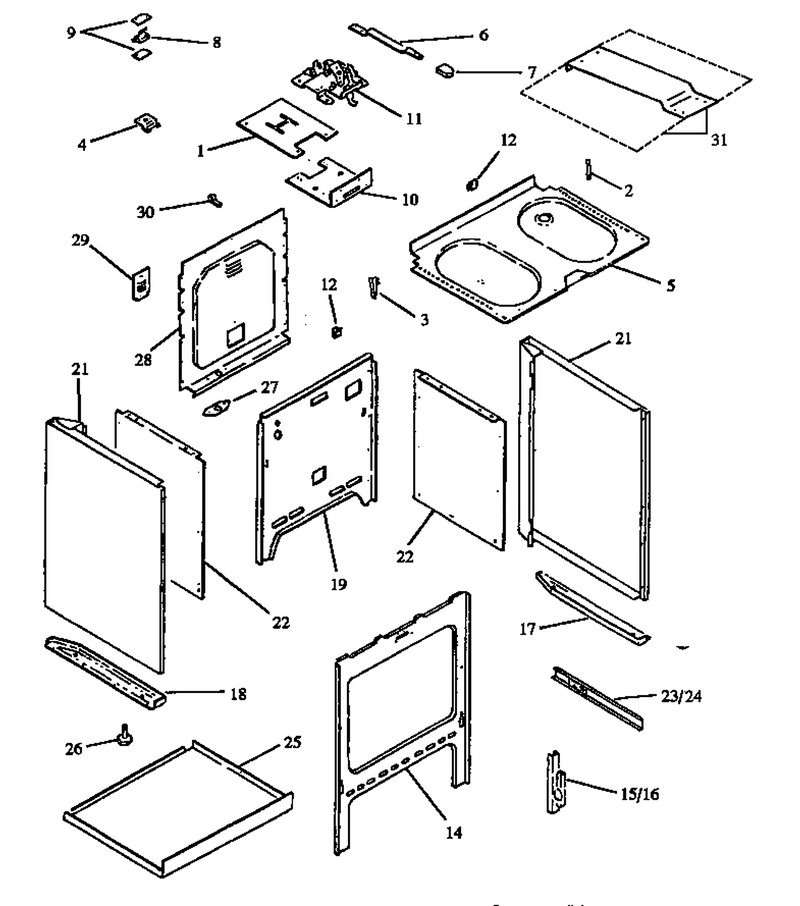

02 - Cabinet Assy

...
...
NI
Screw WPL-W11245710
...
1
Retainer, Oven Light WPL-Y0063353
...
2
Hinge, Strap WPL-0304502
...
3
Hinge, Strap WPL-0304502
...
4
Bracket, Switch WPL-Y0302316
...
5
Baffle, Drip (Enamel) WPL-31836001CG
...
6
Latch Arm Black WPL-Y065779B
...
7
Knob, Latch Handle (Blk) WPL-0302300
...
8
Switch, Clean Circuit WPL-Y0065780
...
9
Insulation, Esm WPL-Y0091523
...
10
Bracket, Latch Mtg. WPL-Y0058918
...
11
Latch, Ov. Door WPL-Y0059565
...
12
Cable, Clip Esm WPL-Y0091587
...
15
Hinge-Door WPL-R0706011
...
16
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
17
Brace, Leveling Leg (Rt) WPL-31854502
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Insulation Retainer Rear WPL-Y0303364
...
21
Panel, Side (Wht) WPL-31825104W
...
22
Retainer, Insulation (Side) WPL-0304282
...
23
Track, Storage Dwr Lh WPL-Y0314662
...
24
Track, Storage Dwr Rh WPL-0306403
...
25
Ins. Retainer, Bottom WPL-Y0057531
...
26
Leg, Leveling WPL-Y0307594
...
27
Plate, Main Inlet Wire WPL-0058311
...
28
Cover, Rear WPL-Y0058434
...
29
Plate, Access WPL-31757201
...
30
Clamp, Wire-Insulate WPL-Y0068513
...
31
Retainer, Top Insulation WPL-31723601

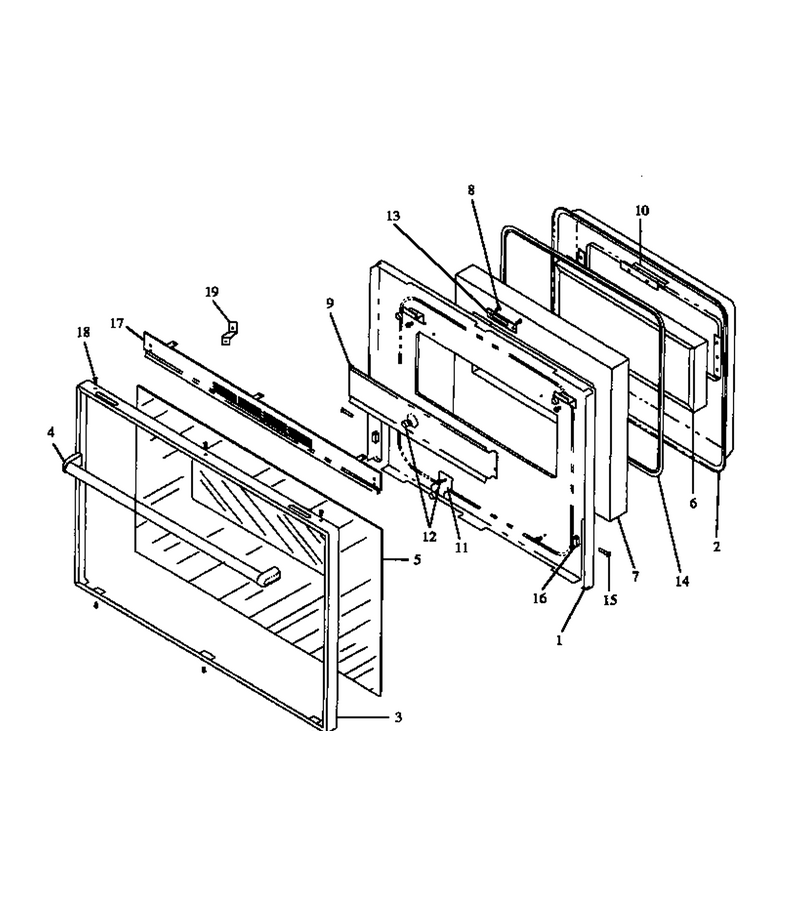

06 - Oven Door

...
...
NI
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079863
...
1
Door Backer, Electric (Cg) WPL-302723E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Oven Door (Black) WPL-308071B
...
4
Kit, Dr Hndl/trim (Black) WPL-Y0305519
...
5
Glass, Oven Door WPL-Y0300791
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Screw WPL-W11245710
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Kit, Dr Hndl/trim (Black) WPL-Y0305525
...
18
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
19
Support, Door Glass WPL-Y0307910

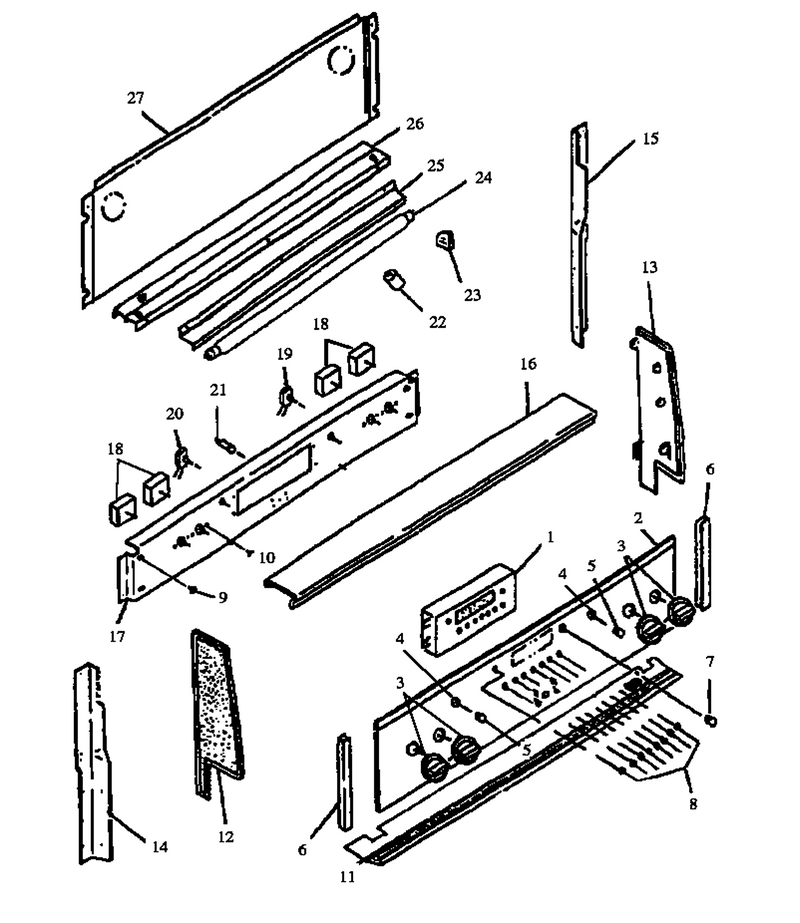

01 - Backguard

...
...
NI
Tape, Seal 1=1ft WPL-0069187
...
1
Erc (Electronic Clock) WPL-Y0304555
...
2
Glass, Backguard WPL-0307278
...
3
Knob-Infinite Sw (Bl) WPL-0305511
...
4
Bezel Panel Switch WPL-0305319
...
5
Switch, Cap WPL-0305984
...
6
Channel Glass (Blk) WPL-0305309
...
7
Knob, Clock (Black) WPL-308385B
...
8
Knob, Set Button (Blk) WPL-Y0305310
...
9
Bumper, Oven Door WPL-Y0063661
...
10
Screw WPL-W11245710
...
11
Kit, Vent Rework-Blk WPL-306198B
...
12
End Cap-Bkgd Lt/rt (Blk) WPL-R0703589
...
13
End Cap-Bkgd Lt/rt (Blk) WPL-R0703589
...
14
Support, Bkgd (Lh) WPL-0306589
...
15
Support, Bkgd (Rh) WPL-0306590
...
16
Trim, Top Backguard (Blk) WPL-304955B
...
17
Panel, Control WPL-Y0309723
...
18
Switch, Infinite WPL-0071745
...
19
Screw WPL-WP3400882
...
20
Kit, Light Switch WPL-306824B
...
21
Light, Indicator (Red) WPL-Y0305660
...
22
Light Diffuser Backguard-Clear WPL-0304977
...
23
Bracket, Retainer WPL-0305033
...
24
Cover, Backguard WPL-0309137

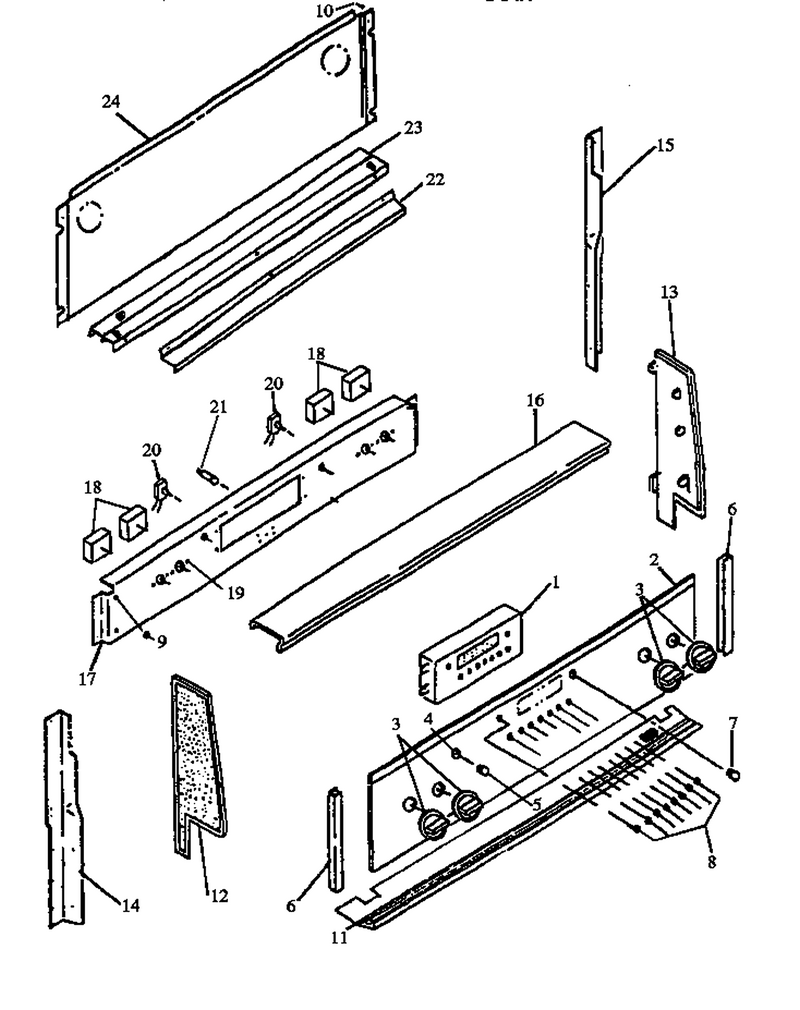

03 - Control Panel

...
...
11
Trim, Lower WPL-305909W

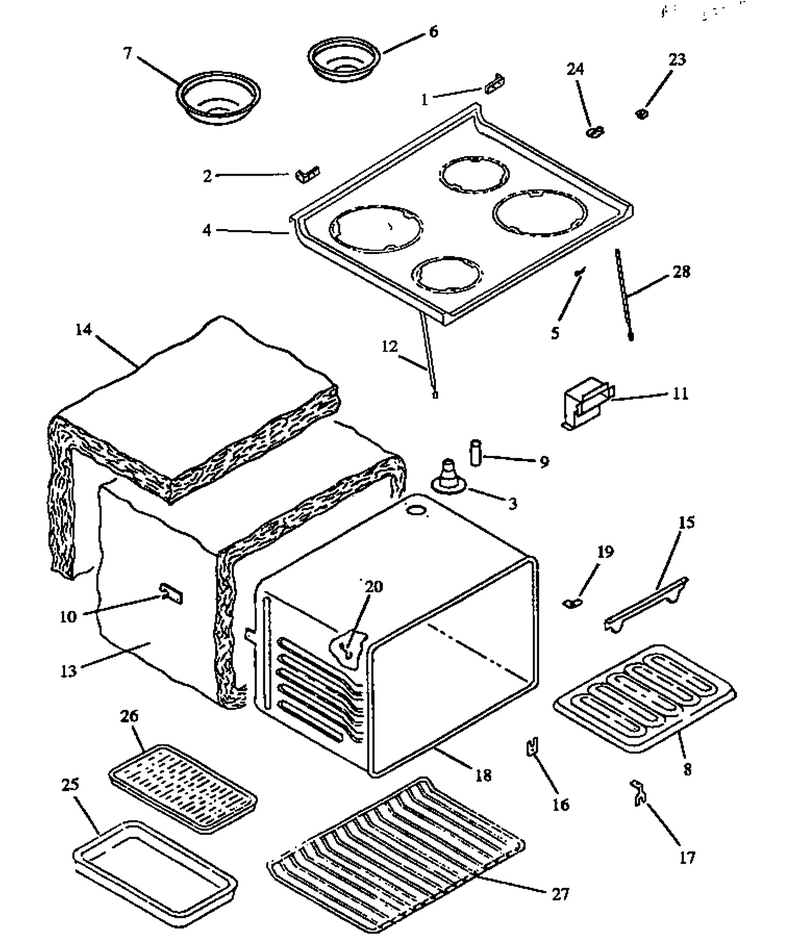

05 - Main Top And Oven Assy

...
...
NI
Rivet, Pop WPL-Y0097822
...
1
Brkt, Hinge Strap Mtg WPL-Y0306150
...
2
Brkt, Hinge Strap Mtg WPL-Y0306150
...
3
Smoke Eliminator WPL-Y0058526
...
4
Main Top-Electric Upswept WPL-306899L
...
5
Pin, Support Rod WPL-0071668
...
6
Bowl-Drip WPL-W10290353RW
...
7
Bowl-Drip WPL-W10290350RW
...
8
Reflector, Broil Element WPL-Y0315403
...
9
Tube, Vent Ext. WPL-0063336
...
10
Bracket, Oven Cavity WPL-Y0058852
...
12
Support, Maintop WPL-Y0315430
...
13
Insulation, Wrapper WPL-0300973
...
14
Insulation, Wrapper WPL-31975801
...
15
Bracket, Reflector Mounting WPL-Y0061557
...
16
Capillary Hole Cover WPL-Y0063351
...
17
Bracket, Element Mounting WPL-Y061556
...
18
Oven Shell (El. W/lt) WPL-31821101CG
...
19
Chip Cover WPL-0300278
...
20
Clip, Thermo Capillary WPL-Y0067053
...
23
Cable, Clip Esm WPL-Y0091587
...
24
Wire Clamp WPL-Y001203
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Procelain Broiler (Pan And Grid) WPL-4396923
...
27
Rack-Oven WPL-WP314763J
...
28
Support, Maintop WPL-Y0315430

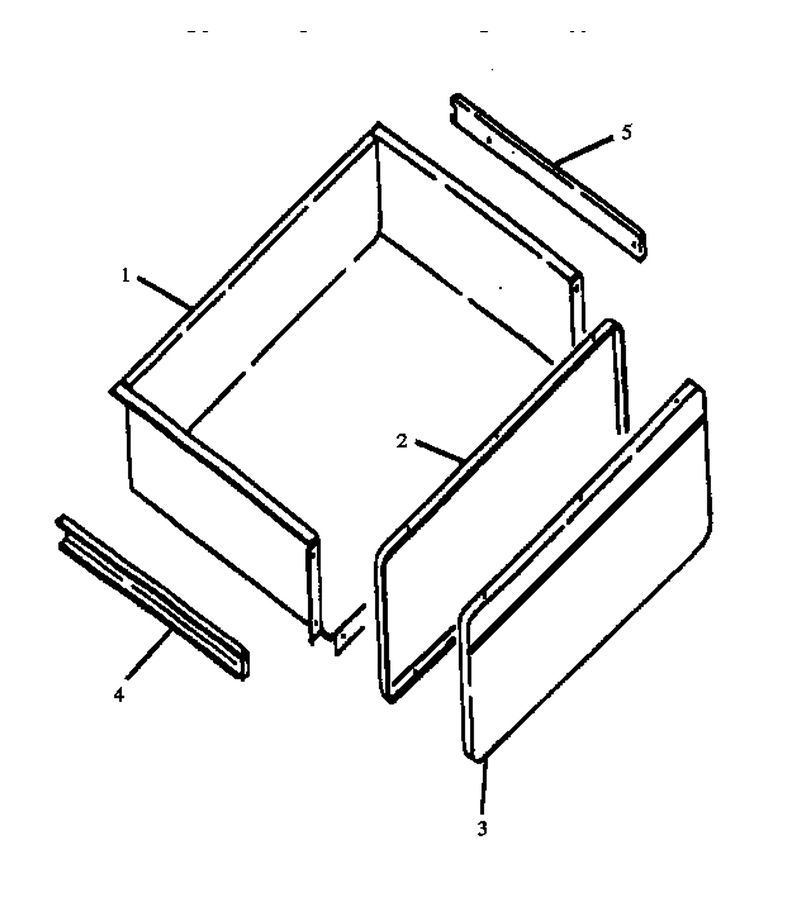

07 - Storage Drawer

...
...
NI
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Liner, Stor Drawer WPL-306521W
...
3
Drawer Panel Black WPL-Y063702B
...
4
Runner, Storage Door, L.h. WPL-Y0300476
...
5
Runner, Storage Door R.h. WPL-0300477

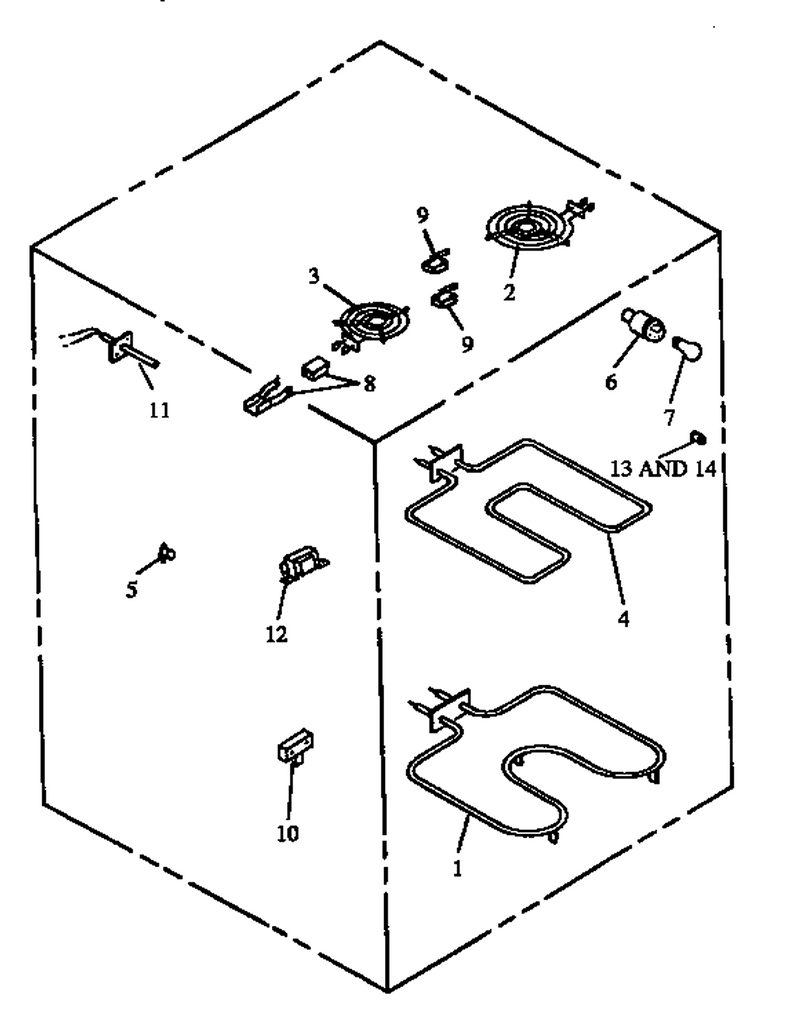

04 - Electrical Components

...
...
NI
Clip, Element Retainer WPL-Y0307930
...
1
Element- B WPL-WP77001094
...
2
Elmnt-Surf WPL-WPW10259865
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Element- B WPL-WPY0061732
...
5
Switch, Hi Limit WPL-Y0053584
...
6
Light- Ove WPL-WP74011278
...
7
Light Bulb WPL-8009
...
8
Receptacle WPL-330031
...
9
Switch, Clean Circuit WPL-Y0065780
...
10
Block-Term WPL-WP8203546
...
11
Sensor WPL-WPY0314907
...
12
Ballast WPL-Y0071869
...
14
Switch, Oven Light WPL-866294
