Amana ARR623L-P1130983NL Electric Range

Model: ARR623L-P1130983NL

Save Part Not Listed?
product name

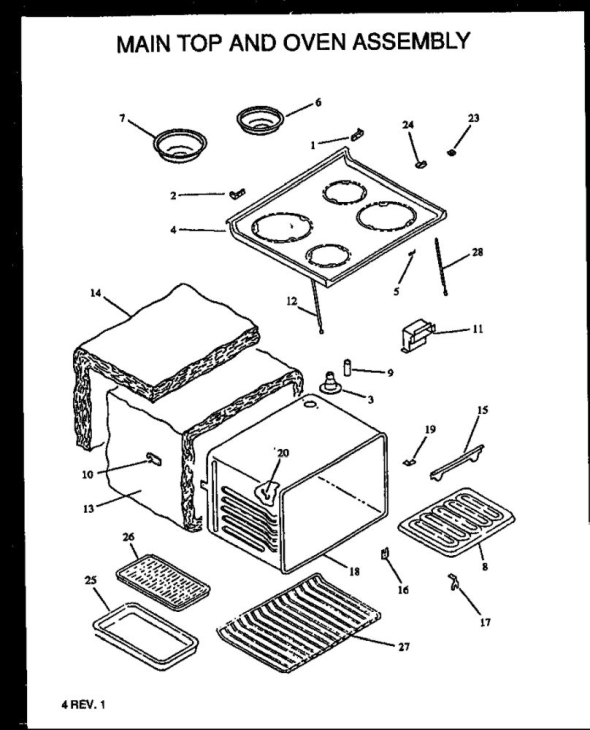

Amana ARR623L-P1130983NL

...
...
26
Range Broil Pan WPL-4396923
...
27
Range Oven Rack (Replaces 314763J) WPL-WP314763J

Amana ARR623L-P1130983NL

...
...
1
Range Bake Element (Replaces 77001094) WPL-WP77001094
...
2
Range Coil Surface Element, 8-In (Replaces 31734606, W10259865) WPL-WPW10259865
...
4A
Range Broil Element WPL-WPY0061732
...
4B
Range Broil Element WPL-WPY0063532
...
7
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
8
Range Surface Element Receptacle (Replaces W10841094) WPL-330031
...
10B
Range Terminal Block WPL-WP8203546

Amana ARR623L-P1130983NL

...
...
NI
Refrigerator Screw WPL-W11245710
...
NI
Lamp WPL-WPY0067945
...
NIA
Refrigerator Screw WPL-W11245710
