Amana ARR3601LL (BOM: P1143637NLL)

Model: ARR3601LL (BOM: P1143637NLL)

Save Part Not Listed?
product name

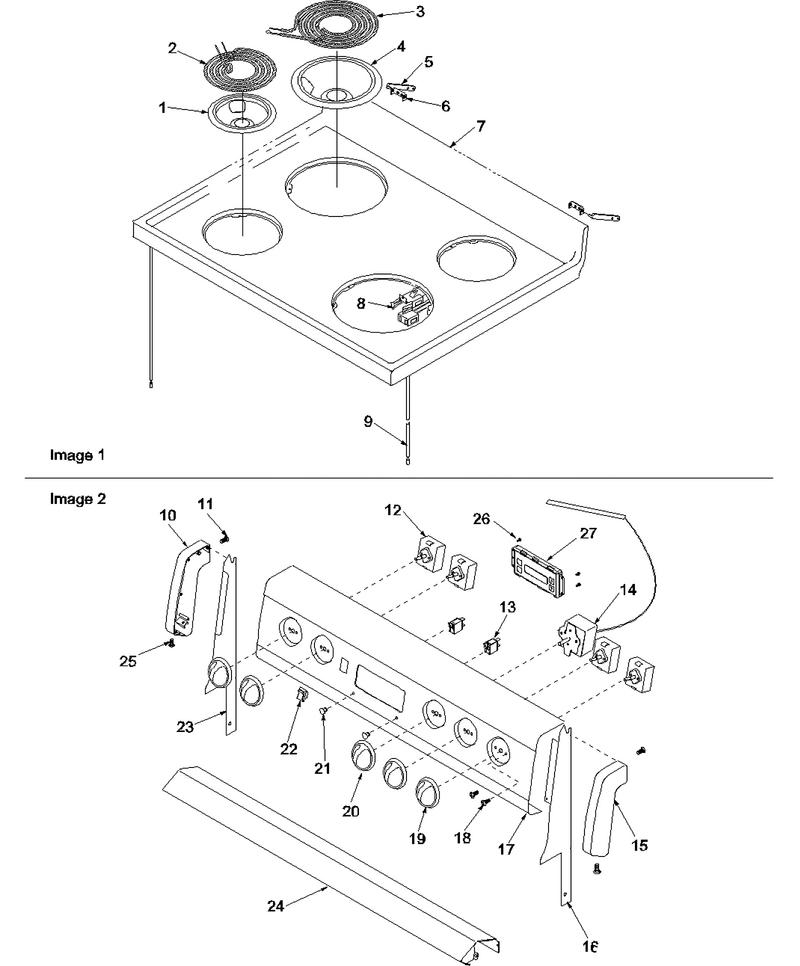

03 - Main Top And Backguard

...
...
NI
Screw WPL-W11245710
...
1
Bowl-Drip WPL-WPW10196406
...
2
Elmnt-Surf WPL-WPY04000036
...
3
Elmnt-Surf WPL-WPY04000035
...
4
Bowl-Drip WPL-WPW10196405
...
5
Pin, Hinge WPL-Y0315931
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Main Top-Electric Upswept WPL-306899L
...
8
Receptacle WPL-330031
...
9
Support, Maintop WPL-Y0315430
...
10
End Cap Lh WPL-315843L
...
11
Screw WPL-WP693995
...
12
Switch- In WPL-WP74011243
...
13
Light, Indicator WPL-Y0059221
...
14
Thermostat, Elec Nsc WPL-Y0316521
...
15
End Cap-Metal Bkgd Rh WPL-315841L
...
16
Bkgd. Support-Rh WPL-315876L
...
17
Pnl, Bkgrd (Almond) WPL-31724708L
...
18
Screw, No.8-32 X 1/4 WPL-31750714
...
19
Knob, Infinite Switch WPL-31816704L
...
20
Knob, Elec Thermostat WPL-31816702L
...
21
Lens, Indicator WPL-Y0316265
...
22
Switch, Rocker (Almond) WPL-301491L
...
23
Bkgd. Support-Lh WPL-315877L
...
24
Shield, Bkgd Trim Heat WPL-31722704B
...
25
Screw WPL-74009538
...
26
Screw WPL-WP693995
...
27
Clock Time WPL-R9900139

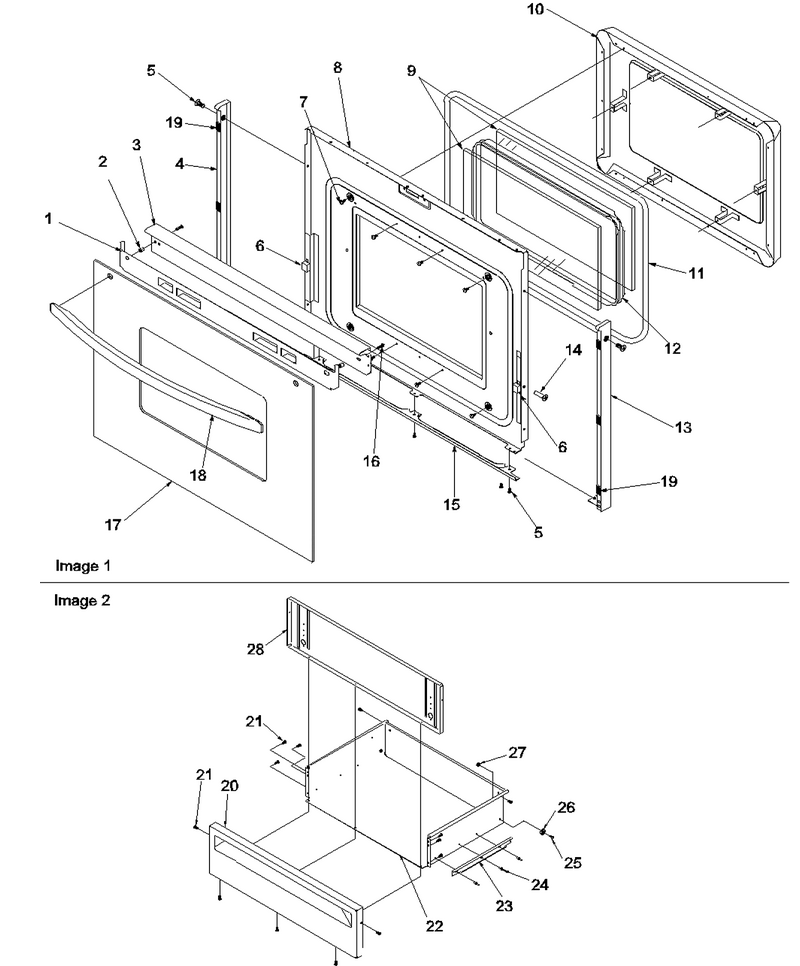

04 - Oven Door And Storage

...
...
NI
Insulation,door-Sub Backer WPL-0062614
...
1
Assy, Glass Heat Shield WPL-31833201
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top WPL-31782103L
...
4
End Cap, Lt (Alm) WPL-309458L
...
5
Screw WPL-W11245710
...
6
Bumper, Rubber WPL-Y0309627
...
7
Screw WPL-W11245710
...
8
Backer, Oven Door (Sm Window) WPL-316978CG
...
9
Glass, Double Coated WPL-Y0316974
...
10
Pad, Door (Enameled) WPL-316976CG
...
11
Gasket, Oven Door (67``) WPL-31715902
...
12
Frame, Window Pack WPL-Y0316975
...
13
End Cap, Rt (Alm) WPL-309457L
...
14
Rivet, Pop WPL-Y0302648
...
15
Support, Glass (Alm) WPL-309460L
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass, Oven Door WPL-315943L
...
18
Handle, Oven Door (Alm) WPL-31689502L
...
19
Tape, Foam WPL-0043184
...
20
Panel, Drawer (Alm) WPL-309177L
...
21
Screw WPL-W11245710
...
22
Drawer, Storage (Wht) WPL-32059403W
...
23
Track, Storage Drawer WPL-31733301
...
24
Rivet, Pop WPL-Y0097822
...
25
Bolt, Shoulder 10-32 WPL-31750717
...
26
Roller, Drawer WPL-31733401
...
27
Nut WPL-M0282009
...
28
Liner, Drawer Panel (Blk) WPL-31930601B

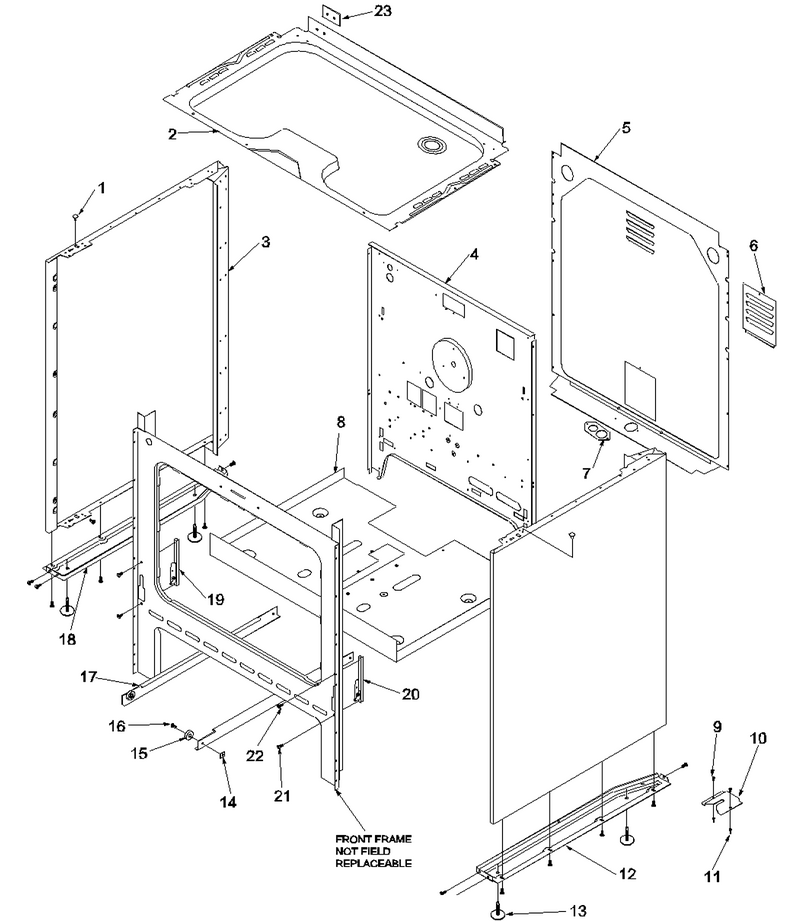

01 - Cabinet

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Spacer, Snap-In WPL-31717001
...
2
Baffle, Drip (Enamel) WPL-31836001CG
...
3
Panel, Side (Alm) WPL-31825103L
...
4
Retainer, Rear (Elec) WPL-31733901
...
5
Cover, Rear WPL-31757101
...
6
Plate, Access WPL-31757201
...
7
Plate, Main Inlet Wire WPL-0058311
...
8
Retainer, Insulation (Bottom) WPL-Y0309061
...
9
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
10
Bracket, Anti Tip WPL-31945201
...
11
Anchor, Plastic WPL-Y0301555
...
12
Brace, Leveling Leg (Rt) WPL-31854502
...
13
Leg,leveling Xxx WPL-314187B
...
14
Nut WPL-M0282009
...
15
Roller, Drawer WPL-31733401
...
16
Bolt, Shoulder 10-32 WPL-31750717
...
17
Track, Mounting WPL-32075601
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Hinge, Oven Door (Lt) WPL-31715201
...
20
Hinge-Door WPL-R0706011
...
21
Screw WPL-WP4159193
...
22
Screw WPL-WP7101P126-60
...
23
Shield, Wiring WPL-31836101

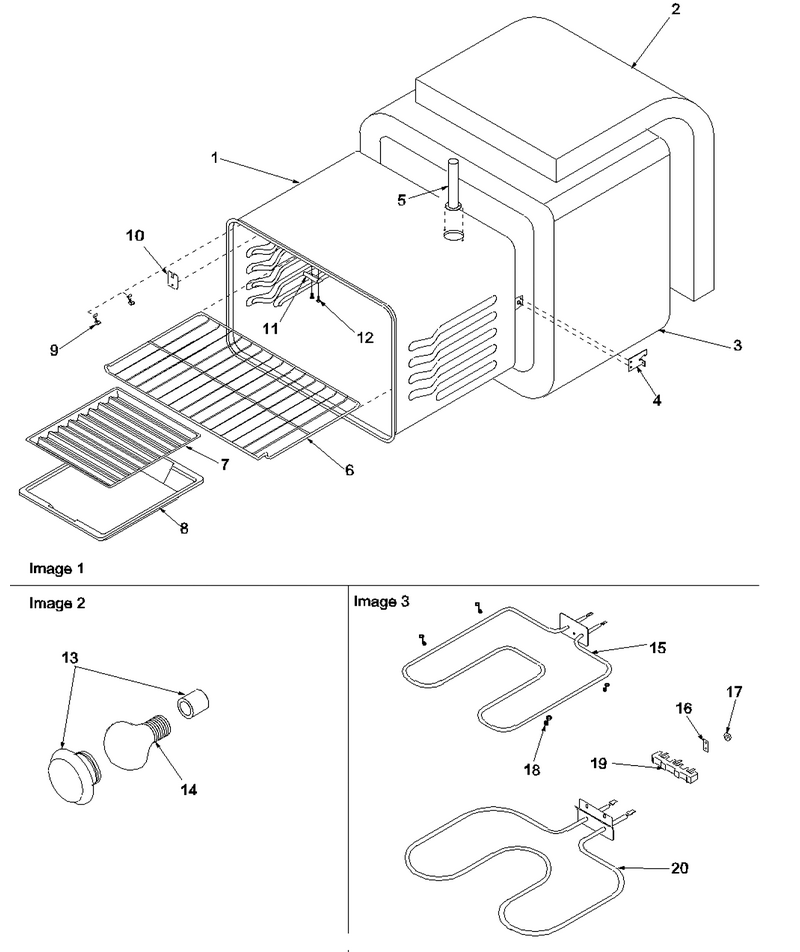

02 - Cavity

...
...
NI
Wire, Insulation Retainer 100`` WPL-31715801
...
1
Oven Shell (El. W/lt) WPL-31821501CG
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Tube, Vent Extension WPL-Y0315067
...
6
Rack-Oven WPL-WP314763J
...
7
Procelain Broiler (Pan And Grid) WPL-4396923
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Clip, Capillary WPL-0316386
...
10
Capillary Hole Cover WPL-Y0063351
...
11
Cover, Chip WPL-Y0315022
...
12
Screw WPL-W11245710
...
13
Oven Light Assy WPL-31823701
...
14
Light Bulb WPL-8009
...
15
Broil Elem WPL-WPY0063532
...
16
Block-Term WPL-WPW10245259
...
17
Hex Nut (Nkl) WPL-31750124
...
18
Clip,element WPL-0308408
...
19
Block-Term WPL-WP8203546
...
20
Element- B WPL-WP77001094
