Amana ARR3100L (BOM: P1143831N L)

Model: ARR3100L (BOM: P1143831N L)

Save Part Not Listed?
product name

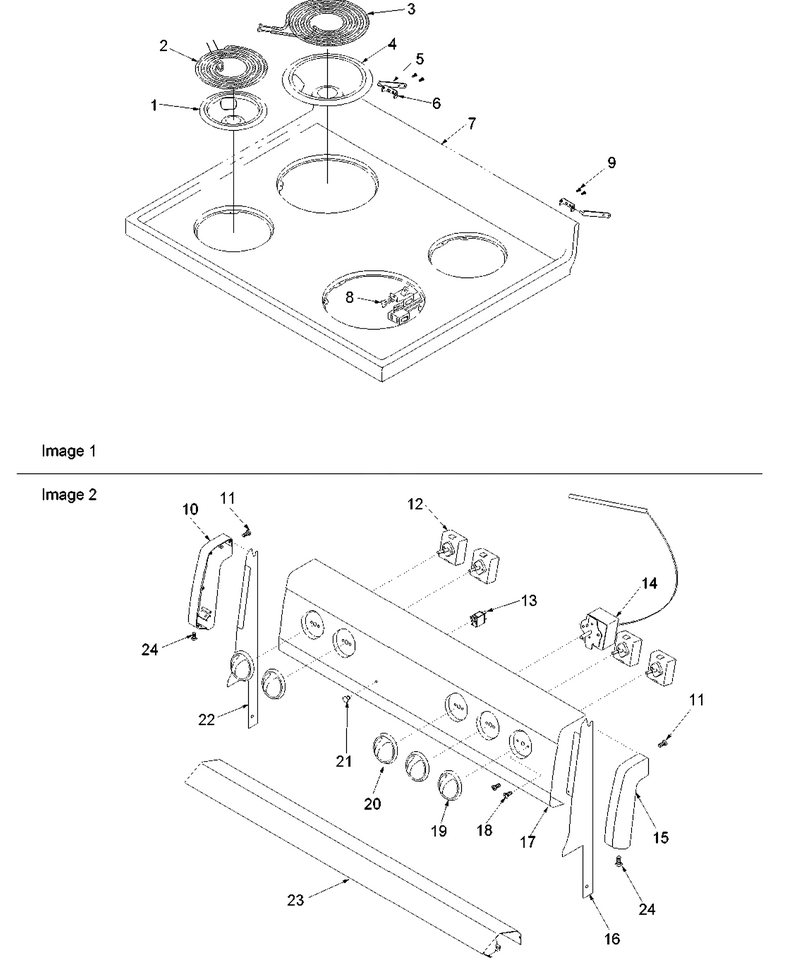

03 - Main Top And Backguard

...
...
NI
Wire Harness,backguard WPL-31803301
...
1
Bowl-Drip WPL-WPW10196406
...
2
Elmnt-Surf WPL-WPY04000036
...
3
Elmnt-Surf WPL-WPY04000035
...
4
Bowl-Drip WPL-WPW10196405
...
5
Pin, Hinge WPL-Y0315931
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Main Top-Electric Upswept WPL-306899L
...
8
Receptacle WPL-330031
...
9
Screw WPL-W11245710
...
10
End Cap WPL-WP315843B
...
11
Screw WPL-WP693995
...
12
Switch, Infinite Csi (B) WPL-31926702
...
13
Light, Indicator WPL-Y0059221
...
14
Thermostat, Elec Nsc WPL-Y0316521
...
15
End Cap WPL-WP315841B
...
16
Bkgd. Support-Rh WPL-315876B
...
17
Pnl, Bkgd W/o Erc W/switch WPL-31814720B
...
18
Screw, No.8-32 X 1/4 WPL-31750714
...
19
Knob, Infinite Switch (Blk) WPL-31932401B
...
20
Knob, Elec T`stat (Black) WPL-31816705B
...
21
Lens, Indicator WPL-Y0316265
...
22
Bkgd. Support-Lh WPL-315877B
...
23
Shield, Bkgd Trim Heat WPL-31722704B
...
24
Screw WPL-74009538

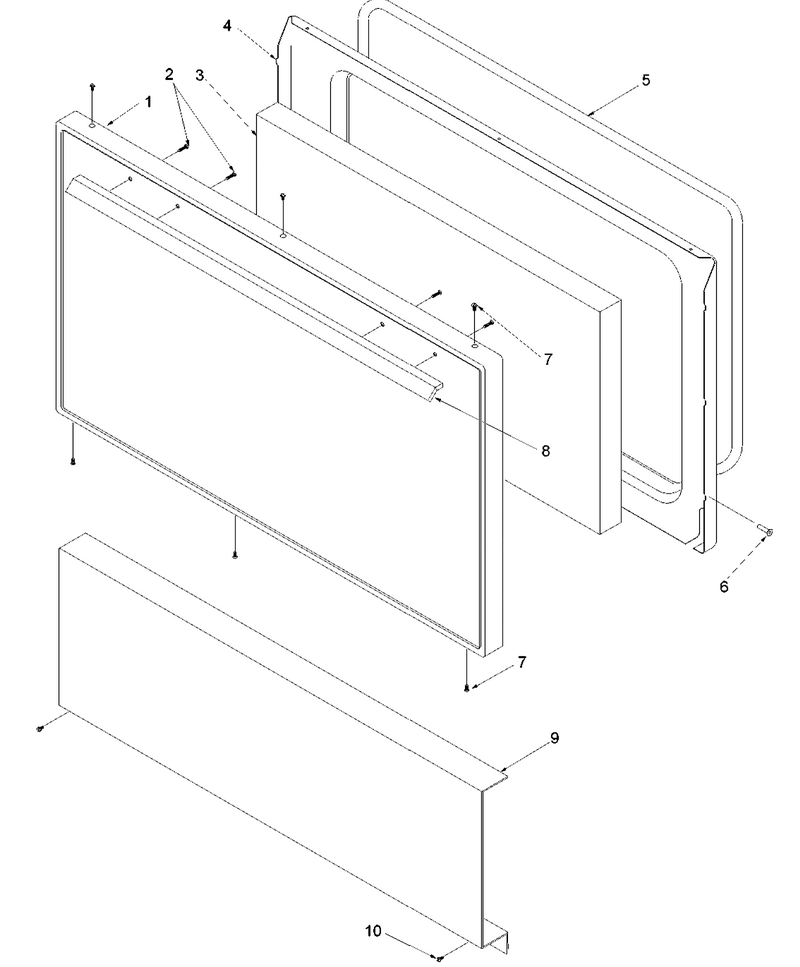

04 - Oven Door And Decorative Panel

...
...
NI
Screw WPL-W11245710
...
1
Pnl, Pntd Door (Almond) WPL-31802802L
...
2
Screw WPL-707407
...
3
Insul, Nsc Door (20x26x2 Ht) WPL-31819601
...
4
Backer, Door (Enamel) WPL-31819802CG
...
5
Gasket, Oven Door WPL-31819101
...
6
Rivet, Pop WPL-Y0302648
...
7
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
8
Handle, Visor WPL-31819006L
...
9
Panel, False (Elec Almond) WPL-31819703L
...
10
Screw, No.10-32x1/2 (Pan Ph Hd) WPL-31750517

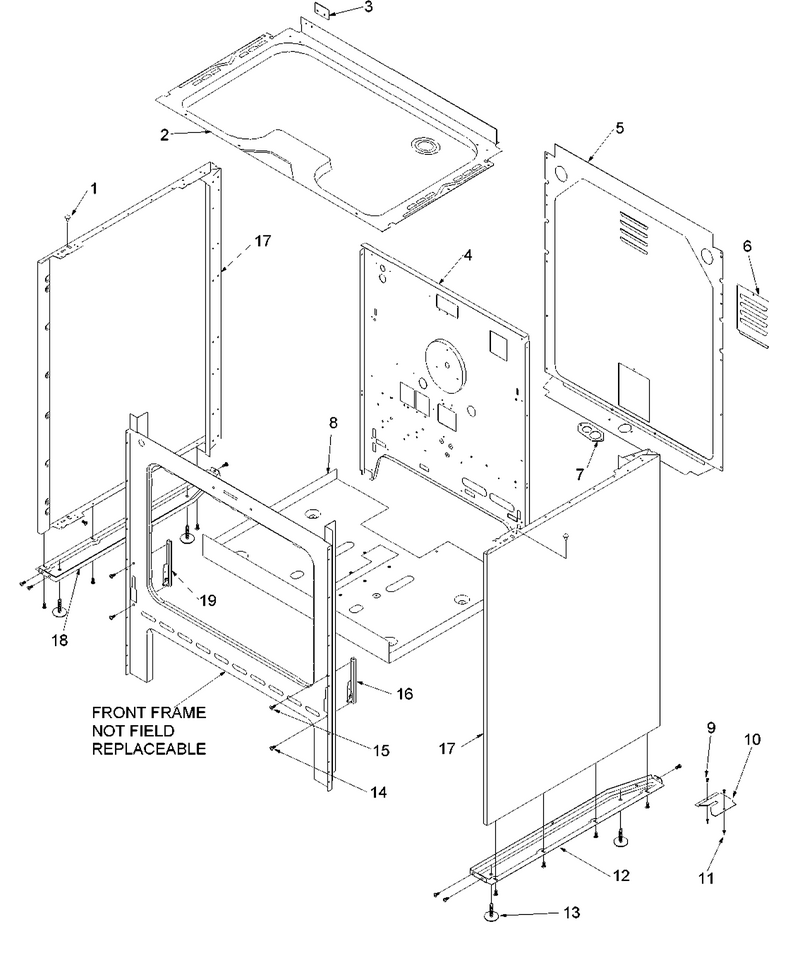

01 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Spacer, Snap-In WPL-31717001
...
2
Baffle, Drip (Enamel) WPL-31836001CG
...
3
Shield, Wiring WPL-31836101
...
4
Retainer, Rear (Elec) WPL-31733901
...
5
Cover, Rear WPL-31757101
...
6
Plate, Access WPL-31757201
...
7
Plate, Main Inlet Wire WPL-0058311
...
8
Retainer, Insulation (Bottom) WPL-Y0309061
...
9
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
10
Bracket, Anti Tip WPL-31945201
...
11
Anchor, Plastic WPL-Y0301555
...
12
Brace, Leveling Leg (Rt) WPL-31854502
...
13
Leg,leveling Xxx WPL-314187B
...
14
Screw WPL-WP4159193
...
15
Screw WPL-WP7101P126-60
...
16
Hinge, Lgt.oven Dr Rh WPL-31715204
...
17
Panel, Side (Alm) WPL-31825103L
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Hinge, Lgt.oven Dr Lh WPL-31715203

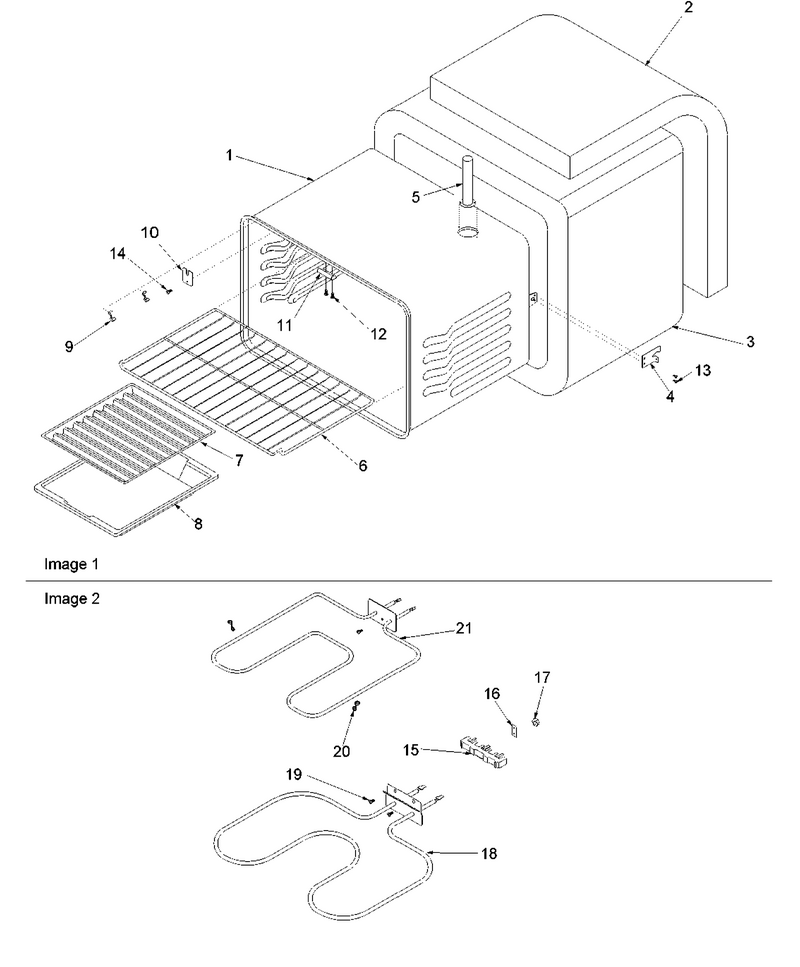

02 - Cavity

...
...
NI
Screw WPL-W11245710
...
1
Oven Shell (El. W/lt) WPL-31821501CG
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Tube, Vent Extension WPL-Y0315067
...
6
Rack-Oven WPL-WP314763J
...
7
Procelain Broiler (Pan And Grid) WPL-4396923
...
8
Procelain Broiler (Pan And Grid) WPL-4396923
...
9
Clip, Capillary WPL-0316386
...
10
Capillary Hole Cover WPL-Y0063351
...
11
Cover, Chip WPL-Y0315022
...
12
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
13
Screw WPL-WP693995
...
14
Screw WPL-W11245710
...
15
Block-Term WPL-WP8203546
...
16
Block-Term WPL-WPW10245259
...
17
Hex Nut (Nkl) WPL-31750124
...
18
Element- B WPL-WP77001094
...
19
Screw WPL-WP7101P126-60
...
20
Clip- T-St WPL-R0000343
...
21
Broil Elem WPL-WPY0063532
