Amana ARR305 (BOM: P8523503S)

Model: ARR305 (BOM: P8523503S)

Save Part Not Listed?
product name

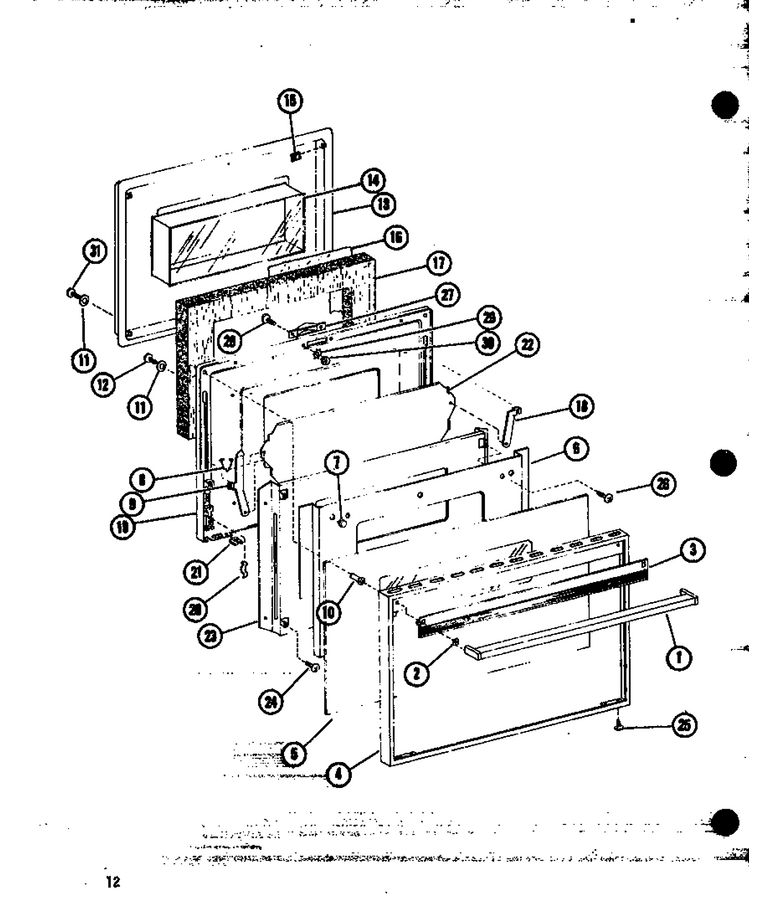

05 - Page 5

...
...
1
Handle, Oven Door WPL-B5004001
...
2
Pad WPL-A4406401
...
3
Trim Ext WPL-D8507801
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Panel WPL-D8507901
...
6
Heat Shield WPL-D8507601
...
7
Bumper-Glass WPL-A4406501
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Spacer WPL-A4406301
...
11
Washer, Padder WPL-M0271201
...
12
Screw WPL-M0203051
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation, Door Plug WPL-B5001101
...
18
Arm-Shutter Rh WPL-B5003901
...
19
Inner Panel WPL-D8506901
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
24
Screw (3) WPL-67006425
...
25
Screw WPL-W11233072
...
26
Screw WPL-M0213931
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0203218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
31
Screw WPL-W11233072

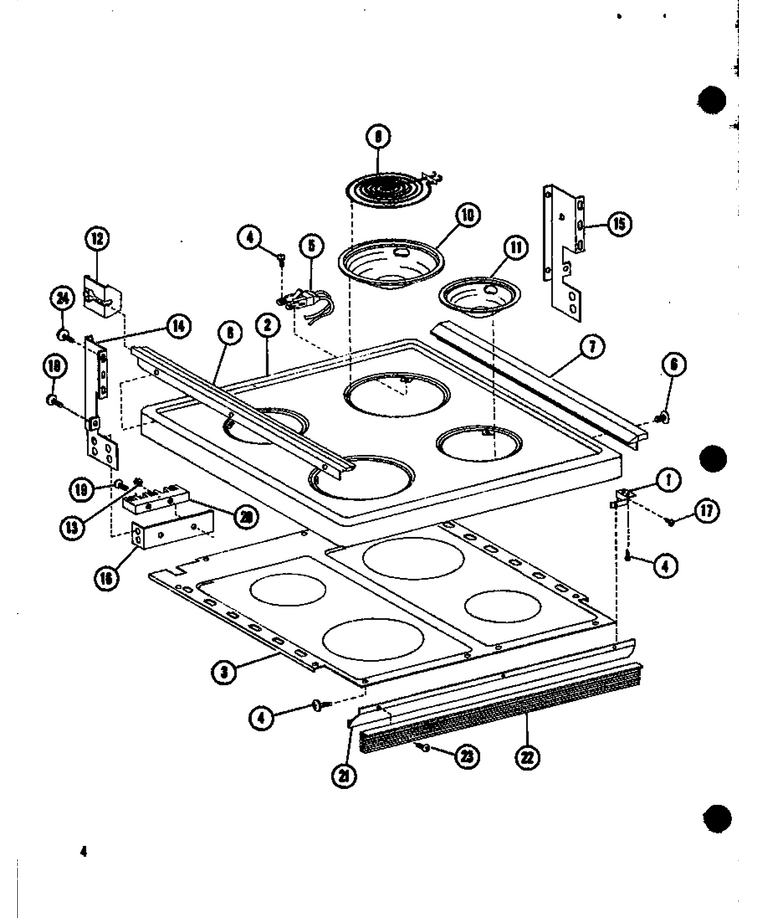

01 - Page 1

...
...
1
Brkt-Front Lh WPL-C2709002
...
2
Range Top (Alm) WPL-D8520105
...
3
Drip Pan WPL-D8520201
...
4
Screw-Tr No.8-32 X 1/2``, Door Handle WPL-M0234030
...
5
Receptacle WPL-330031
...
6
Screw WPL-WP59002061
...
7
Trim Rh WPL-D8517301
...
8
Trim Lh WPL-D8517302
...
9
Elmnt-Surf WPL-WPW10259868
...
10
Bowl-Drip WPL-WPW10196405
...
11
Bowl-Drip WPL-WPW10196406
...
12
Brkt-End Cap WPL-B5011301
...
13
Usr 0041847 WPL-M0282402
...
14
Brkt-Rear WPL-D8516401
...
15
Brkt-Rear WPL-D8516402
...
16
Brkt-Terminal Block WPL-B5004701
...
17
Screw WPL-M0213931
...
18
Screw WPL-WP90767
...
19
Screw WPL-M0211545
...
20
Block-Term WPL-WP8203546
...
21
Guard WPL-C2706101
...
22
Grille, Front WPL-D8509403
...
23
Screw WPL-M0217616
...
24
Screw WPL-M0213155

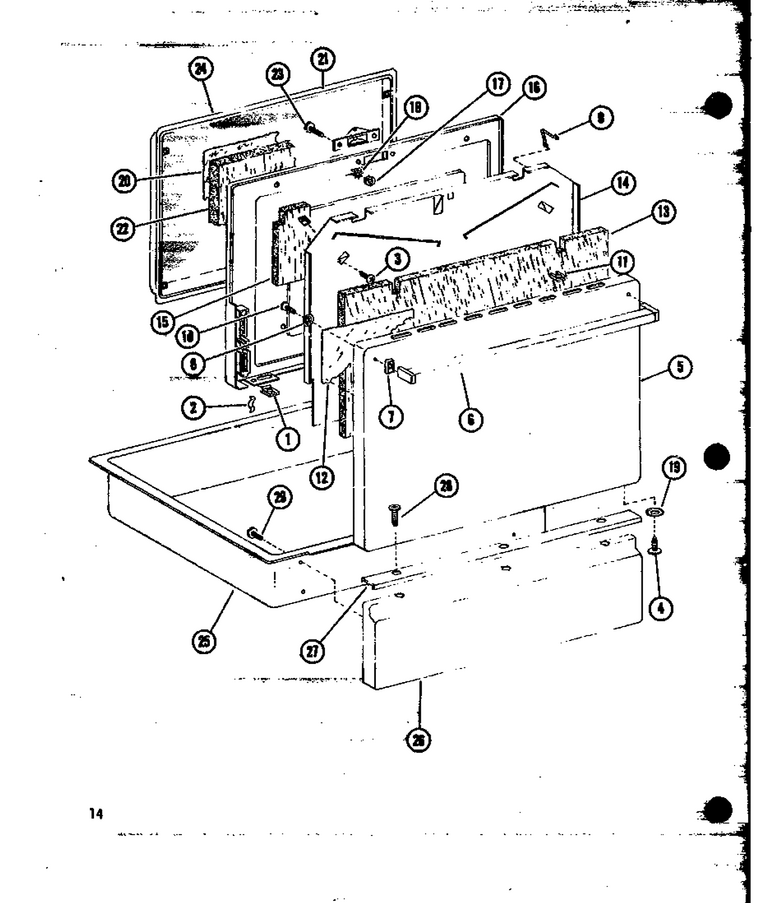

06 - Page 6

...
...
25
See Serv Ltr Cba 121 WPL-D8508001
...
26
Door Weldment, Gold WPL-C2707704
...
27
Handle, Drawer WPL-D8514301
...
28
Screw WPL-M0214528
...
29
Screw WPL-WP90767

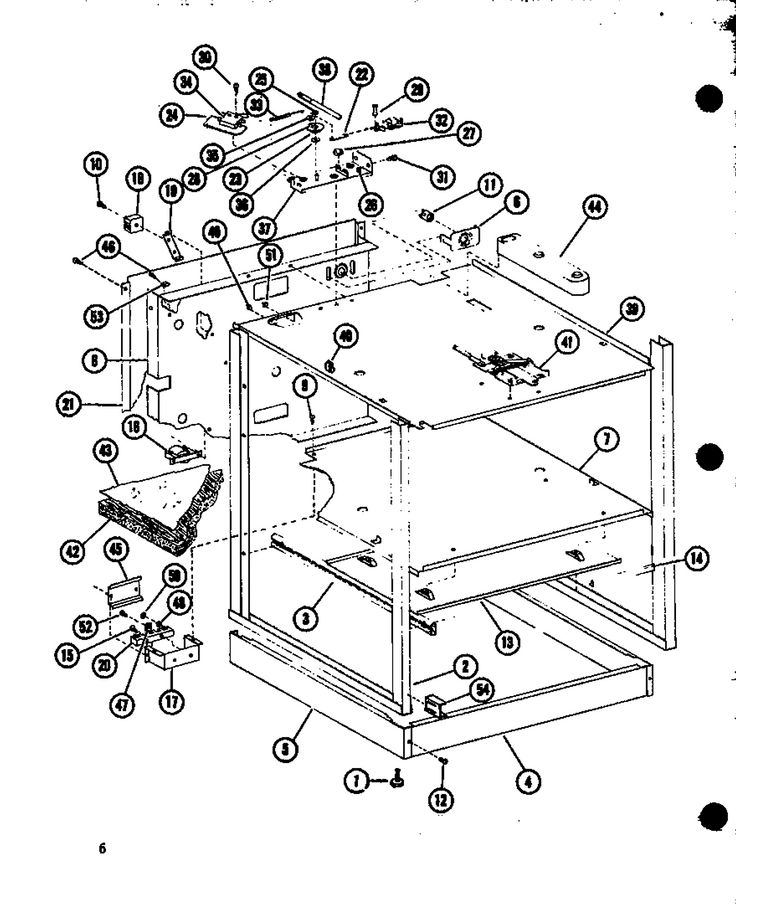

02 - Page 2

...
...
NI
Package Range Wire WPL-R0157518
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Wld WPL-D8504102
...
3
Glide WPL-C2705301
...
4
Panel, Kick Front WPL-C2706701
...
5
Panel, Kick Side WPL-C2706601
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer WPL-D8506301
...
9
Screw WPL-WP90767
...
10
Screw WPL-M0211550
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-M0214217
...
13
Heat Shield WPL-C2706801
...
14
Extrusion, Heat Shield WPL-B5006101
...
15
Screw WPL-M0211545
...
16
Ballast WPL-74003033
...
17
Brkt-Term Block WPL-C2705001
...
18
Relay WPL-C2704301
...
19
Brkt-Oven Relay WPL-B5001001
...
20
Block-Term WPL-WP8203546
...
21
Lwr Lead Cover Kit WPL-R0199214
...
22
Arm-Actuator WPL-A4405801
...
23
Cam, Lock Solenoid WPL-B5004201
...
24
Insulator-Switch WPL-A4405601
...
25
Speed Nut A- K WPL-M0287901
...
26
Clip WPL-M0119701
...
27
Pad WPL-A4405901
...
28
Pin-Grooved WPL-A4405701
...
29
Pop Rivet WPL-M0010212
...
30
Screw WPL-M0227520
...
31
Screw WPL-WP74004005
...
32
Solenoid, Lock WPL-Y0306856
...
33
Spring, Solenoid WPL-Y0306846
...
34
Switch, Limit WPL-B5004401
...
35
Washer WPL-M0270501
...
36
Washer WPL-M0270515
...
37
Assy, Latch Solenoid WPL-C2705401
...
38
Arm WPL-B5004501
...
39
Retainer WPL-D8506201
...
40
Clip WPL-M0110503
...
41
Assy, Door Latch (10442001) WPL-D8508301
...
42
Insulation K WPL-B5002301
...
43
Foil Aluminum K WPL-A4400601
...
44
Duct-Vent WPL-C2706401
...
45
Cover WPL-B5003501
...
46
Screw WPL-M0213931
...
47
Strap-Grd WPL-A4406901
...
48
Usr 0041847 WPL-M0282402
...
49
Clip-Speed Nut WPL-M0119101
...
50
Washer WPL-M0270001
...
51
Clip WPL-M0110503
...
52
Screw WPL-M0227804
...
53
Clamp WPL-M0102311

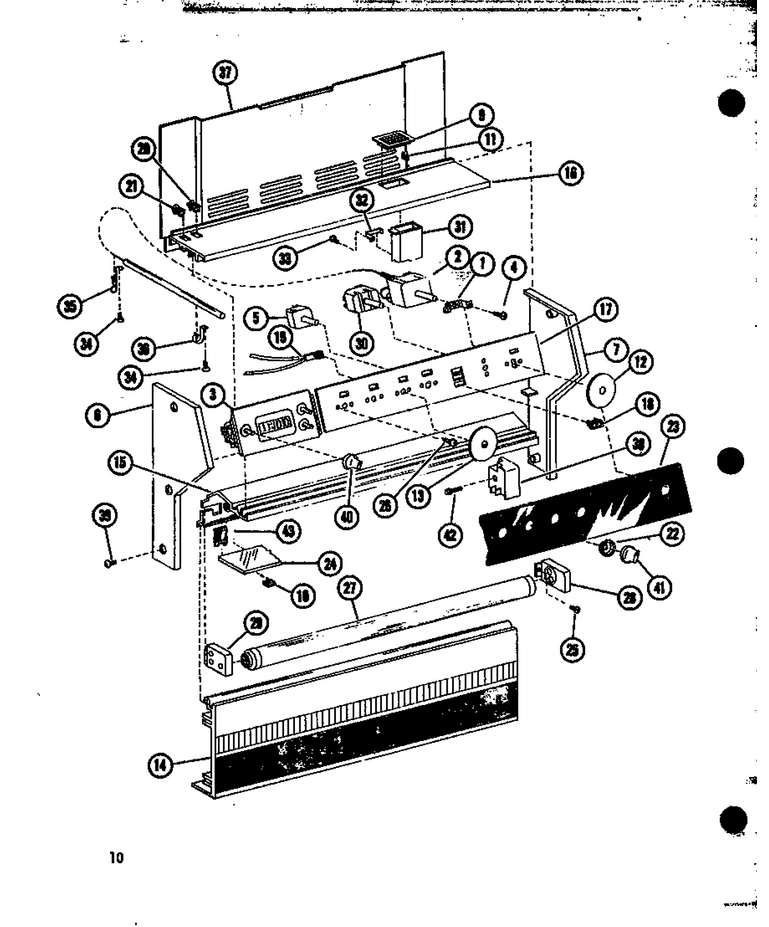

04 - Page 4

...
...
1
Brkt-Mtg WPL-A4404801
...
2
Thermostat, Oven WPL-C2712901
...
3
Timer, Digital WPL-D8500501
...
4
Screw WPL-M0202528
...
5
Switch- In WPL-R0702564
...
6
End Cap WPL-D8508701
...
7
End Cap WPL-D8508702
...
9
Vent Cap WPL-B5005501
...
10
Clip-Glass WPL-A4404901
...
11
Clip WPL-M0119301
...
12
Disc WPL-D8509003
...
13
Disc WPL-D8509007
...
14
Extrusion-Btm WPL-D8526101
...
15
Extrusion WPL-D8508801
...
16
Extrusion WPL-D8509104
...
17
Panel-Control Mtg WPL-D8508901
...
18
Indicator Light WPL-B5009706
...
19
Light Ind Kit WPL-R0157517
...
20
Switch-Light WPL-B5009901
...
21
Switch WPL-B5009902
...
22
Seal-Control WPL-A4404701
...
23
Glass Panel WPL-D8501502
...
24
Panel WPL-B5004901
...
25
Screw WPL-M0200414
...
26
Screw WPL-M0217616
...
27
Lamp- Flou WPL-WPY0067945
...
28
Socket-Rh WPL-B5009603
...
29
Socket-Lh WPL-B5009604
...
30
Switch WPL-B5005001
...
31
Duct WPL-C2706301
...
32
Brkt-Air Vent WPL-A4401601
...
33
Screw WPL-M0213155
...
34
Screw WPL-M0213430
...
35
Retainer-Bulb WPL-A4407201
...
36
Retainer-Thermo WPL-A4407801
...
37
Cover WPL-D8509601
...
38
Pulser WPL-B5010101
...
39
Screw WPL-M0234229
...
40
Knob, Dual Timer WPL-B5005101
...
42
Screw-Shoulder WPL-A3214906
...
43
Spring-Glass Ret WPL-A4405001

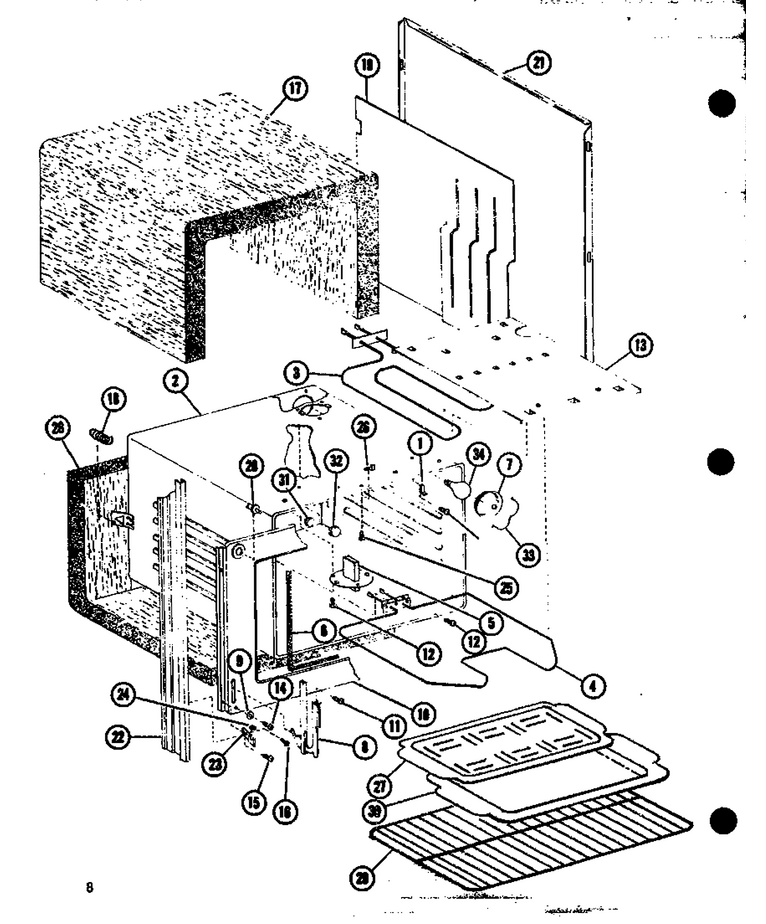

03 - Page 3

...
...
1
Brkt-Broil Refl WPL-A4407301
...
2
Oven Cavity, Weldment WPL-D8510501
...
3
Element, Broil, 250 Volts, 340 WPL-C2704601
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002601
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge Assy WPL-D8509901
...
9
Washer, Padder WPL-M0271201
...
10
Front Cav Panel Kit WPL-D8509801
...
11
Screw-Adj WPL-M0202232
...
12
Screw WPL-M0213430
...
13
Reflector-Broil WPL-D8506601
...
14
Screw WPL-M0203342
...
15
Screw WPL-WP90767
...
16
Screw WPL-W11233072
...
17
Insulation K WPL-B5003001
...
18
Spring WPL-A4407101
...
19
Retainer-Insul R WPL-D8506701
...
20
Switch- Oven Door WPL-Y0316882
...
21
Side Panel-A WPL-D8501107
...
22
Trim WPL-D8509301
...
23
Brkt-Side Pnl Rh WPL-B5010201
...
24
Bumper WPL-A4401502
...
25
Screw WPL-WP98165
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Procelain Broiler (Pan And Grid) WPL-4396923
...
28
Insulation K WPL-B5002401
...
29
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
30
Procelain Broiler (Pan And Grid) WPL-4396923
...
31
Plug Button WPL-M0311101
...
32
Plug WPL-M0311102
...
33
Retainer-Lamp WPL-A4407001
...
34
Light Bulb WPL-8009
