Amana ARR-415 (BOM: P8577101S)

Model: ARR-415 (BOM: P8577101S)

Save Part Not Listed?
product name

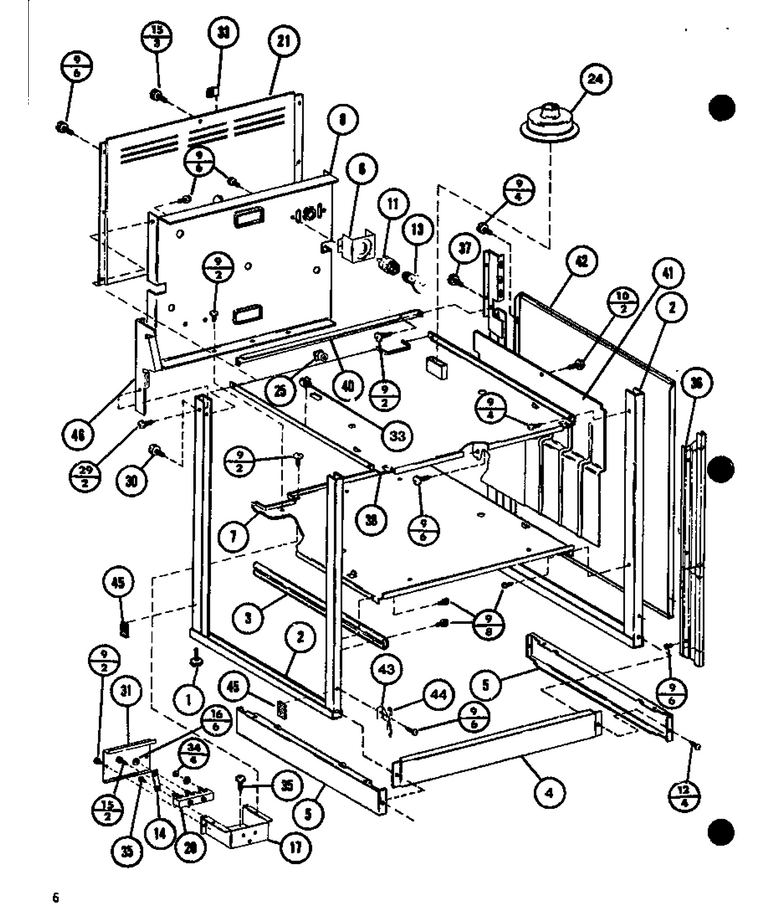

03 - Page 2

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504108
...
3
Glide WPL-C2705301
...
4
Panel WPL-C2706705
...
5
Kick Panel, Side WPL-C2706603
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer Rear Insul WPL-D8573202
...
9
Screw WPL-M0217224
...
10
Screw WPL-WP90767
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-W10856125
...
13
Light Bulb WPL-8009
...
14
Strap-Grd WPL-A4406901
...
15
Screw WPL-M0213145
...
16
Usr 0041847 WPL-M0282402
...
17
Brkt Term Block WPL-C2705002
...
20
Block-Term WPL-WP8203546
...
21
Cover, Lower Lead WPL-D8509505
...
24
Tube-Oven Vent WPL-B5012301
...
25
Grommet WPL-M0580005
...
30
Screw WPL-WP1163839
...
31
Cover WPL-B5003501
...
33
Clip WPL-M0110503
...
34
Washer WPL-M0270001
...
35
Screw WPL-M0227817
...
38
Retainer-Top Insul WPL-D8506203
...
41
Retainer-Insul R WPL-D8506701
...
42
Side Panel WPL-D8501115
...
43
Brkt-Side Pnl Rh WPL-B5010201
...
44
Bumper WPL-A4401502
...
45
Gasket WPL-B5718912

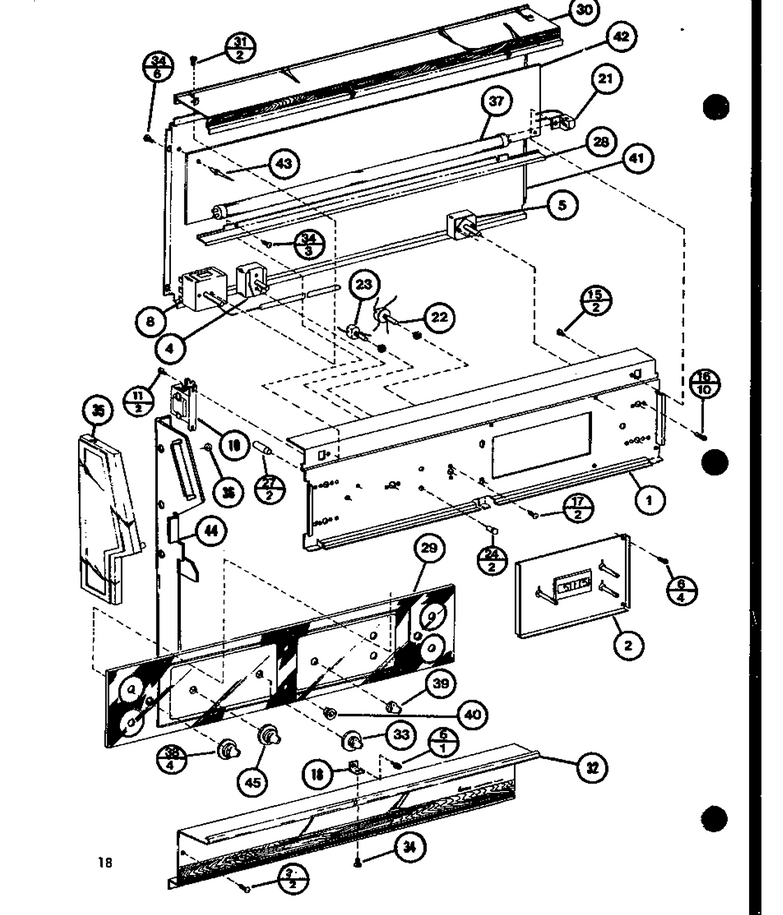

06 - Page 8

...
...
1
Control Panel WPL-D8577602
...
2
Timer, Digital WPL-D8563302
...
3
Screw WPL-M0230727
...
4
Switch Selector WPL-C2736102
...
5
Switch- In WPL-R0702564
...
6
Screw WPL-M0232702
...
8
Thermostat WPL-D8576101
...
10
Ballast WPL-74003033
...
11
Screw WPL-M0216627
...
15
Screw WPL-M0201414
...
16
Screw WPL-M0209514
...
17
Screw WPL-M0209501
...
18
Bracket-Control WPL-A4427701
...
21
Socket, Flor-Rh WPL-C2722706
...
22
Switch, Fluorescent Light WPL-C2732301
...
23
Switch WPL-C2731901
...
24
Light-Indicator/ W Clip WPL-M0360204
...
27
Light, Indicator (Red) WPL-Y0305660
...
28
Lens Light WPL-B5031401
...
29
Glass, Control WPL-D8563802
...
30
Cover Light K WPL-D8575001
...
31
Screw K WPL-M0210204
...
32
Bottom Plate WPL-D8564001
...
33
Knob Sel. Sw. WPL-C2737501
...
34
Screw WPL-WP59002061
...
35
End Cap WPL-D8564304
...
36
Nut WPL-M0288804
...
37
Lamp-Fluor WPL-WP95292
...
38
Knob Inf Sw WPL-C2737502
...
39
Knob, Dual Timer WPL-B5005101
...
40
Cap-Light Switch WPL-A4427601
...
41
Upper Lead Cover WPL-D8564202
...
42
Insulation WPL-B5027201
...
43
Pop Rivet WPL-A4539623
...
44
Support WPL-D8570802
...
45
Knob, Oven Therm WPL-D8580201

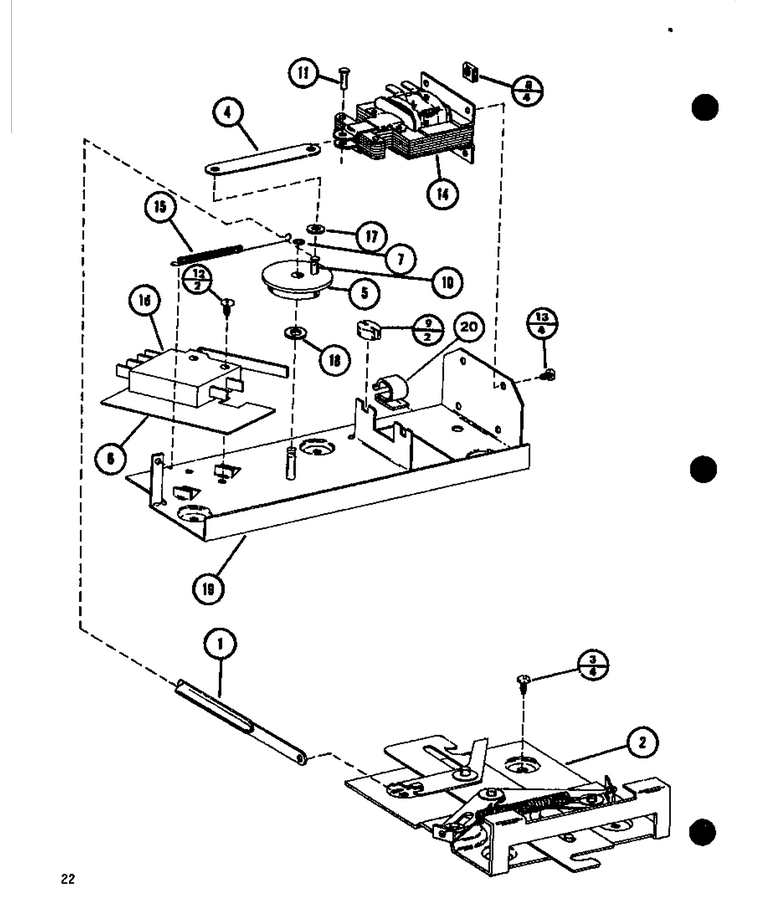

02 - Page 10

...
...
NI
Grease WPL-R0195010
...
1
Arm WPL-B5004501
...
2
Assy, Door Latch (10442001) WPL-D8508301
...
3
Screw WPL-M0217224
...
4
Arm-Actuator WPL-A4405801
...
5
Cam, Lock Solenoid WPL-B5004201
...
6
Insulator-Switch WPL-A4405601
...
7
Speed Nut A- K WPL-M0287901
...
8
Clip WPL-M0119701
...
9
Pad WPL-A4405901
...
10
Pin-Grooved WPL-A4405701
...
11
Pop Rivet WPL-M0010212
...
12
Screw WPL-M0227520
...
13
Screw WPL-WP74004005
...
14
Solenoid, Lock WPL-Y0306856
...
15
Spring, Solenoid WPL-Y0306846
...
16
Switch, Limit WPL-B5004402
...
17
Washer WPL-M0270501
...
18
Washer WPL-M0270515
...
19
Assy, Latch Solenoid WPL-C2705401

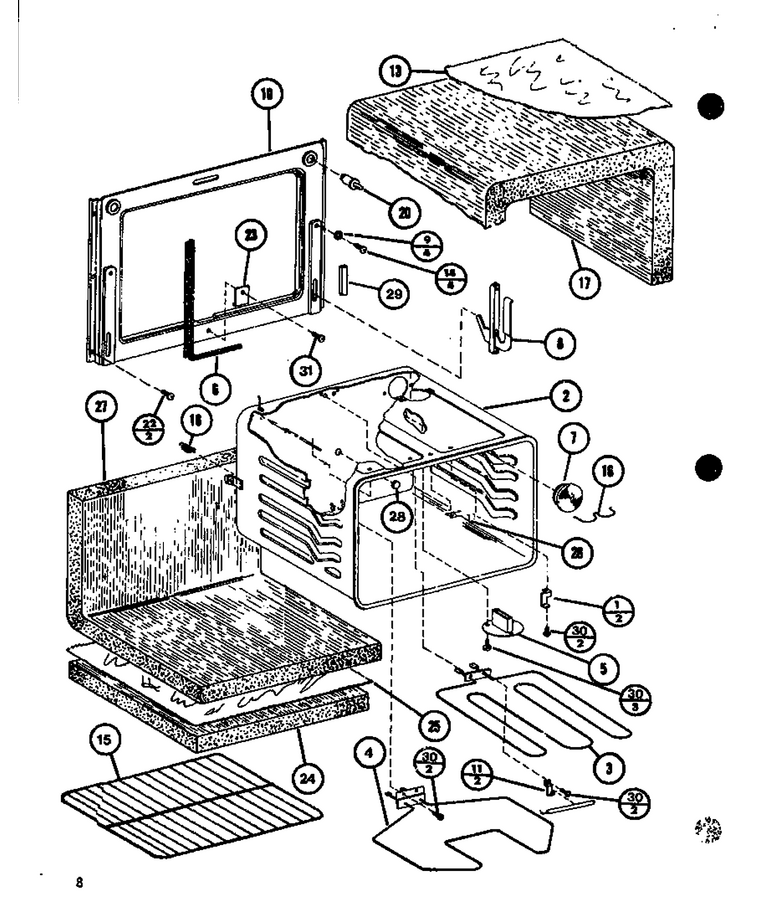

04 - Page 3

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity WPL-D8510503
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002602
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge WPL-R0156581
...
9
Washer Padded WPL-M0271202
...
10
Panel Front Cavity WPL-D8579002
...
11
Tube Clip WPL-M0105801
...
13
Foil-Alum WPL-A4400603
...
14
Screw WPL-M0203342
...
15
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
16
Retainer-Lamp WPL-A4407001
...
17
Insulation WPL-B5003003
...
18
Spring WPL-A4407101
...
20
Switch- Oven Door WPL-Y0316882
...
22
Screw WPL-M0217224
...
23
Retainer-Gasket K WPL-A4427901
...
24
Insulation WPL-B5002302
...
25
Foil Aluminum K WPL-A4400601
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Insulation WPL-B5002403
...
28
Plug Button WPL-M0311101
...
30
Screw WPL-M0237117

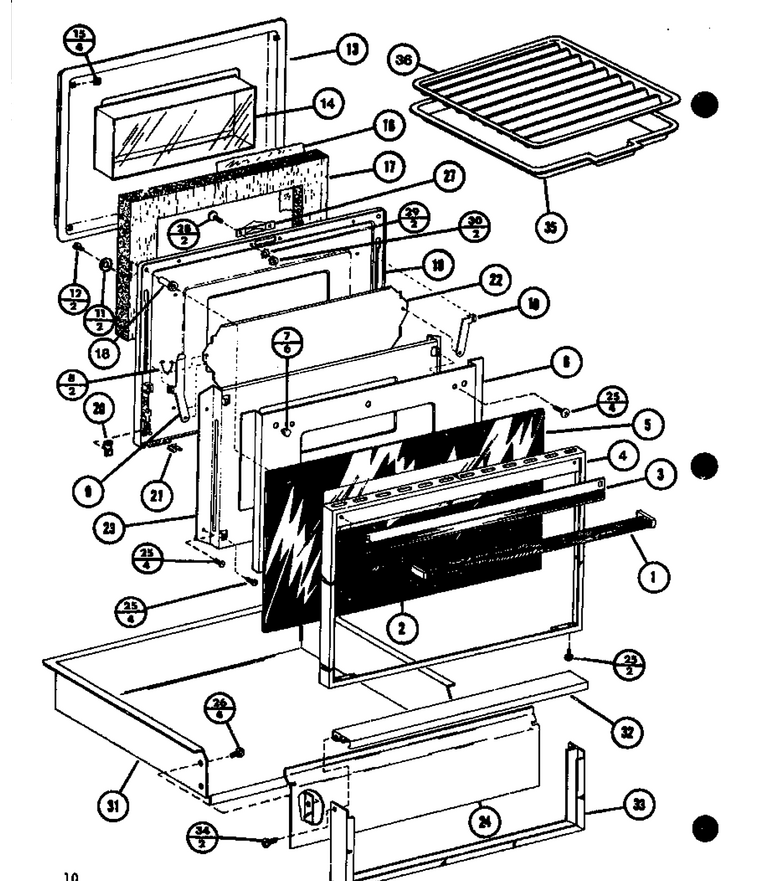

05 - Page 4

...
...
1
Handle WPL-C8958202
...
2
Pad, Handle WPL-A4406402
...
3
Ext Door Trim WPL-D8507802
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Panel Glass Brn K WPL-D8507903
...
6
Heat Shield WPL-D8507601
...
7
Bumper Glass K WPL-B8344703
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Arm-Shutter Rh WPL-B5003901
...
11
Washer Padded WPL-M0271202
...
12
Screw WPL-M0203052
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation WPL-B5001102
...
18
Spacer WPL-A4406301
...
19
Inner Door Weld WPL-D8506903
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
24
Drawer Wld Brn K WPL-C2713803
...
25
Screw WPL-W11233072
...
26
Screw WPL-M0217224
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0205218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
31
Drawer Pan Pntd K WPL-C2713903
...
32
Extrusion Hdl K WPL-D8526501
...
33
Ext Drawer Ft K WPL-D8548101
...
34
Screw WPL-67001466
...
35
Procelain Broiler (Pan And Grid) WPL-4396923
...
36
Procelain Broiler (Pan And Grid) WPL-4396923

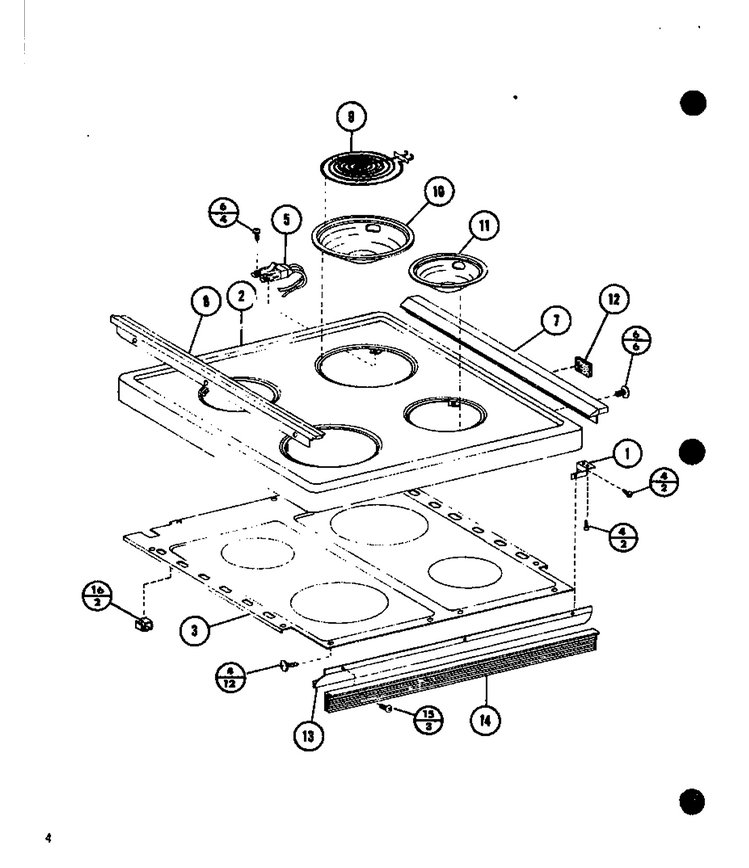

01 - Page 1

...
...
1
Brkt-Front Lh WPL-C2709002
...
2
Range Top (Wht) WPL-D8520106
...
3
Drip Pan WPL-D8520203
...
4
Screw WPL-M0217224
...
5
Receptacle WPL-330031
...
6
Screw WPL-M0237214
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WP3191454
...
10
Bowl-Drip WPL-WPW10196406
...
11
Bowl-Drip WPL-WPW10196405
...
12
Gasket WPL-B5718912
...
14
Grille WPL-D8509402
...
15
Screw WPL-M0254518
...
16
Clip WPL-M0110503
