Amana ARR-402 (BOM: P8531209S)

Model: ARR-402 (BOM: P8531209S)

Save Part Not Listed?
product name

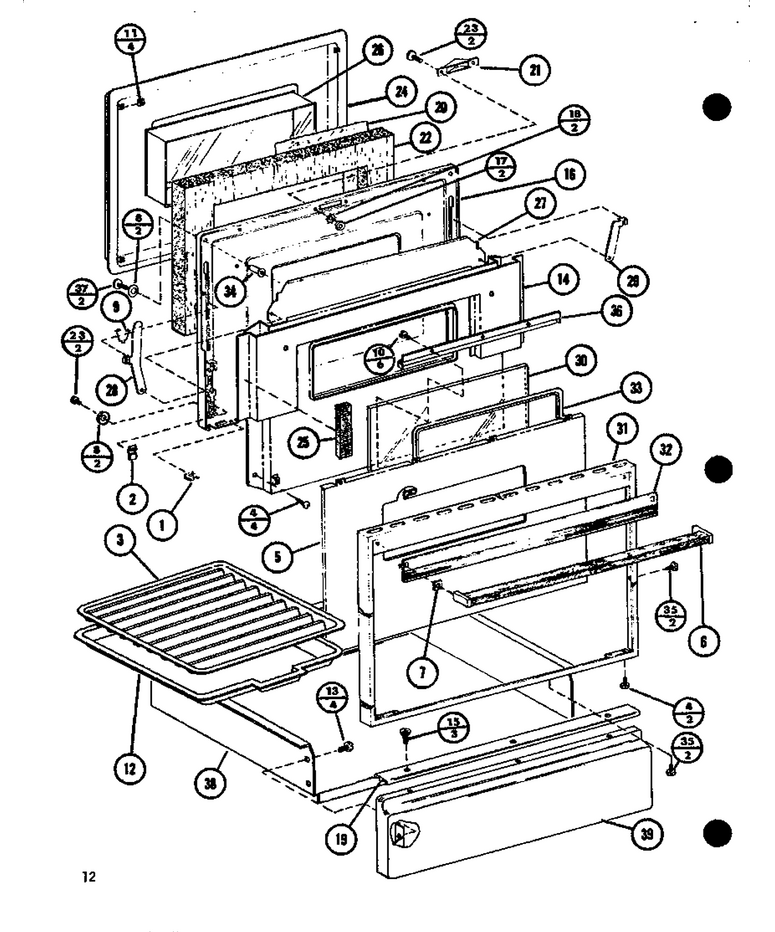

05 - Page 5

...
...
1
Clip-Speed Nut WPL-M0119601
...
2
Spring WPL-A4407701
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Screw WPL-W11233072
...
5
Pnl Outer Dr Pntd-C WPL-D8566603
...
6
Handle WPL-C8958202
...
7
Pad, Handle WPL-A4406402
...
8
Washer Padded WPL-M0271202
...
9
Spring-Shutter WPL-C2705101
...
10
Screw WPL-M0232012
...
11
Speed Nut WPL-A4407601
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
13
Screw WPL-M0217224
...
14
Heat Shield Weld WPL-D8557201
...
15
Screw WPL-67001466
...
16
Inner Door Weld WPL-D8506903
...
17
Nut WPL-WP486255
...
18
Lock Washer WPL-M0272803
...
19
Handle, Drawer WPL-D8514301
...
20
Foil-Door Plug WPL-A4406601
...
21
Latch Plate Assy WPL-B5003601
...
22
Insulation WPL-B5001102
...
23
Screw WPL-M0205218
...
24
Door Plug Weld WPL-D8507102
...
25
Insulation WPL-B5028802
...
26
Window WPL-D8573401
...
27
Shutter WPL-D8507501
...
28
Arm-Shutter Lh WPL-B5003801
...
29
Arm-Shutter Rh WPL-B5003901
...
30
Window-Outer Door WPL-B5028701
...
31
Frame WPL-D8565501
...
32
Ext Door Trim WPL-D8565801
...
33
Ring- Trim WPL-C2732601
...
34
Spacer WPL-A4406301
...
35
Screw WPL-W11245710
...
36
Bracket-Window WPL-C2732402
...
37
Screw WPL-M0203052
...
38
Drawer Pan Pntd K WPL-C2713903
...
39
Wld Drawer-A K WPL-C2725204

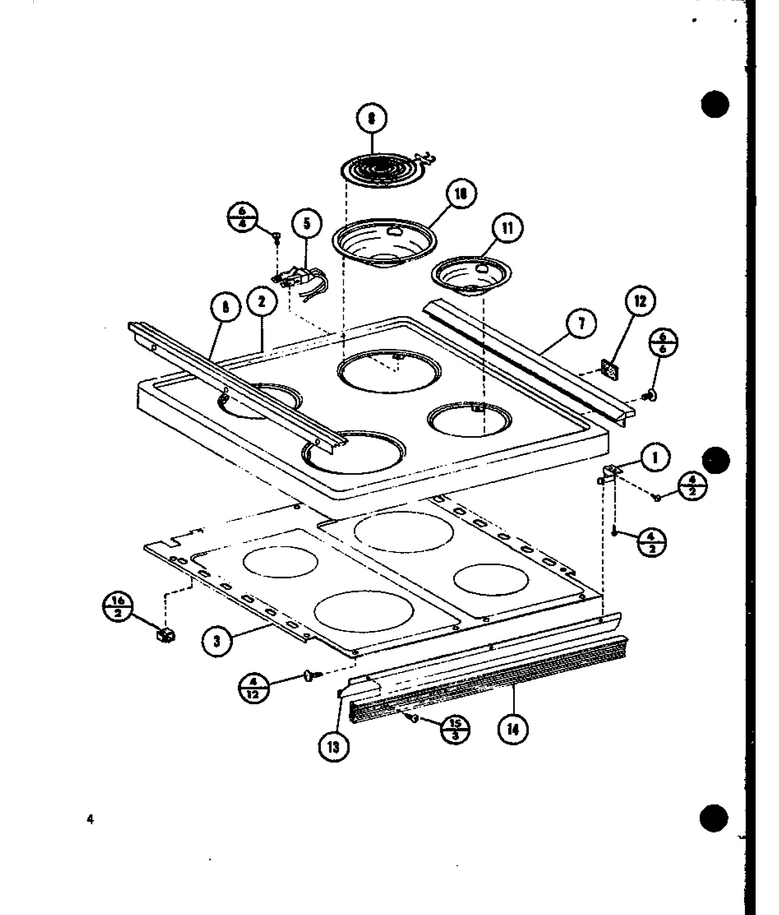

01 - Page 1

...
...
1
Brkt-Front WPL-C2709001
...
2
Range Top (Wht) WPL-D8520106
...
3
Drip Pan WPL-D8520203
...
4
Screw WPL-M0217224
...
5
Receptacle WPL-C2733503
...
6
Screw WPL-M0232702
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WPW10259868
...
10
Bowl-Drip WPL-WPW10196406
...
11
Bowl-Drip WPL-WPW10196405
...
12
Gasket WPL-B5718912
...
13
Guard WPL-C2706101
...
14
Grille WPL-D8509402
...
15
Screw WPL-M0254518
...
16
Clip WPL-M0110503

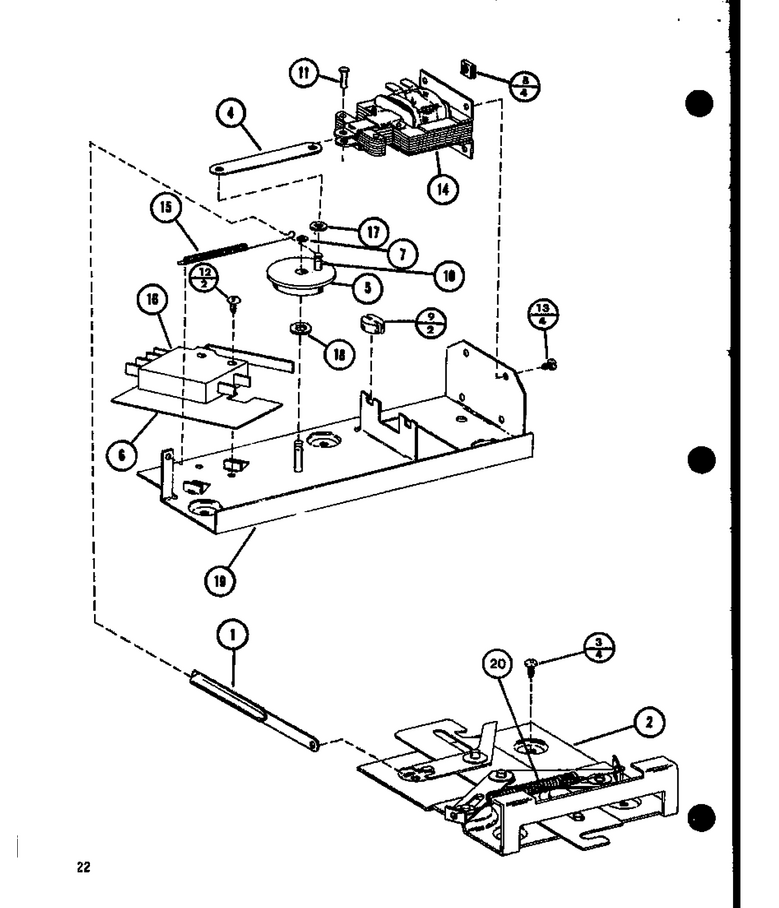

02 - Page 10

...
...
NI
Hi Temp Lube WPL-R0195023
...
1
Arm WPL-B5004501
...
2
Assy, Door Latch (10442001) WPL-D8508301
...
3
Screw WPL-M0217224
...
4
Arm-Actuator WPL-A4405801
...
5
Cam, Lock Solenoid WPL-B5004201
...
6
Insulator-Switch WPL-A4405601
...
7
Speed Nut A- K WPL-M0287901
...
8
Clip WPL-M0119701
...
9
Pad WPL-A4405901
...
10
Pin-Grooved WPL-A4405701
...
11
Pop Rivet WPL-M0010212
...
12
Screw WPL-M0227520
...
13
Screw WPL-WP74004005
...
14
Solenoid, Lock WPL-Y0306856
...
15
Spring, Solenoid WPL-Y0306846
...
16
Switch, Limit WPL-B5004402
...
17
Washer WPL-M0270501
...
18
Washer WPL-M0270515
...
19
Assy, Latch Solenoid WPL-C2705401
...
20
Spring, Door Latch WPL-Y0306837

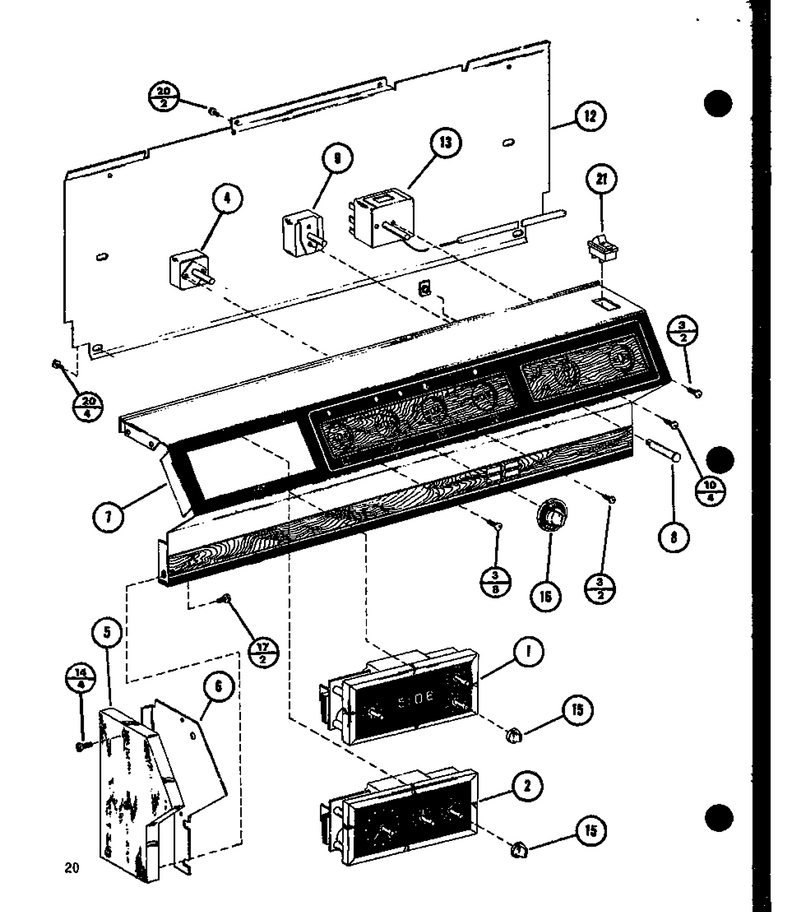

06 - Page 9

...
...
1
Timer, Digital WPL-D8568001
...
3
Screw WPL-W11214483
...
4
Switch- In WPL-R0702564
...
5
End Cap WPL-D8515202
...
6
Supt-End Cap Rh WPL-C2714501
...
7
Panel Control WPL-D8566403
...
8
Light-Indicator/ W Clip WPL-M0360204
...
9
Switch K WPL-C2731705
...
10
Screw WPL-M0200414
...
12
Cover, Upper Leads WPL-D8569001
...
13
T-Stat K WPL-D8557404
...
14
Screw WPL-67001466
...
15
Knob, Dual Timer WPL-B5005101
...
16
Knob, Proportioner WPL-C2734802
...
17
Screw WPL-WP4159193
...
20
Screw WPL-M0217224
...
21
Switch-Light WPL-B5009901

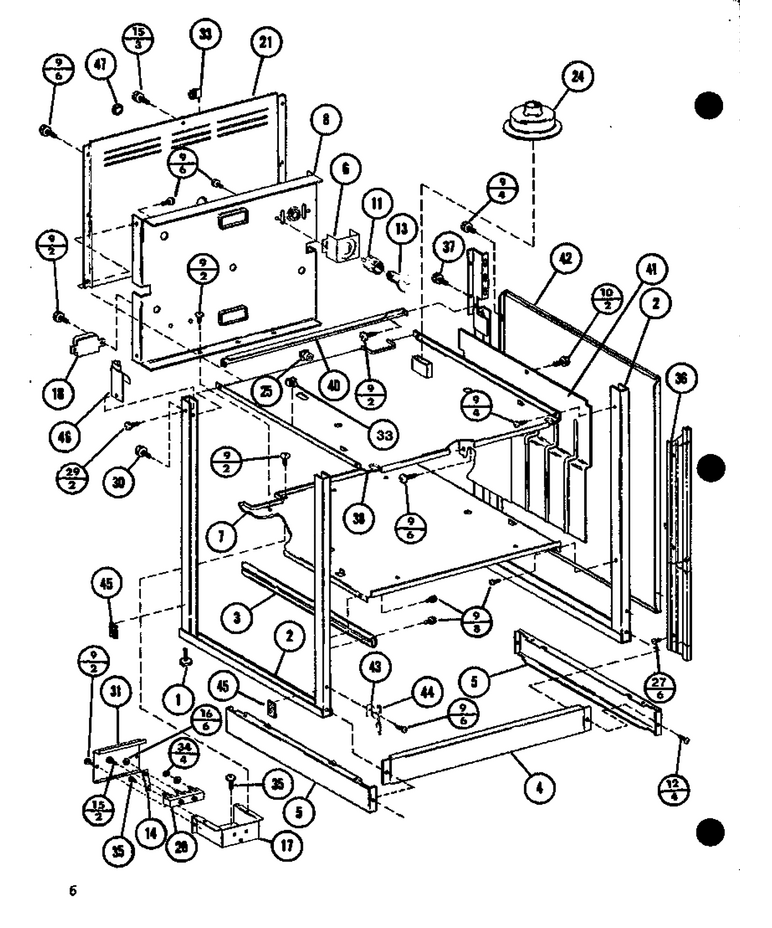

03 - Page 2

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504110
...
3
Glide WPL-C2705301
...
4
Kick Panel-Black WPL-C2706704
...
5
Kick Plate WPL-C2706602
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer Rear Insul WPL-D8573202
...
9
Screw WPL-M0217224
...
10
Screw WPL-W10856125
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-W10856125
...
13
Light Bulb WPL-8009
...
14
Strap-Grd WPL-A4406901
...
15
Screw WPL-M0213145
...
16
Usr 0041847 WPL-M0282402
...
17
Brkt Term Block WPL-C2705002
...
18
Relay, Oven WPL-Y0091669
...
20
Block-Term WPL-WP8203546
...
24
Tube-Oven Vent WPL-B5012301
...
25
Grommet WPL-M0580005
...
27
Screw WPL-W11233072
...
30
Screw WPL-WP1163839
...
31
Cover WPL-B5003501
...
33
Clip WPL-M0110503
...
34
Washer WPL-M0270001
...
35
Screw WPL-M0227817
...
36
Trim-Side Lh WPL-D8509202
...
37
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
38
Retainer-Top Insul WPL-D8506203
...
40
Supt-Backsplash WPL-B5018401
...
41
Retainer-Insul L WPL-D8506801
...
42
Side Panel WPL-D8501114
...
43
Brkt-Side Pnl Rh WPL-B5010201
...
44
Bumper WPL-A4401502
...
45
Gasket WPL-B5718912
...
46
Ext Crnr Post WPL-C2732904
...
47
Plug K WPL-M0311103

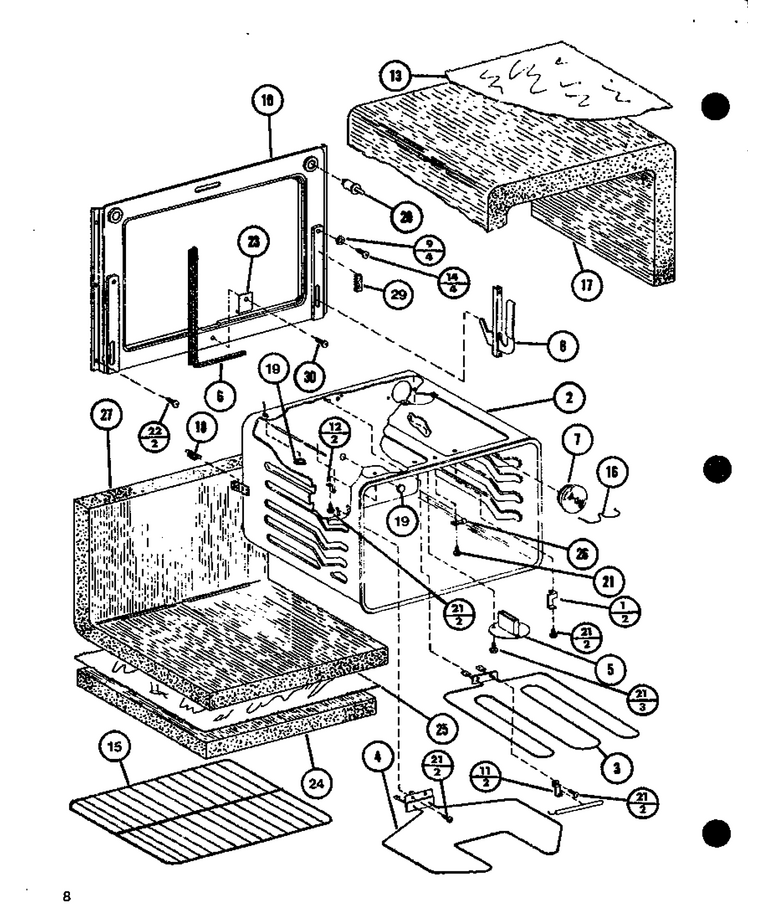

04 - Page 3

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity WPL-D8510503
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002602
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge WPL-R0156581
...
9
Washer Padded WPL-M0271202
...
10
Panel Front Cavity WPL-D8579002
...
12
Retainer-Thermo WPL-A4407801
...
13
Foil-Alum WPL-A4400603
...
14
Screw WPL-M0203342
...
15
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
16
Retainer-Lamp WPL-A4407001
...
17
Insulation WPL-B5003003
...
18
Spring WPL-A4407101
...
19
Plug Button WPL-M0311101
...
20
Switch- Oven Door WPL-Y0316882
...
21
Screw WPL-M0237117
...
22
Screw WPL-M0217224
...
23
Retainer-Gasket K WPL-A4427901
...
24
Insulation WPL-B5002302
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Insulation WPL-B5002403
...
29
Bumper WPL-A4402201
...
30
Screw WPL-W11233072
