Amana ARR-201 (BOM: P8545005S)

Model: ARR-201 (BOM: P8545005S)

Save Part Not Listed?
product name

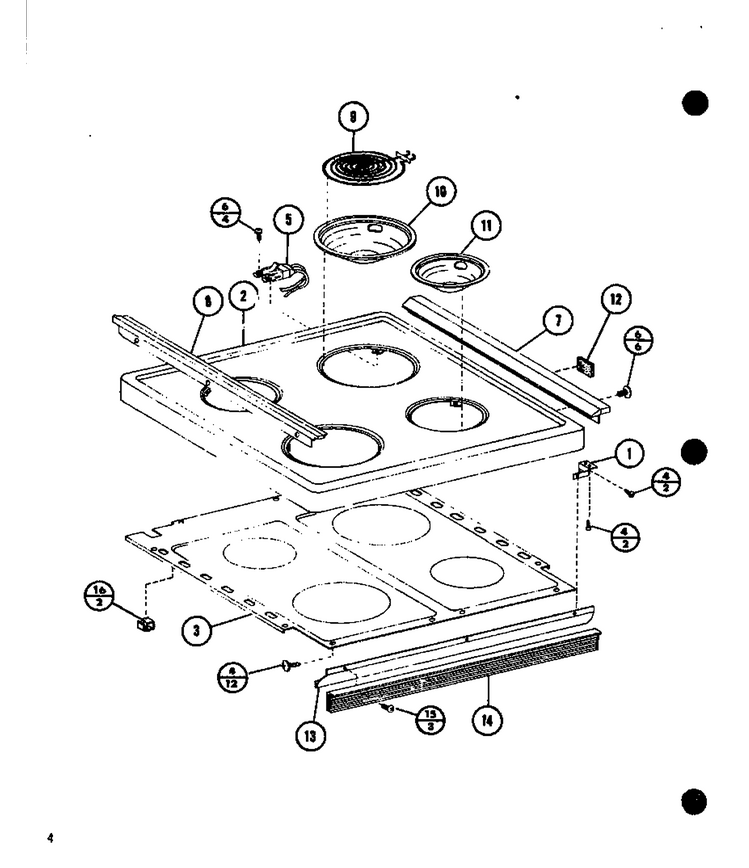

01 - Page 1

...
...
1
Brkt-Front Lh WPL-C2709002
...
2
Range Top (Wht) WPL-D8520106
...
3
Drip Pan WPL-D8520203
...
4
Screw WPL-M0217224
...
5
Receptacle WPL-330031
...
6
Screw WPL-M0237214
...
7
Trim WPL-D8532903
...
8
Trim WPL-D8532904
...
9
Elmnt-Surf WPL-WPW10345407
...
10
Bowl-Drip WPL-WPW10196406
...
11
Bowl-Drip WPL-WPW10196405
...
12
Gasket WPL-B5718912
...
13
Guard WPL-C2706101
...
14
Grille WPL-D8509402
...
15
Screw WPL-M0254518
...
16
Clip WPL-M0110503

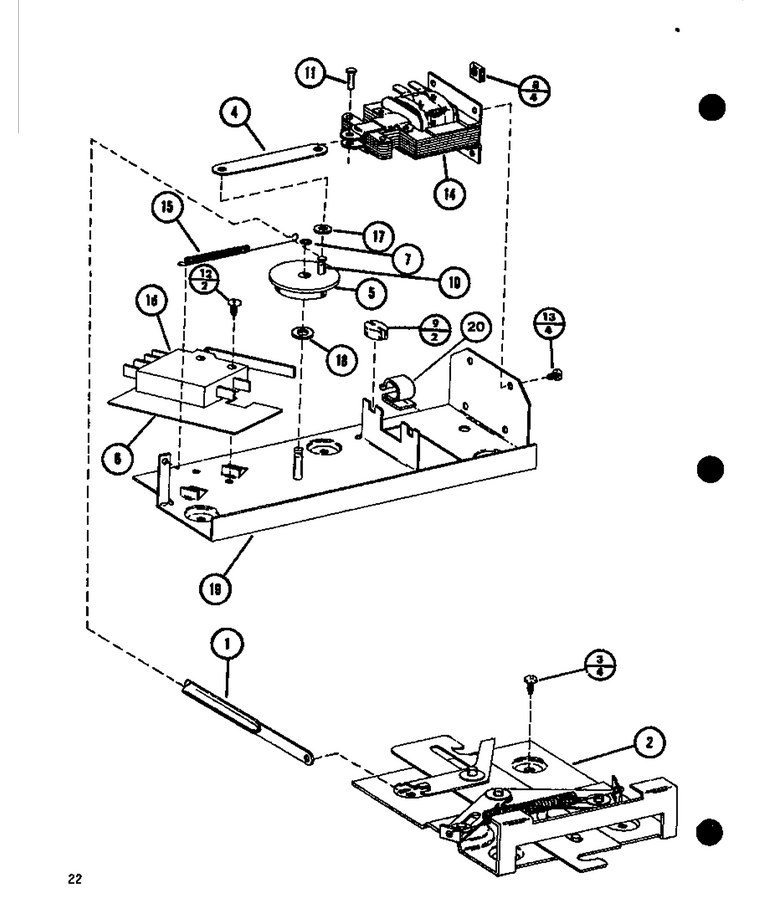

02 - Page 10

...
...
NI
Grease WPL-R0195010
...
2
Door Latch Assy WPL-D8508302
...
3
Screw WPL-M0217224
...
20
Clip WPL-M0110503

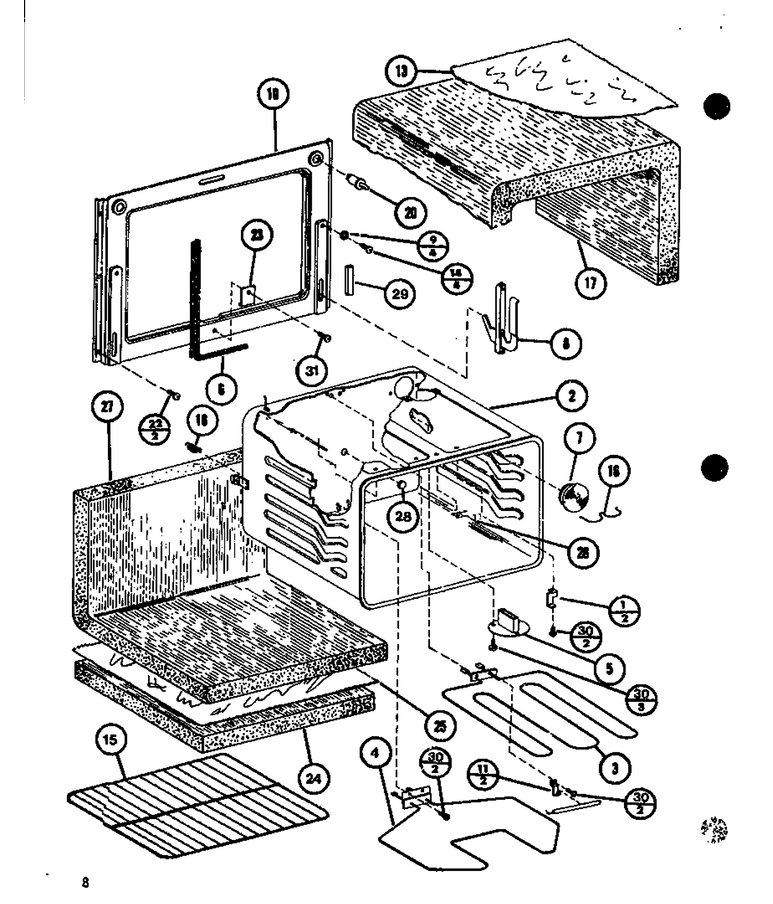

04 - Page 3

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity Weld WPL-D8510504
...
3
Broil Elem WPL-WPY0063532
...
4
Bake Element WPL-C2704901
...
5
Vent Assy WPL-C2704802
...
6
Gasket, Cavity WPL-C2734301
...
7
Globe-Lamp WPL-B5003301
...
8
Door Hinge Assy WPL-D8559002
...
9
Washer Padded WPL-M0271202
...
10
Panel Front Cavity WPL-D8579003
...
11
Tube Clip WPL-M0105801
...
14
Screw WPL-M0203342
...
15
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
16
Retainer-Lamp WPL-A4407001
...
17
Insulation WPL-B5003003
...
18
Spring WPL-A4407101
...
20
Switch- Oven Door WPL-Y0316882
...
22
Screw WPL-M0217224
...
23
Retainer-Gasket K WPL-A4427901
...
24
Insulation WPL-B5002302
...
25
Foil Aluminum K WPL-A4400601
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Insulation WPL-B5002403
...
29
Bumper WPL-A4402201
...
30
Screw WPL-M0237117

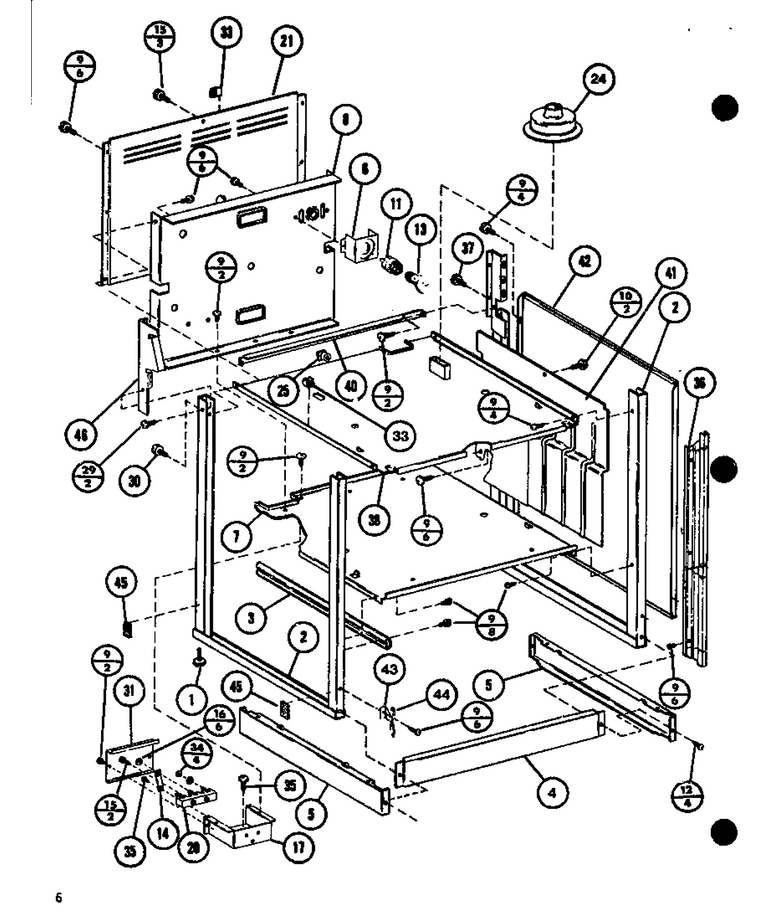

03 - Page 2

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504109
...
3
Glide WPL-C2705301
...
4
Panel WPL-C2706705
...
5
Kick Panel, Side WPL-C2706603
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer Rear Insul WPL-D8573202
...
9
Screw WPL-M0217224
...
10
Screw WPL-WP90767
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-W10856125
...
13
Light Bulb WPL-8009
...
14
Strap-Grd WPL-A4406901
...
15
Screw WPL-M0213145
...
16
Usr 0041847 WPL-M0282402
...
17
Brkt Term Block WPL-C2705002
...
20
Block-Term WPL-WP8203546
...
21
Cover, Lower Lead WPL-D8509505
...
24
Tube-Oven Vent WPL-B5012301
...
25
Grommet WPL-M0580005
...
29
Screw WPL-W11233072
...
30
Screw WPL-WP1163839
...
31
Cover WPL-B5003501
...
33
Clip WPL-M0110503
...
34
Washer WPL-M0270001
...
35
Screw WPL-M0227817
...
36
Trim-Side Lh WPL-D8509202
...
37
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
38
Retainer-Top Insul WPL-D8506203
...
40
Supt-Backsplash WPL-B5018401
...
42
Side Panel L WPL-D8501116
...
43
Brkt-Side Pnl Rh WPL-B5010201
...
44
Bumper WPL-A4401502
...
46
Ext Crnr Post WPL-C2732903

05 - Page 7

...
...
1
Clip-Speed Nut WPL-M0119601
...
2
Spring WPL-A4407701
...
3
Screw WPL-M0217224
...
4
Screw WPL-W11233072
...
5
Outer Dr Pnl Pntd-L WPL-D8567206
...
6
Handle WPL-C8958202
...
7
Pad, Handle WPL-A4406402
...
8
Screw WPL-M0203052
...
9
Screw WPL-67001466
...
10
Inner Door Weld WPL-D8506906
...
11
Nut WPL-WP486255
...
12
Lock Washer WPL-M0272803
...
13
Washer Padded WPL-M0271202
...
14
Handle, Drawer WPL-D8514301
...
15
Screw WPL-M0205218
...
16
Drawer Pan Pntd K WPL-C2713903
...
17
Wld Drawer-W K WPL-C2725202
...
18
Screw WPL-W11245710
...
19
Ext Door Trim WPL-D8565801
...
20
Frame WPL-D8565501
...
21
Spacer WPL-A4406301
...
22
Procelain Broiler (Pan And Grid) WPL-4396923
...
23
Procelain Broiler (Pan And Grid) WPL-4396923
...
24
Foil, Outer Door WPL-B5028901
...
25
Insulation WPL-B5029002
...
26
Heat Shield WPL-C2732701
...
27
Latch Plate Assy WPL-B5003601

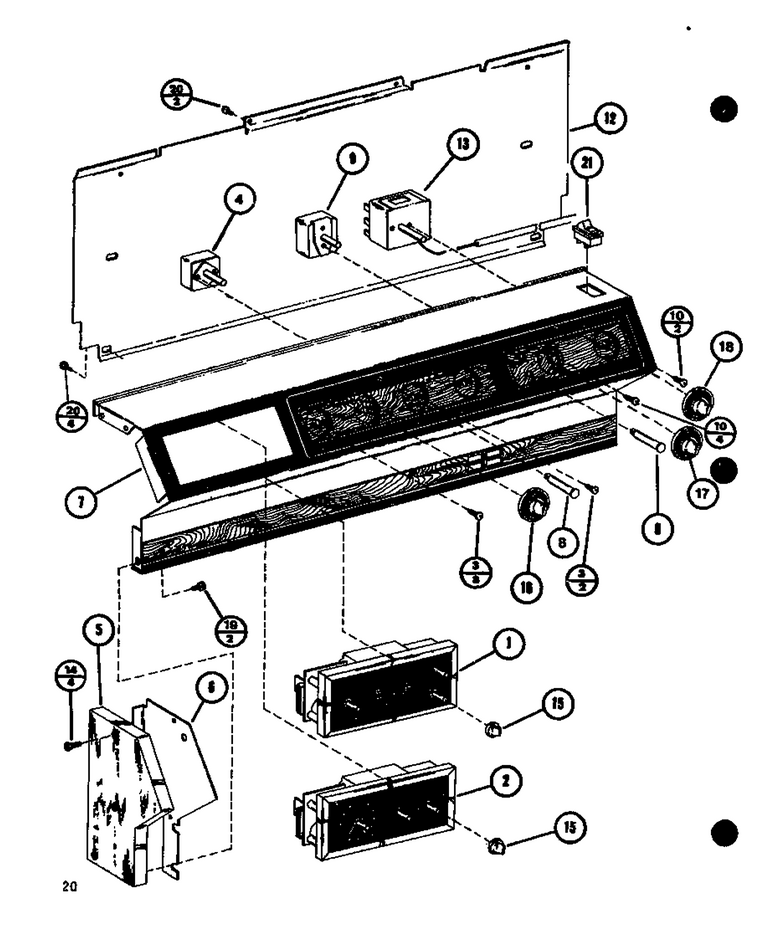

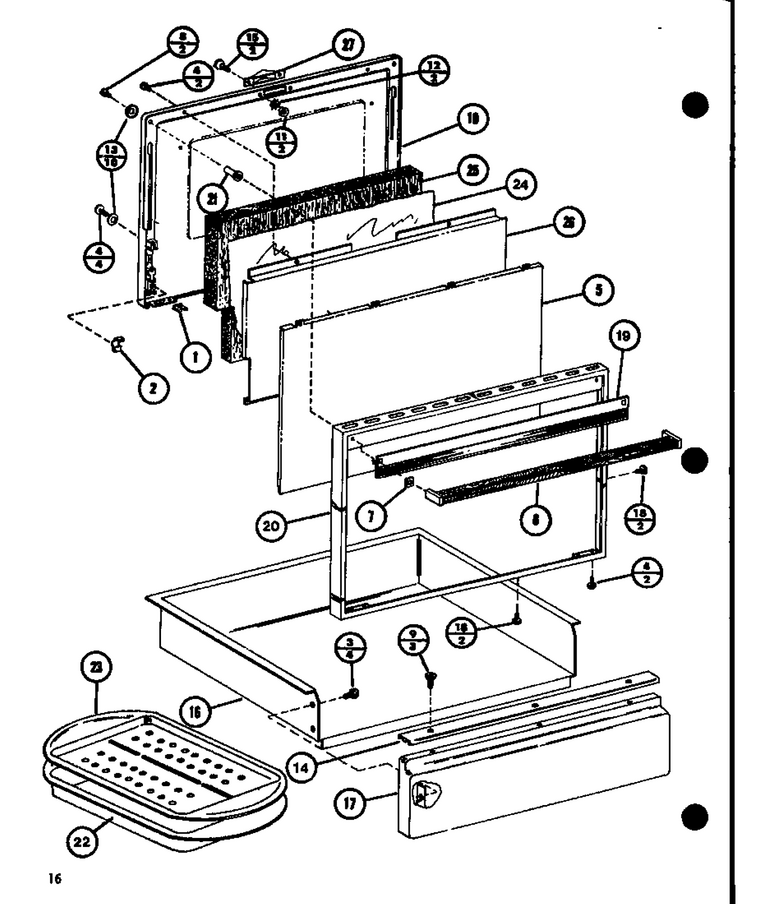

06 - Page 9

...
...
2
Timer WPL-C2721601
...
3
Screw WPL-W11214483
...
4
Switch- In WPL-R0702564
...
5
End Cap WPL-D8515202
...
6
Supt-End Cap Lh WPL-C2714502
...
7
Panel- Control WPL-D8566402
...
8
Light-Indicator/ W Clip WPL-M0360204
...
9
Switch, Selector, Solid Shaft WPL-C2721702
...
10
Screw WPL-M0200414
...
12
Upper Lead Cover WPL-D8569002
...
13
Thermostat K WPL-C2721502
...
14
Screw WPL-67001466
...
15
Knob, Dual Timer WPL-B5005101
...
16
Knob Inf Sw WPL-C2737502
...
17
Knob Sel. Sev. WPL-C2737504
...
18
Knob Oven Therm WPL-C2737505
...
19
Screw WPL-WP4159193
...
20
Screw WPL-M0217224
