Amana ARO3100L (BOM: P1143358N L)

Model: ARO3100L (BOM: P1143358N L)

Save Part Not Listed?
product name

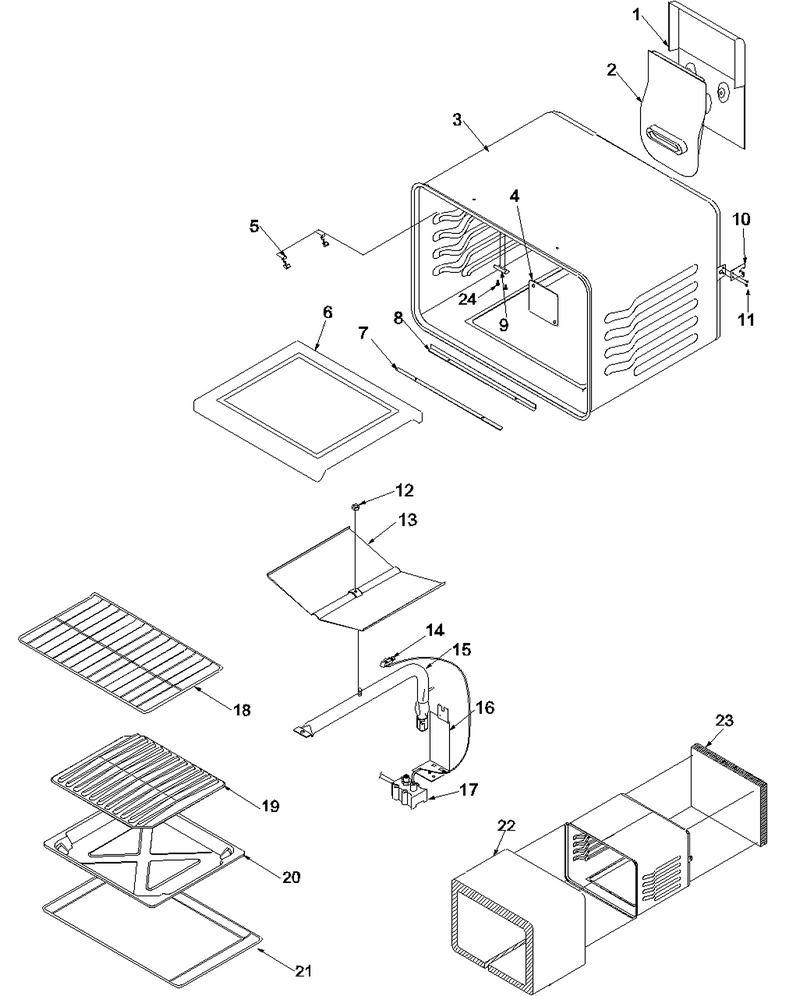

02 - Cavity

...
...
NI
Nut, Compression 3/16`` WPL-Y07727500
...
1
Assy, Flue/shield WPL-31830801
...
2
Assy, Flue/shield WPL-31826101
...
3
Shell, Oven (Nsc Gas W/lt) WPL-31819901CG
...
4
Cover, Plate WPL-Y0308357
...
5
Clip, Capillary WPL-0316386
...
6
Bottom, Oven WPL-316214CG
...
7
Brkt, Oven Bottom Frt WPL-31831901
...
8
Brkt, Oven Bottom WPL-31826001
...
9
Cover, Chip WPL-Y0315022
...
10
Bracket, Oven Cavity WPL-Y0058852
...
11
Screw WPL-WP693995
...
12
Nut WPL-M0282009
...
13
Baffle, Oven Burner WPL-31831001
...
14
Pilot, Oven St Pilot (H/w) WPL-31828401
...
15
Burner, Oven Low Broil WPL-31827801
...
16
Brkt, Gas Valve Support WPL-31825901
...
17
Valve, Safety (H/w) WPL-31827601
...
18
Rack-Oven WPL-WP314763J
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Procelain Broiler (Pan And Grid) WPL-4396923
...
21
Rack, Broiler WPL-31832101J
...
22
Insulation, Wrapper WPL-31824801
...
23
Insulation WPL-31976101
...
24
Screw WPL-W11245710

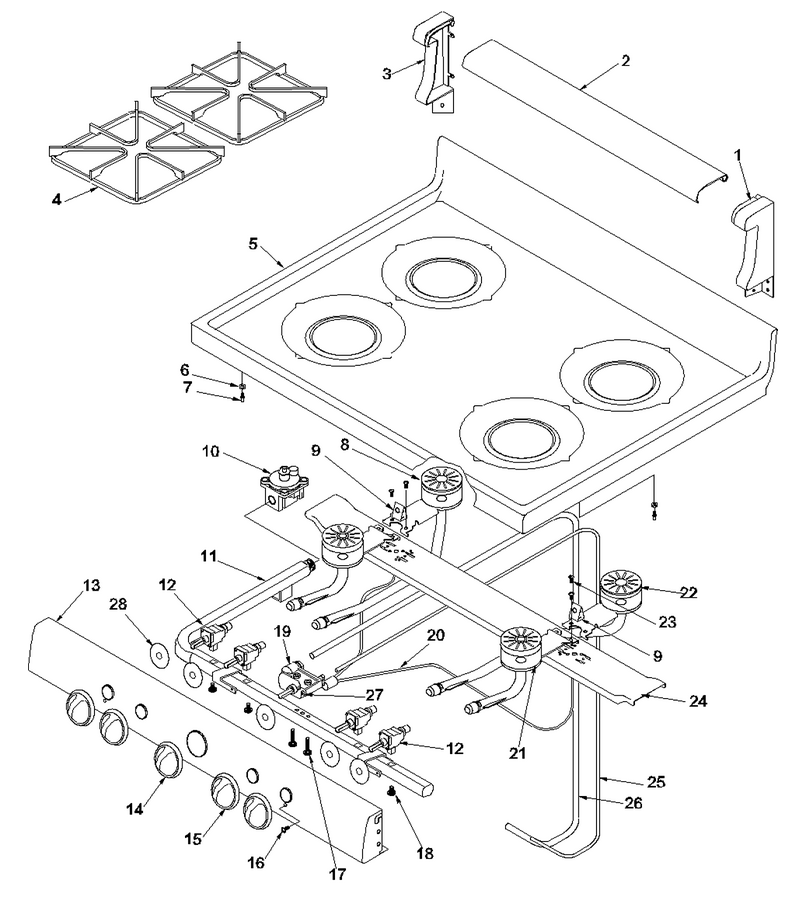

03 - Main Top And Backguard

...
...
NI
Screw WPL-W11245710
...
1
Endcap, Low Backguard R.h. WPL-31855701B
...
2
Top, Bkgrd Nsc Gas WPL-31839602B
...
3
Endcap, Low Backguard L.h. WPL-31855702B
...
4
Grate, Wire WPL-31828901B
...
5
Maintop (Almond) WPL-308919L
...
6
Spacer, Nylon (.14``) WPL-Y0062445
...
7
Screw, Stud WPL-31750709
...
8
Burner, L. Rear WPL-31828702
...
9
Shield, Pilot T-Pee WPL-31827701
...
10
Regulator, Pressure WPL-31829701
...
11
Manifold Pipe-Painted WPL-31849301Y
...
12
Valve, 90 Degree Max. WPL-31837801
...
13
Panel, Manifold (W/o Light) WPL-31820801B
...
14
Knob, T`stat M/c WPL-31832201B
...
15
Knob, Top Burner (Maxi Spark) WPL-31760419B
...
16
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
17
Bolt, T`stat Mtg (H/w) WPL-31750720
...
18
Screw WPL-W10491986
...
19
T`stat. Standing Pilot (H/w) WPL-31827901
...
20
Tubing, Top Burner Pilot WPL-31827501
...
21
Burner, Front WPL-31828601
...
22
Burner, R Rear WPL-31828701
...
23
Screw WPL-W11245710
...
24
Support, Top Burner WPL-31830701
...
25
Tubing, T`stat/pilot 51.281`` WPL-31853401
...
26
Tubing,t-Stat To Valve WPL-31826801
...
27
Filter WPL-0088789
...
28
Shield, Switch WPL-Y0316741

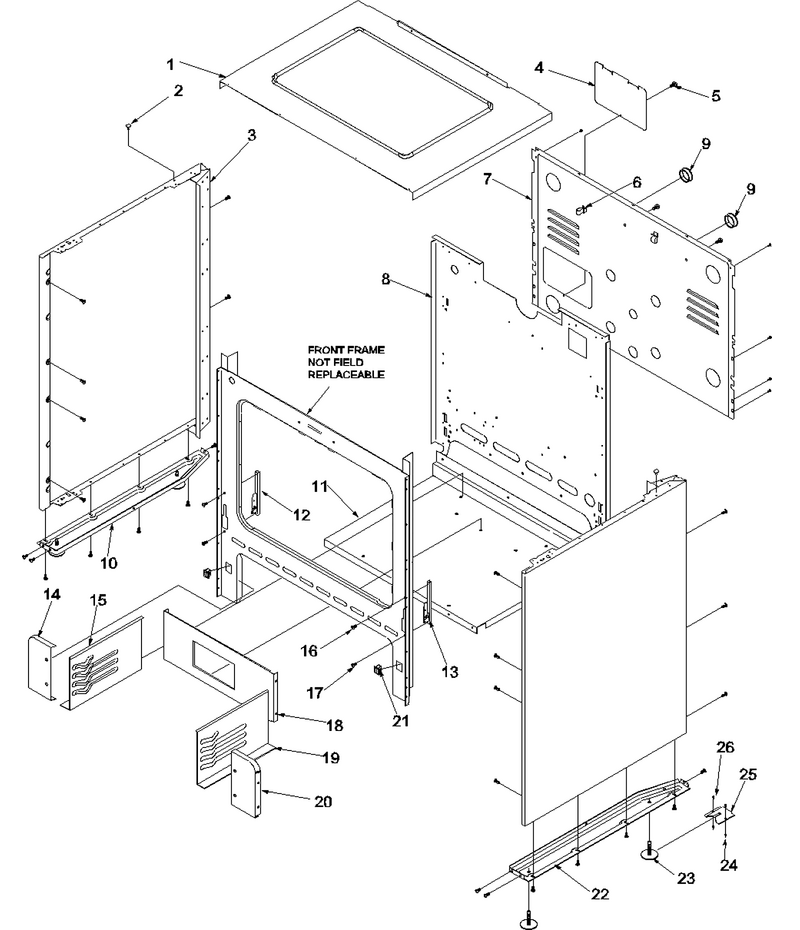

01 - Cabinet

...
...
NI
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
1
Box, Burner WPL-31821002B
...
2
Spacer, Snap-In WPL-31717001
...
3
Panel, Side (Alm) WPL-31825103L
...
4
Plate, Access WPL-31800001
...
5
Screw WPL-WP693995
...
6
Cable, Clip Esm WPL-Y0091587
...
7
Cover, Rear WPL-31863301
...
8
Retainer, Rear Insulation WPL-31825201
...
9
Bushing, Snap (Blk) WPL-308655B
...
10
Brace, Leveling Leg (Lt) WPL-31854501
...
11
Bottom, Broil Chamber WPL-31825301
...
12
Hinge, Lgt.oven Dr Lh WPL-31715203
...
13
Hinge, Lgt.oven Dr Rh WPL-31715204
...
14
Shield, Side Broil Lh WPL-31831704CG
...
15
Side, Broil Chamber L.h. WPL-31831504CG
...
16
Screw WPL-WP4159193
...
17
Screw WPL-WP7101P126-60
...
18
Shield, Burner WPL-31839301
...
19
Side, Broil Chamber R.h. WPL-31831503CG
...
20
Shield, Side Broil Rh WPL-31831703CG
...
21
Door Catch, W/catch Spring WPL-31844001
...
22
Brace, Leveling Leg (Rt) WPL-31854502
...
23
Leg,leveling Xxx WPL-314187B
...
24
Anchor, Plastic WPL-Y0301555
...
25
Bracket, Anti Tip WPL-31945201
...
26
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412

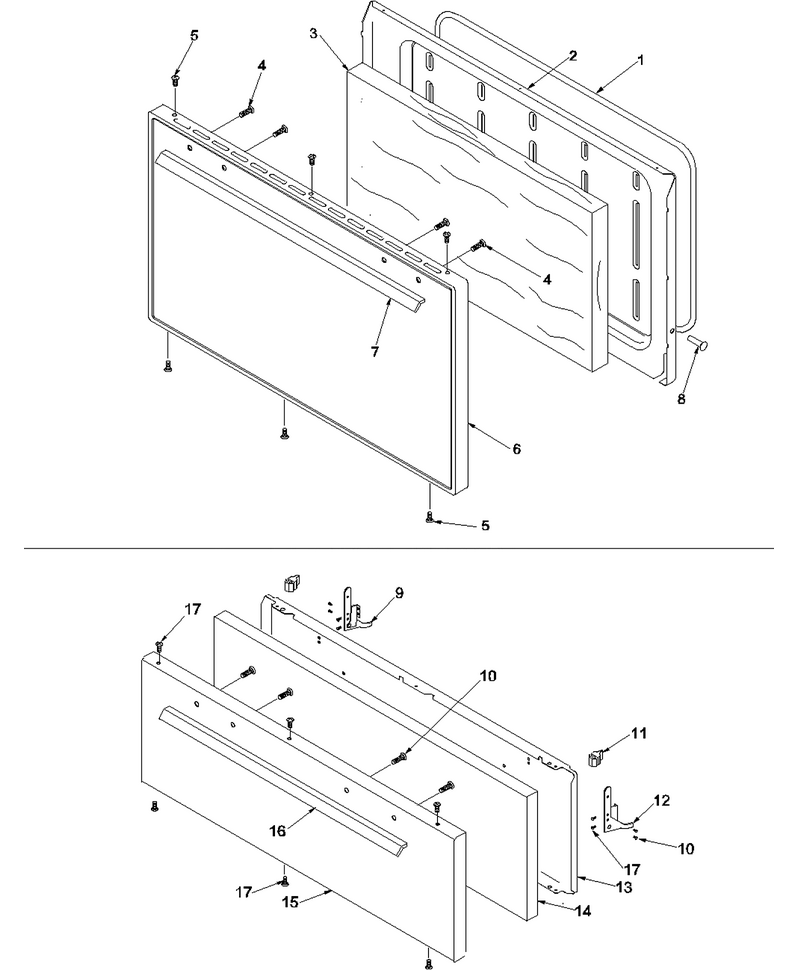

04 - Oven Door And Broiler Door

...
...
1
Gasket, Oven Door WPL-31819101
...
2
Pad, Door (Enameled) WPL-31825602CG
...
3
Insul, Nsc Door (20x26x2 Ht) WPL-31819601
...
4
Screw WPL-707407
...
5
Screw WPL-W11245710
...
6
Panel, Door (Painted Nsc Gas) WPL-31825502L
...
7
Handle, Visor WPL-31819006L
...
8
Rivet, Pop WPL-Y0302648
...
9
Hinge, Low Broil Door L.h. WPL-31828102
...
10
Screw WPL-707407
...
11
Striker- D WPL-WP71002097
...
12
Hinge, Low Broil Door R.h. WPL-31828101
...
13
Liner, Door Low Broil WPL-31831302CG
...
14
Insulation, Broil Door WPL-31845401
...
15
Door, Low Broil WPL-31831202L
...
16
Handle, Visor WPL-31819006L
...
17
Screw WPL-W11245710
