Amana ARG7600LL (BOM: P1143318NLL)

Model: ARG7600LL (BOM: P1143318NLL)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

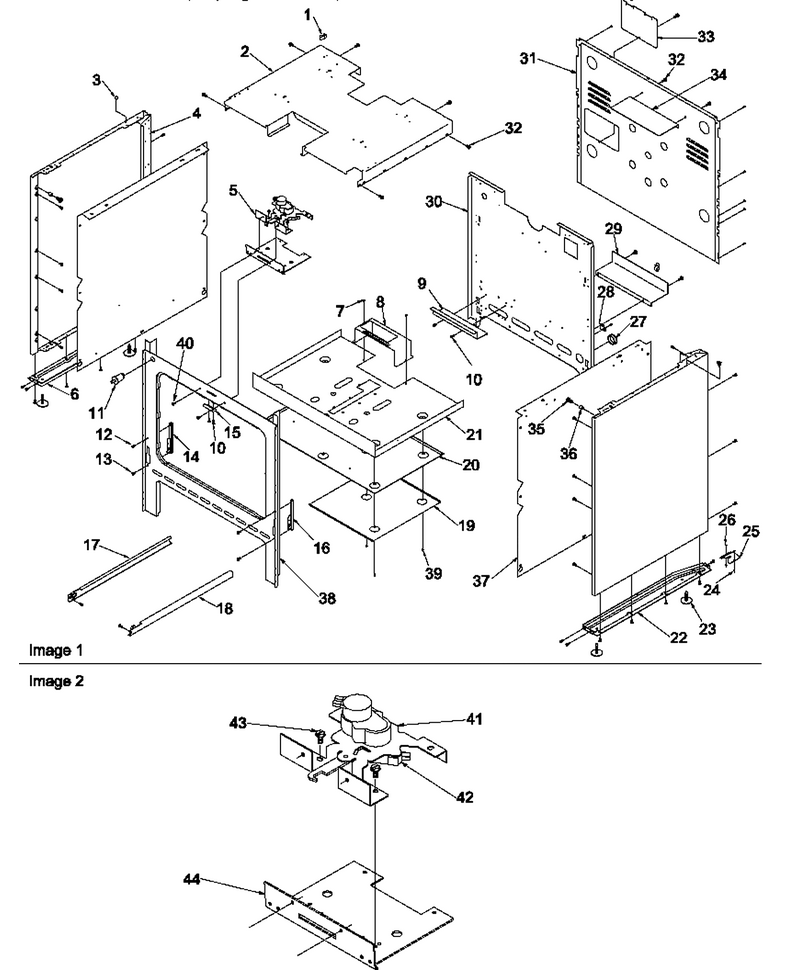

02 - Cabinet

...
...
NI
Screw WPL-W11245710
...
1
Cable, Clip Esm WPL-Y0091587
...
2
Retainer, Top Insul WPL-31730801
...
3
Spacer, Snap-In WPL-31717001
...
4
Panel, Side (Alm) WPL-31825103L
...
5
See Note Latch,oven Door Motorized -- (See Image 2) WPL-Y00000000
...
6
Brace, Leveling Leg (Lt) WPL-31854501
...
7
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
8
Cover, Ig/bake Burner WPL-Y0302498
...
9
Wire Raceway WPL-31782401
...
10
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
11
Switch, Oven Door WPL-Y0305797
...
12
Screw WPL-WP7101P126-60
...
13
Screw WPL-WP4159193
...
14
Hinge, Oven Door (Lt) WPL-31715201
...
15
Cover, Chip WPL-Y0315022
...
16
Hinge-Door WPL-R0706011
...
17
Track, Storage Dwr Lh WPL-Y0314662
...
18
Track, Storage Dwr Rh WPL-0314663
...
19
Shield WPL-0059596
...
21
Retainer, Bot Insul WPL-31719301
...
22
Brace, Leveling Leg (Rt) WPL-31854502
...
23
Leg,leveling Xxx WPL-314187B
...
24
Anchor, Plastic WPL-Y0301555
...
25
Bracket, Anti Tip WPL-31945201
...
26
Screw Cabinet Trim WPL-Y0041813
...
27
Bushing, Snap (Blk) WPL-308655B
...
28
Wire Clamp, Insulated WPL-Y0074685
...
29
Cover, Electrical WPL-Y0306827
...
30
Retainer, Rear Insul WPL-31733101
...
31
Cover, Rear WPL-Y0315888
...
32
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
33
Plate, Access WPL-31800001
...
34
Shield, Clock Heat WPL-Y0316712
...
35
Screw Cabinet Trim WPL-Y0041813
...
36
Sleeve, .250 Dia. WPL-Y0316848
...
38
See Note Front Frame-Enameled -- (Not Field Replaceable) WPL-Y00000000
...
39
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
40
Screw, No.10-32x1/2 (Ph Taptite) WPL-Y0091599
...
41
Latch, Auto WPL-Y0315908
...
42
Switch WPL-0316767
...
43
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
44
Bracket, Latch Mounting WPL-31848301

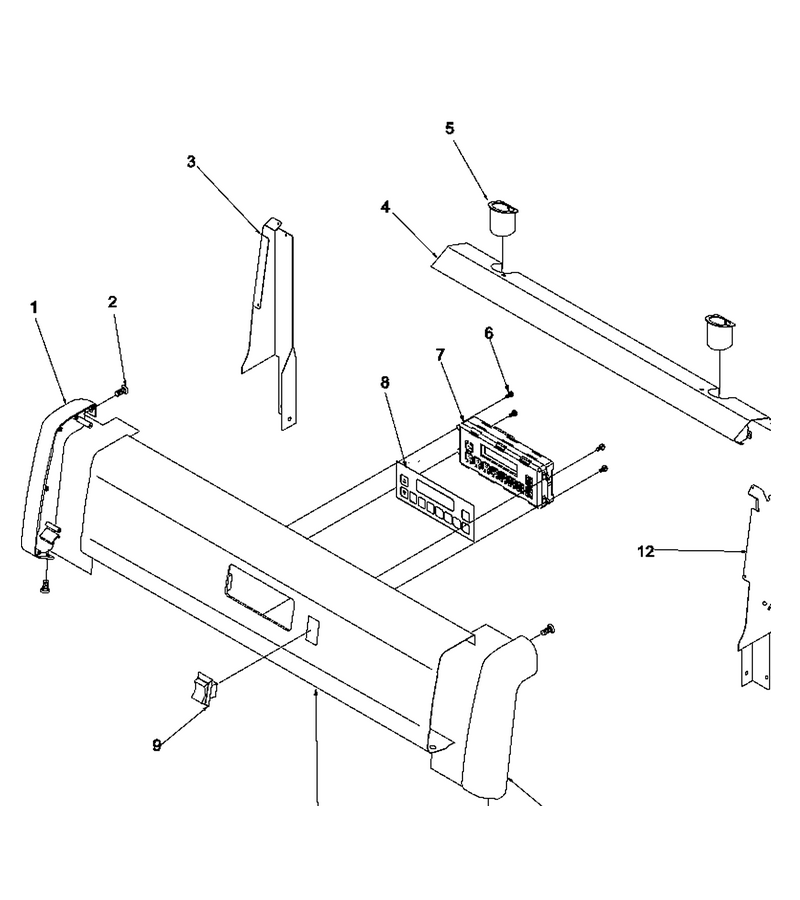

01 - Backguard

...
...
NI
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
1
End Cap Lh WPL-315843L
...
2
Screw, No.6-20 X .375 Pan Hd Ph WPL-Y0073657
...
3
Bkgd. Support-Lh WPL-315877L
...
4
Shield, Bkgd Trim Heat WPL-315874B
...
5
Bushing, Wire WPL-0316548
...
6
Screw No.8-18x.375 Ab WPL-0041801
...
7
Erc3 (Gas) WPL-Y0315569
...
8
Overlay, Erc3 Mylar WPL-315851L
...
9
Switch, Rocker (Almond) WPL-301491L
...
10
Pnl, Backguard (Almond) WPL-315997L
...
11
End Cap-Metal Bkgd Rh WPL-315841L
...
12
Bkgd. Support-Rh WPL-315876L

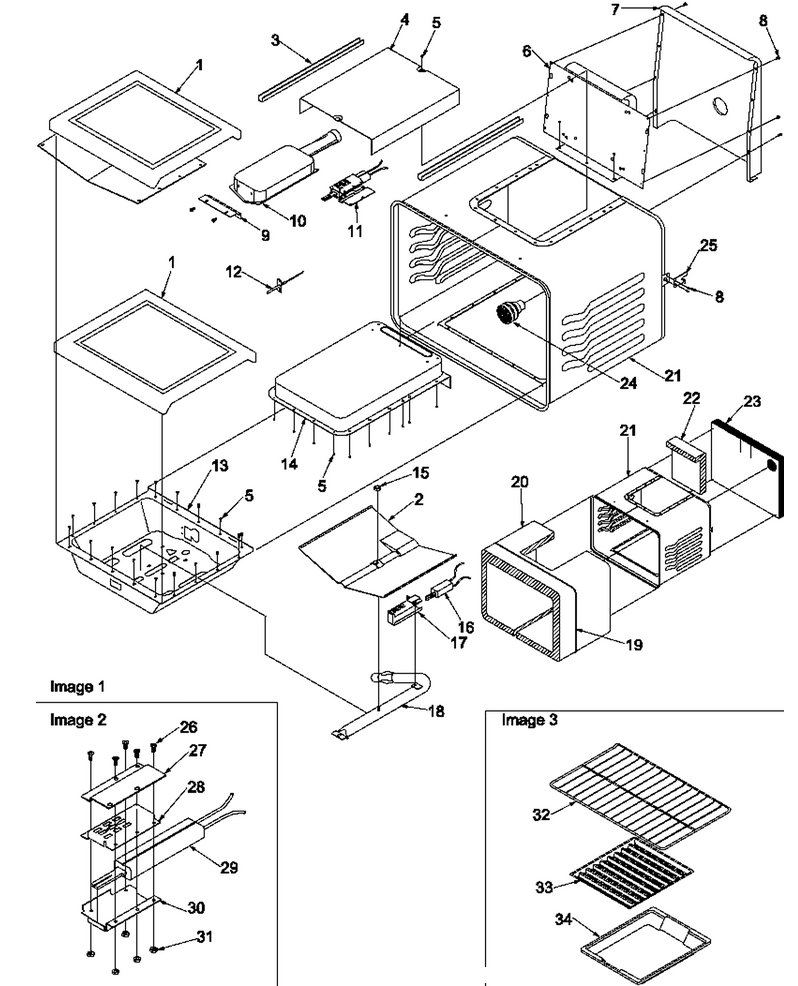

03 - Cavity

...
...
NI
Screw WPL-W11245710
...
1
Bottom, Oven WPL-316214CG
...
2
Baffle, Oven Burner WPL-Y0316215
...
3
Channel, Broil Burner WPL-Y0304019
...
4
Heat Shield, Broil WPL-Y0309733
...
5
Screw WPL-W11245710
...
6
Flue, Enameled WPL-306456CG
...
7
Flue, Dilution WPL-Y0316510
...
8
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
9
Bracket, Mtg. Br. Support WPL-Y0060687
...
10
Assy, Br. Burner WPL-Y0060691
...
11
Kit, Ignitor WPL-786324
...
12
Sensor WPL-WPY0314907
...
13
Burner Box, Lower WPL-Y0063802
...
14
Weldm`t, Broil Chamber WPL-0306651
...
15
Nut WPL-M0282009
...
16
Ignitor- B WPL-WP31940001
...
17
Bracket, Igniter Mounting WPL-31957101
...
18
Burner, Oven WPL-Y0316211
...
19
Wire, Insulation Retainer 100`` WPL-31715801
...
20
Insulation WPL-31976201
...
21
Oven Shell (Gas W/lt) WPL-31821701CG
...
22
Insulation WPL-31976001
...
23
Insulation WPL-31976101
...
24
Light- Ove WPL-WP74011278
...
25
Bracket, Oven Cavity WPL-Y0058852
...
26
Screw No.6-32 X 3/8 WPL-Y0072230
...
27
Bracket Ignitor Mtg WPL-Y0303112
...
28
Shield, Top Igniter WPL-0063781
...
29
Kit, Ignitor WPL-786324
...
30
Ignitor Shield-Bottom WPL-Y0308104
...
31
Nut WPL-M0282009
...
32
Rack-Oven WPL-WP314763J
...
33
Procelain Broiler (Pan And Grid) WPL-4396923
...
34
Procelain Broiler (Pan And Grid) WPL-4396923

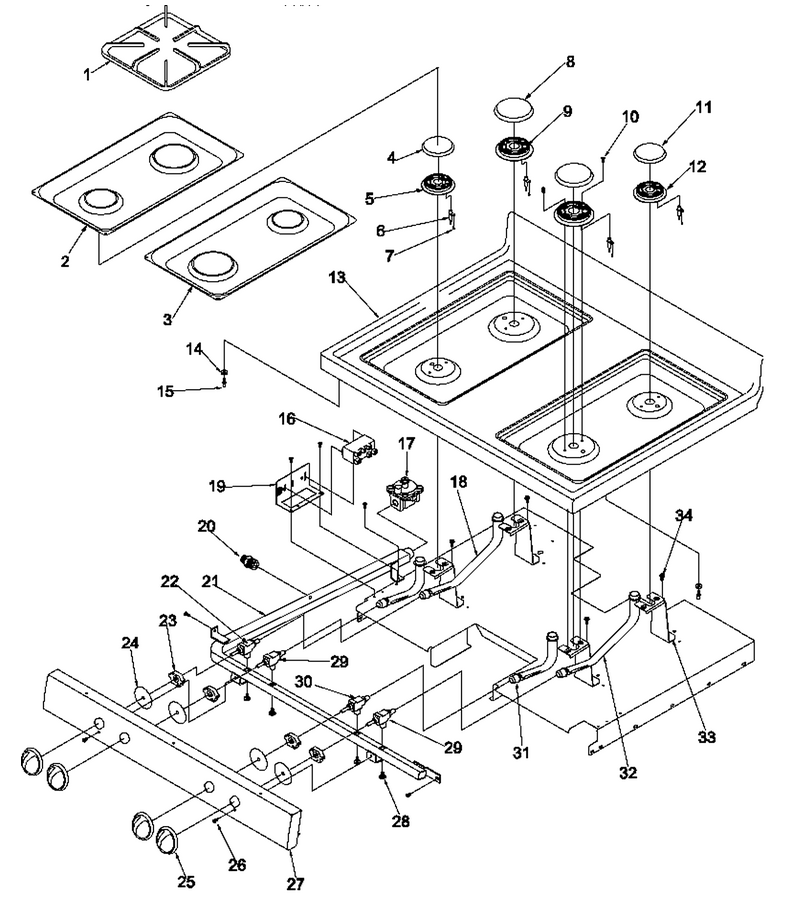

05 - Main Top

...
...
NI
Harness, Spark Module (31``) WPL-Y0316742
...
1
Grate, Single Cast (Matte Blk) WPL-32012201MB
...
2
Bowl- Burn WPL-WP315600B
...
3
Bowl- Burn WPL-WP315600B
...
4
Cap-Burner WPL-WP8284669
...
5
Top Burner (Small 5k) WPL-Y0315769
...
6
Igntr-Surf WPL-WPY0316773
...
7
Screw, Electrode WPL-Y0316775
...
8
Cap-Burner WPL-WP31782701MB
...
9
Burnr-Head WPL-WP7504P109-60
...
10
Screw WPL-WPY04100059
...
11
Cap, Burner 9k (Matte Blk) WPL-315765MB
...
12
Top Burner WPL-WPY0315768
...
13
Main Top,gas,deep Sump WPL-315102L
...
14
Spacer, Nylon (.14``) WPL-Y0062445
...
15
Screw No.8-18x.375 Ab WPL-0041801
...
16
Spark Module, 4+0 WPL-0315154
...
17
Regulator, Pressure WPL-Y0308866
...
18
Tube, Venturi-Right Rear WPL-0316207
...
19
Bracket WPL-WPW10116817
...
20
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
21
Pipe, Manifold WPL-Y0316219
...
22
Valve, Gas 270 Deg (5k Btu) WPL-Y0315960
...
23
Switch- Sp WPL-WPY0316572
...
24
Shield, Switch WPL-Y0316741
...
25
Knob, Top Burner Valve (Almond WPL-315951L
...
26
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
27
Pnl, Manifold (Almond) WPL-315989L
...
28
Screw WPL-WP8273096
...
29
Valve, Top 12k Btu WPL-Y0315962
...
30
Valve, Gas 270 Deg WPL-Y0315961
...
31
Tube, Venturi-Front WPL-31899401
...
32
Tube, Venturi-Left Rear WPL-Y0316291
...
33
Brkt, Venturi Mtg WPL-Y0316218
...
34
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016

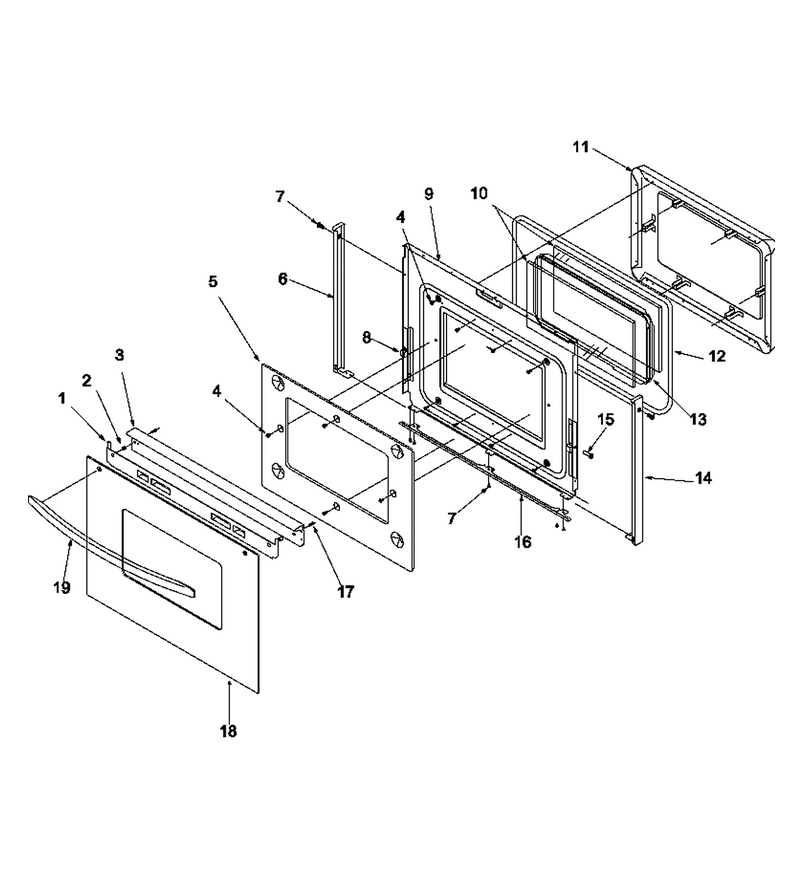

06 - Oven Door

...
...
NI
Insulation, Oven Door WPL-31977701
...
1
Shield, Glass Heat (Oven Door) WPL-316981L
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top WPL-31782103L
...
4
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
5
Shield, Heat WPL-Y0309068
...
6
End Cap, Door (Lt-Alm) WPL-309523L
...
7
Screw WPL-W11245710
...
8
Bumper, Rubber WPL-Y0309627
...
9
Liner, Oven Door WPL-315983CG
...
10
Glass, Door WPL-Y0317019
...
11
Pad, Oven Door WPL-317021CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Frame, Window Pack WPL-Y0317020
...
14
End Cap, Door (Rt-Alm) WPL-309522L
...
15
Rivet, Pop WPL-Y0302648
...
16
Support, Glass (Alm) WPL-309460L
...
17
Screw, 10-32 X 1.250`` Pan Hd WPL-Y0316239
...
18
Glass, Oven Door (Alm) WPL-316238L
...
19
Handle, Oven Door (Alm) WPL-31689502L

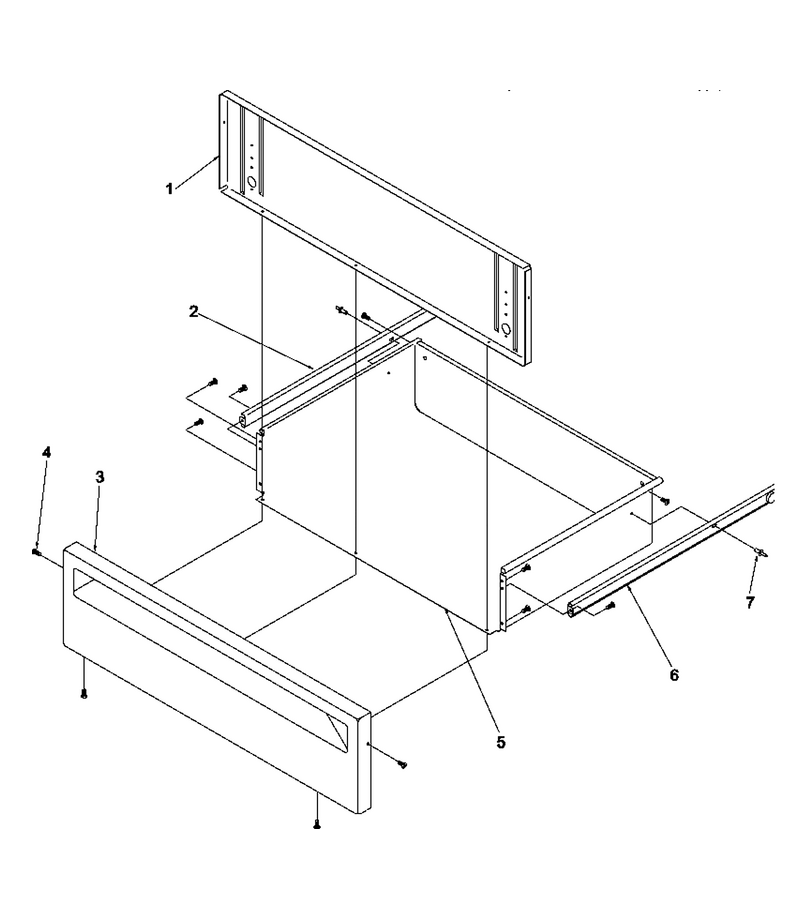

07 - Storage Door

...
...
1
Liner, Drawer Panel (Blk) WPL-31927401B
...
2
Runner Storage Dwr-Lh WPL-0314664
...
3
Panel, Drawer (Alm) WPL-309176L
...
4
Screw WPL-W11245710
...
5
Drawer, Storage (Wht) WPL-32059403W
...
6
Runner Storage Dwr-Rh WPL-Y0314665
...
7
Rivet, Pop WPL-Y0076357

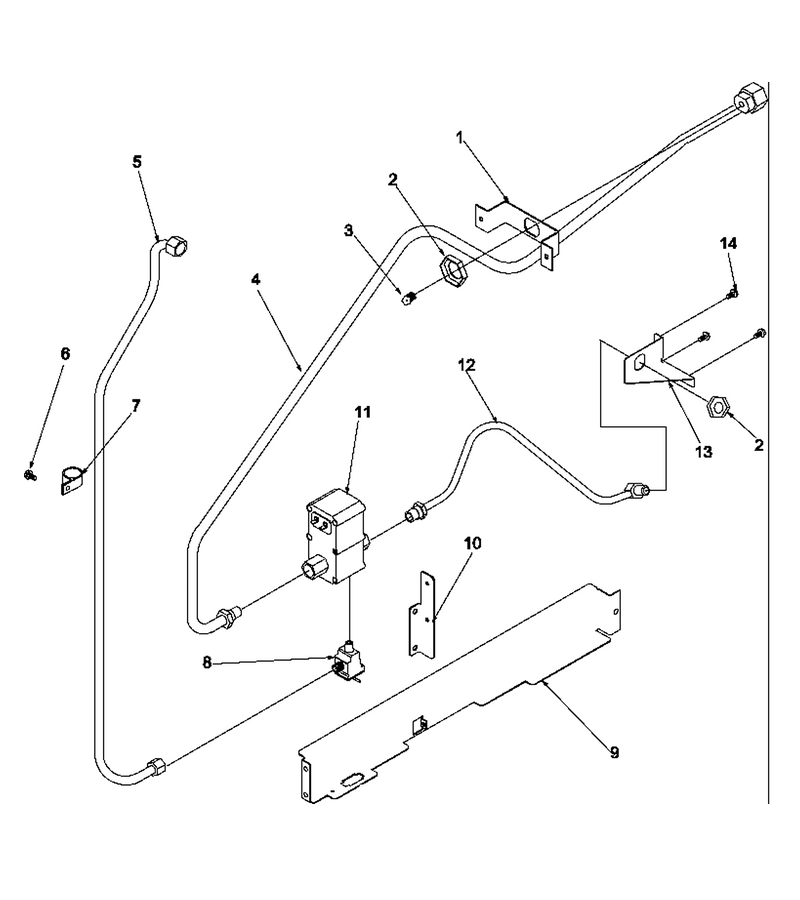

04 - Gas Supply

...
...
NI
Nut K WPL-M0282005
...
1
Brkt, Broil Orifice WPL-Y0315018
...
2
Nut, Pal 3/4-16 X 1.062 WPL-Y0097871
...
3
Orifice, No.52 Nat WPL-Y0060043
...
4
Tubing, Valve To Broil WPL-Y0316210
...
5
Tubing Assy WPL-31769901
...
6
Screw No.6-32 X 3/8 WPL-Y0072230
...
7
Clamp, Wire-Insulate WPL-Y0068513
...
8
Valve, Shutoff WPL-0306428
...
9
Brkt, Dual Valve WPL-Y0316216
...
10
Brk`t, Gas Valve WPL-Y0316789
...
11
Valve, Gas WPL-Y0316220
...
12
Tubing, Orifice Assy WPL-Y0316791
...
13
Brkt, Bake Venturi WPL-Y0316251
...
14
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
