Amana ARG7102W-P1143389NW Gas Range

Model: ARG7102W-P1143389NW

Save
 Part Not Listed?Part Not Listed?
product name

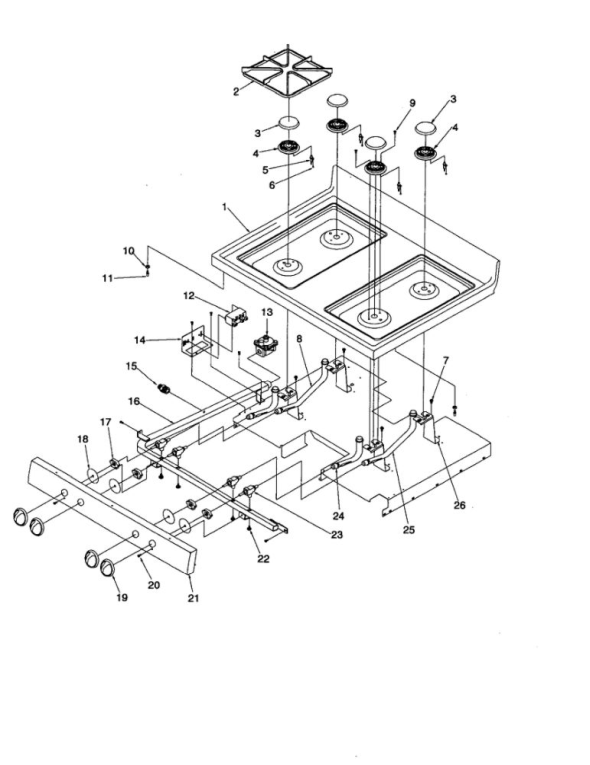

Amana ARG7102W-P1143389NW

...
...
4
Range Surface Burner Base WPL-WPY0315768
...
5
Range Surface Burner Igniter WPL-WPY0316773
...
7
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
9
Range Screw WPL-WPY04100059
...
11
Refrigerator Screw WPL-W11245710
...
22
Screw WPL-WP8273096

Amana ARG7102W-P1143389NW

...
...
5
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
16
Refrigerator Screw WPL-W11245710
...
25
Range Screw WPL-WP7101P126-60

Amana ARG7102W-P1143389NW

...
...
8
Refrigerator Screw WPL-W11245710

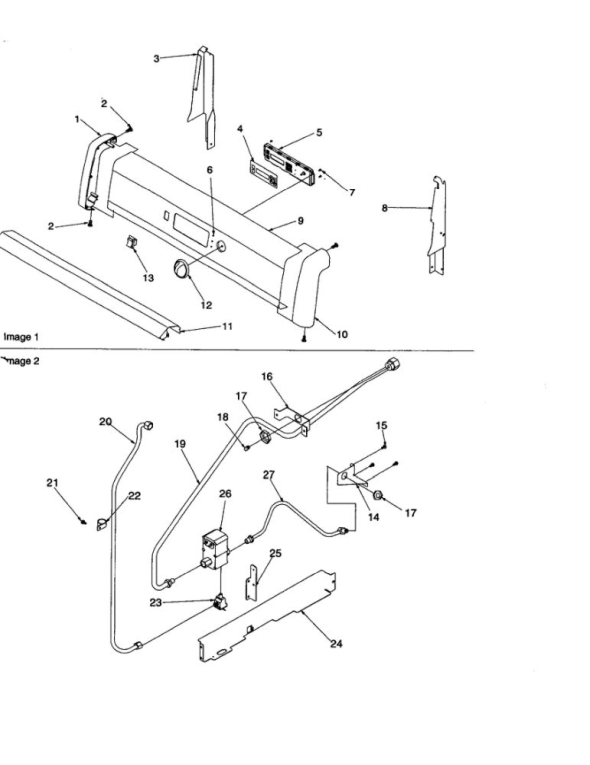

Amana ARG7102W-P1143389NW

...
...
1
Range Control Panel End Cap, Left WPL-WP315843B
...
2
Thread-Cutting Screw WPL-STD610603
...
7
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Range Control Panel End Cap, Right WPL-WP315841B
...
15
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995

Amana ARG7102W-P1143389NW

...
...
5
Refrigerator Screw WPL-W11245710
...
8
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
11
Range Oven Burner Igniter (Replaces 4315139, 4363426, Y0309159) WPL-786324
...
12
Range Oven Temperature Sensor WPL-WPY0314907
...
17
Range Bake Igniter WPL-WP31940001
...
17A
Range Bake Igniter WPL-WP31940001
...
23
Insulation WPL-31976001
...
25
Wall Oven Light Assembly WPL-WP74011278
...
30
Range Oven Burner Igniter (Replaces 4315139, 4363426, Y0309159) WPL-786324
...
30A
Range Oven Burner Igniter (Replaces 4315139, 4363426, Y0309159) WPL-786324
...
32
Refrigerator Nut WPL-M0282005
...
33
Range Oven Rack (Replaces 314763J) WPL-WP314763J
...
34
Range Broil Pan WPL-4396923
...
35
Range Broil Pan WPL-4396923
...
35A
Range Broil Pan WPL-4396923

Amana ARG7102W-P1143389NW

...
...
NI
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
NI
Refrigerator Nut WPL-M0282005
...
NI
Refrigerator Screw WPL-W11245710
...
...
...
