Amana ARDS801E (BOM: P1131929N)

Model: ARDS801E (BOM: P1131929N)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

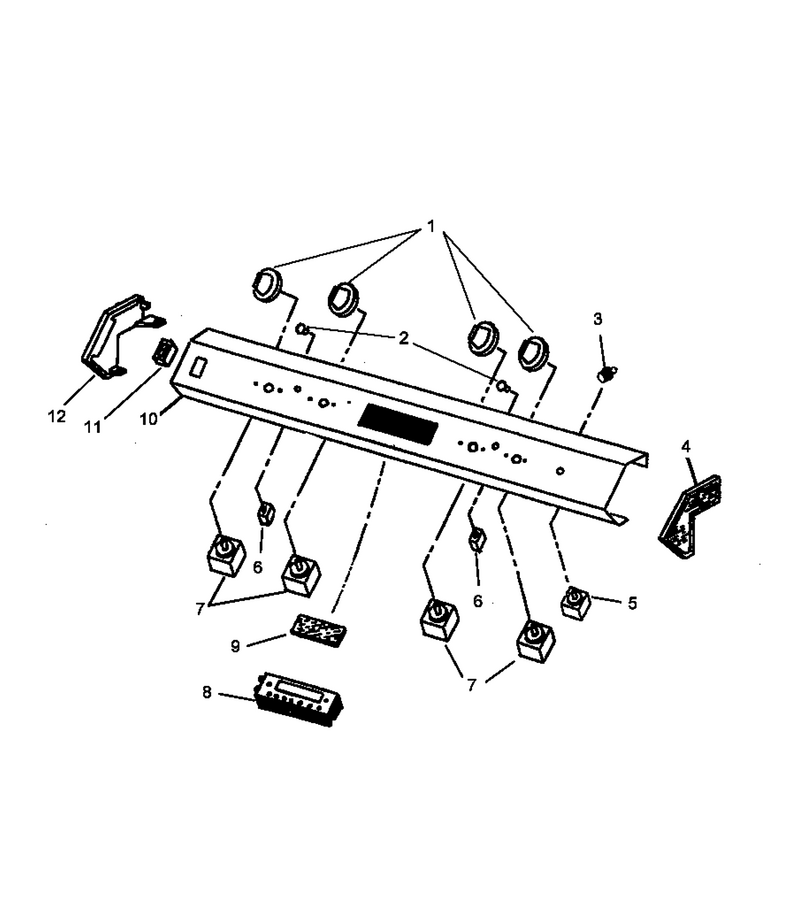

02 - Control Panel Parts

...
...
NI
Screw 23 6x5/16 Ph Hd WPL-Y0075316
...
1
Knob, Top Burner (Black) WPL-308464B
...
2
Lens, Indicator Light, Red WPL-Y0301209
...
3
Knob, Fan Switch (Black) WPL-31760709B
...
4
End Cap, Rt (Blk) WPL-308172B
...
5
Switch, Fan WPL-Y0300574
...
6
Light Indicator WPL-0306895
...
7
Switch,inf(240tp-1244) WPL-Y0307359
...
8
Erc2c-Electric WPL-Y0315030
...
9
Overlay, Mylar (Blk) WPL-31943901B
...
10
Control Panel-Elec WPL-314697B
...
11
Switch- Ro WPL-WP31986601B
...
12
End Cap, Lt (Blk) WPL-308171B

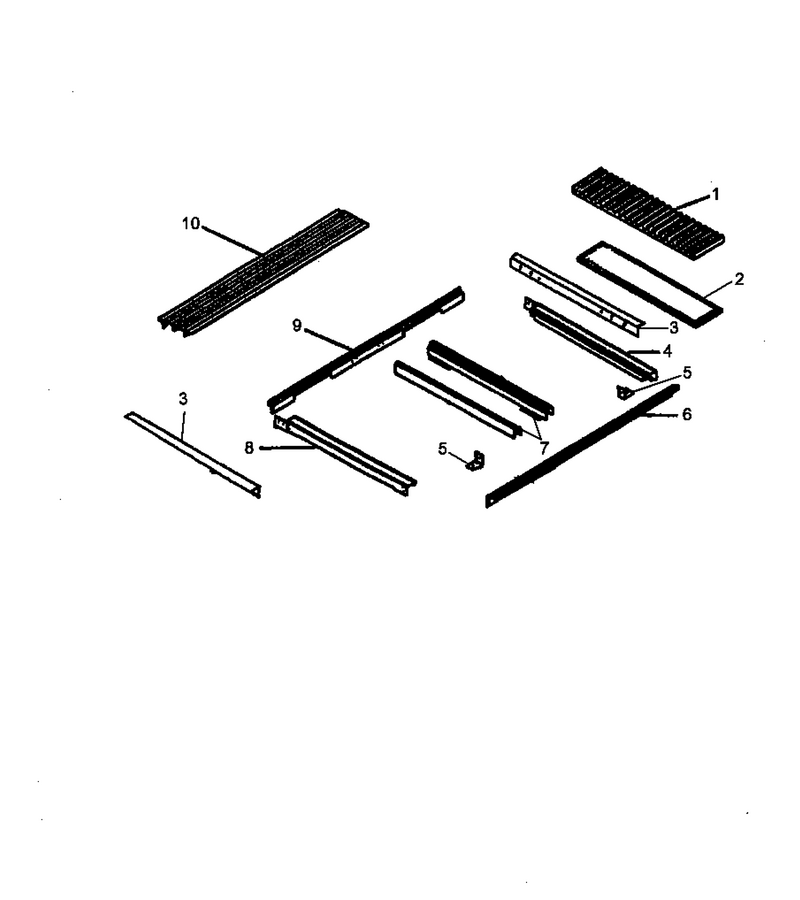

04 - Main Top Assy

...
...
NI
Spacer, Nylon (.14``) WPL-Y0062445
...
1
Cover, Vent (Blk) WPL-Y0058902
...
2
Filtr-Grse WPL-WPY0307363
...
3
Trim, Countertop (Blk) WPL-305204B
...
4
Frame, Side-Rt Main Top (Blk) WPL-31943801B
...
5
Bracket, Frame Trim WPL-Y0301154
...
6
Frame, Front-Main Top WPL-Y058528B
...
7
Frame, Center Main Top (Blk) WPL-31943701B
...
8
Frame, Side-Lt Main Top (Blk) WPL-31943802B
...
9
Frame, Rear-Electric (Blk) WPL-315083B
...
10
Lo-Backrail, Electric (Blk) WPL-315081B

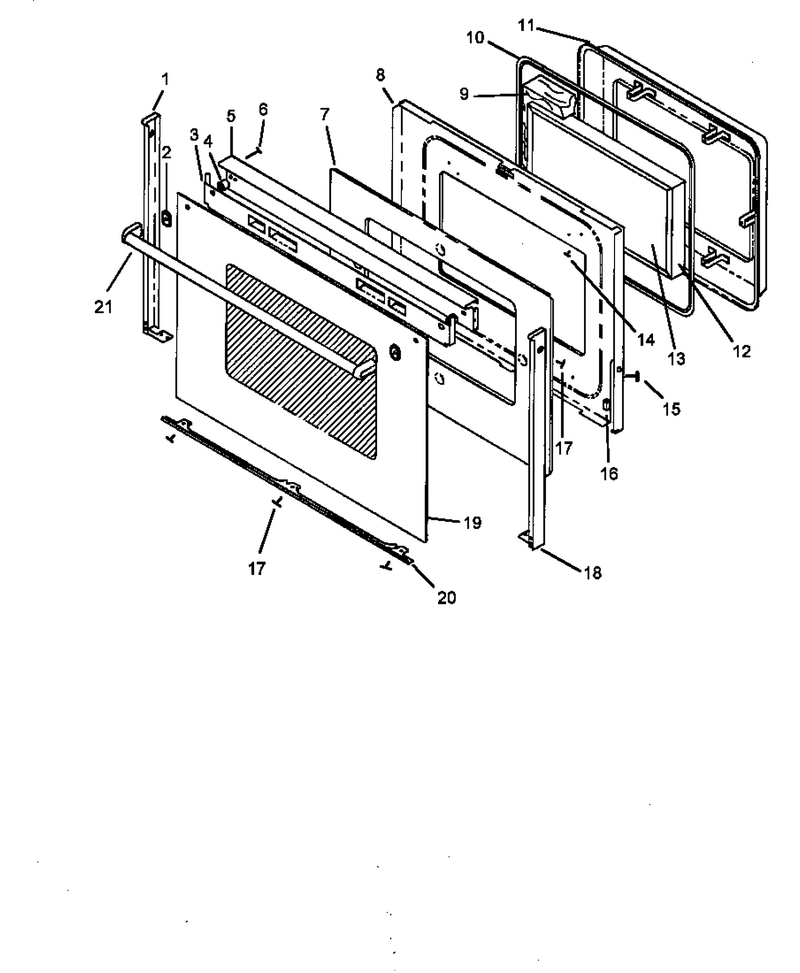

06 - Oven Door Assy

...
...
NI
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
1
End Cap, Door (Lt-Blk) WPL-309523B
...
2
Spacer, Handle (Black) WPL-R0759529
...
3
Shield, Glass Heat WPL-31854102
...
4
Bushing, Handle (Nal) WPL-Y0309461
...
5
Trim, Upper Door WPL-31782202B
...
6
Screw, No.10-24x11/4 (Trs Ph Hd) WPL-Y0309973
...
7
Shield, Heat WPL-Y0309068
...
8
Liner, Oven Door WPL-314561CG
...
9
Insulation, Wrapper WPL-31975801
...
10
Gasket, Oven Dr 82`` WPL-Y0300432
...
11
Pad, Oven Door WPL-317021CG
...
12
Frame, Window Pack WPL-Y0309071
...
13
Glass Window 18`` X 11`` X 3/16`` WPL-Y0309074
...
14
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0309627
...
17
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
18
End Cap, Door (Rt-Blk) WPL-309522B
...
19
Panel, Glass Oven Door (Blk) WPL-314819B
...
20
Asy- Door WPL-12002810
...
21
Handle, Oven Door (Blk) WPL-309624B

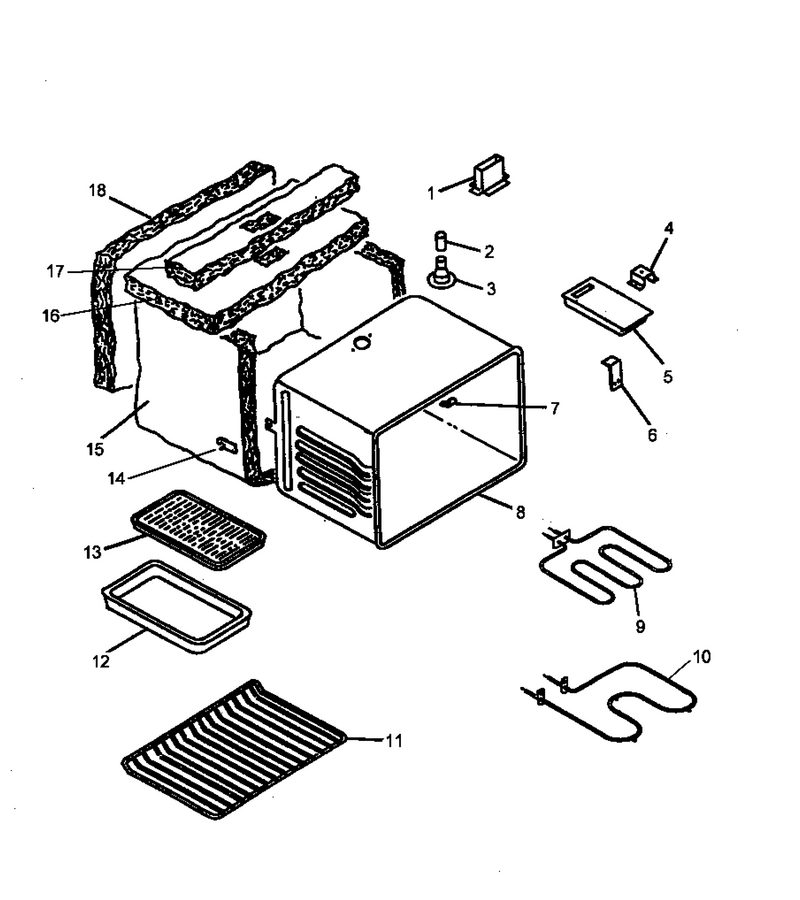

01 - Cabinet Assy

...
...
NI
Clip- T-St WPL-R0000343
...
1
Flue Box, Rear WPL-Y0059431
...
2
Tube, Vent Extension WPL-0060633
...
3
Smoke Eliminator WPL-Y0058526
...
4
Mtg. Bracket, Vent WPL-Y0300632
...
5
Flue Box WPL-Y0300641
...
6
Bracket, Vent Support WPL-Y0300943
...
7
Cover, Chip WPL-Y0315022
...
8
Oven Shell, Electric Dd WPL-314698CG
...
9
Element- B WPL-77001097
...
10
Element- B WPL-WP77001096
...
11
Rack-Oven WPL-WP314763J
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
13
Procelain Broiler (Pan And Grid) WPL-4396923
...
14
Bracket, Oven Cavity WPL-Y0058852
...
15
Insulation, Wrapper WPL-Y0301713
...
16
Insulation, Top WPL-0301711
...
17
Insulation, Latch WPL-0058319
...
18
Insulation, Back WPL-0301712

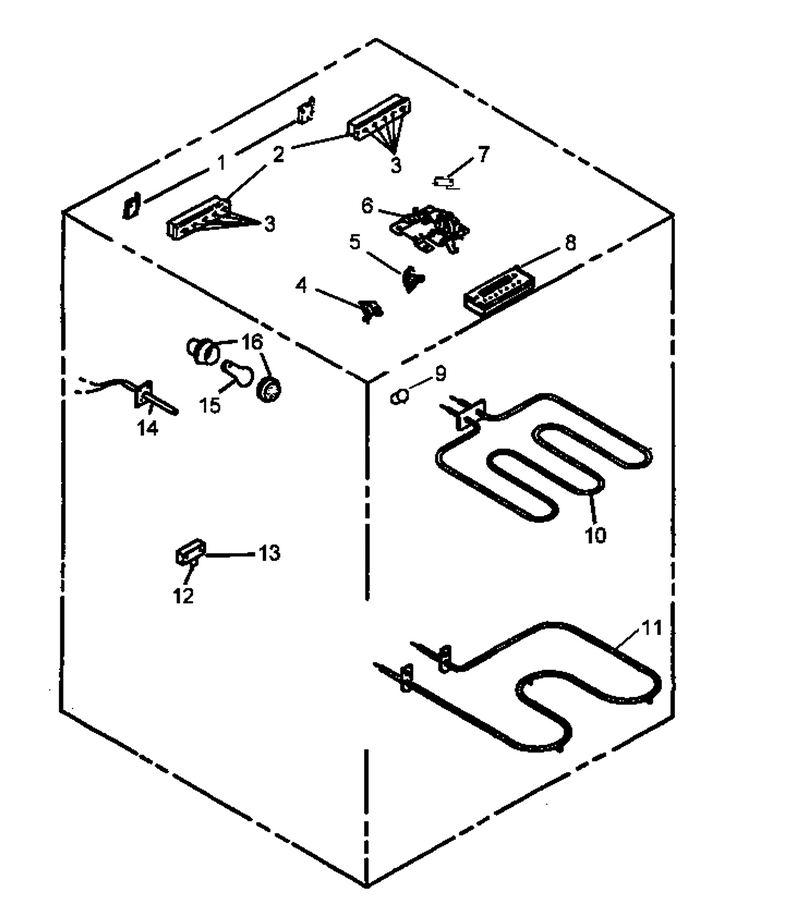

03 - Electrical Components

...
...
NI
Hex Nut No.10-32 Nickel WPL-0306381
...
1
Switch, Fan WPL-Y0054254
...
2
Plug Block Modular Top WPL-Y0042210
...
3
Element, Contact-Module Top WPL-Y0042123
...
4
Limit Control-Upper Oven-200 WPL-Y0042045
...
5
Control, Fan WPL-Y0308417
...
6
Latch, Elect. Si WPL-0314960
...
7
Switch, Clean Circuit WPL-Y0065780
...
8
Erc2c-Electric WPL-Y0315030
...
9
Switch, Oven Light WPL-866294
...
10
Element- B WPL-77001097
...
11
Element- B WPL-WP77001096
...
12
Block-Term WPL-WPW10245259
...
13
Block-Term WPL-WP8203546
...
14
Sensor WPL-WPY0314907
...
15
Light Bulb WPL-8009
...
16
Light- Ove WPL-WP74011278

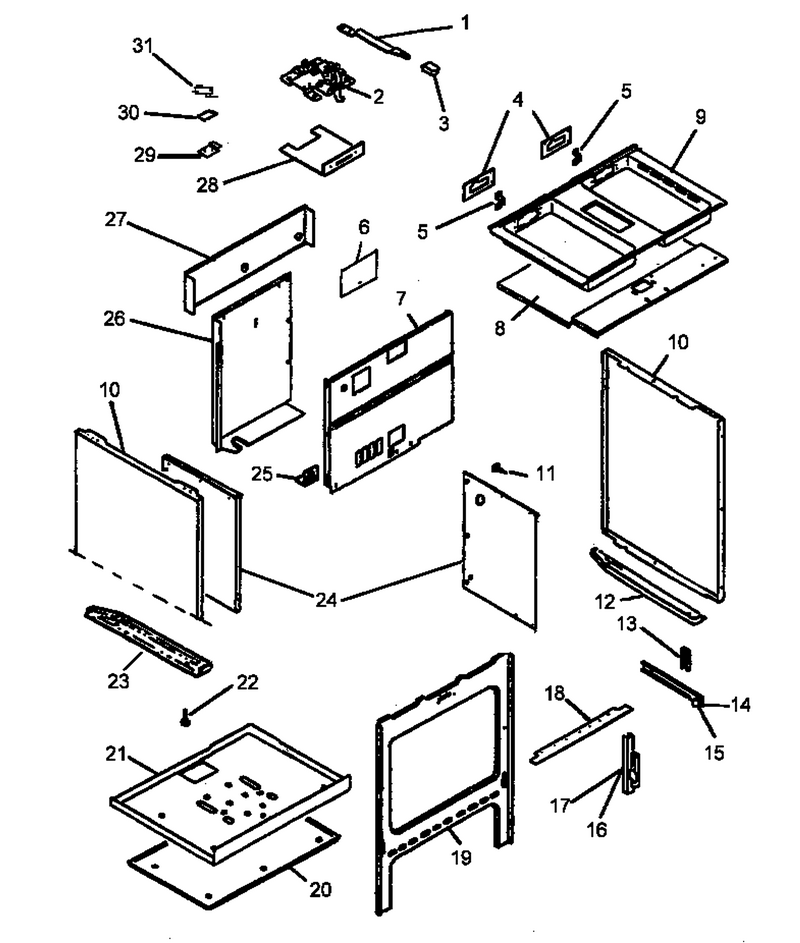

05 - Oven Assy

...
...
NI
Cover Plate, Latch WPL-0302483
...
1
Handle, Door Latch (Blk) WPL-303040B
...
2
Latch, Elect. Si WPL-0314960
...
3
Knob, Latch Handle (Blk) WPL-0302300
...
4
Plate Mtg. Plug Block WPL-Y0300498
...
5
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
6
Plate, Access WPL-31800001
...
7
Insulation Retainer (Rear) WPL-31936201
...
8
Retainer, Insulation Top WPL-Y0315622
...
9
Box, Burner WPL-31898201CG
...
10
Panel, Side (Blk) WPL-31825102B
...
11
Screw WPL-W11245710
...
12
Brace, Leveling Leg (Rt) WPL-31854502
...
13
Support, Stg Dwr Trk WPL-Y0315150
...
14
Track, Storage Drawer Lt WPL-Y0314666
...
15
Track, Storage Drawer Rt WPL-Y0314667
...
16
Kit, Door Hinge(Lh-Hs) WPL-Y0314572
...
17
Hinge-Door WPL-R0706011
...
18
Filler, Front Frame WPL-Y0315148
...
19
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
20
Shield, Heat WPL-Y0315146
...
21
Insulation Retainer (Bottom) WPL-Y0315147
...
22
Leg,leveling Xxx WPL-314187B
...
23
Brace, Leveling Leg (Lt) WPL-31854501
...
24
Insulation Retainer, (Side) WPL-Y0314680
...
25
Bracker, Conduit WPL-Y0058556
...
26
Cover, Rear Wire WPL-Y0314672
...
27
Shield, Rear WPL-0314785
...
28
Bracket, Latch Mtg. WPL-Y0058918
...
29
Bracket, Switch WPL-Y0302316
...
30
Insulation, Esm WPL-Y0091523
...
31
Switch, Clean Circuit WPL-Y0065780

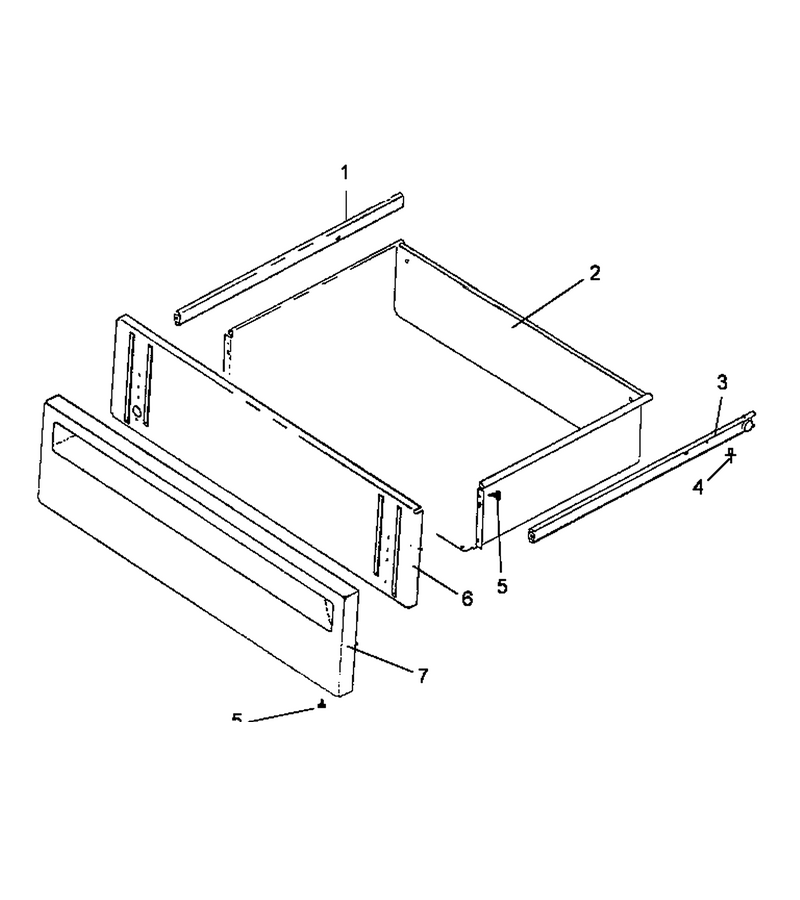

07 - Storage Drawer Assy

...
...
1
Runner, Storage Drawer Lt WPL-Y0314668
...
2
Wrapper, Storage Drawer (Wht) WPL-314674W
...
3
Runner, Storage Drawer Rt WPL-Y0314669
...
4
Rivet, Pop WPL-Y0076357
...
5
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
6
Liner, Drawer Panel (Blk) WPL-31930601B
...
7
Panel, Drawer (Blk) WPL-309177B

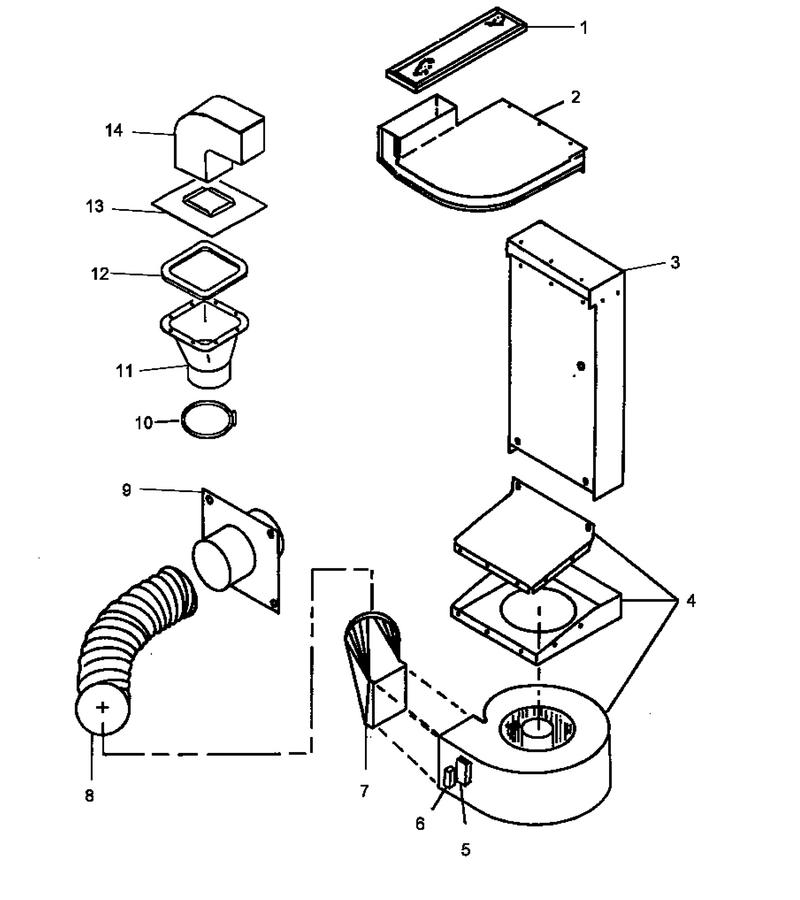

08 - Ventilation Parts

...
...
NI
Shield, Relay WPL-Y0315556
...
1
Filtr-Grse WPL-WPY0307363
...
2
W/a Top Plenum WPL-314755CG
...
3
W/a Rear Plenum WPL-Y0314779
...
4
Assy, Blwr Box W/capacitor WPL-Y0314676
...
5
Capacitor WPL-10099906
...
6
Relay WPL-Y0054074
...
7
Duct, Blower WPL-Y0307508
...
8
Duct, Flex WPL-Y0307945
...
9
Thimble, 6`` Duct WPL-Y0307592
...
10
Clamp, Hose WPL-Y702331
...
11
Transition,wall/floor/side Cab WPL-Y0310943
...
12
Gasket, Bonded WPL-Y0301343
...
13
Plate, Duct WPL-Y0315330
...
14
Floor Duct, Elbow WPL-Y0315331
