Amana ARC-506 (BOM: P8562002S)

Model: ARC-506 (BOM: P8562002S)

Save Part Not Listed?
product name

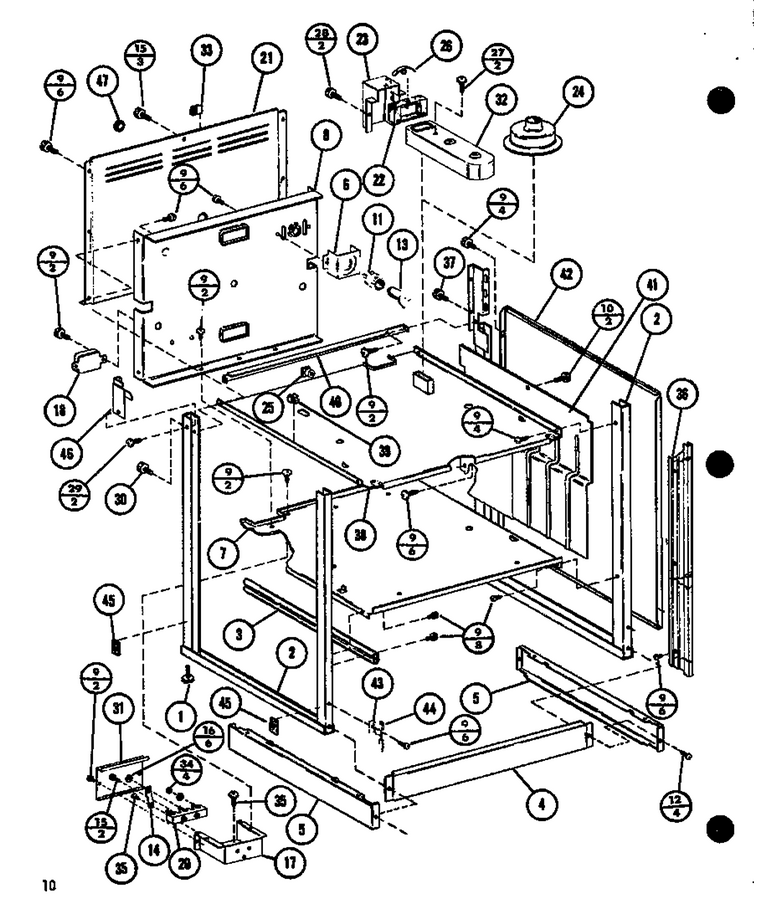

04 - Page 3

...
...
1
Foot, Level, Rear WPL-A4400802
...
2
Side Frame Weld WPL-D8504105
...
3
Glide WPL-C2705301
...
4
Kick Panel-Black WPL-C2706704
...
5
Kick Plate WPL-C2706602
...
6
Reflector WPL-B5000601
...
7
Retainer WPL-D8510401
...
8
Retainer- Rear Insul WPL-D8506303
...
9
Screw WPL-M0217224
...
10
Screw WPL-W10856125
...
11
Socket, Oven Light WPL-Y0316385
...
12
Screw WPL-M0232723
...
13
Light Bulb WPL-8009
...
14
Strap-Grd WPL-A4406901
...
15
Screw WPL-M0213145
...
16
Usr 0041847 WPL-M0282402
...
17
Brkt-Term Block WPL-C2705001
...
20
Block-Term WPL-WP8203546
...
21
Cover-Lower Lead WPL-D8509502
...
22
Gasket, Vent WPL-B5027401
...
23
Oven Vent Ptnd WPL-C2731602
...
25
Grommet WPL-M0580005
...
26
Clip, Dart WPL-M0111202
...
27
Screw WPL-M0216539
...
28
Screw A K WPL-M0211516
...
29
Screw WPL-W11233072
...
30
Screw WPL-WP1163839
...
31
Cover WPL-B5003501
...
32
Duct- Hoiz. Vent WPL-C2706402
...
34
Washer WPL-M0270001
...
35
Screw WPL-M0227804
...
36
Trim-Side Lh WPL-D8509202
...
38
Retainer-Top Insul WPL-D8506203
...
39
Clip WPL-M0110503
...
41
Retainer-Insul R WPL-D8506701
...
42
Side Panel-A WPL-D8501107
...
43
Brkt-Side Pnl Lh WPL-B5010202
...
44
Bumper WPL-A4401502
...
45
Gasket WPL-B5718912
...
47
Plug K WPL-M0311103

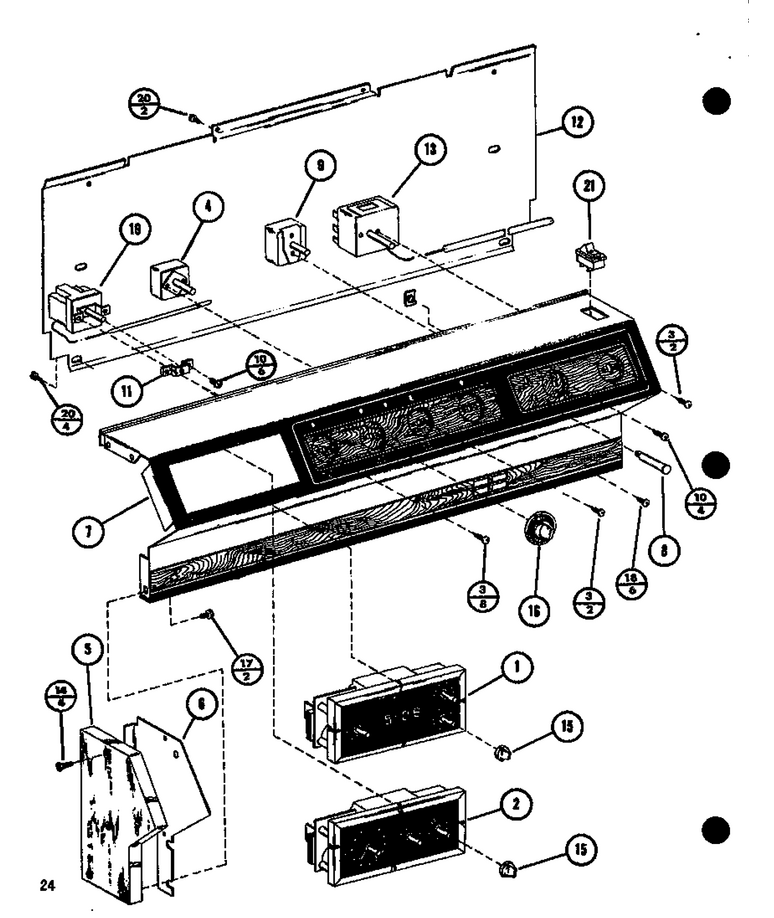

01 - Page 10

...
...
11
Bracket WPL-B5029801

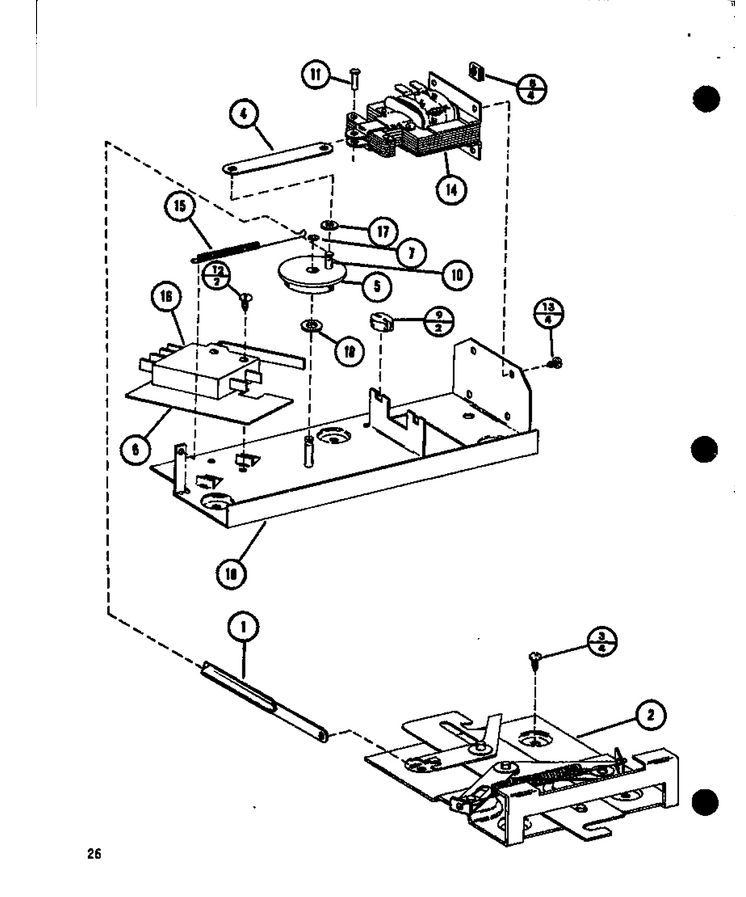

02 - Page 11

...
...
NI
Grease WPL-R0195010
...
1
Arm WPL-B5004501
...
2
Assy, Door Latch (10442001) WPL-D8508301
...
3
Screw WPL-M0217224
...
4
Arm-Actuator WPL-A4405801
...
5
Cam, Lock Solenoid WPL-B5004201
...
6
Insulator-Switch WPL-A4405601
...
7
Speed Nut A- K WPL-M0287901
...
8
Clip WPL-M0119701
...
9
Pad WPL-A4405901
...
10
Pin-Grooved WPL-A4405701
...
11
Pop Rivet WPL-M0010212
...
12
Screw WPL-M0227520
...
13
Screw WPL-WP74004005
...
14
Solenoid, Lock WPL-Y0306856
...
15
Spring, Solenoid WPL-Y0306846
...
16
Switch, Limit WPL-B5004402
...
17
Washer WPL-M0270501
...
18
Washer WPL-M0270515
...
19
Assy, Latch Solenoid WPL-C2705401

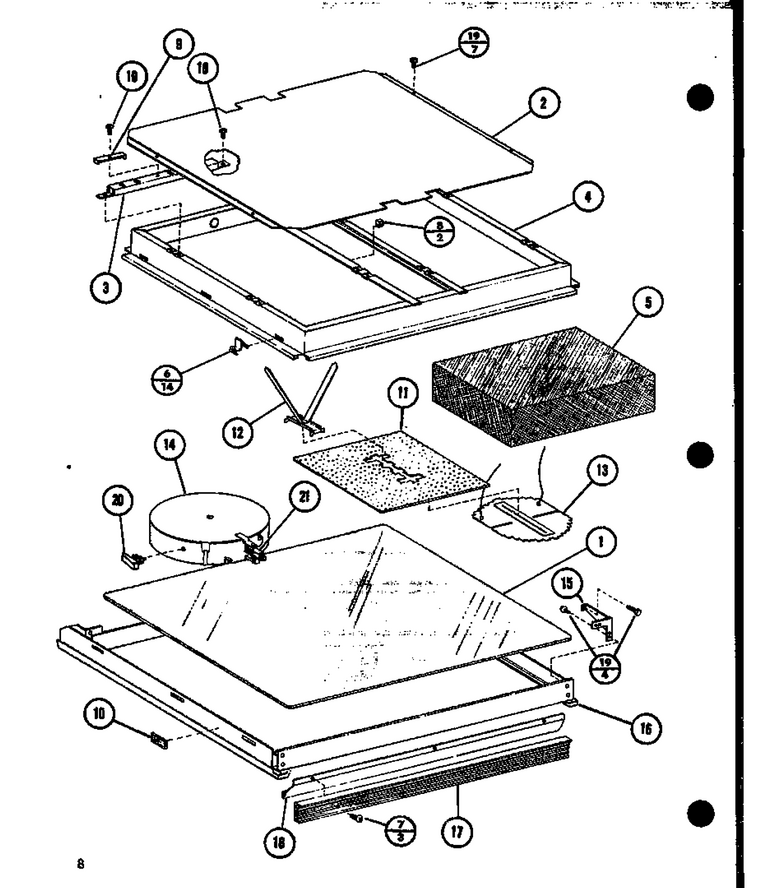

03 - Page 2

...
...
1
Heater Panel, Glass Top, R1992 WPL-D8556301
...
2
Cover-Htr Box WPL-C2704201
...
3
Bar-Hold Down WPL-C2705701
...
4
Htr Box Assy WPL-D8508501
...
5
Insulation, Fiberglass WPL-C2710801
...
6
Clip WPL-B5001502
...
7
Screw WPL-M0254518
...
8
Clip WPL-M0110503
...
9
Spring, Element WPL-74008213
...
10
Gasket WPL-B5718912
...
11
Insul-Lo-Con K WPL-C2702001
...
12
Hld Down Assy WPL-C2701701
...
13
Element Kit, Small WPL-R0157501
...
14
See Svc Ltr Cba-136 WPL-D8527201
...
15
Brkt-Front L WPL-B5005801
...
16
Ring Top Frame WPL-D8533002
...
17
Grille WPL-D8509402
...
18
Guard WPL-C2706101
...
19
Screw WPL-M0217224
...
20
See Serv Ltr Cba-136 WPL-C2702401
...
21
Switch WPL-C2712101

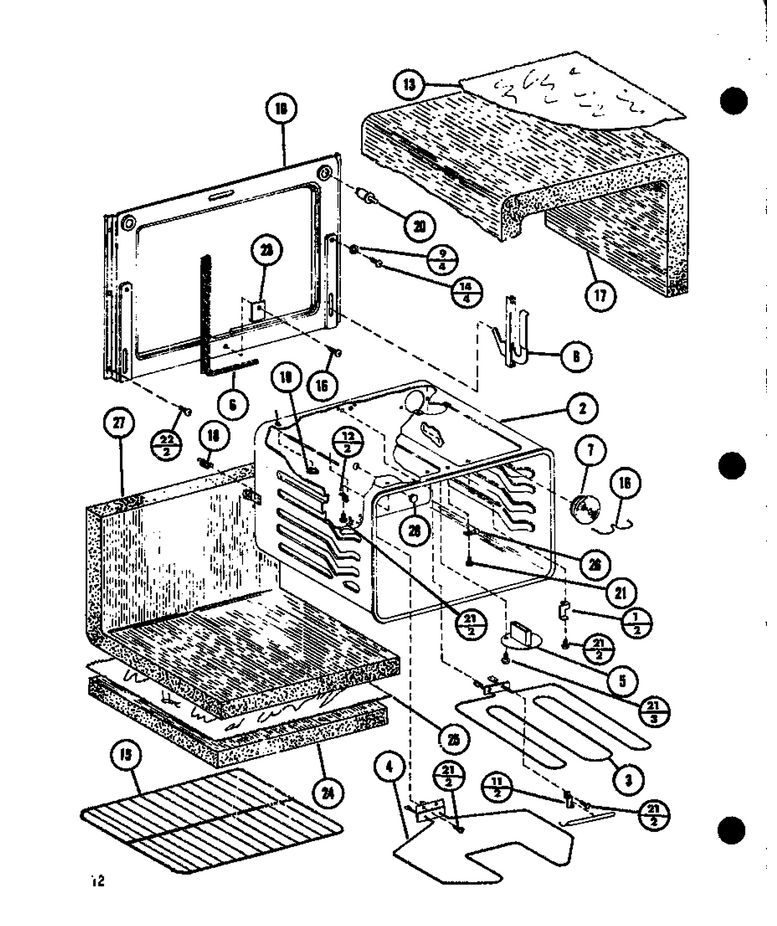

05 - Page 4

...
...
1
Supt-Broiler El WPL-A4416501
...
2
Oven Cavity WPL-D8510503
...
3
Element,broil WPL-D8528901
...
4
Bake Element WPL-C2704901
...
5
Assy, Vent WPL-C2704801
...
6
Gasket WPL-B5002602
...
7
Globe-Lamp WPL-B5003301
...
8
Hinge WPL-R0156581
...
9
Washer Padded WPL-M0271202
...
10
Panel Front Cavity WPL-D8579002
...
12
Retainer-Thermo WPL-A4407801
...
13
Foil-Alum WPL-A4400603
...
14
Screw WPL-M0203342
...
15
Rack 15 11/32`` W X 22 29/32`` L WPL-D8510001
...
16
Retainer-Lamp WPL-A4407001
...
17
Insulation, Top And Sides WPL-B5003002
...
18
Spring WPL-A4407101
...
19
Plug Button WPL-M0311101
...
20
Switch- Oven Door WPL-Y0316882
...
21
Screw WPL-M0217824
...
22
Screw WPL-M0217224
...
23
Retainer-Gasket K WPL-A4427901
...
24
Insulation K WPL-B5002301
...
26
Clip-Oven Cavity WPL-B5003201
...
27
Insulation K WPL-B5002401
...
28
Plug WPL-M0311102

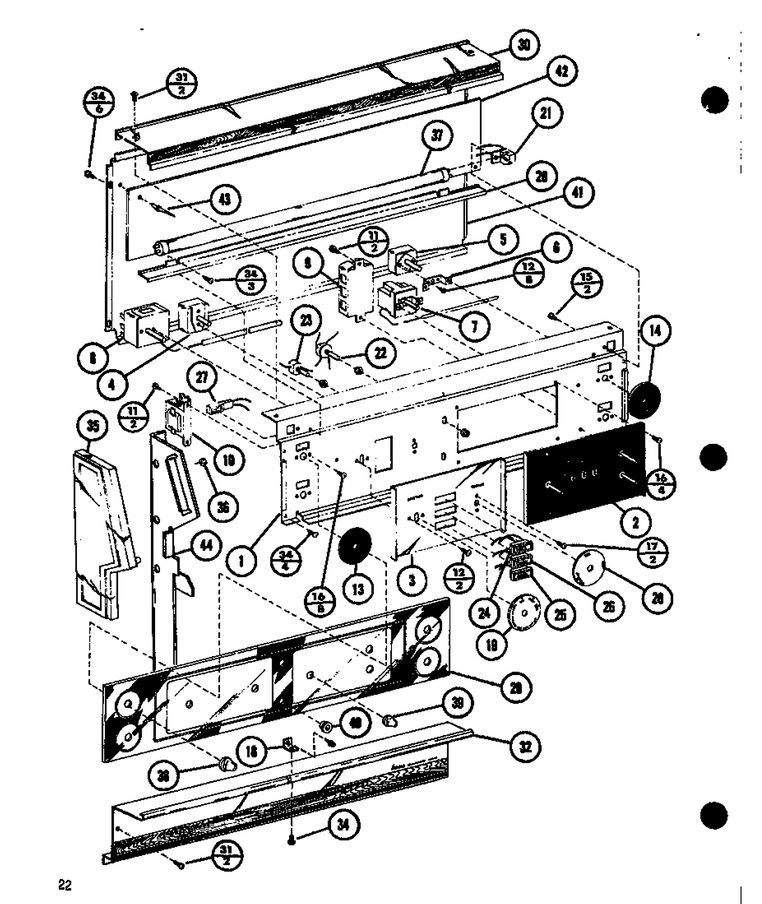

07 - Page 9

...
...
1
Control Panel WPL-D8563102
...
2
Timer, Digital WPL-D8563301
...
3
Panel- Decoration WPL-D8563501
...
4
Switch, Selector, Split Shaft WPL-C2731701
...
5
Kit- Switc WPL-WPR0702021
...
6
Brkt-Mtg WPL-A4404801
...
7
Thermostat, Surface, Split Sha WPL-D8503904
...
8
Thermostat, Oven, Solid Shaft WPL-D8557504
...
9
Relay, Oven WPL-Y0091669
...
10
Ballast WPL-74003033
...
11
Screw WPL-M0217224
...
12
Screw WPL-W11214483
...
13
Control, Disc Assembly, Temp A WPL-C2732508
...
14
Control, Disc Assembly, Propor WPL-C2732502
...
15
Screw WPL-M0201414
...
16
Screw WPL-M0232702
...
17
Screw WPL-M0200414
...
18
Bracket-Control WPL-A4427701
...
19
Disc- Control WPL-C2733901
...
20
Disc-Control WPL-C2733902
...
21
Socket Flor-Lh WPL-C2722705
...
22
Switch, Fluorescent Light WPL-C2732301
...
23
Switch WPL-C2731901
...
24
Indicator Light WPL-C2732001
...
25
Indicator Light WPL-C2732002
...
26
Indicator Light WPL-C2732003
...
27
Light Ind Kit WPL-R0157517
...
28
Lens-Light WPL-B5026601
...
29
Glass-Control WPL-D8563801
...
30
Extrusion, Top WPL-D8563601
...
31
Screw WPL-214597
...
32
Cntr Range Plate WPL-D8564101
...
34
Screw WPL-WP59002061
...
35
Cap, End, R.h. WPL-D8564301
...
36
Nut WPL-M0288804
...
37
Lamp-Fluor WPL-WP95292
...
38
Knob K WPL-C2737001
...
39
Knob, Dual Timer WPL-B5005101
...
40
Cap-Light Switch WPL-A4427601
...
41
Cover, Upper Lead WPL-D8564201
...
42
Insulation WPL-B5027201
...
43
Rivet-Pop WPL-59002054
...
44
Support WPL-D8570802

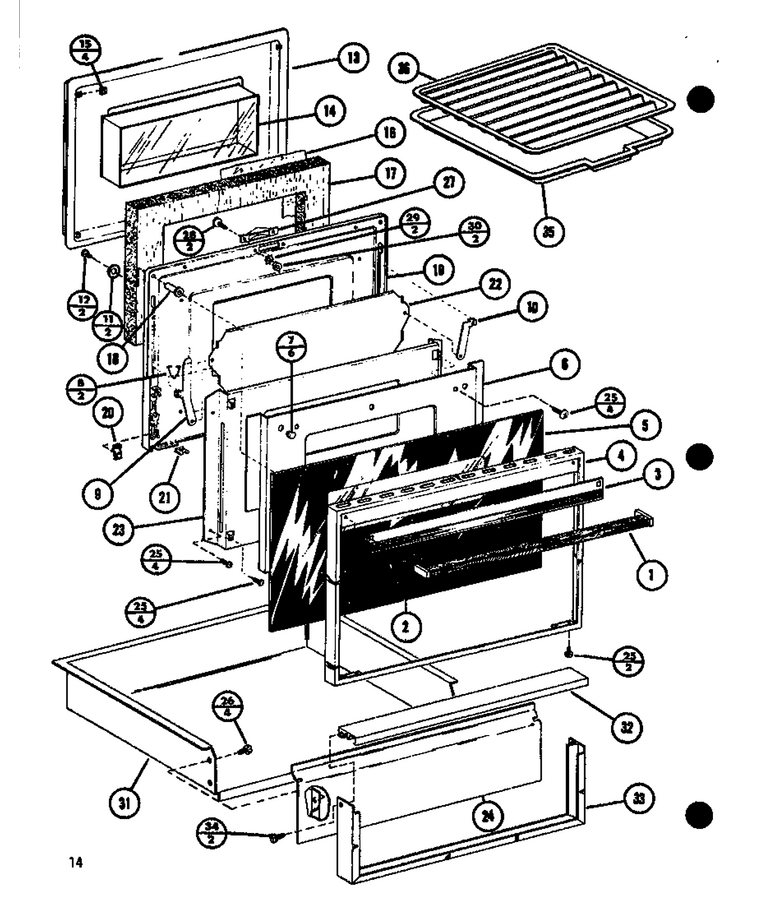

06 - Page 5

...
...
1
Handle WPL-C8958202
...
2
Pad, Handle WPL-A4406402
...
3
Ext Door Trim WPL-D8507802
...
4
Door Frame (Chrome) WPL-D8507701
...
5
Glass Panel Kit WPL-D8507902
...
6
Heat Shield WPL-D8507601
...
7
Bumper-Glass WPL-A4406501
...
8
Spring-Shutter WPL-C2705101
...
9
Arm-Shutter Lh WPL-B5003801
...
10
Arm-Shutter Rh WPL-B5003901
...
11
Washer Padded WPL-M0271202
...
12
Screw WPL-M0203052
...
13
Door Plug Weld WPL-D8507102
...
14
Window WPL-D8573401
...
15
Speed Nut WPL-A4407601
...
16
Foil-Door Plug WPL-A4406601
...
17
Insulation, Door Plug WPL-B5001101
...
18
Spacer WPL-A4406301
...
19
Inner Door Weld WPL-D8506903
...
20
Spring WPL-A4407701
...
21
Clip-Speed Nut WPL-M0119601
...
22
Shutter WPL-D8507501
...
23
Heat Shield WPL-D8507401
...
24
Drawer Wld Brn K WPL-C2713803
...
25
Screw WPL-W11233072
...
26
Screw WPL-M0217224
...
27
Latch Plate Assy WPL-B5003601
...
28
Screw WPL-M0203218
...
29
Lock Washer WPL-M0272803
...
30
Nut WPL-WP486255
...
31
Drawer Pan Pntd K WPL-C2713903
...
32
Extrusion Hdl K WPL-D8526501
...
33
Ext Drawer Ft K WPL-D8548101
...
34
Screw WPL-67001466
...
35
Procelain Broiler (Pan And Grid) WPL-4396923
...
36
Procelain Broiler (Pan And Grid) WPL-4396923
