Amana ARC-2B (BOM: P8512202S)

Model: ARC-2B (BOM: P8512202S)

Save Part Not Listed?
product name

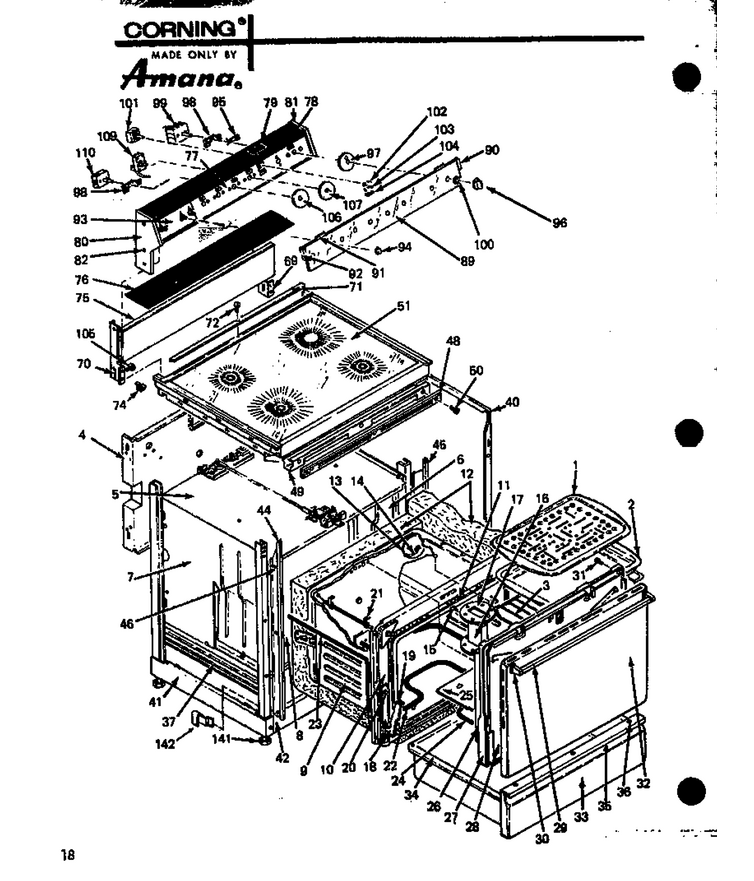

01 - Page 3

...
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Rack, Oven WPL-CG984249
...
4
Retainer, Insulation, Rear WPL-CG981014
...
5
Retainer WPL-D8506201
...
6
Retainer-Insul R WPL-D8506701
...
7
Retainer-Insul L WPL-D8506801
...
8
Retainer WPL-D8510401
...
9
Cavity, Oven WPL-CG983995
...
10
Oven Cavity Front Panel WPL-CG983989
...
11
Gasket WPL-CG982183
...
12
Insulation, Range Body WPL-CG982241
...
13
Globe-Lamp WPL-B5003301
...
14
Retainer-Lamp WPL-CG981030
...
15
Clip-Oven Cavity WPL-CG981020
...
16
Assy, Vent WPL-CG982824
...
17
Gasket WPL-CG981047
...
18
Door Hinge Assy WPL-D8509902
...
19
Screw WPL-A4407501
...
20
Screw WPL-M0202842
...
21
Hanger, Oven Stat WPL-CG982664
...
22
Bake Element WPL-C2704901
...
23
Element, Mullion WPL-CG982784
...
24
Element, Broil WPL-CG981031
...
25
Reflector-Broil WPL-D8506601
...
26
Door Plug WPL-CG983991
...
27
Inner Door WPL-CG983988
...
28
Heat Shield WPL-D8513801
...
29
Handle, Door WPL-CG981003
...
30
Oven Door Handle Pads WPL-CG981078
...
31
Screw WPL-M0202531
...
32
Door Pnl-Av WPL-D8513303
...
33
Weldment, Front, Avocado WPL-C2707703
...
34
Drawer, Body WPL-CG981038
...
35
Drawer Handle WPL-CG981039
...
36
Screw WPL-W11233072
...
37
Glide WPL-CG981013
...
40
Side Pnl G WPL-D8501108
...
41
Panel, Kick, Side WPL-CG981011
...
42
Panel, Front, Kick WPL-CG981012
...
44
Trim, Side, L.h. WPL-CG984242
...
45
Trim WPL-CG984243
...
46
Screw WPL-M0228729
...
48
Grille, Front WPL-D8509403
...
49
Guard WPL-CG984858
...
50
Screw WPL-M0217616
...
51
Net-Kit,heater Panel WPL-CG984031
...
69
Bracket, Range Top, Right WPL-CG982160
...
70
Bracket, Range Top, L.h. WPL-CG982159
...
71
Shield-Wire WPL-B5007301
...
72
Screw WPL-WP90767
...
74
Brkt-End Cap WPL-B5004801
...
75
Extrusion-Btm WPL-D8526003
...
76
Extrusion WPL-D8514901
...
77
Panel, Control, Mounting WPL-CG984852
...
78
Extrusion WPL-D8509102
...
79
Vent Cap WPL-B5005502
...
80
End Cap WPL-CG983935
...
81
End Cap WPL-CG983936
...
82
Screw WPL-M0234229
...
89
Glass-Control Pnl WPL-CG985154
...
90
Bumper WPL-A4402201
...
91
Pad-Glass WPL-A4402401
...
92
Pad-Glass WPL-A4402402
...
93
Timer Kit WPL-CG983775
...
94
Knob, Dual Timer WPL-CG983880
...
95
Indicator Lights WPL-CG984970
...
96
Knob K WPL-C2737001
...
97
Oven Thermostat Disc WPL-CG984079
...
98
Brkt-Mtg WPL-CG983939
...
99
Thermostat, Oven WPL-CG983941
...
100
Seal-Control WPL-CG983876
...
101
Switch WPL-CG984075
...
102
Light-Lock WPL-CG984167
...
103
Indicator Light WPL-B5009702
...
104
Indicator Light WPL-B5009703
...
105
Screw-Hinge WPL-M0219043
...
106
Disc. Surface Multipan WPL-CG984081A
...
107
Disc. Surface Temp-Assure WPL-CG984080
...
109
Thermostat, Essex WPL-D8503901
...
110
Proportioner Kit WPL-R0199298
...
141
Foot, Leveling WPL-CG981334
...
142
Brkt-Side Pnl Rh WPL-B5010201

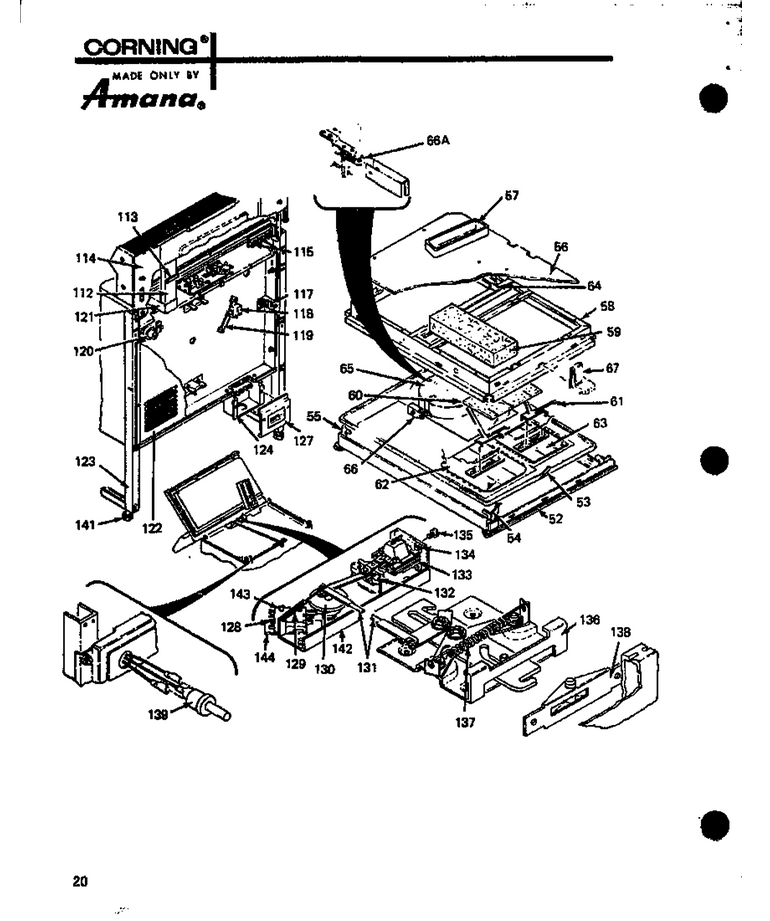

02 - Page 4

...
...
NI
Door Panel, Nut WPL-CG981103
...
52
Frame Kit, Range Top WPL-CG982197
...
53
Tape-Htr Panel WPL-CG984266
...
54
Brkt-Front L WPL-B5005801
...
55
Brkt-Front R WPL-B5005802
...
56
Cover-Htr Box WPL-C2704201
...
57
Duct, Horizontal WPL-CG981411
...
58
Htr Box Assy WPL-D8508501
...
59
Kit, Insulation WPL-CG980005
...
60
Insulation Lo-Con K WPL-C2702002
...
61
Hld Down Assy WPL-CG981546
...
62
Element Kit, Large WPL-R0157502
...
63
Element Kit, Small WPL-R0157501
...
64
Bar, Hold Down WPL-CG984064
...
65
Element, Multipan, Large WPL-CG985021
...
66
Switch WPL-CG982832
...
67
Clip WPL-CG985568
...
112
Duct WPL-C2706301
...
113
Brkt-Air Vent WPL-A4401601
...
114
Cover, Upper Lead WPL-CG982734
...
115
Block-Term WPL-WP8203546
...
117
Spring WPL-CG981021
...
118
Relay WPL-C2704301
...
119
Bracket, Oven Relay WPL-CG981306
...
120
Socket, Oven Light WPL-Y0316385
...
121
Duct, Horizontal WPL-CG981411
...
122
Lwr Lead Cover Kit WPL-R0199214
...
123
Frame WPL-CG982739
...
124
Bracket-Terminal Bl WPL-CG984957
...
127
Cover, Terminal WPL-CG984211
...
128
Switch, Limit WPL-CG981166
...
129
Spring, Solenoid WPL-Y0306846
...
130
Cam, Lock Solenoid WPL-CG981154
...
131
Arm WPL-B5004501
...
132
Pad, Solenoid Bumper WPL-CG981092
...
133
Solenoid, Lock WPL-CG983514
...
134
Clip, Solenoid WPL-CG981160
...
135
Screw WPL-WP74004005
...
136
Assy, Door Latch (10442001) WPL-CG983318
...
137
Spring-Latch WPL-CG983405
...
138
Latch Plate Assy WPL-B5003601
...
139
Switch WPL-CG984196
...
141
Foot, Leveling WPL-CG981334
...
142
Assy, Latch Solenoid WPL-C2705401
...
143
Screw WPL-M0227520
...
144
Insulator-Switch WPL-CG981165
