Amana ARC-100 (BOM: P8500103S)

Model: ARC-100 (BOM: P8500103S)

Save Part Not Listed?
product name

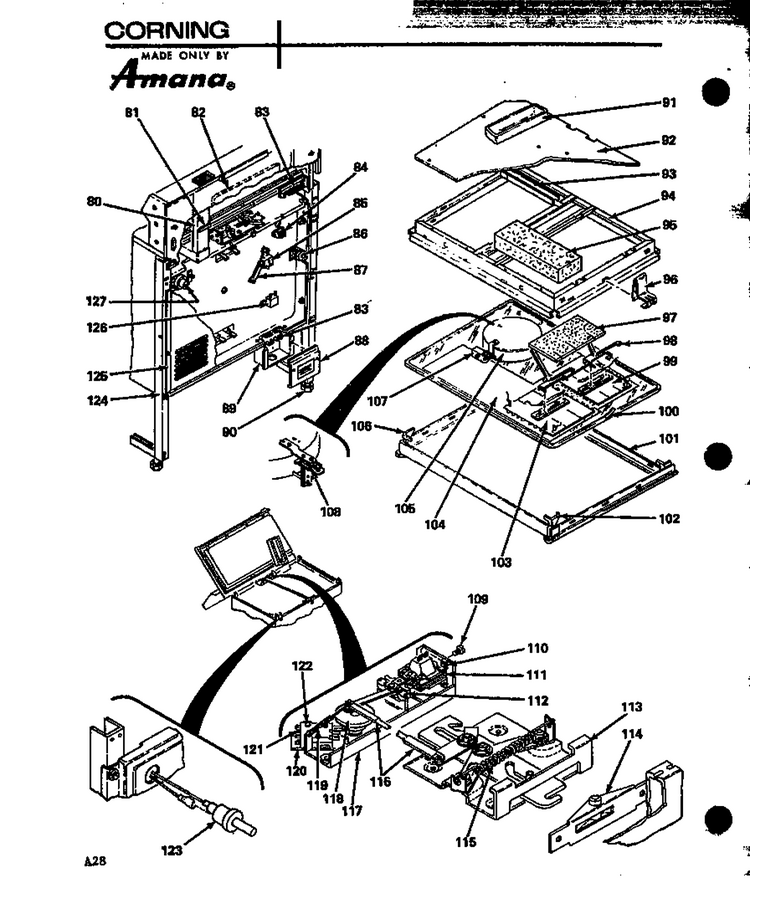

02 - Page 8

...
...
80
Duct WPL-C2706301
...
81
Brkt-Air Vent WPL-A4401601
...
82
Cover, Upper Lead WPL-CG982734
...
83
Block-Term WPL-WP8203546
...
84
Thermostat,heater Box WPL-CG981390
...
85
Relay WPL-C2704301
...
86
Spring WPL-CG981021
...
87
Bracket, Oven Relay WPL-CG981306
...
88
Cover, Terminal WPL-CG984211
...
89
Bracket-Terminal Bl WPL-CG984957
...
90
Foot, Leveling WPL-CG981334
...
91
Duct, Horizontal WPL-CG981411
...
92
Cover-Htr Box WPL-C2704201
...
93
Bar, Hold Down WPL-CG984064
...
94
Htr Box Assy WPL-D8508501
...
95
Kit, Insulation WPL-CG980005
...
96
Clip WPL-B5001502
...
97
Insulation Lo-Con K WPL-C2702002
...
98
Hld Down Assy WPL-CG981546
...
99
Element Kit, Small WPL-CG981134
...
100
Tape-Htr Panel WPL-CG984266
...
101
Frame Kit, Range Top WPL-CG982197
...
102
Brkt-Front L WPL-B5005801
...
103
Element Kit, Large WPL-CG981139
...
104
Net-Kit,heater Panel WPL-CG984031
...
105
Element, Multipan, Large WPL-CG985021
...
106
Brkt-Front R WPL-B5005802
...
107
Switch, Hot Light WPL-CG984976
...
108
Switch WPL-CG982832
...
109
Screw WPL-WP74004005
...
110
Clip, Solenoid WPL-CG981160
...
111
Solenoid, Lock WPL-CG983514
...
112
Pad, Solenoid Bumper WPL-CG981092
...
113
Assy, Door Latch (10442001) WPL-CG983318
...
114
Latch Plate Assy WPL-B5003601
...
115
Spring-Latch WPL-CG983405
...
116
Arm WPL-B5004501
...
117
Assy, Latch Solenoid WPL-C2705401
...
118
Cam, Lock Solenoid WPL-CG981154
...
119
Spring, Solenoid WPL-Y0306846
...
120
Insulator-Switch WPL-CG981165
...
121
Switch, Limit WPL-CG981166
...
122
Screw WPL-M0227520
...
123
Switch WPL-CG984196
...
124
Frame WPL-CG982739
...
125
Lwr Lead Cover Kit WPL-R0199214
...
126
Ballast WPL-74003033
...
127
Socket, Oven Light WPL-Y0316385

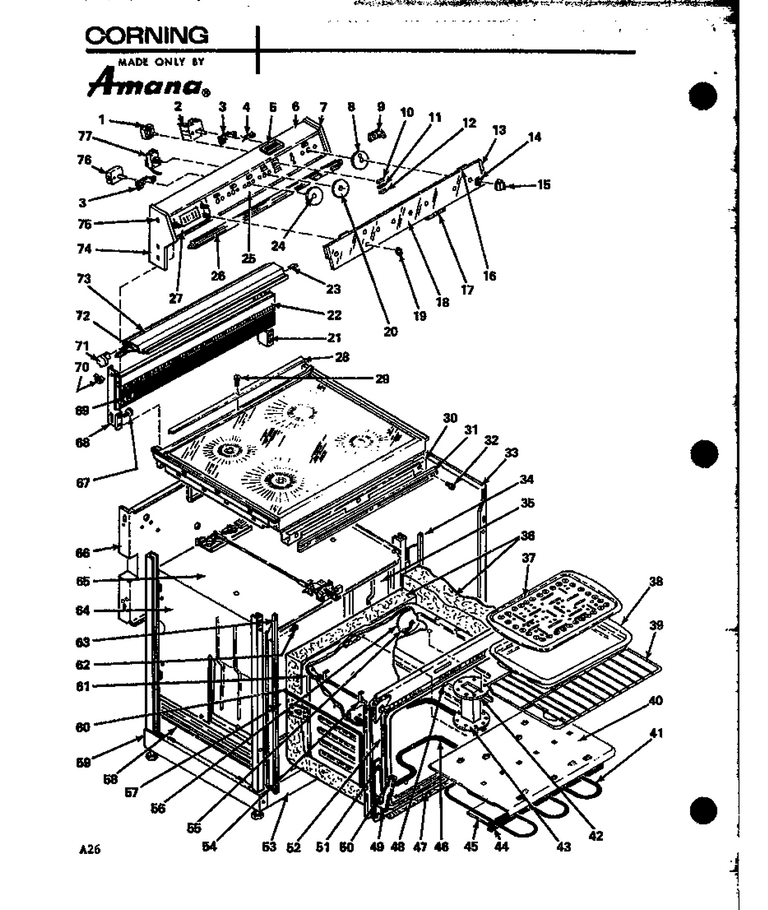

01 - Page 7

...
...
1
Switch WPL-CG984075
...
2
Thermostat, Oven WPL-CG983941
...
3
Brkt-Mtg WPL-CG983939
...
4
Light, Indicator WPL-CG983268
...
5
Cap, Vent WPL-CG980075
...
6
Extrusion WPL-D8509101
...
7
Cap, End, R.h. WPL-CG984636
...
8
Disc, Oven Thermostat WPL-CG983960
...
9
Socket, Flourescent Light, R.h WPL-CG984973
...
10
Light, Lock Indicator WPL-CG983824
...
11
Light, Clean, Indicator WPL-CG983825
...
12
Light, Oven, Indicator WPL-CG983826
...
13
Bumper WPL-A4402201
...
14
Seal-Control WPL-CG983876
...
15
Knob K WPL-C2737001
...
16
Pad-Glass WPL-A4402401
...
17
Pad, Control Glass WPL-CG981562
...
18
Panel, Control Glass WPL-CG985153
...
19
Knob, Dual Timer WPL-CG983880
...
20
Disc, Surface, Temp Assure WPL-CG984052
...
21
Bracket, Range Top, Right WPL-CG982160
...
22
Extrusion, Bottom WPL-CG985086
...
23
Clip-Glass WPL-A4404901
...
24
Disc, Surface, Multipan WPL-CG984053A
...
25
Panel, Control, Mounting WPL-CG984852
...
26
Lamp- Flou WPL-WPY0067945
...
27
Timer Kit WPL-R0168014
...
28
See Note Shield, Wire WPL-Y00000000
...
29
See Note Screw, No. 8-Ab X 3/8 WPL-Y00000000
...
30
Guard WPL-CG984858
...
31
Grille, Front WPL-D8509403
...
32
Screw WPL-M0217616
...
33
Panel, Side, White WPL-CG981056
...
34
Trim WPL-CG984243
...
35
Retainer-Insul R WPL-D8506701
...
36
Insulation, Range Body WPL-CG982241
...
37
Procelain Broiler (Pan And Grid) WPL-4396923
...
38
Procelain Broiler (Pan And Grid) WPL-4396923
...
39
Rack, Oven WPL-CG984249
...
40
Reflector-Broil WPL-D8506601
...
41
Element, Broil WPL-CG981031
...
42
Gasket WPL-CG981047
...
43
Assy, Vent WPL-CG982824
...
44
Ext Heat Shield WPL-CG985113
...
45
Shield, Heat, Drawer WPL-CG985114
...
46
Bake Element WPL-C2704901
...
47
Gasket WPL-CG982183
...
48
Clip-Oven Cavity WPL-CG981020
...
49
Hinge Assy WPL-D8509901
...
50
Screw WPL-A4407501
...
51
Screw WPL-M0202842
...
52
Front Cav Panel Kit WPL-CG985102
...
53
Panel, Front, Kick WPL-CG981012
...
54
Hanger, Oven Stat WPL-CG982664
...
55
Retainer-Lamp WPL-CG981030
...
56
Globe-Lamp WPL-B5003301
...
57
Retainer-Insulation WPL-CG985117
...
58
Glide WPL-CG981013
...
59
Panel, Kick, Side WPL-CG981011
...
60
Element, Mullion WPL-CG982784
...
61
Cavity, Oven WPL-CG983995
...
62
Screw WPL-M0228729
...
63
Trim, Side, L.h. WPL-CG984242
...
64
Retainer-Insul L WPL-D8506801
...
65
Retainer-Insulation WPL-CG985116
...
66
Retainer, Insulation, Rear WPL-CG981014
...
67
Screw-Hinge WPL-M0219043
...
68
Bracket, Range Top, L.h. WPL-CG982159
...
69
Switch, Oven Light WPL-CG985103
...
70
Brkt-End Cap WPL-B5004801
...
71
Socket, Flourescent Bulb, L.h. WPL-CG981416
...
72
Panel, Flourescent Light WPL-CG984160
...
73
Extrusion, Middle WPL-CG983811
...
74
Cap, End, L.h. WPL-CG984635
...
75
Screw WPL-M0234229
...
76
Proportioner Kit WPL-R0199298
...
77
Control, Switch WPL-CG984772

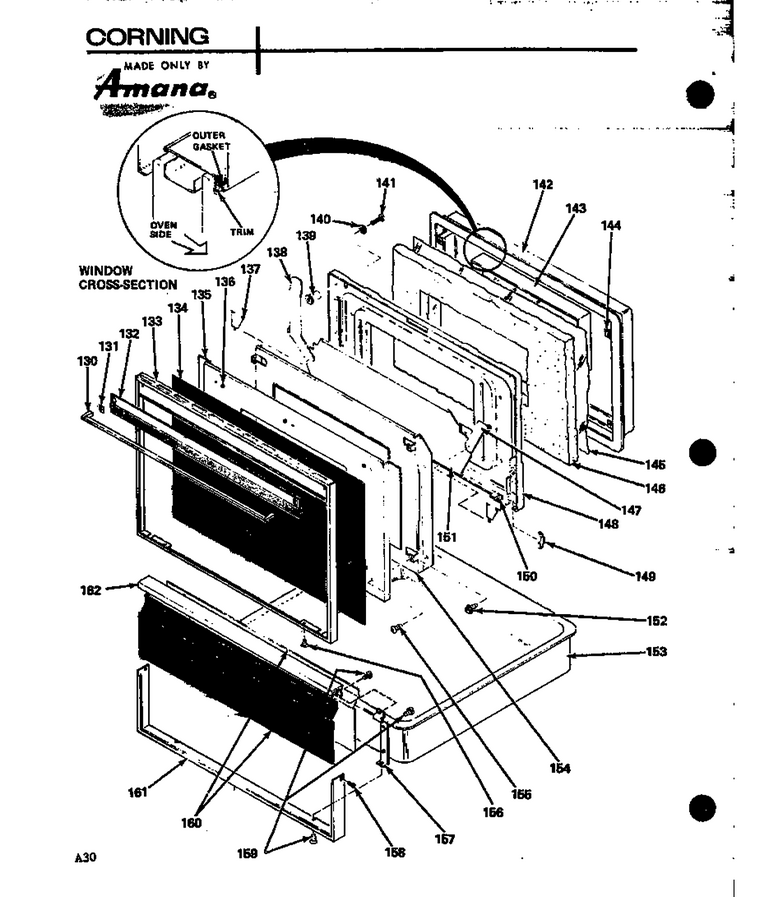

03 - Page 9

...
...
NI
Brkt-Side Pnl Rh WPL-B5010201
...
130
Handle, Door WPL-CG981003
...
131
Pad WPL-CG985105
...
132
Trim Ext WPL-CG985056
...
133
Frame, Door WPL-CG985099
...
134
Panel WPL-CG985101
...
135
Heat Shield, Outer, Door WPL-CG985098
...
136
Bumper-Glass WPL-A4406501
...
137
Spring-Shutter WPL-CG985090
...
138
Shutter Arm, L.h. WPL-CG985096
...
139
Spacer WPL-CG985008
...
140
Washer, Padder WPL-M0271201
...
141
Screw WPL-M0213031
...
142
Plug, Door WPL-CG985100
...
143
Window WPL-D8573401
...
144
Clip-Speed Nut WPL-M0119601
...
145
Foil-Door Plug WPL-A4406601
...
146
Insulation, Door Plug WPL-CG985092
...
147
Shutter Arm, R.h. WPL-CG985097
...
148
Inner Panel WPL-CG985106
...
149
Spring WPL-CG985057
...
150
Clip-Speed Nut WPL-M0119601
...
151
Shutter, Window Arm WPL-CG985095
...
152
Screw (3) WPL-67006425
...
153
Drawer, Body WPL-CG981038
...
154
Heat, Shield, Inner Door WPL-CG985094
...
155
Screw WPL-M0213931
...
156
Screw WPL-W11233072
...
157
Bracket, Drawer Front WPL-CG985089
...
158
Screw WPL-WP90767
...
159
Screw WPL-M0234229
...
160
Ft Panel W WPL-D8500602
...
161
Frame, Drawer WPL-CG985087
...
162
Handle, Drawer WPL-CG985088
