Amana ARC-1 (BOM: P8500101S)

Model: ARC-1 (BOM: P8500101S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

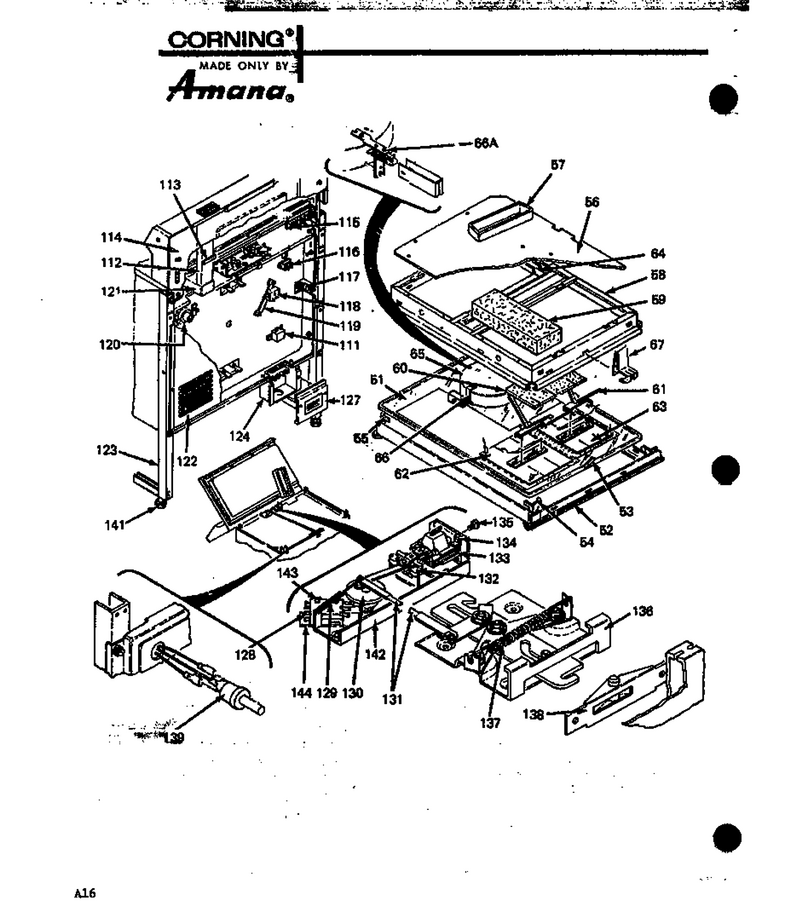

02 - Page 2

...
...
NI
Bracket, Reflector WPL-CG981091
...
51
Net-Kit,heater Panel WPL-CG984031
...
52
Frame Kit, Range Top WPL-CG982197
...
53
Tape-Htr Panel WPL-CG984266
...
54
Brkt-Front L WPL-B5005801
...
55
Brkt-Front R WPL-B5005802
...
56
Cover-Htr Box WPL-C2704201
...
57
Duct, Horizontal WPL-CG981411
...
58
Htr Box Assy WPL-D8508501
...
59
Kit, Insulation WPL-CG980005
...
60
Insulation Lo-Con K WPL-C2702002
...
61
Hld Down Assy WPL-CG981546
...
62
Element Kit, Large WPL-C2710903
...
63
Element Kit, Small WPL-C2711006
...
64
Bar, Hold Down WPL-CG984064
...
65
Element, Multipan, Large WPL-CG985021
...
66
Switch WPL-CG982832
...
67
Clip WPL-CG985568
...
111
Ballast WPL-74003033
...
112
Duct WPL-C2706301
...
113
Brkt-Air Vent WPL-A4401601
...
114
Cover, Upper Lead WPL-CG982734
...
115
Block-Term WPL-WP8203546
...
116
Thermostat,heater Box WPL-CG981390
...
117
Spring WPL-CG981021
...
118
Relay WPL-C2704301
...
119
Bracket, Oven Relay WPL-CG981306
...
120
Socket, Oven Light WPL-Y0316385
...
121
Duct, Horizontal WPL-CG981411
...
122
Lwr Lead Cover Kit WPL-R0199214
...
123
Frame WPL-CG982739
...
124
Bracket-Terminal Bl WPL-CG984957
...
127
Cover, Terminal WPL-CG984211
...
128
Switch, Limit WPL-CG981166
...
129
Spring, Solenoid WPL-Y0306846
...
130
Cam, Lock Solenoid WPL-CG981154
...
131
Arm WPL-B5004501
...
132
Pad, Solenoid Bumper WPL-CG981092
...
133
Solenoid, Lock WPL-CG983514
...
134
Clip, Solenoid WPL-CG981160
...
135
Screw WPL-WP74004005
...
136
Assy, Door Latch (10442001) WPL-CG983318
...
137
Spring-Latch WPL-CG983405
...
138
Latch Plate Assy WPL-B5003601
...
139
Switch WPL-CG984196
...
141
Foot, Leveling WPL-CG981334
...
142
Assy, Latch Solenoid WPL-C2705401
...
143
Screw WPL-M0227520
...
144
Insulator-Switch WPL-CG981165

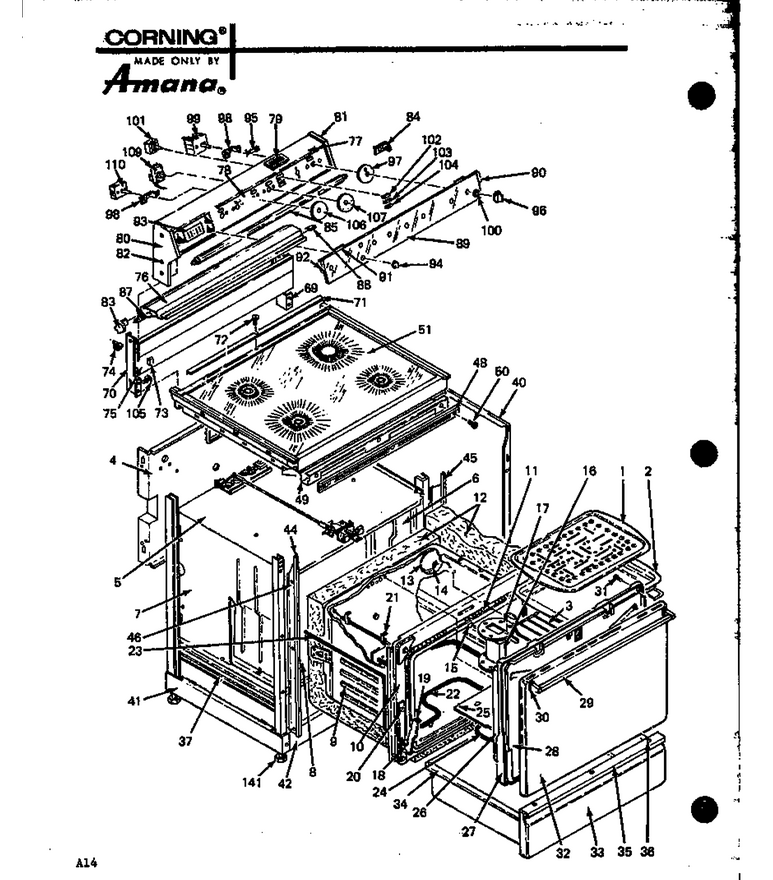

01 - Page 1

...
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Rack, Oven WPL-CG984249
...
4
Retainer, Insulation, Rear WPL-CG981014
...
5
Retainer WPL-D8506201
...
6
Retainer-Insul R WPL-D8506701
...
7
Retainer-Insul L WPL-D8506801
...
8
Retainer WPL-D8510401
...
9
Cavity, Oven WPL-CG983995
...
10
Oven Cavity Front Panel WPL-CG983989
...
11
Gasket WPL-CG982183
...
12
Insulation, Range Body WPL-CG982241
...
13
Globe-Lamp WPL-B5003301
...
14
Retainer-Lamp WPL-CG981030
...
15
Clip-Oven Cavity WPL-CG981020
...
16
Assy, Vent WPL-CG982824
...
17
Gasket WPL-CG981047
...
18
Door Hinge Assy WPL-D8509902
...
19
Screw WPL-A4407501
...
20
Screw WPL-M0202842
...
21
Hanger, Oven Stat WPL-CG982664
...
22
Bake Element WPL-C2704901
...
23
Element, Mullion WPL-CG982784
...
24
Element, Broil WPL-CG981031
...
25
Reflector-Broil WPL-D8506601
...
26
Door Plug WPL-CG985120
...
27
Inner Door WPL-CG983988
...
28
Heat Shield WPL-D8513801
...
29
Handle, Door WPL-CG981003
...
30
Oven Door Handle Pads WPL-CG981078
...
31
Screw WPL-M0202531
...
32
Door Pnl-Av WPL-D8513303
...
33
Coppertone Drawer Panel WPL-CG981276
...
34
Drawer, Body WPL-CG981038
...
35
Drawer Handle WPL-CG981039
...
36
Screw WPL-W11233072
...
37
Glide WPL-CG981013
...
40
Panel, Side, White WPL-CG981056
...
41
Panel, Kick, Side WPL-CG981011
...
42
Panel, Front, Kick WPL-CG981012
...
44
Trim, Side, L.h. WPL-CG984242
...
45
Trim WPL-CG984243
...
46
Screw WPL-M0228729
...
48
Grille, Front WPL-D8509403
...
49
Guard WPL-CG984858
...
50
Screw WPL-M0217616
...
51
Net-Kit,heater Panel WPL-CG984031
...
69
Top Rear Mtg. Bracket WPL-CG984129
...
70
Bracket, Range Top, L.h. WPL-CG982159
...
71
See Note Wire Shield WPL-Y00000000
...
72
See Note No. 8-Ab X 3/8 Screw WPL-Y00000000
...
73
Switch, Surface Light WPL-CG984940
...
74
Brkt-End Cap WPL-B5004801
...
75
Extrusion WPL-D8514201
...
76
Extrusion, Middle WPL-CG983811
...
77
Extrusion WPL-D8509101
...
78
Panel, Control, Mounting WPL-CG984852
...
79
Cap, Vent WPL-CG980075
...
80
Cap, End, L.h. WPL-CG984635
...
81
Cap, End, R.h. WPL-CG984636
...
82
Screw WPL-M0234229
...
83
Socket, Flourescent Bulb, L.h. WPL-CG981416
...
84
Socket, Flourescent Light, R.h WPL-CG984973
...
85
Lamp- Flou WPL-WPY0067945
...
87
Panel, Flourescent Light WPL-CG984160
...
88
Clip-Glass WPL-A4404901
...
89
Panel, Control Glass WPL-CG985153
...
90
Bumper WPL-A4402201
...
91
Pad-Glass WPL-A4402401
...
92
Pad-Glass WPL-A4402402
...
93
Timer Kit WPL-R0168014
...
94
Knob, Dual Timer WPL-CG983880
...
95
Indicator Lights WPL-CG984970
...
96
Knob K WPL-C2737001
...
97
Disc, Oven Thermostat WPL-CG983960
...
98
Brkt-Mtg WPL-CG983939
...
99
Thermostat, Oven WPL-CG983941
...
100
Seal-Control WPL-CG983876
...
101
Switch WPL-CG984075
...
102
Light, Lock Indicator WPL-CG983824
...
103
Light, Clean, Indicator WPL-CG983825
...
104
Light, Oven, Indicator WPL-CG983826
...
105
Screw-Hinge WPL-M0219043
...
106
Disc, Surface, Multipan WPL-CG984053A
...
107
Disc, Surface, Temp Assure WPL-CG984052
...
109
Control, Switch WPL-CG984772
...
110
Proportioner Kit WPL-R0199298
...
141
Foot, Leveling WPL-CG981334
