Amana ARB9059CS (BOM: PARB9059CS1)

Model: ARB9059CS (BOM: PARB9059CS1)

Save Part Not Listed?
product name

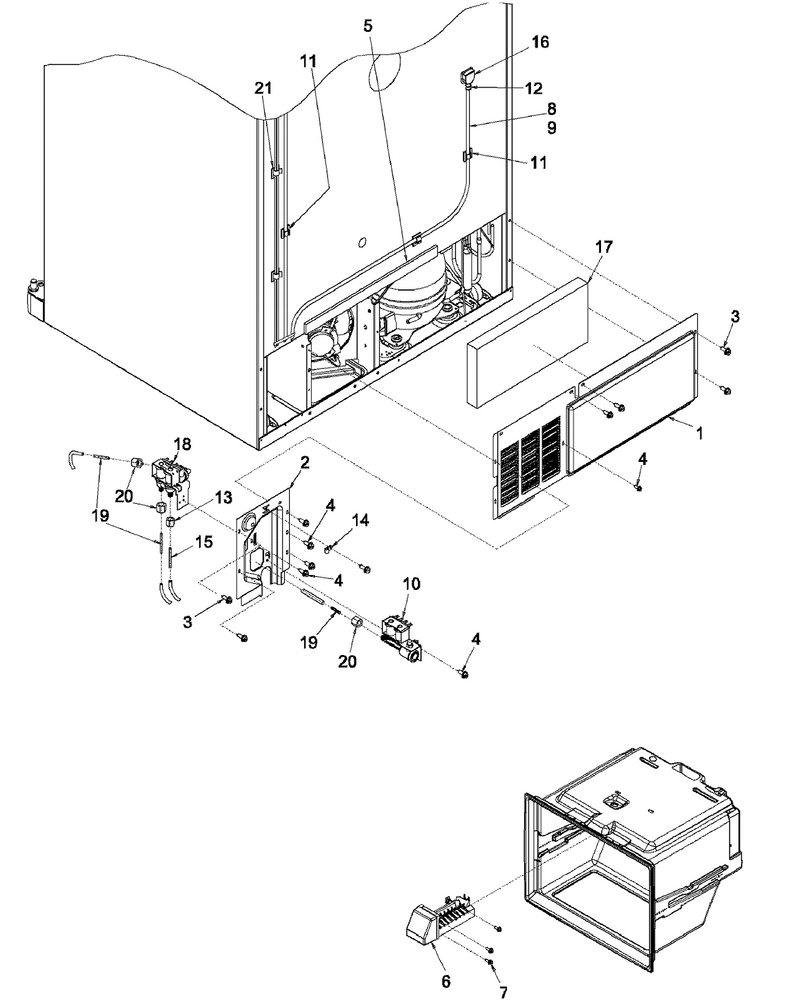

01 - Cabinet Back

...
...
NI
Pan-Ice WPL-WP67001255
...
1
Back, Mc WPL-12575102ED
...
2
Cover, Water Valve WPL-67002514
...
3
Screw (3) WPL-67006425
...
4
Screw, 8-32 X 3/8 WPL-681390
...
5
Gasket, Mc Back WPL-B5759649
...
6
Ice Maker Assy. WPL-D7824706Q
...
7
Screw WPL-WP98165
...
8
Tube-Water WPL-W10823511
...
9
Insert- Pl WPL-WPA3223101
...
10
Valve-Inlt WPL-WP12544002
...
11
Clip WPL-WPM0104106
...
12
Clip- Spee WPL-WPM0114003
...
13
Nut WPL-WP627018
...
14
Clamp WPL-W10833902
...
15
Spring WPL-WPA1055105
...
16
Tube-Water WPL-W11176463
...
17
Fiber, Acoustic WPL-67003796
...
18
Valve-Inlt WPL-12002193
...
19
Spring, Anti-Kink WPL-A1055104
...
20
Nut WPL-8201513
...
21
Clip, Cord WPL-M0104102

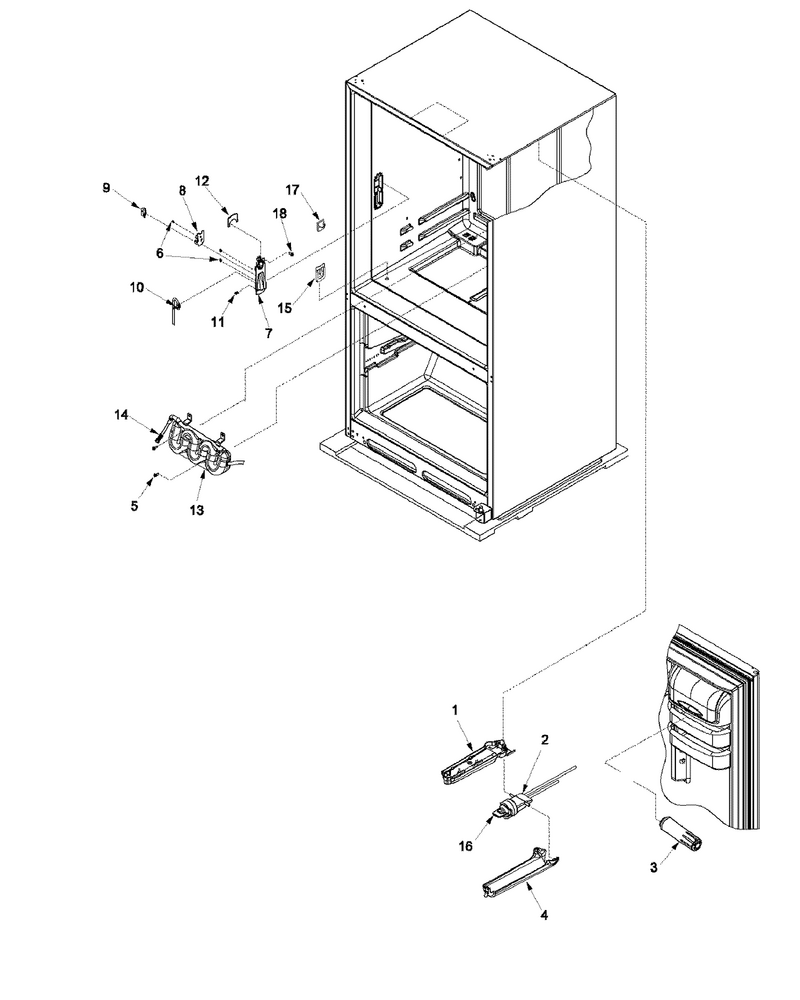

03 - Controls

...
...
NI
Harness, Ff Module WPL-67002453
...
1
Switch WPL-W11384469
...
2
Lens-Light WPL-WP67003108
...
3
Cover, Ref Light WPL-67002301
...
4
Logo, Light Module WPL-67001999
...
5
Housing WPL-WP67002085
...
6
Knob, Front Damper WPL-67002512
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Light Bulb WPL-8009
...
12
Timer- Def WPL-WP67001036
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Light Bulb WPL-8009
...
16
Cover, Damper WPL-67002481
...
17
Belt, Damper WPL-67002482
...
18
Damper Gea WPL-WP67003410
...
19
Insulation WPL-12650002
...
20
Switch WPL-W11396033
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232

...
...
1
Sheet, Tech Data WPL-67003175
...
2
Manual, Owners WPL-67003187
...
3
Icemaker Install Kit WPL-8003RP
...
4
Tag, Energy WPL-67003189

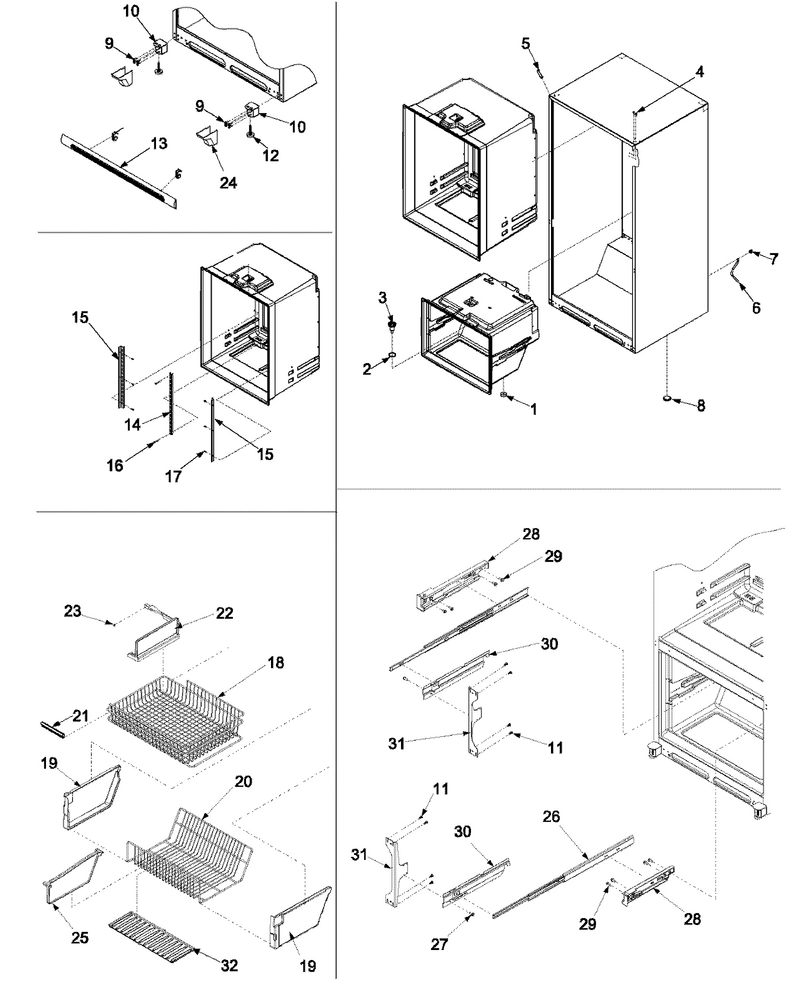

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (blk) WPL-67003485
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge-Door WPL-W10215663
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Grille Asy WPL-WP67002224
...
14
Ladder, Center WPL-67001073
...
15
Ladder, L/r Side WPL-67002489
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67002975
...
19
End Cap, Basket 36 WPL-67003599
...
20
Basket, Lower Fz WPL-67002114
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67001723
...
23
Screw WPL-W10856125
...
24
Cover, Lwr Hinge (blk) WPL-12561901B
...
25
Divider, Basket (lwr) WPL-67003171
...
26
Slide- Dra WPL-WP67002365
...
27
Screw (3) WPL-67006425
...
28
Adapter, Side (lt) WPL-67002625
...
29
Screw WPL-WP489474
...
30
Bracket, Slide (rt) WPL-67002369
...
31
Bracket, Door WPL-67001262

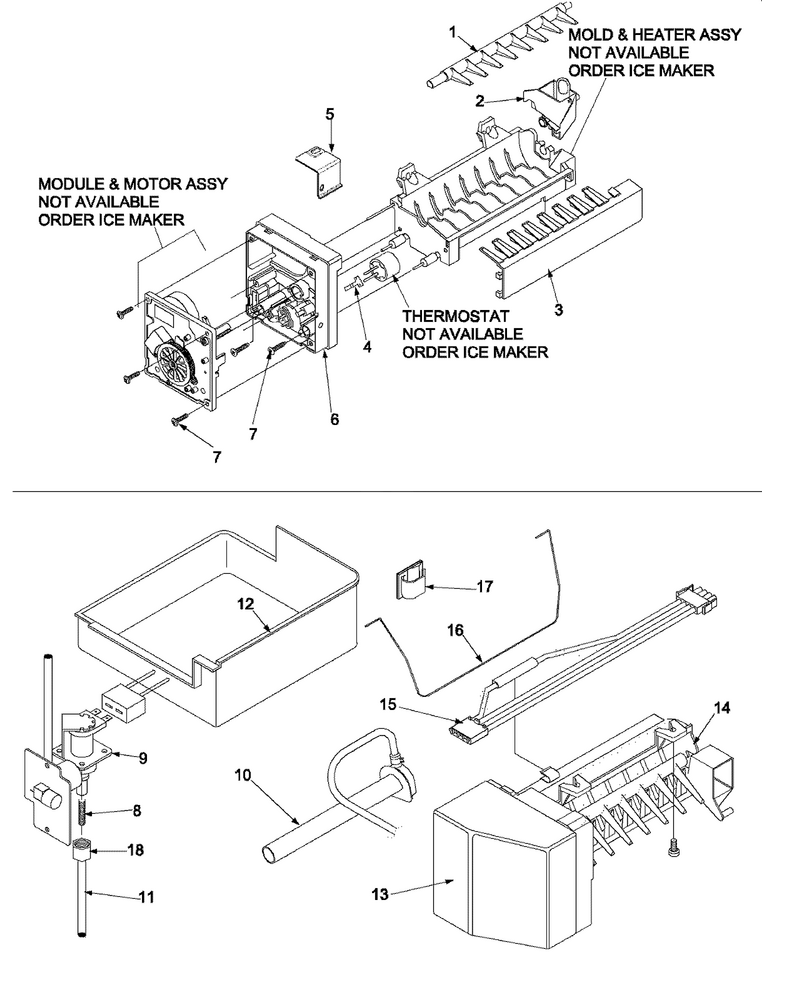

07 - Optional Ice Maker Kit Ic11b P1328003w

...
...
NI
Label, Caution (ice Maker) WPL-10549601
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Spring WPL-WPA1055105
...
9
Valve-Inlt WPL-WP67003753
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Ice Maker Assy. WPL-D7824706Q
...
15
Harns-Wire WPL-WPD7813010
...
16
Arm-Shut WPL-WP67004028
...
17
Clip WPL-WPM0104106
...
18
Nut WPL-WP627018

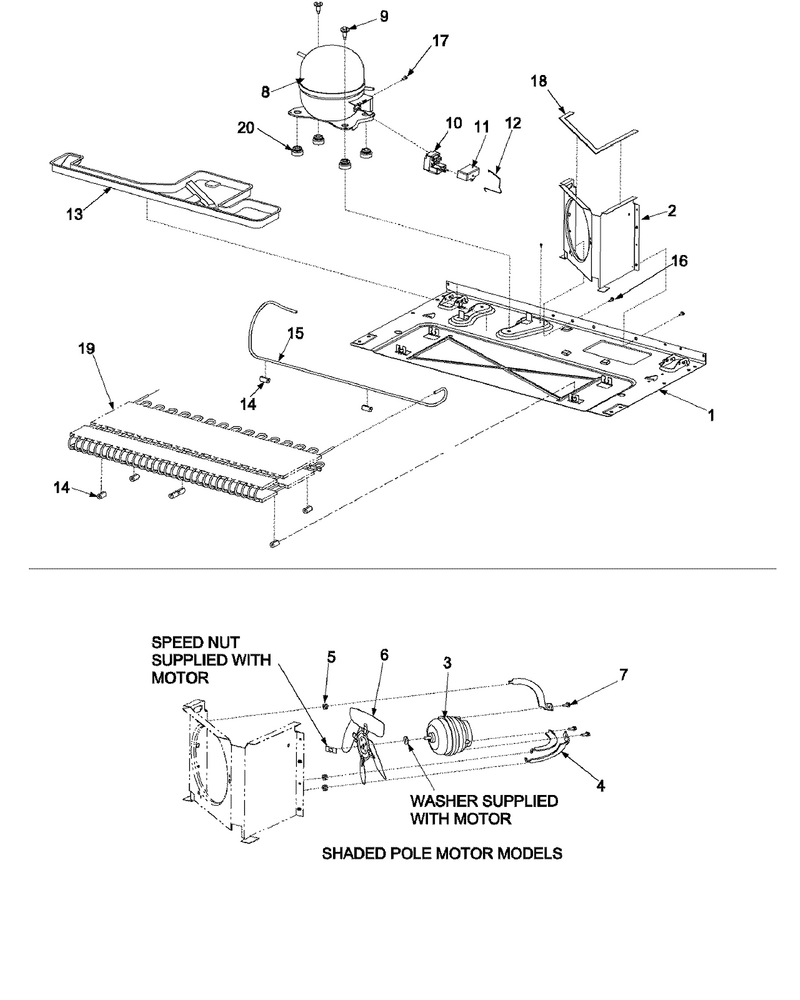

02 - Compressor

...
...
NI
Harness, Mc WPL-67002810
...
1
Basepan WPL-12457108
...
2
Shroud, Condenser WPL-12687101
...
3
Motor-Cond WPL-833697
...
4
Bracket, Cond Mtr WPL-67001311
...
5
Grommet, Fan Brkt WPL-12578701
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor WPL-W10309990
...
9
Screw, Shldr WPL-M0221523
...
10
Start-Dev WPL-W10613606
...
11
Capacitor WPL-WP65889-4
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain 2 Way WPL-67007176
...
14
Grommet (2) WPL-67005680
...
15
Tube- Disc WPL-WP12532603Q
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006131
...
20
Grommet, Compressor WPL-67003493

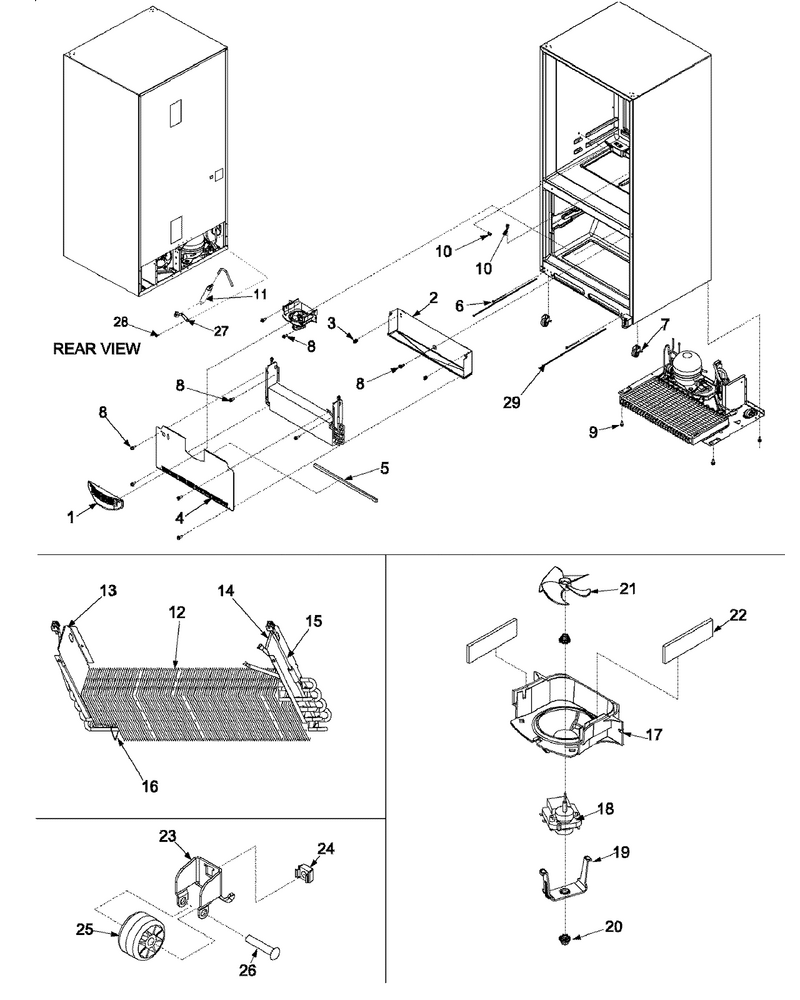

04 - Evaporator Area & Rollers

...
...
NI
Screw, Roller (rear) WPL-67006697
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-W11547653
...
3
Clip, Evaporator WPL-10623002
...
4
Cover- Eva WPL-12226109
...
5
Gasket WPL-W11159728
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evap Replacement WPL-12002041
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002493
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Bracket WPL-WP67005633
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-W10709801
...
29
Harness, Evap Heater WPL-67002008

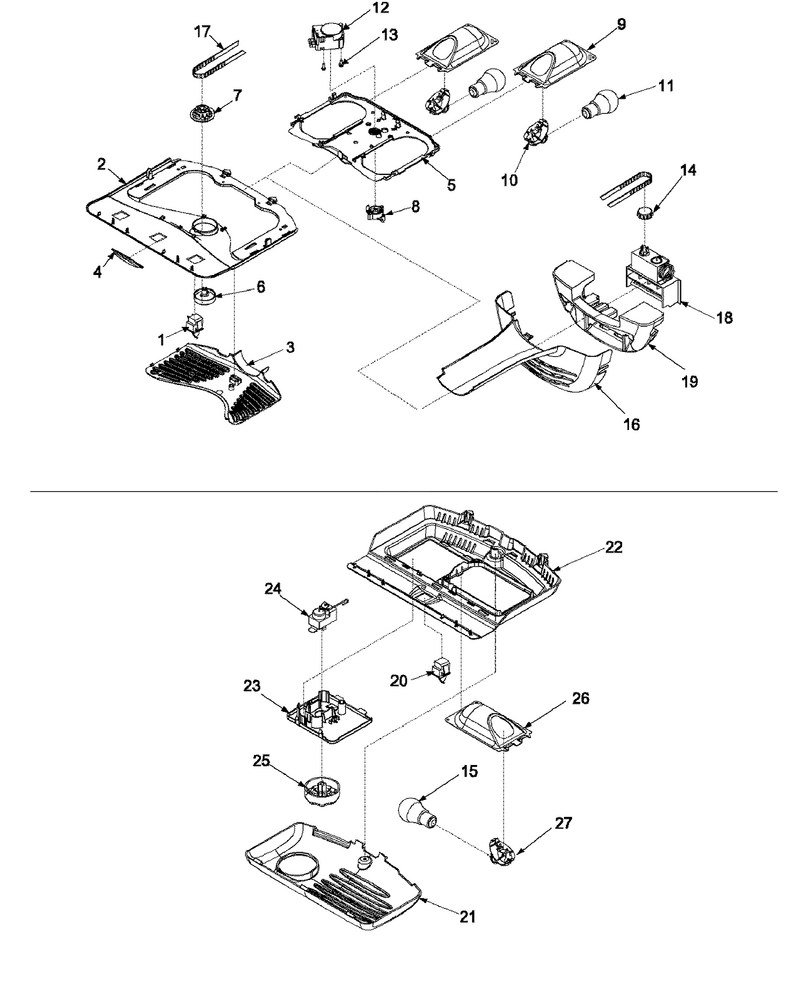

11 - Water Dispenser/filter

...
...
1
Plate- Fil WPL-WP67001668
...
2
Housing- W WPL-WP67001669
...
3
Filter WPL-EDR4RXD1
...
4
Cover- Fil WPL-WP12568001
...
5
Screw WPL-WP98165
...
6
Clip WPL-W10819546
...
7
Cover WPL-W10720642
...
8
Plate, Switch WPL-12707303SP
...
9
Switch- Li WPL-WP12575501
...
10
Guide WPL-W11677725
...
11
Clip, Waterline WPL-67002816
...
12
Cover WPL-W11519867
...
13
Kit, Water Tank WPL-12002023
...
14
Fitting WPL-WP2300868
...
15
Base, Sump Cup WPL-67002483
...
16
Cap-Filter WPL-W11395888
...
17
Sump-Wtr Cup WPL-67002360
...
18
Screw (3) WPL-67006425

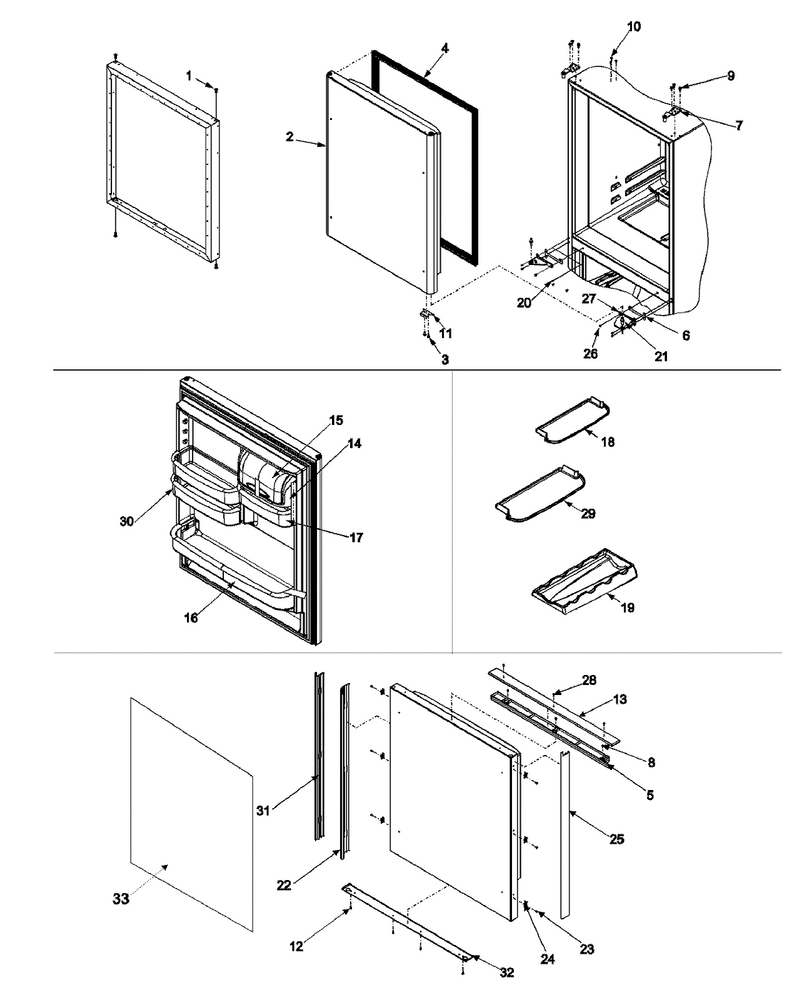

08 - Refrigerator Door

...
...
1
Hing-Bushg WPL-10961005B
...
2
Door Assy., Ref. Foam (blk) WPL-67002116
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-W10849442
...
5
Extension, Ref Dr (blk) WPL-12059103
...
6
Shim- Non WPL-WPM0274062
...
7
Hinge, Top Right WPL-12626910ED
...
8
Screw WPL-WP489474
...
9
Screw WPL-WP489349
...
10
Plug, Top Hinge Button (blk) WPL-M0310731
...
11
Stop-Door WPL-W11708403
...
12
Screw WPL-WPW10348409
...
13
Trim, Door Top (stnls) WPL-67002252
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Door WPL-67002477
...
17
Bin-Cntlvr WPL-WPW10371193
...
18
Gripper, Bucket (medium) WPL-W10450022
...
19
Trivet, Bottle WPL-67001656
...
20
Screw WPL-WP489349
...
21
Closer WPL-12002311
...
22
Handle, Ref Dr (stnls) WPL-67002246
...
23
Screw WPL-WP489399
...
24
Clip WPL-67002451
...
25
Trim,vertical (rt-Stnls)xx WPL-67002201
...
26
Screw WPL-WP67006380
...
27
Hinge, Center (rt) (black) WPL-12692302ED
...
28
Screw WPL-W11245710
...
29
Gripper, Bucket WPL-67003213
...
30
Bucket, Lrg Ref Door WPL-67003765
...
31
Trim, Vertical (lt-Stnls) WPL-67002435
...
32
Trim, Door Bottom (stnls) WPL-67002194
...
33
Panel, Door Stainless Steel WPL-67005237

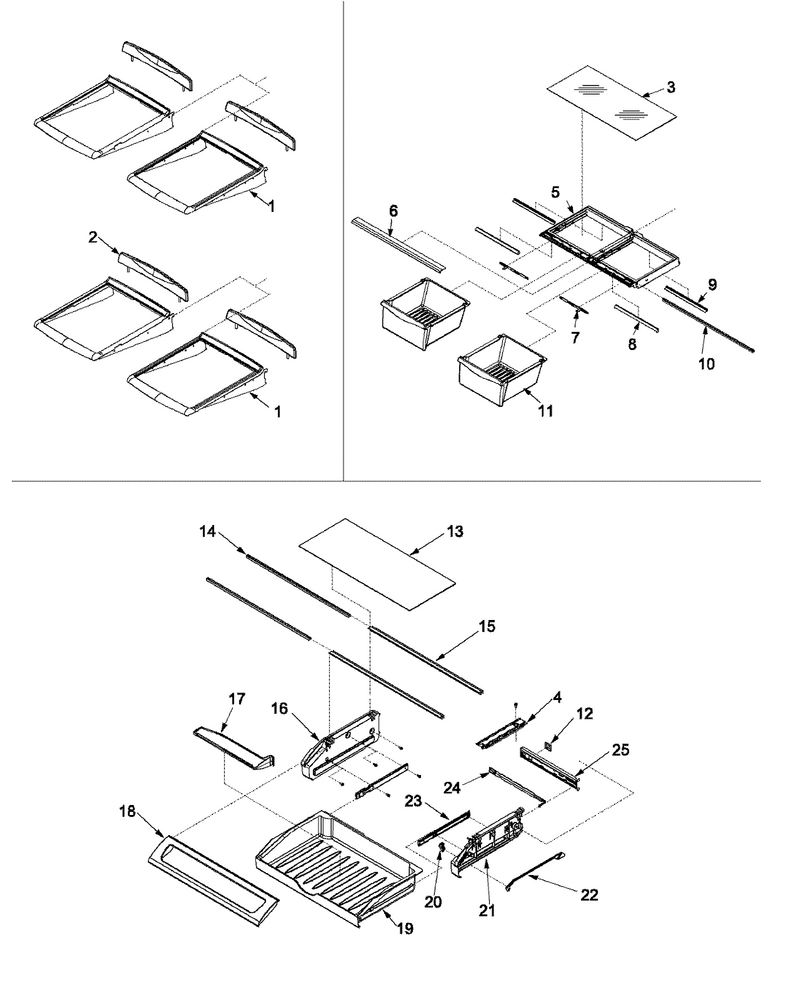

09 - Refrigerator Shelving

...
...
NI
Crisper Assy. WPL-67002387
...
1
Shelf-Gld Out WPL-67002193
...
2
Extension-Ref Shelf WPL-67002484
...
3
Shelf-Glas WPL-WP67006655
...
4
Track WPL-WP67001719
...
5
Frame WPL-WP67006185
...
6
Trim-Shelf WPL-WPW10231344
...
7
Slide WPL-WP67005864
...
8
Seal- Fron WPL-WP67003417
...
9
Seal- Rear WPL-WP67002513
...
10
Brace- Cri WPL-WP12227304WD
...
11
Pan- Crisp WPL-WP67002659
...
12
Gasket, Pantry WPL-67002329
...
13
Glass- Pan WPL-WP67002332
...
14
Support WPL-WP12227305WD
...
15
Extr- Glas WPL-WP67006010
...
16
Endcap WPL-WP12656105
...
17
Divider- P WPL-WP67002321
...
18
Cover WPL-W10827015
...
19
Pan-Utilty WPL-W11490183
...
20
Knob WPL-W11498983
...
21
Screw-Sm WPL-M0238636
...
22
Bar, Temp Control WPL-67003794
...
23
Screw WPL-WPW10348409
...
24
Slide- Tem WPL-WP67003793
...
25
Housing, Control WPL-12656202

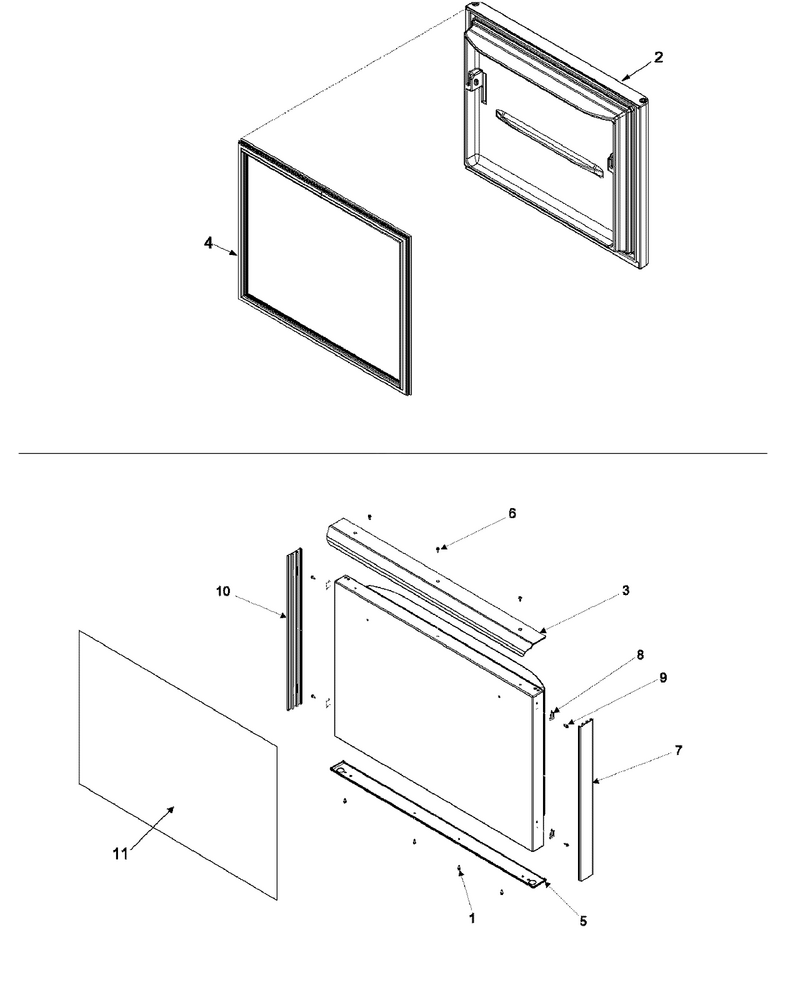

05 - Freezer Door

...
...
1
Screw WPL-W11245710
...
2
Door Assy., Frz. Foam (blk) WPL-67002115
...
3
Handle, Frz. Door (stnls) WPL-67006535
...
4
Gasket, Door (black) WPL-W10436252
...
5
Trim, Door Bottom (stnls) WPL-67002194
...
6
Screw, Handle WPL-67006529
...
7
Trim, Door (side-Stnls) WPL-67006043
...
8
Clip WPL-67002451
...
9
Screw WPL-WP489399
...
10
Trim, Door (side-Stnls) WPL-67006772
...
11
Panel, Door Stainless Steel WPL-67005237

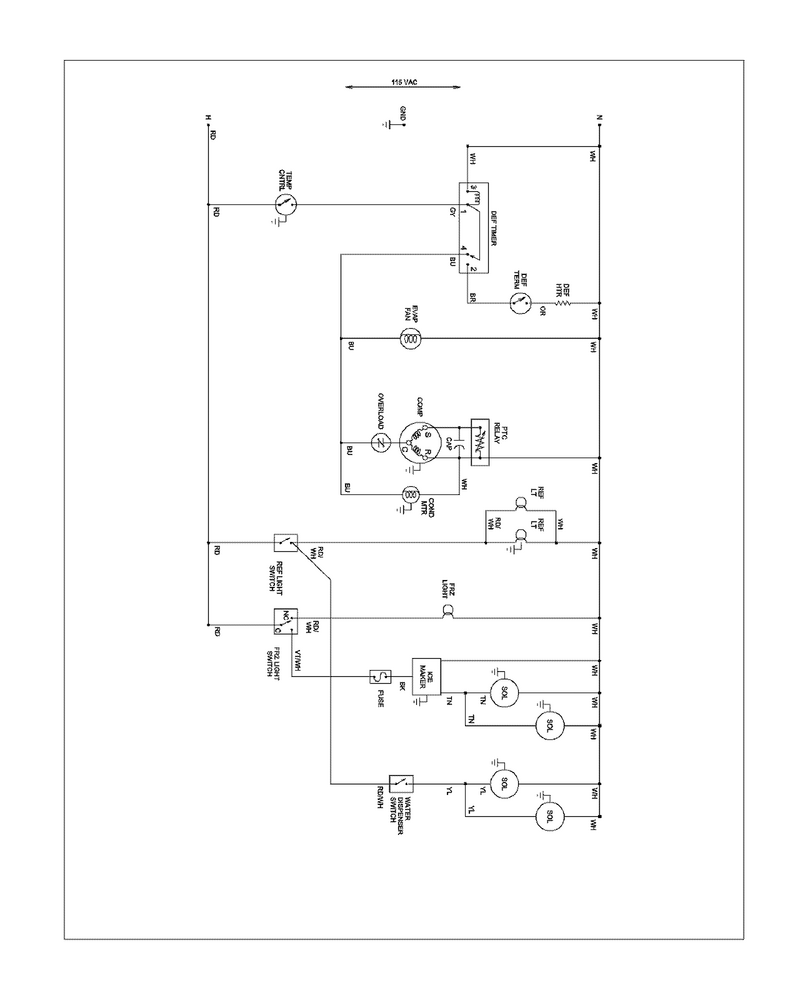

12 - Wiring Information

...
...
NI
Wiring Information WPL-15003053
Schematic Image Zoomed
