Amana ARB2257CC (BOM: PARB2257CC0)

Model: ARB2257CC (BOM: PARB2257CC0)

Save Part Not Listed?
product name

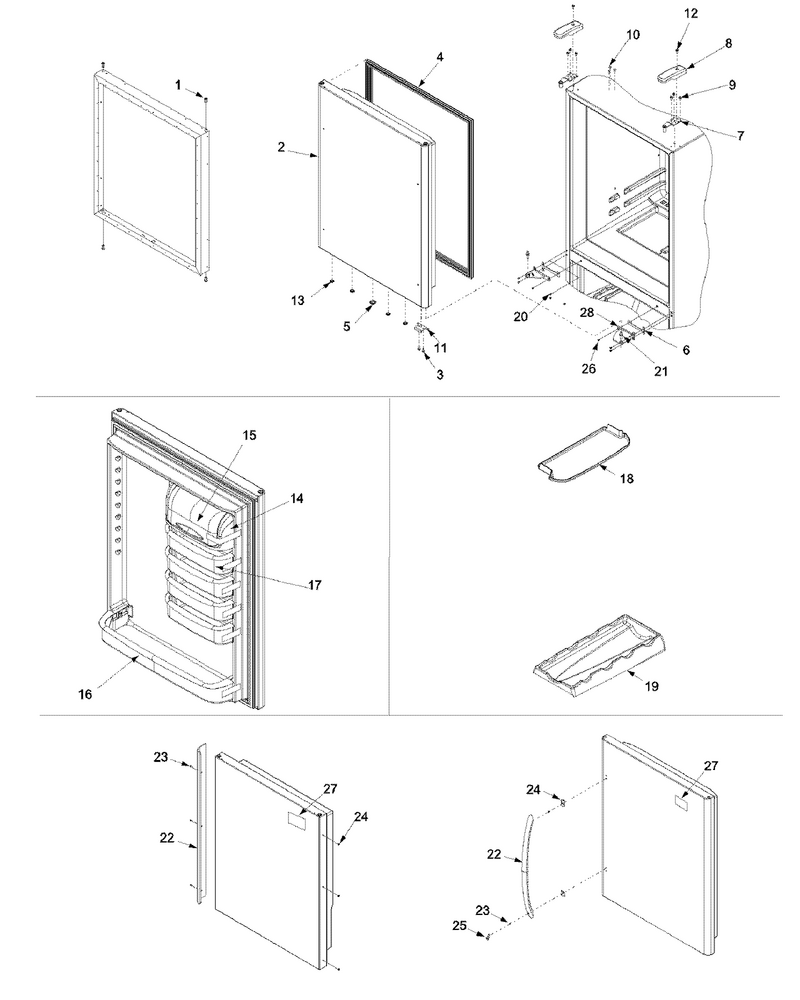

08 - Refrigerator Door

...
...
1
Bushing, Door (wht) WPL-10961001
...
2
Ref Dr Foam Assy (bsq) WPL-67001209
...
3
Screw WPL-WPW10348409
...
4
Gasket, Ref Dr (wht) WPL-12683803W
...
5
Plug, Button (wht) WPL-A3080002
...
6
Shim- Non WPL-WPM0274062
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (bsq) WPL-67001013
...
9
Screw WPL-WP489349
...
10
Plug, Top Hinge Button (bsq) WPL-M0310738
...
11
Stop, Door (white) WPL-12968202W
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (wht) WPL-10712401
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Ref Door WPL-67001019
...
17
Bin-Cntlvr WPL-WPW10371193
...
18
Gripper, Bucket (medium) WPL-W10450022
...
19
Trivet, Bottle WPL-67001656
...
20
Screw WPL-WP489349
...
21
Closer WPL-12002311
...
22
Extruded Handle, Ref Dr (bsq) WPL-67001220
...
23
Screw (3) WPL-67006425
...
24
Plug-Hndle WPL-W10709784
...
26
Screw WPL-WP67006380
...
27
Nameplate (amana Plus) WPL-Y12528501
...
28
Hinge- Cen WPL-WP12607103WD

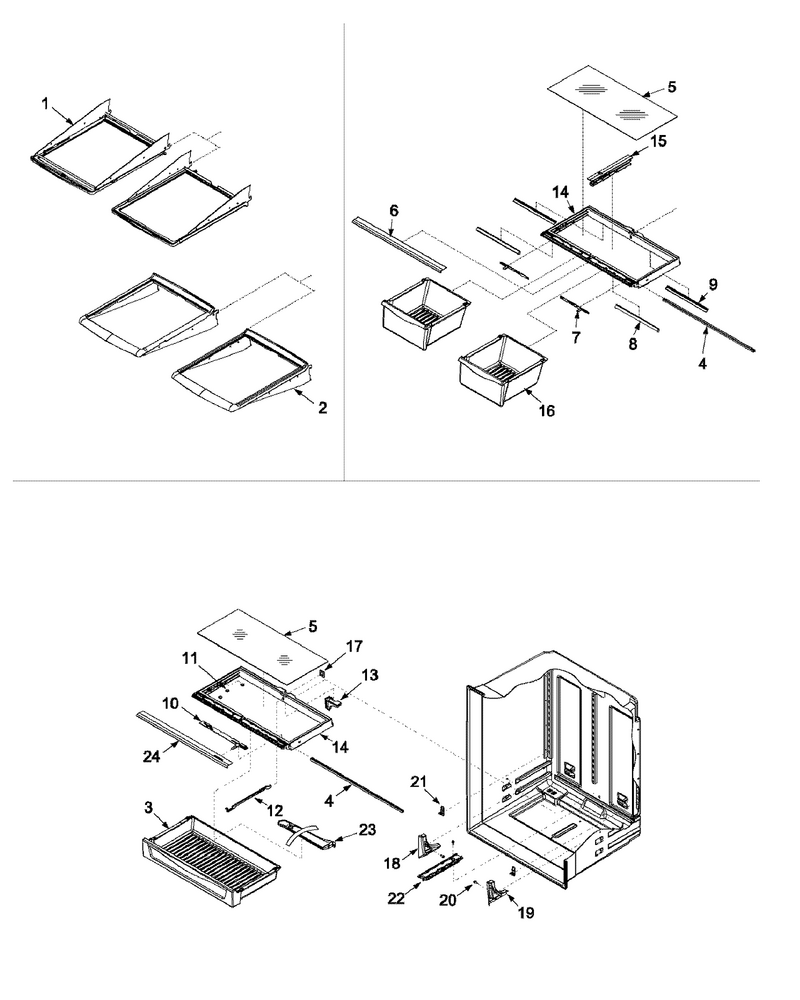

09 - Refrigerator Shelving

...
...
NI
Crisper Assy WPL-67002006
...
1
Extension, Ref Shelf WPL-67002676
...
2
Shelf-Glas WPL-W11402521
...
3
Pan-Crispr WPL-WPW10328329
...
4
Brace- Cri WPL-WP12227303WD
...
5
Glass- Cri WPL-WP67006878
...
6
Extr, Crisper Front WPL-67001737
...
7
Slide WPL-WP67005864
...
8
Seal, Front Crisper WPL-67001063
...
9
Seal, Rear Crisper WPL-67001768
...
10
Slide,pantry WPL-67002002
...
11
Pad, Glide WPL-67001177
...
12
Bar,pantry WPL-67002003
...
13
Tunnel- Pa WPL-WP12531601
...
14
Frame WPL-WPW10568041
...
15
Rail-Centr WPL-WPW10671238
...
16
Extr, Crisper Front WPL-67001737
...
17
Gasket, Pantry WPL-W10368789
...
18
Support- L WPL-WP67001721
...
19
Support- R WPL-WP67001722
...
20
Screw (3) WPL-67006425
...
21
Hook- Ladd WPL-WP67001716
...
22
Track WPL-WP67001719
...
23
Divider- P WPL-WP67001923
...
24
Trim WPL-W10656985

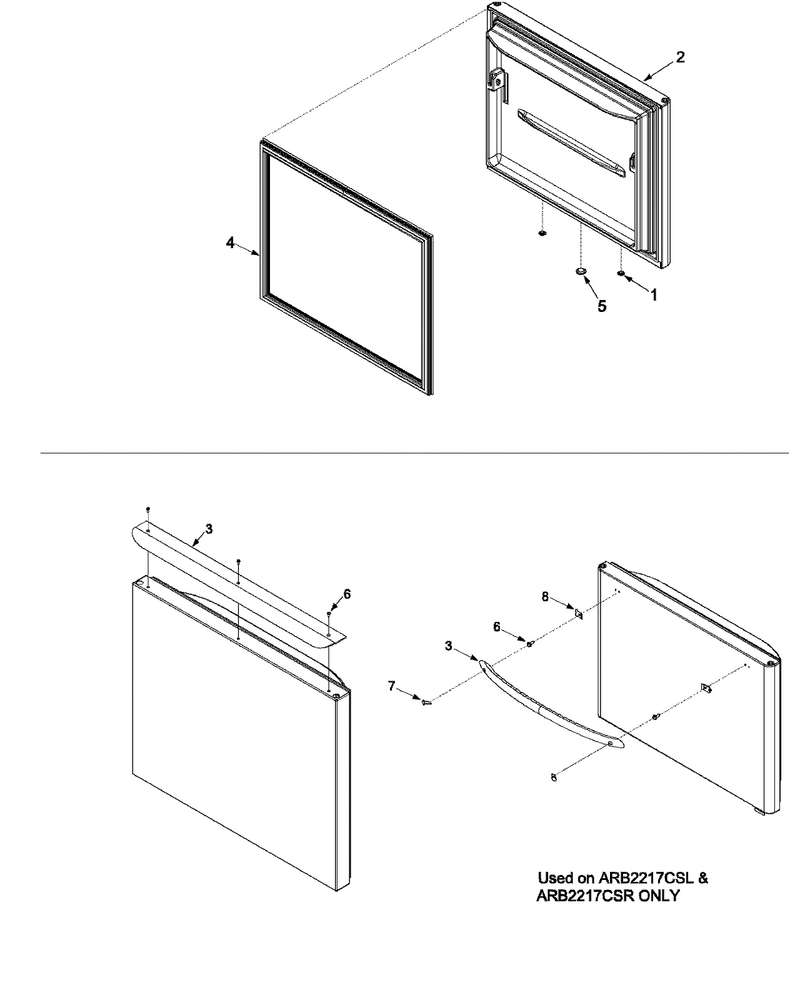

05 - Freezer Door

...
...
1
Plug, Vent (wht) WPL-10712401
...
2
Dor-Fip Bt WPL-12658904CQ
...
3
Handle- Fz WPL-12660002C
...
4
Door Gasket, Magnetic (white) WPL-W10443315
...
5
Plug, Button (wht) WPL-A3080002
...
6
Screw WPL-W10759523
...
8
Clip, Door Handle WPL-67002160

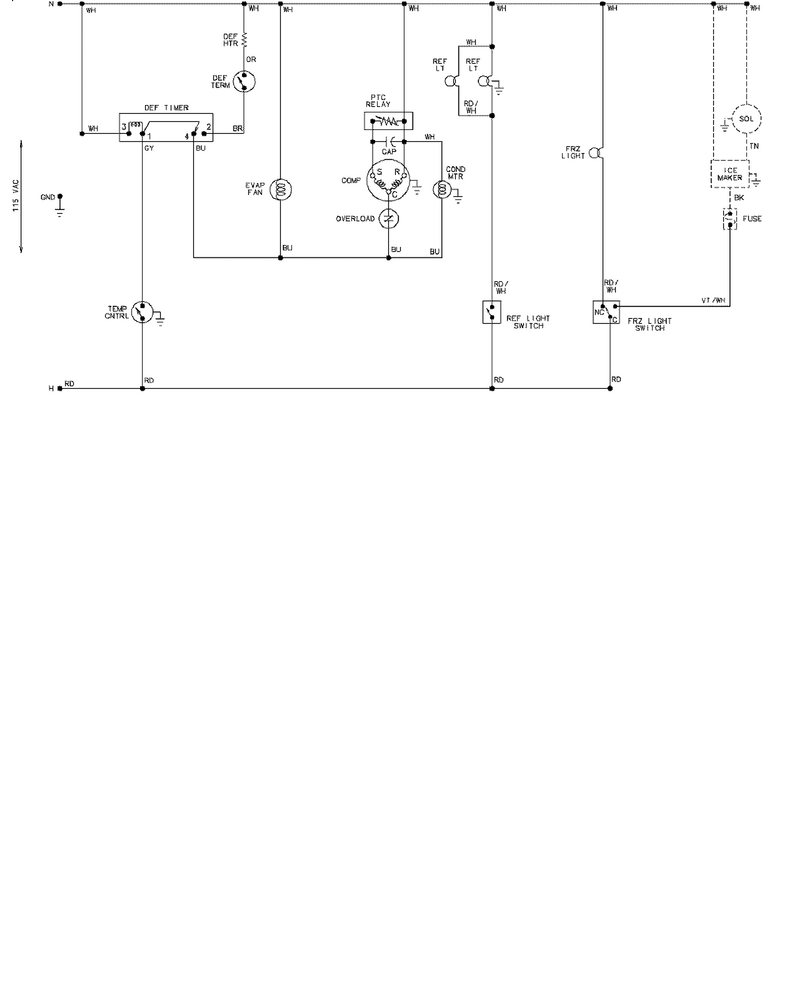

12 - Wiring Information

...
...
NI
Information, Wiring WPL-67002015

...
...
1
Sheet, Tech Data WPL-16021864
...
2
Manual, Owners WPL-12642711
...
3
Icemaker Install Kit WPL-8003RP
...
4
Tag, Energy WPL-67002459

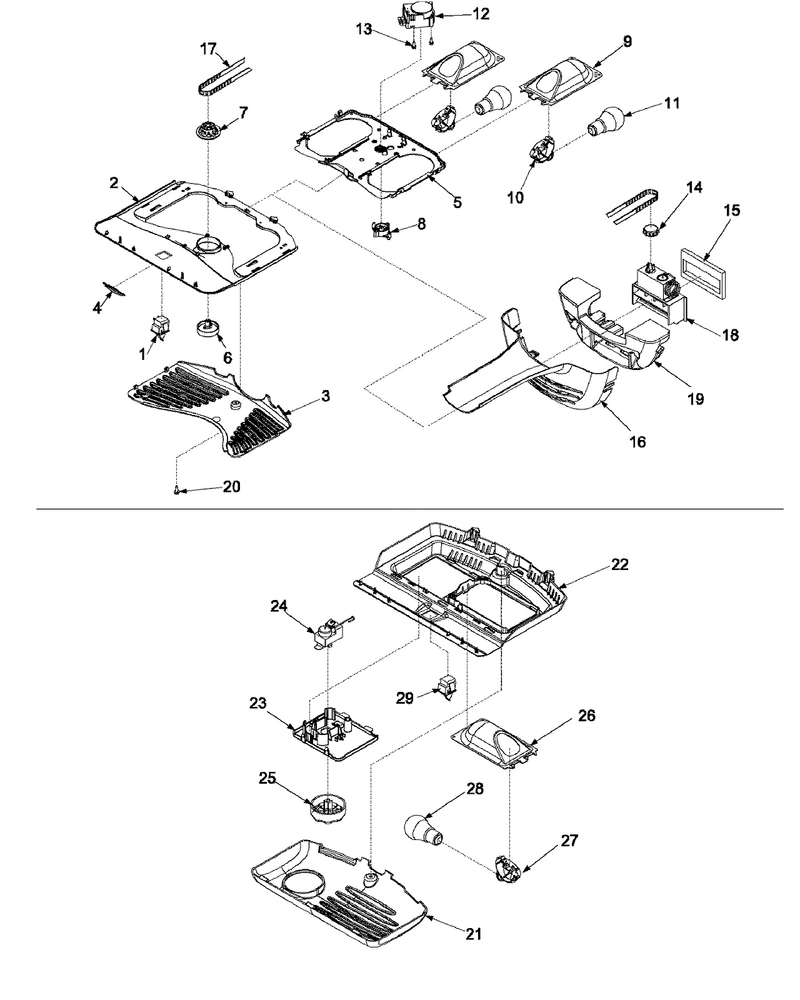

11 - Water Dispenser/filter

...
...
1
Plate- Fil WPL-WP67001668
...
2
Housing- W WPL-WP67001669
...
3
Filter WPL-EDR4RXD1
...
4
Cover- Fil WPL-WP12568001
...
5
Screw (3) WPL-67006425
...
6
Clip WPL-W10819546
...
7
Cover WPL-W10720642
...
8
Plate, Switch WPL-12707303SP
...
9
Switch- Li WPL-WP12575501
...
10
Guide WPL-W11677725
...
11
Clip, Waterline WPL-67002816
...
12
Cover WPL-W11519867
...
13
Kit, Water Tank WPL-12002023
...
14
Fitting WPL-WP2300868
...
15
Plate, Water Tank Mtg WPL-67001675
...
16
Cap-Filter WPL-W11395888
...
17
Sump, Tray WPL-67005130

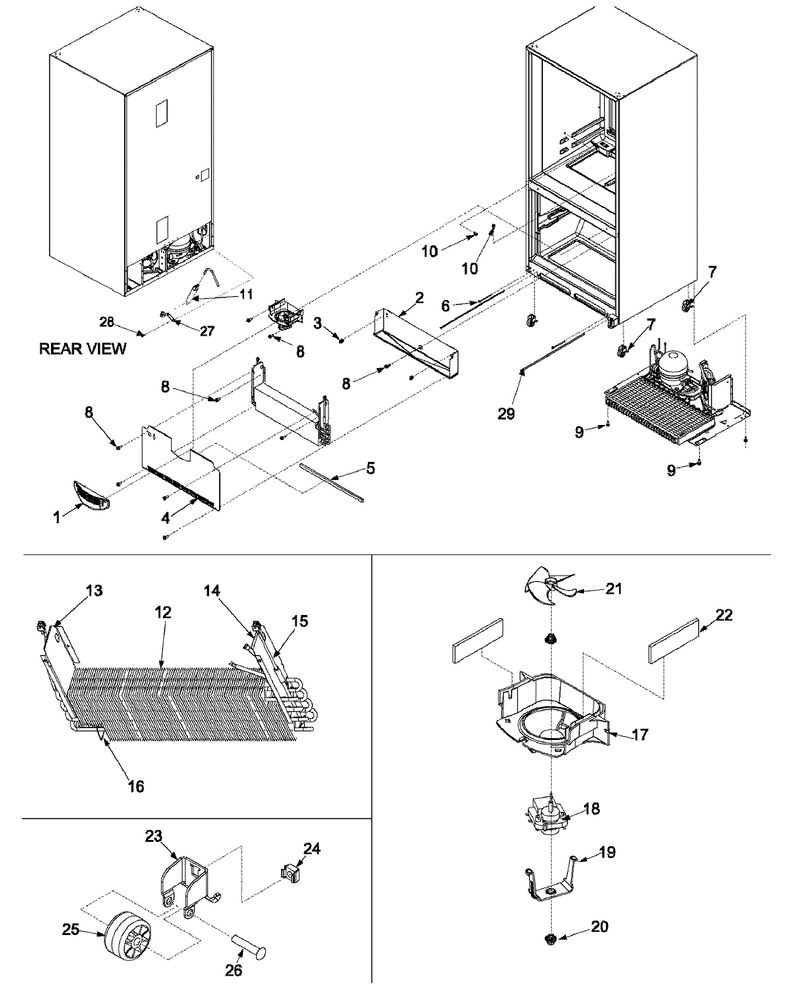

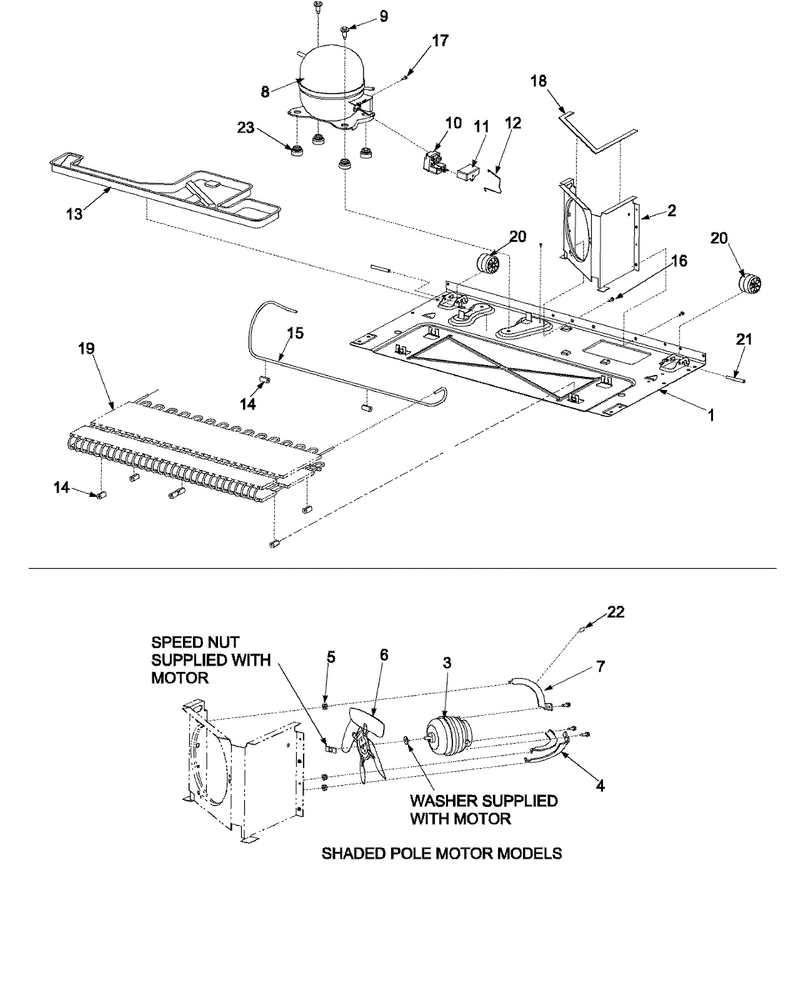

02 - Compressor

...
...
NI
Harness,mc WPL-12669001
...
1
Basepan, Machine Compartment WPL-67001089
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-833697
...
4
Bracket, Cond Mtr WPL-67001311
...
5
Grommet, Fan Brkt WPL-12578701
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw, Shldr WPL-M0221523
...
10
Overload WPL-WP12555902
...
11
Capacitor WPL-WP65889-4
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain WPL-67001091
...
14
Grommet (2) WPL-67005680
...
15
Tube WPL-WP12532602Q
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006132
...
20
Roller WPL-WP67005149
...
21
Axle, Roller (2) WPL-67006434
...
22
Gasket WPL-B5759611
...
23
Grommet, Compressor WPL-67003493

04 - Evaporator Area & Rollers

...
...
NI
Thermostat Kit WPL-12001937
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-WPW10292802
...
3
Clip, Evaporator WPL-10623002
...
4
Cover, Evaporator WPL-67001081
...
5
Gasket WPL-W11159742
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12001919
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67001794
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Clip, Evap Motor WPL-12217805
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-WP489069

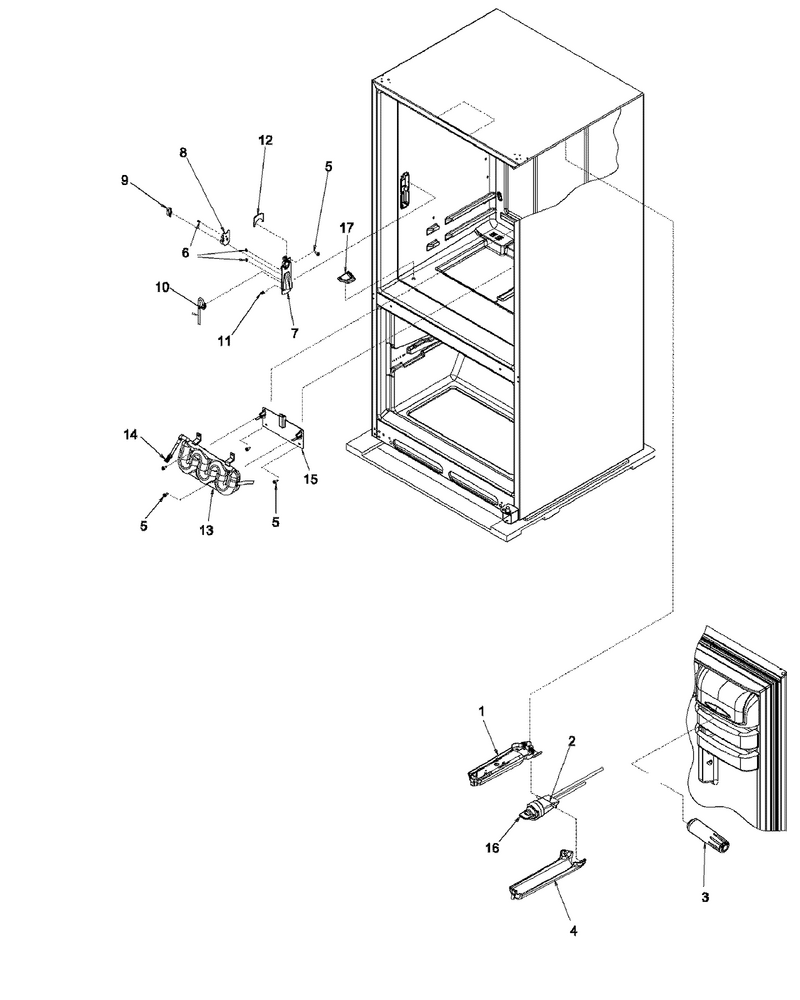

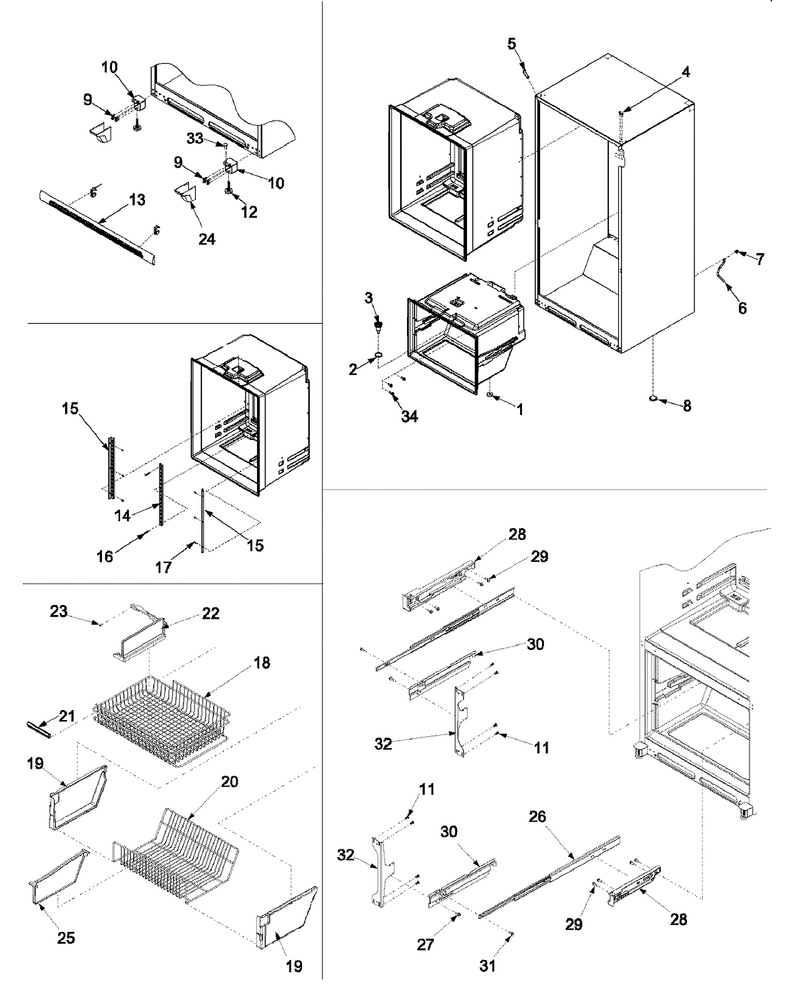

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (bisque) WPL-12587703C
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge, Bottom E-Ct (wht) WPL-67001239
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Toe Grille Assy (bsq) WPL-67002285
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001317
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67004986
...
19
End Cap- B WPL-67003596
...
20
Basket, Lower Fz WPL-67001240
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67001723
...
23
Screw WPL-W10856125
...
24
Cover, Lwr Hinge (bsq) WPL-12561901C
...
25
Divider, Basket WPL-67002872
...
26
Slide- Dra WPL-WP67002767
...
27
Screw (3) WPL-67006425
...
28
Adapter (lt) WPL-67001246
...
29
Screw WPL-WP489474
...
30
Bracket, Drawer Slide (rt) WPL-67001249
...
31
Screw WPL-WP488234
...
32
Bracket, Door WPL-67001262
...
33
Plug, Button (wht) WPL-M0310343
...
34
Screw (3) WPL-67006425

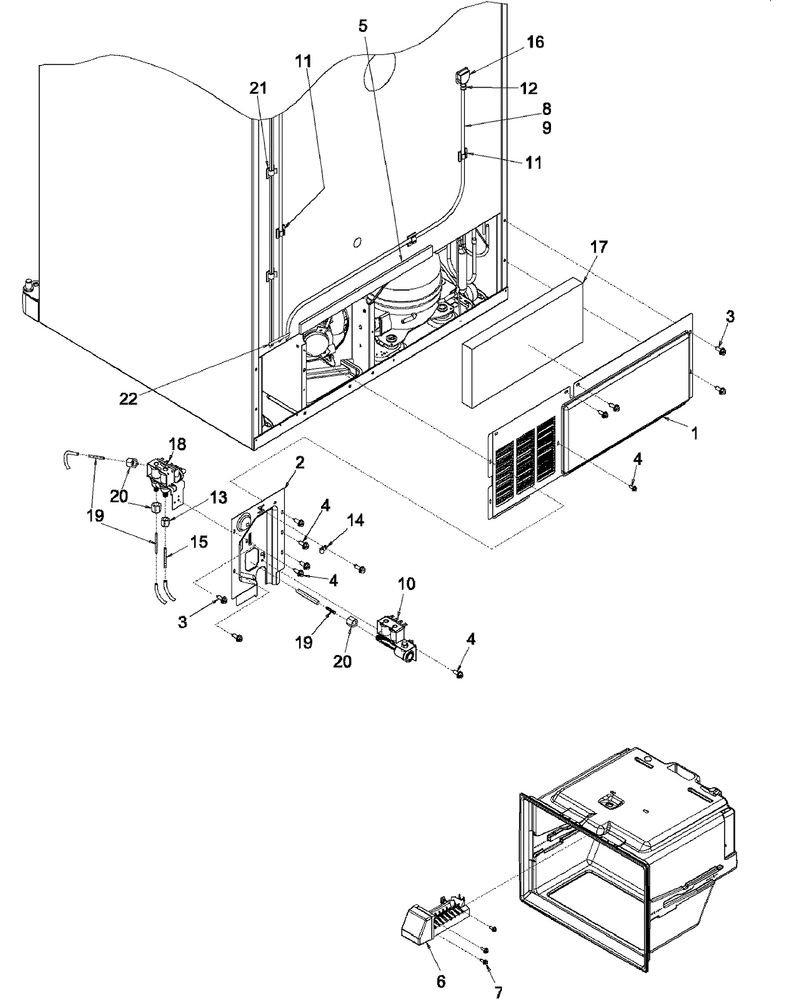

01 - Cabinet Back

...
...
NI
Cord-Power WPL-WP67006506
...
1
Back, Mach Comp WPL-12575101ED
...
2
Cover, Water Valve WPL-67001724
...
3
Screw (3) WPL-67006425
...
4
Screw, 8-32 X 3/8 WPL-681390
...
5
Gasket, Mc Back WPL-B5759649
...
6
Ice Maker Assy. WPL-D7824706Q
...
7
Screw WPL-WP98165
...
8
Tube-Water WPL-W10823511
...
9
Insert- Pl WPL-WPA3223101
...
10
Valve-Inlt WPL-WP12544002
...
11
Clip WPL-WPM0104106
...
12
Clip- Spee WPL-WPM0114003
...
13
Nut WPL-WP627018
...
14
Clamp WPL-W10833902
...
15
Spring WPL-WPA1055105
...
16
Tube-Water WPL-W11176463
...
17
Fiber, Acoustic WPL-67003796
...
18
Valve-Inlt WPL-12002193
...
19
Spring, Anti-Kink WPL-A1055104
...
20
Nut WPL-8201513
...
21
Clip, Cord WPL-M0104102
...
22
Pan-Ice WPL-WP67001255

03 - Controls

...
...
NI
Harness, Ff Module WPL-67002453
...
1
Switch WPL-W11384469
...
2
Kit- Light WPL-12002057
...
3
Cover, Ref Light WPL-67001029
...
4
Logo, Light Module WPL-67001999
...
5
Housing WPL-WP67002085
...
6
Knob, Front WPL-67002512
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Light Bulb WPL-8009
...
12
Timer- Def WPL-WP67001036
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Gasket, Damper WPL-67001038
...
16
Cover, Damper WPL-67002000
...
17
Belt- Damp WPL-WP67001040
...
18
Damper Gea WPL-WP67003410
...
19
Insulation WPL-12650002
...
20
Screw WPL-WP98165
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232
...
28
Light Bulb WPL-8009
...
29
Switch WPL-W11396033

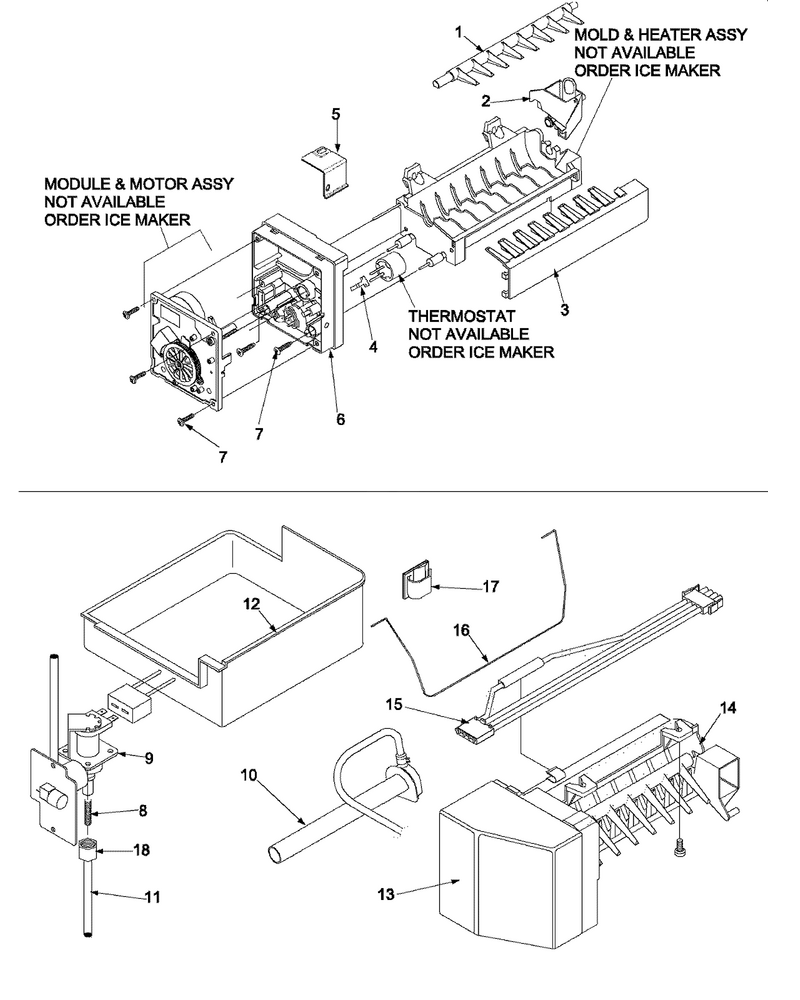

07 - Optional Ice Maker Kit Ic11b P1328003w

...
...
NI
Screw WPL-WP98165
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Spring WPL-WPA1055105
...
9
Valve-Inlt WPL-WP67003753
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Ice Maker Assy. WPL-D7824706Q
...
15
Harns-Wire WPL-WPD7813010
...
16
Arm-Shut WPL-WP67004028
...
17
Clip WPL-WPM0104106
...
18
Nut WPL-WP627018
