Amana AOGD2750SS (BOM: P1132534NSS)

Model: AOGD2750SS (BOM: P1132534NSS)

Save Part Not Listed?
product name

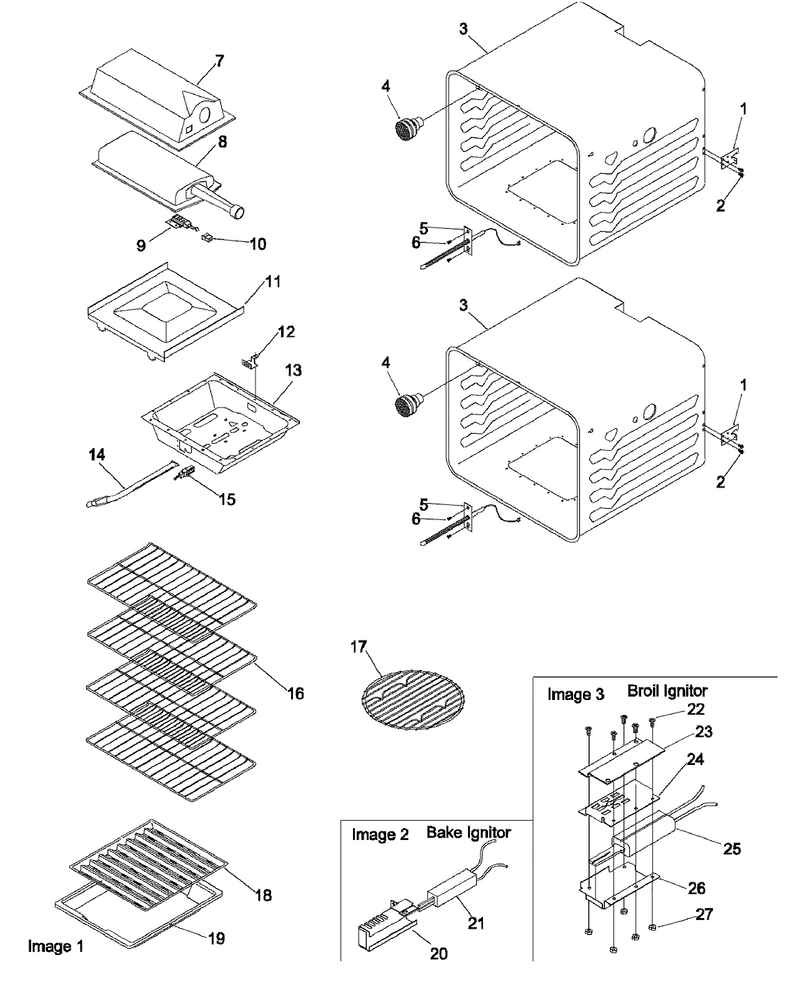

02 - Cavity

...
...
NI
Light Bulb WPL-8009
...
1
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
2
Screw WPL-WP693995
...
3
Oven Shell (Cg) WPL-31813801CG
...
4
Light- Ove WPL-WP74011278
...
5
Sensor WPL-WP31968201
...
6
Screw WPL-W11245710
...
7
Chamber Broil Burner WPL-Y0059415
...
8
Broil Burner Assy WPL-Y0054070
...
9
Ignitor- B WPL-WP31939701
...
10
Plug, Ignitor Wires WPL-Y0059417
...
11
Oven Bottom (Cg) WPL-315521CG
...
12
Mtg. Bracket, Oven Burner WPL-Y0060766
...
13
Box, Lower Burner WPL-Y0315387
...
14
Burner, Bake (Wall Oven) WPL-31761901
...
15
Ignitor- B WPL-WP31939701
...
16
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
17
Meat Rack Slo/cook WPL-Y0042713
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Bracket, Igniter Mounting WPL-31957101
...
21
Ignitor- B WPL-WP31939701
...
22
Screw, No.6-32 X .375 Panhd(Blk) WPL-31750308
...
23
Ignitor Brkt WPL-Y0060826
...
24
Shield, Top Igniter WPL-0063781
...
25
Ignitor- B WPL-WP31939701
...
26
Ignitor Shield-Bottom WPL-Y0308104
...
27
Nut K WPL-M0282005

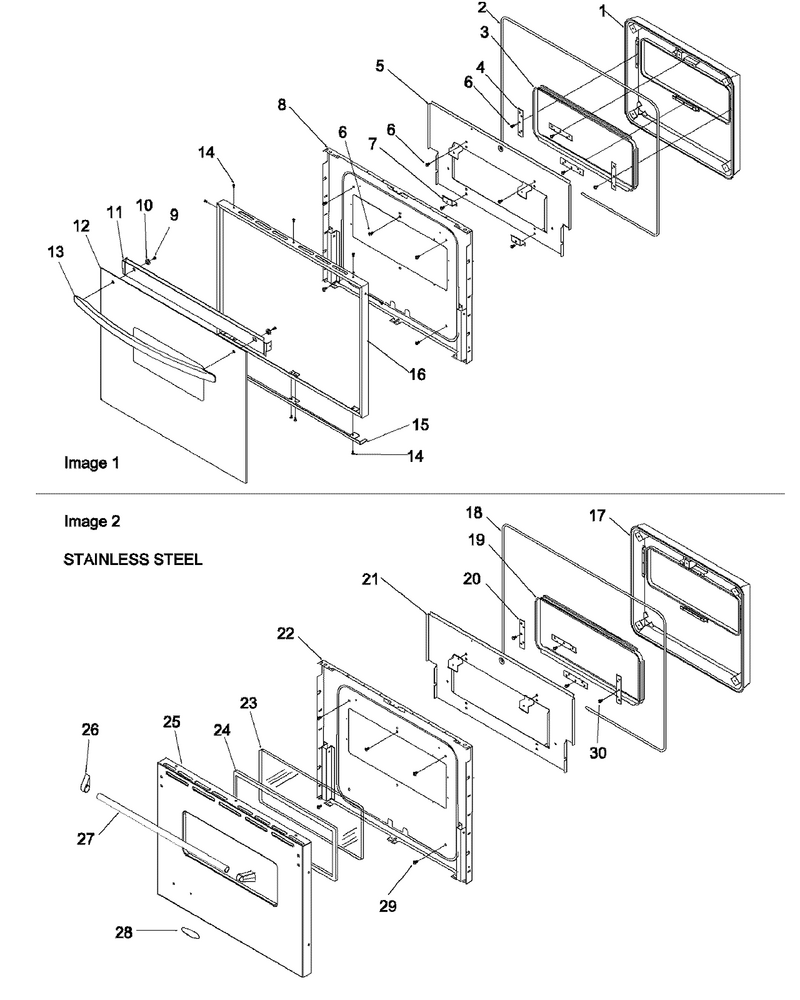

05 - Oven Door

...
...
NI
Screw WPL-W11245710
...
17
Backer, Oven Door (Cg) WPL-40223CG
...
18
Gasket, Door (76``) WPL-31715903
...
19
Window Assy WPL-Y0058312
...
20
Retainer, Door Glass WPL-Y0052629
...
21
Baffle, Inner (Blk) WPL-301896G
...
22
Liner, Oven Door (Viking) WPL-31844901CG
...
23
Window Glass, Cross Hatch WPL-Y0301912
...
24
Trim ``j`` Moulding WPL-Y0302082
...
25
Door Panel, 27`` Wall Oven (Ss) WPL-31954803SS
...
26
Bracket, Handle (Ss) WPL-31971001SS
...
27
Handle, Oven Door (Ss) WPL-31970901SS
...
28
Nameplate (Amana Plus) WPL-Y12528501
...
29
Screw WPL-WP693995
...
30
Screw WPL-WP8534097

...
...
NI
Wiring Information WPL-15003101

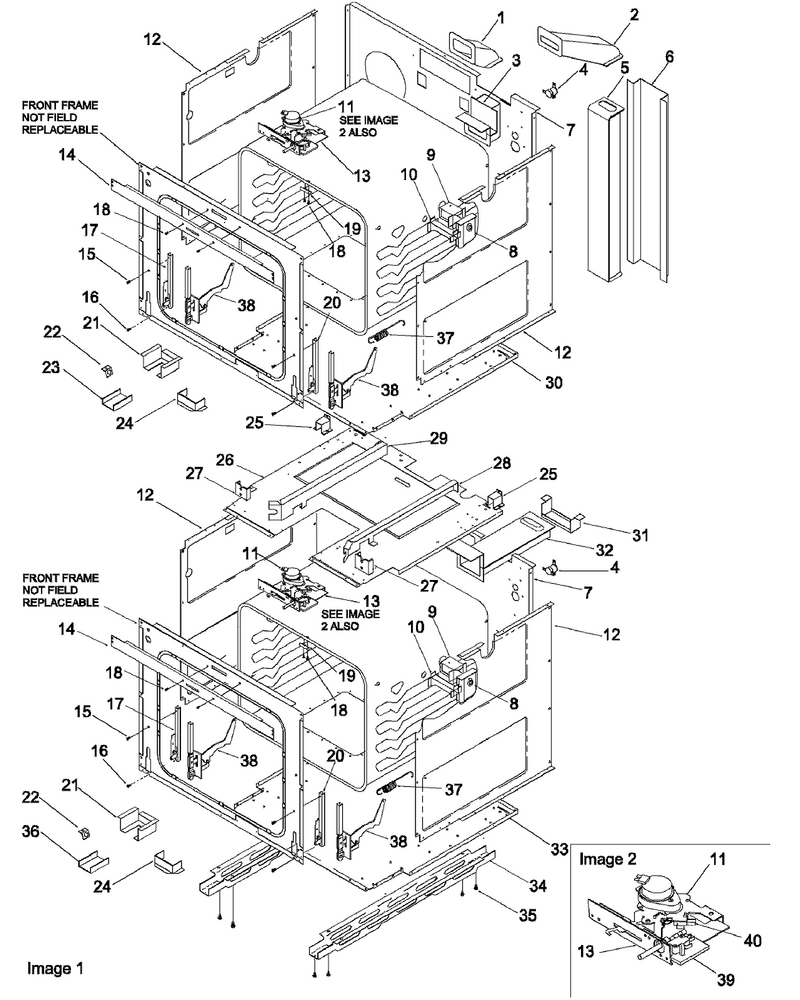

04 - Main Front

...
...
NI
Screw, No.8-18x 1 1/4 Flthd(Blk) WPL-31750408
...
1
Flue, Upper Oven WPL-Y0060799
...
2
Flue, Lower Oven WPL-Y0060805
...
3
Vertical Flue, Upper Oven WPL-Y0060802
...
4
Switch Fan Spdt WPL-Y0042056
...
5
Vertical Flue WPL-Y0060808
...
6
Retainer, Insulation WPL-Y0054295
...
7
Retainer, Insulation-Rear WPL-0305420
...
8
Vertical, Air Duct WPL-0060819
...
9
Venturi, Air Duct-Top WPL-Y0060821
...
10
Wire Protector WPL-Y0060787
...
11
Latch, Door WPL-31933401
...
12
Retainer, Insulation-Side WPL-Y0316868
...
13
Bracket, Latch Mounting WPL-31848301
...
14
Cover, Chip WPL-31797201
...
15
Screw WPL-WP4159193
...
16
Screw WPL-WP7101P126-60
...
17
Assy, Oven Hinge Lt WPL-Y0315426
...
18
Screw WPL-W11245710
...
19
Cover, Chip WPL-Y0315022
...
20
Assy, Oven Hinge Rt WPL-Y0315425
...
21
Shield, Bake Orifice WPL-Y0060814
...
22
Bracket, Bake Orifice WPL-Y0060846
...
23
Air Channel, Upper Bake WPL-0054274
...
24
Retainer, Insulation-Orifice WPL-0060823
...
25
Support, Rear Oven WPL-Y0305717
...
26
Oven Top, Upper Oven WPL-Y0060829
...
27
Support, Oven Front WPL-Y0060838
...
28
Air Channel, Rt WPL-0060835
...
29
Air Channel, Lt WPL-Y0060834
...
30
Oven Bottom-Upper WPL-Y0059593
...
31
Retainer- WPL-77001211
...
32
Horizontal Flue WPL-0060811
...
33
Oven Bottom-Lower WPL-0316866
...
34
Runner, Base WPL-Y0060849
...
35
Screw WPL-WP693995
...
36
Air Channel, Lower Bake WPL-Y0054275
...
37
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
38
Hinge Assembly WPL-Y0301927
...
39
Switch, Plunger WPL-31933601
...
40
Switch, Micro WPL-31899201

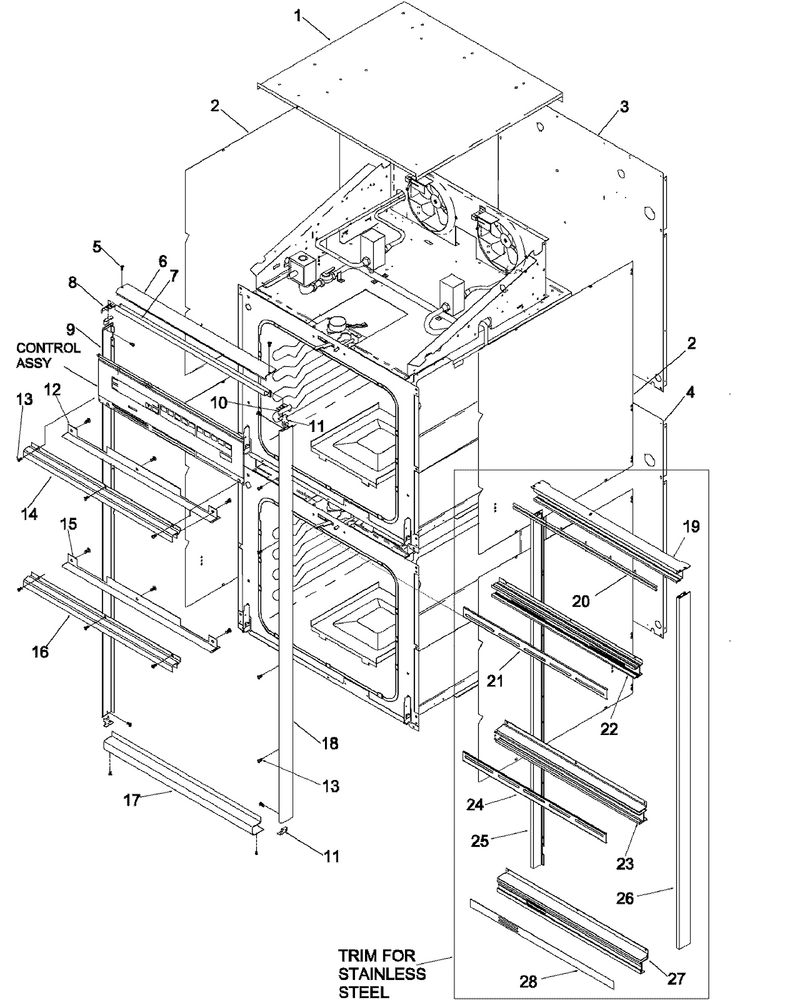

01 - Cabinet

...
...
NI
Bushing, Snap (Blk) WPL-308655B
...
1
Panel, Cabinet Top WPL-Y0060843
...
2
Panel, Side WPL-Y0052366
...
3
Cabinet Back, Upper WPL-Y0059744
...
4
Back Cabinet WPL-Y0059743
...
13
Screw WPL-W11245710
...
19
Trim, Top-Control Panel WPL-Y0307158
...
20
Vent Grill WPL-Y0301915
...
21
Trim, Bottom-Control Panel(Ss) WPL-31987801SS
...
22
Trim, Bottom-Control Panel WPL-Y0301885
...
23
Trim, Center (Bronze) WPL-Y0301884
...
24
Trim, Center (Ss) WPL-31987601SS
...
25
Trim, Side-Lt WPL-Y0307152
...
26
Trim, Side-Rt WPL-Y0307153
...
27
Trim, Bottom WPL-Y0301883
...
28
Insert, Bottom Trim WPL-0301916

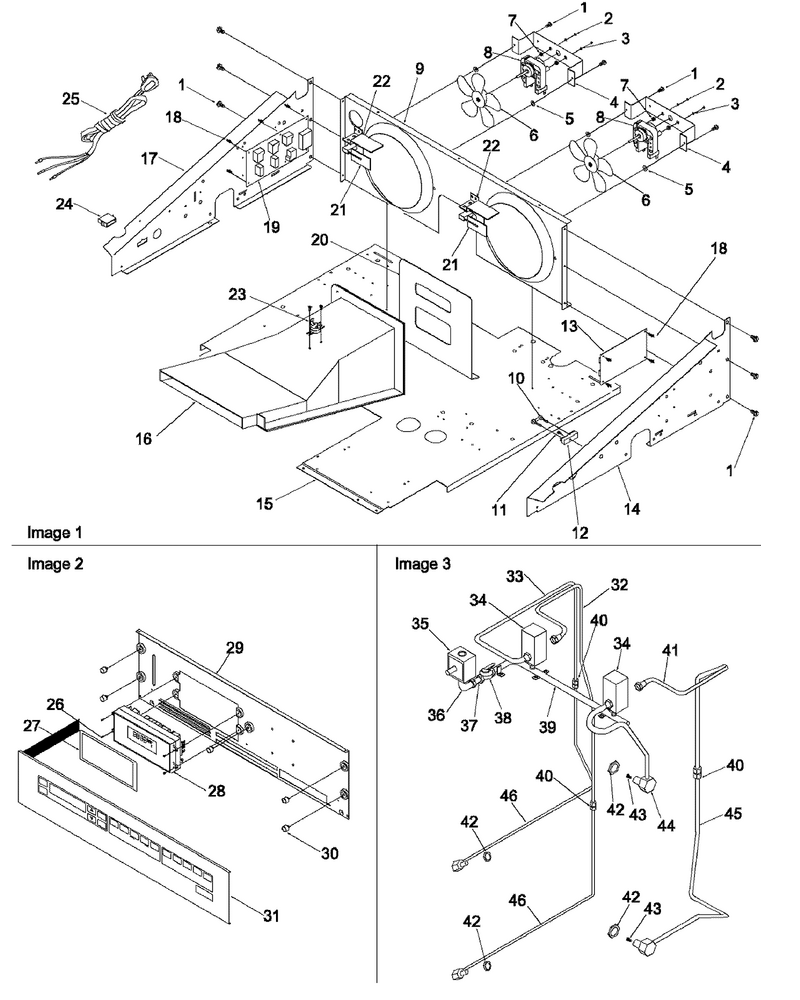

03 - Control Compartment, Panel & Gas Supply

...
...
NI
Harness, Lower Latch WPL-77001191
...
1
Screw WPL-WP693995
...
2
Nut K WPL-M0282005
...
3
Washer, Flat 5/32 X 7/16 O.d. WPL-31750015
...
4
Bracket-Motor Mount WPL-Y0305242
...
5
Washer, Flat 1/4 X 5/8 O.d. WPL-31750005
...
6
Blade, Fan WPL-Y0314548
...
7
Grommet-Fan WPL-Y0305243
...
8
Fan Motor WPL-Y0042226
...
9
Panel, Back Control WPL-Y0060841
...
10
Resistor WPL-Y0042064
...
11
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
12
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
13
Relay, Module WPL-Y0314523
...
14
Compartment, Control Rt WPL-Y0314834
...
15
Oven Top, Upper Oven WPL-Y0060829
...
16
Flueway, Control Panel-Top WPL-31824201
...
17
Compartment, Control Lt WPL-Y0314835
...
18
Support-Circuit Board WPL-Y0306900
...
19
Cntrl-Elec WPL-WPY0309305
...
20
Bracket, Flue Support WPL-0060824
...
21
Sail Switch WPL-0066207
...
22
Bracket, Switch WPL-Y0052814
...
23
Control, Limit WPL-31833001
...
24
Molex Receptacle 3 Circuit WPL-31748901
...
25
Supply Cord WPL-Y0054865
...
26
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
27
Seal- Erc WPL-R9800030
...
28
Erc-Double Oven WPL-31799201
...
29
Brkt, Control Panel Mtg (Blk) WPL-31845301B
...
30
Bumper, Rubber WPL-Y0314643
...
31
Assy, Membrane Switch (Ss) WPL-31950601SS
...
32
Tubing-Lower Union To Valve WPL-0304098
...
33
Tubing-Upper Bake-Union To Val WPL-31801901
...
34
Valve, Dual Thermal-Gas WPL-Y0060750
...
35
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
36
Elbow, Pipe-1/2`` X 90 Degree WPL-Y0097408
...
37
Nipple-1/2``-Pressure Regulator WPL-Y0097320
...
38
Valve, Shut-Off WPL-Y0314271
...
39
Manifold Assy. WPL-Y0060751
...
40
Union Straight 3/8 To 3/8cc WPL-Y0304566
...
41
Tubing-Lower Union To Valve WPL-Y0304097
...
42
Nut, Pal 3/4-16 X 1.062 WPL-31750116
...
43
Orifice, No.52 Nat WPL-31864801
...
44
Tubing-Upper Broil To Valve WPL-Y0054839
...
45
Tubing-Lower Burner To Union WPL-Y0054837
...
46
Hood & Tubing Upper Bake WPL-Y0054834

...
...
1
Amana Cooking WPL-16021998
...
2
Rs2510002 Service Manual Rev. WPL-16021873
...
3
Rt2510002 Tech Sheet Rev. WPL-16021874
...
4
Manual, Owners (Aogd2750) WPL-32066001
