Amana AOES3030SS (BOM: P1132374NSS)

Model: AOES3030SS (BOM: P1132374NSS)

Save Part Not Listed?
product name

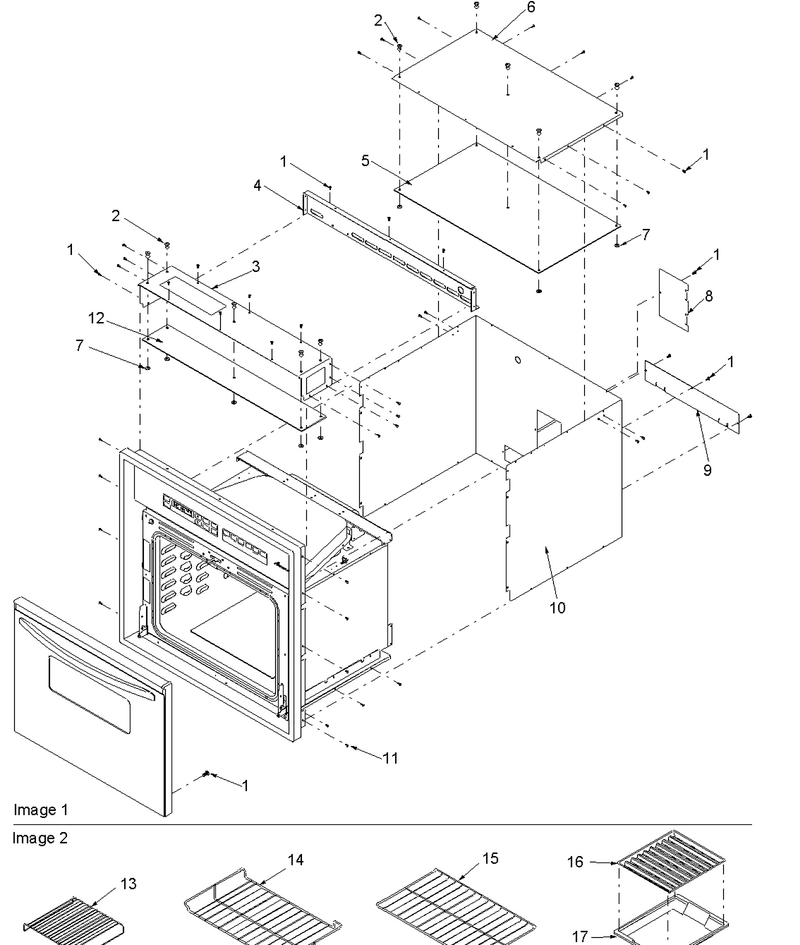

03 - Outer Cabinet/racks

...
...
1
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
2
Rivet, Trimount Press-In WPL-31744101
...
3
Shield, Control Wrapper WPL-31753401
...
4
Shield, Cabinet Back WPL-31784201
...
5
Insulation, Outer Top WPL-31734401
...
6
Shield, Outer Cabinet Top WPL-31753301
...
7
Washer, Steel-.218 Id/.500 Od WPL-3175-0001
...
8
Plate, Access WPL-31800001
...
9
Plate, Element Access WPL-Y0316636
...
10
Shield, Outer Cabinet Wrapper WPL-Y0317003
...
11
Screw WPL-W11245710
...
12
Insulation, Control Wrapper WPL-31734501
...
13
Meat Rack Slo/cook WPL-Y0042713
...
15
Rack-Oven WPL-WP314763J
...
16
Procelain Broiler (Pan And Grid) WPL-4396923
...
17
Procelain Broiler (Pan And Grid) WPL-4396923

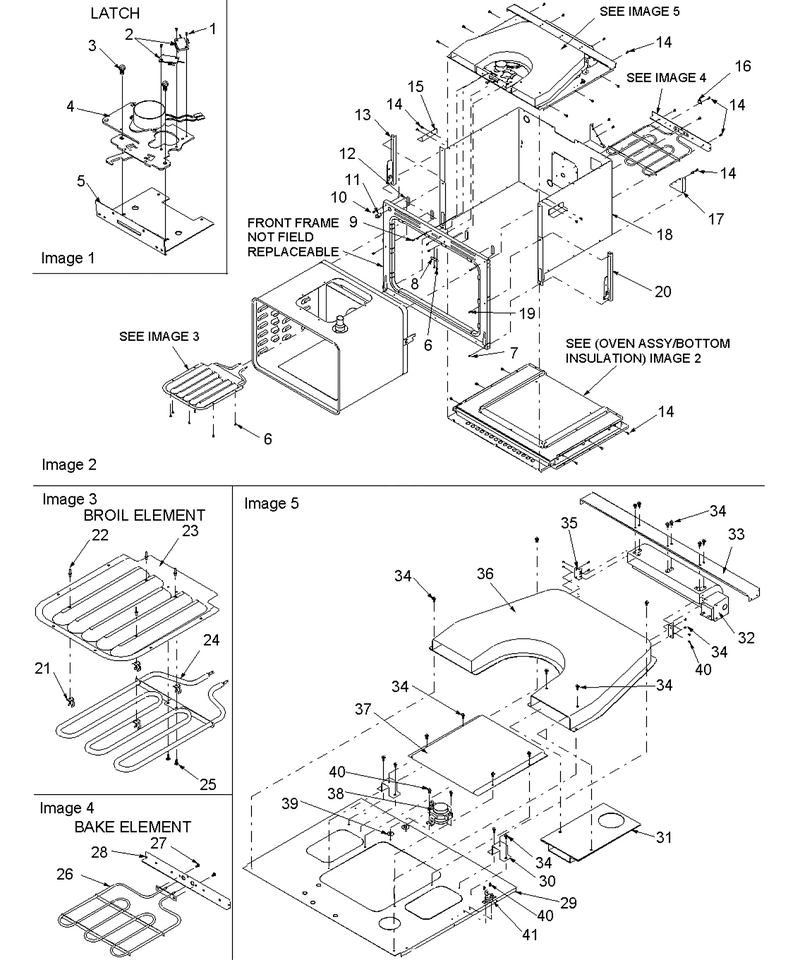

02 - Inner Cavity/blower/bake And Broil Assy

...
...
NI
Insulation, Wrapper WPL-31747702
...
1
Screw WPL-W11245710
...
2
Switch, Door Latch WPL-Y0314277
...
3
Screw WPL-W11245710
...
4
Latch, Oven Door WPL-Y0309430
...
5
Bracket, Latch Mtg WPL-31768801
...
6
Screw WPL-W11245710
...
7
Screw WPL-WP4159193
...
8
Cover, Chip WPL-Y0315022
...
9
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
10
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
11
Switch- Oven Door WPL-Y0316882
...
12
Gasket (Silicone5/16x1/2x1 3/4 WPL-Y0317062
...
13
Assy, Oven Hinge Lt WPL-Y0315426
...
14
Screw WPL-WP693995
...
15
Shield, Corner WPL-31742101
...
16
Clamp, Wire-Insulate WPL-Y0068513
...
17
Gusset, Support WPL-0316769
...
18
Retainer, Insulation WPL-31747001
...
19
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
20
Hinge, Door (Rh Hard Set) WPL-31789601
...
21
Bracket, Mounting WPL-0315402
...
22
Rivet, Pop WPL-Y0097822
...
23
Reflector, Broil Element WPL-Y0315482
...
24
Element- B WPL-WP77001099
...
25
Screw WPL-W11245710
...
26
Element, Bake (240v-2000w) WPL-31747601
...
27
Screw WPL-WP693995
...
28
Support, Brkt Element WPL-Y0316898
...
29
Retainer, Insulation (Top) WPL-31747501
...
30
Brkt, Vent Mtg WPL-31783901
...
31
Baffle, Vent WPL-31932801
...
32
Assy, Blwr Motor 115vac 2750rp WPL-Y0315453
...
33
Brkt, Blower Mtg WPL-Y0316645
...
34
Screw WPL-WP693995
...
35
Brkt, Blower Vent WPL-0316708
...
36
Vent WPL-Y0315468
...
37
Cover, Broil Element Reflector WPL-31784501
...
38
WPL-R0702563
...
39
Washer, Steel-.218 Id/.500 Od WPL-3175-0001
...
40
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
41
Control, Fan WPL-31933001

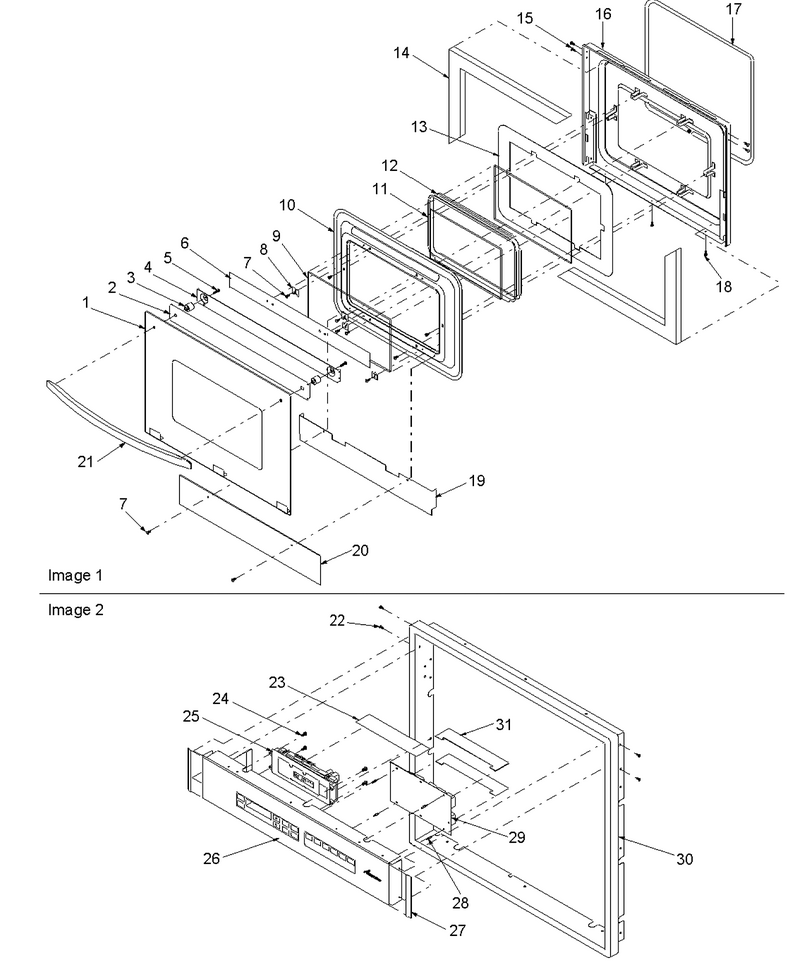

01 - Door/control Panel

...
...
NI
Conduit Ass`y WPL-Y0315455
...
1
Assy, Door Face-Walloven (Ss) WPL-31864601SS
...
2
Shield, Glass Heat WPL-Y0316481
...
3
Bushing, Handle (Nal) WPL-Y0309461
...
4
Brkt, Door Glass WPL-0315791
...
5
Screw, No.10-32x1 3/8 Pan Ph Hd WPL-31750522
...
7
Screw WPL-WP693995
...
8
Bracket, Glass Mtg WPL-Y0316860
...
9
Glass, Window WPL-31727401
...
10
Shield, Door Liner WPL-Y0316480
...
11
Glass Window 18`` X 11`` X 3/16`` WPL-Y0309074
...
12
Frame, Window Pack WPL-31753701
...
13
Retainer, Door Insulation WPL-31769201
...
14
Insulation, Oven Door WPL-31977701
...
15
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
16
Liner, Door (Cg) WPL-317099CG
...
17
Gasket, Oven Door WPL-Y0317098
...
18
Screw WPL-WP693995
...
19
Shield, Bottom WPL-31776101
...
20
Insulation, Door Bottom WPL-31751001
...
21
Handle, Oven Door (Blk) WPL-31689508B
...
22
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
23
Insulation, Erc WPL-31732801
...
24
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
25
Erc Conv Membrane-4800 Ctsl WPL-31746801
...
26
Assy, Membrane Switch (Blk) WPL-31861501B
...
28
Support, Circuit Board WPL-31726801
...
29
Cntrl-Elec WPL-WPY0309305
...
30
Assy, Trim Frame (Blk) WPL-31748608B
...
31
Insulator, Elec WPL-0317129

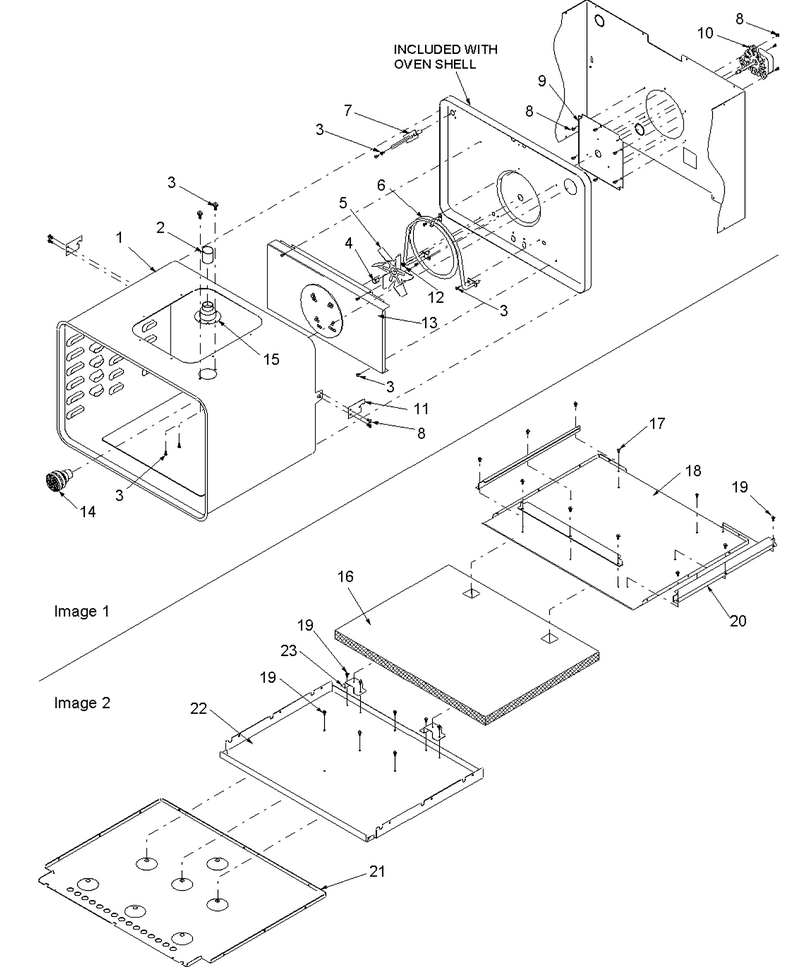

04 - Oven Assy/bottom Insulation

...
...
1
Oven Shell (Cg) WPL-31747801CG
...
2
Tube, Vent WPL-31732901
...
3
Screw WPL-W11245710
...
7
Sensor WPL-WPY0314907
...
8
Screw WPL-WP693995
...
11
Bracket, Oven Cavity WPL-Y0058852
...
14
Light Bulb WPL-8009
...
15
Smoke Eliminator WPL-Y0058526
...
16
Insulation, Bottom Element WPL-31977601
...
17
Screw WPL-W11245710
...
18
Panel, Element WPL-Y0317007
...
19
Screw WPL-WP693995
...
20
Spacer-Bake Element WPL-Y0316897
...
21
Shield, Outer Cabinet Bottom WPL-Y0315480
...
22
Retainer, Bottom Insulation WPL-0317006
...
23
Brkt, Support WPL-Y0316998
