Amana AOES2430WW (BOM: P1132363NWW)

Model: AOES2430WW (BOM: P1132363NWW)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

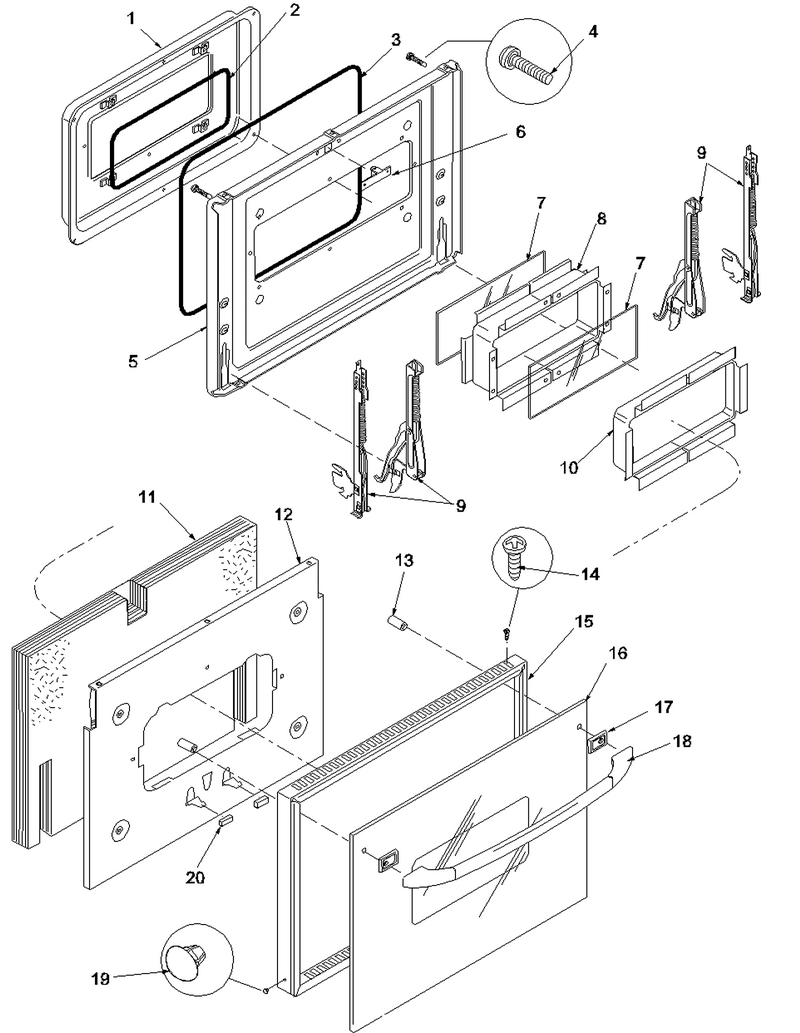

02 - Door Assy

...
...
NI
Tape, Seal WPL-R0762092
...
1
Liner, Oven Door WPL-R0762056
...
2
Seal, Window WPL-R0757006
...
3
Seal, Door WPL-R0757004
...
4
Screw, Handle WPL-R0762023
...
5
Liner, Door Baffle WPL-R9900424
...
6
Strike, Plate WPL-R9900445
...
7
Glass, Oven Door WPL-R9900421
...
8
Spacer, Glass WPL-R0762069
...
9
Hinge, Oven Door WPL-R9900423
...
10
Collar, Glass Mtg WPL-R0762070
...
11
Insulation, Oven Door WPL-R0762019
...
12
Shield, Air Wash WPL-R9900438
...
13
Spacer, Handle WPL-R0757003
...
14
Screw, Handle WPL-67006529
...
15
Trim, Oven Door (White) WPL-R9900443
...
16
Glass, Oven Door (White) WPL-R9900422
...
17
Spacer, Handle WPL-R0762100
...
18
Handle Oven Door WPL-R0762058
...
19
Button, Spacer WPL-R0757007
...
20
Spacer, Cork & Rubber WPL-R0762080

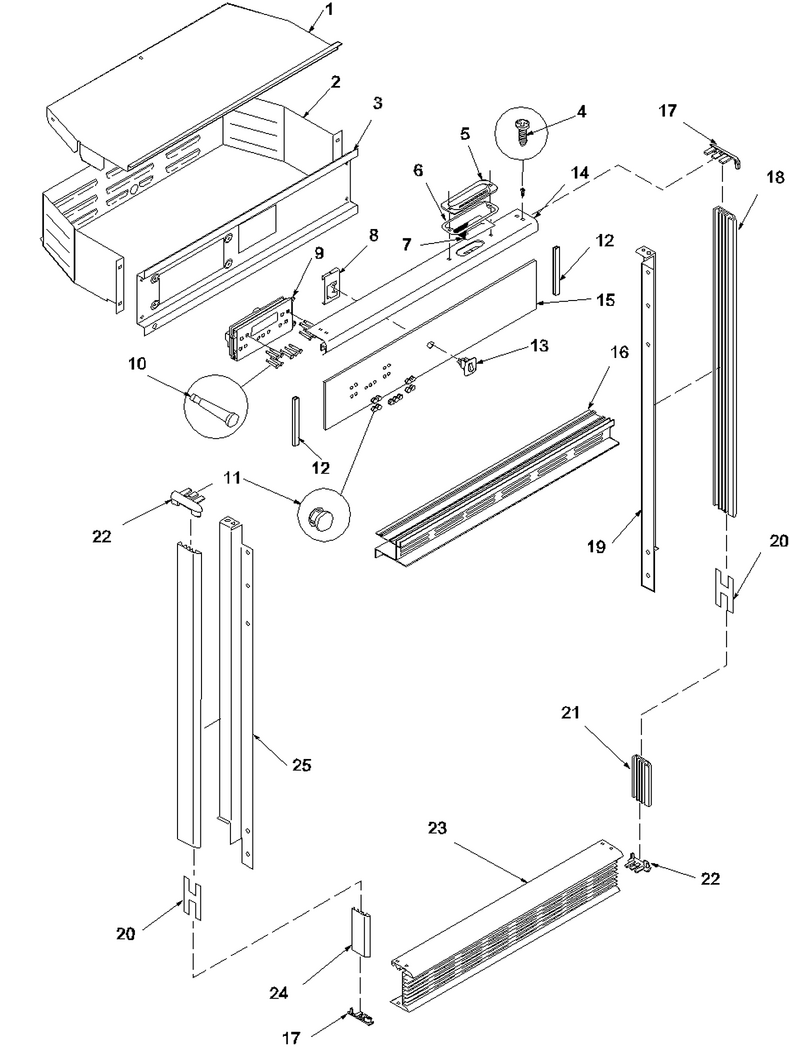

01 - Control Panel

...
...
NI
Screw WPL-R9900435
...
1
Cover, Control Housing WPL-R0762024
...
2
Housing, Control WPL-R0762016
...
3
Plate, Instrument WPL-R0762068
...
4
Screw,no.6-32,3/8``flat,phil WPL-R0762075
...
5
Kit, Vent Deflector (White) WPL-R0762028
...
6
Seal, Vent Cover WPL-R9900460
...
7
Tape, Vent Cover WPL-R0762037
...
8
Bracket, Light Switch WPL-R0762067
...
9
Clock/timer, Electronic WPL-R0762043
...
10
Button, Shaft Push (Clock) WPL-R0762038
...
11
Knob, Clock WPL-R0762045
...
12
Base Pan Assy WPL---
...
13
Switch, Light/lamp (White) WPL-R0762040
...
14
Trim, Top (White) WPL-R0762049
...
15
Panel, Control (White) WPL-R9900426
...
16
Trim, Vent (White) WPL-R0762010
...
17
Cap, Trim White WPL-R0762055
...
18
Trim, Bodyside WPL-R0762072
...
19
Trim, Rh Side Inner WPL-R0762050
...
20
Spacer, Trim Adpt (White) WPL-R0181165
...
21
Trim, Rh Bodyside Lwr WPL-R0762052
...
22
Trim WPL-10327102
...
23
Trim, Base WPL-R0762047
...
24
Trim, Lh Bodyside Lwr WPL-R0762053
...
25
Trim, Lh Side Inner WPL-R0762051

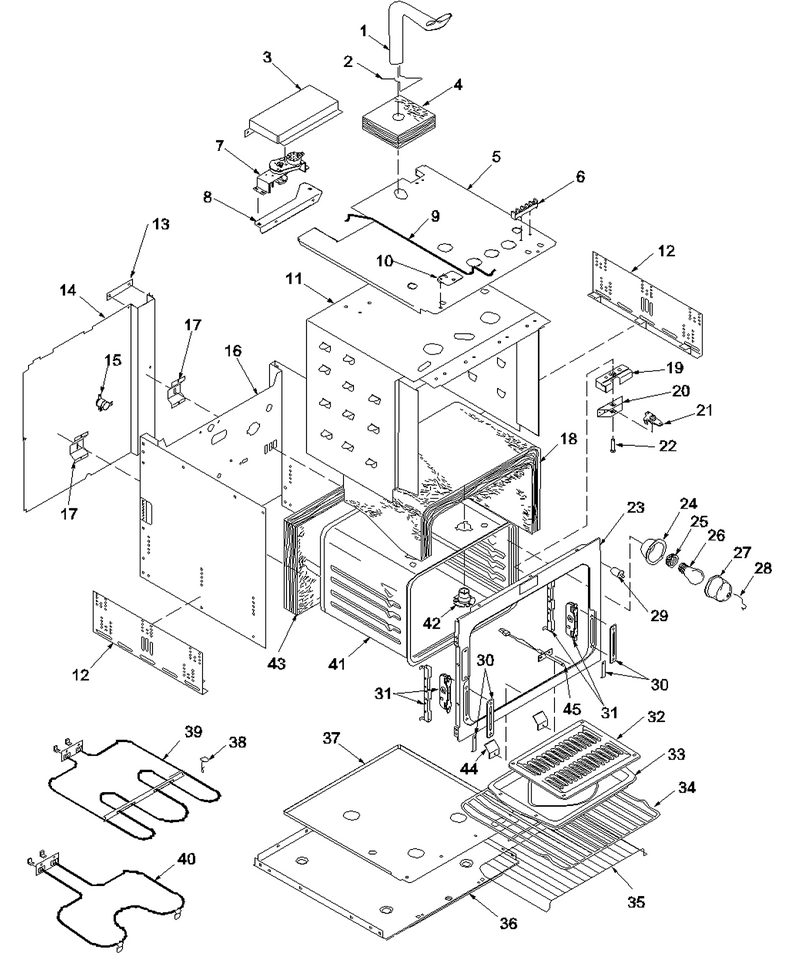

03 - Oven Body

...
...
NI
Screw WPL-R9900433
...
1
Duct, Oven Vent WPL-R0762064
...
2
Clip, Insulation Retainer WPL-R0751509
...
3
Cover, Motor WPL-R0753009
...
4
Insul, Oven Vent WPL-R0762090
...
5
Wrapper, Outer Top WPL-R0753016
...
6
Block-Term WPL-WP8203546
...
7
Motor, Latch/lock WPL-R0762078
...
8
Bracket, Latch WPL-R0762087
...
9
Rod WPL-R0756007
...
10
Cover, Capillary WPL-R0762081
...
11
Shield, Insul Top & Sides WPL-R9900439
...
12
Support, Adjustable WPL-R0762012
...
13
Brkt, Oven Bottom WPL-R0762103
...
14
Shield, Wire WPL-R0762083
...
15
Limit, Oven High WPL-R0762102
...
16
Wrapper, Back & Sides WPL-R9900446
...
17
Spring,oven Door WPL-R0751516
...
18
Insulation, Wrapper WPL-R9900444
...
19
Housing, Latch WPL-R0760014
...
20
Housing, Door Lock WPL-R0762035
...
21
Latch WPL-R0756008
...
22
Pin-Hng 5308012004 WPL-R0751508
...
23
Front, Oven WPL-R9900420
...
24
Housing-Oven Light WPL-R0762104
...
25
Receptacle WPL-R0760004
...
26
Light Bulb WPL-8009
...
27
Lens, Glass Oven Light WPL-R0758008
...
28
Retainer, Lens WPL-R9900429
...
29
Switch- Oven Door WPL-Y0316882
...
30
Retainer, Door WPL-R9900428
...
31
Channel, Hinge WPL-R9900447
...
32
Insert, Pan Broiler WPL-R0762094
...
33
Procelain Broiler (Pan And Grid) WPL-4396923
...
34
Rack, Oven (Regular) WPL-R0760019
...
35
Shelf, Oven-Offset WPL-R0762084
...
36
Wrapper, Base WPL-R0762071
...
37
Shield, Oven Bottom WPL-R0762017
...
38
Support. Element WPL-R9900440
...
39
Element, Broil WPL-R0762098
...
40
Element, Bake WPL-R9900419
...
41
Assy, Oven Liner WPL-R0762065
...
42
Assy, Adapter WPL-R0762088
...
43
Insulation, Oven, Back WPL-R0762030
...
44
Bracket, Oven WPL-R9900418
...
45
Probe, Oven Temp WPL-R0762076
