product name

Amana AOCD2770SS-P113237NSS Wall Oven

Model: AOCD2770SS-P113237NSS

Save Part Not Listed?
product name

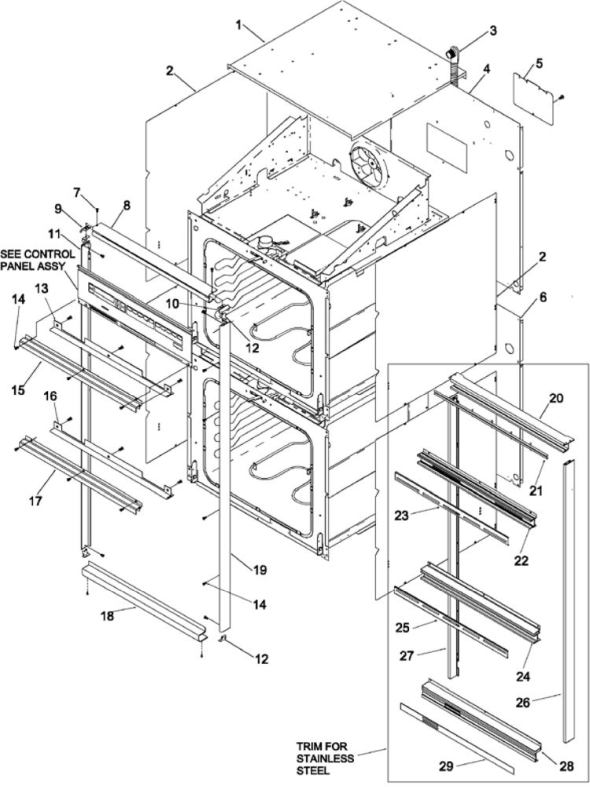

Amana AOCD2770SS-P113237NSS

...
...
14
Refrigerator Screw WPL-W11245710
...
14A
Refrigerator Screw WPL-W11245710

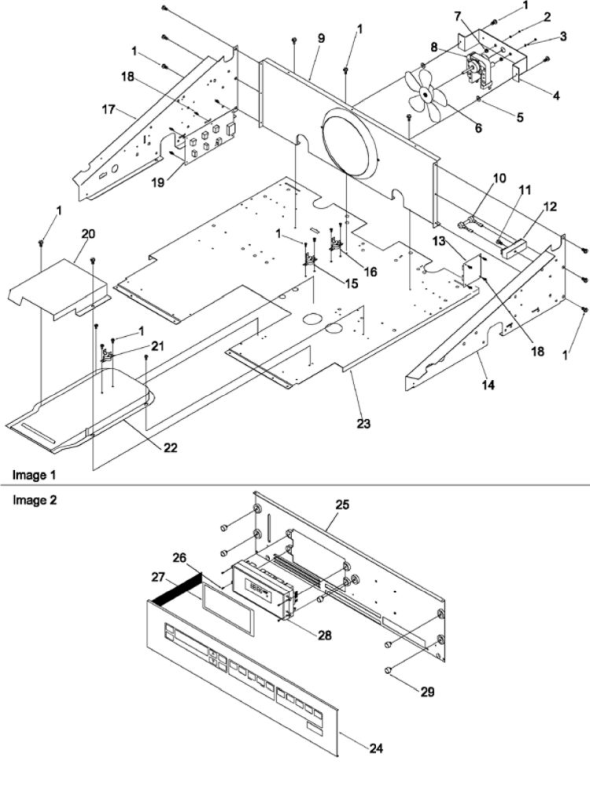

Amana AOCD2770SS-P113237NSS

...
...
6
Refrigerator Screw WPL-W11245710
...
28
Nameplate (A WPL-Y12528501
...
31
Range Screw WPL-707407
...
35
Refrigerator Screw WPL-W11245710

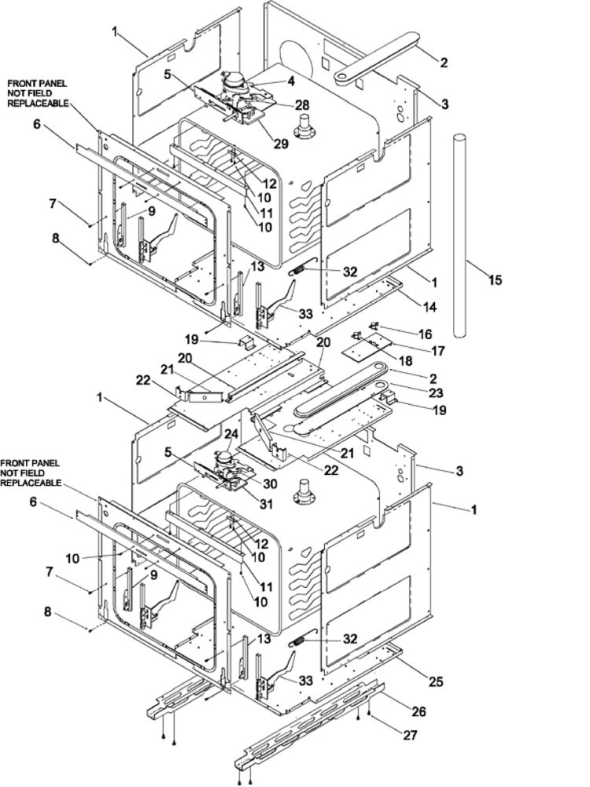

Amana AOCD2770SS-P113237NSS

...
...
1
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
2
Refrigerator Nut WPL-M0282005
...
26
Thread-Cutting Screw WPL-STD610603

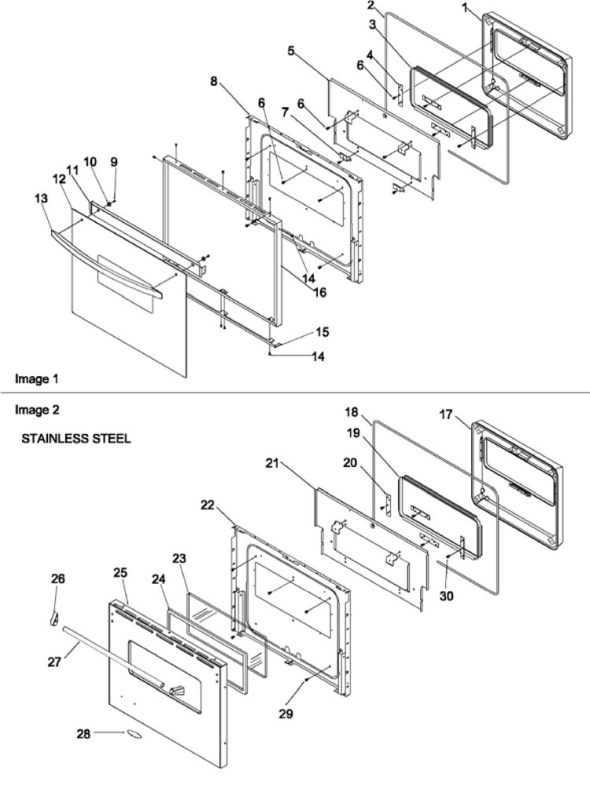

Amana AOCD2770SS-P113237NSS

...
...
2
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
5
Wall Oven Light Assembly WPL-WP74011278
...
7
Refrigerator Screw WPL-W11245710
...
8
Range Oven Temperature Sensor WPL-WP31968201
...
15
Range Bake Element WPL-WP77001092
...
25
Range Broil Pan WPL-4396923
...
26
Range Broil Pan WPL-4396923
...
27
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15

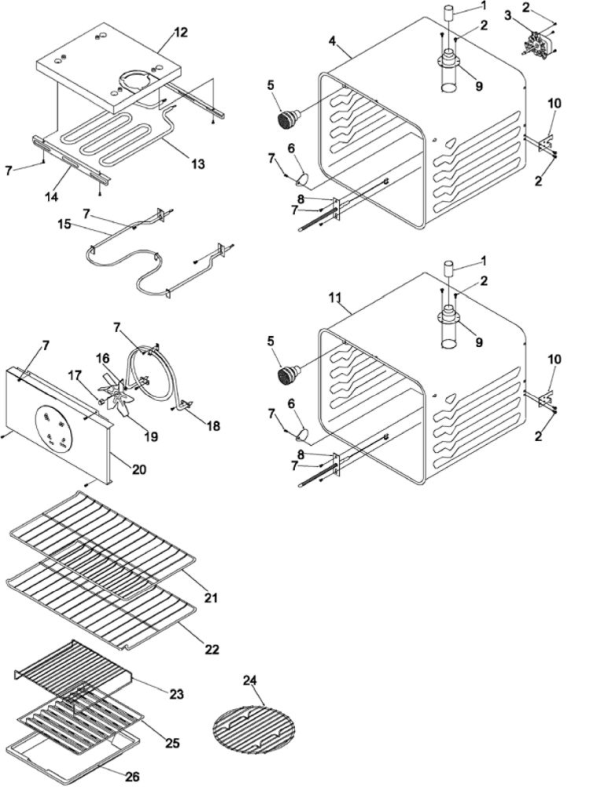

Amana AOCD2770SS-P113237NSS

...
...
8
Range Screw WPL-WP7101P126-60
...
10
Refrigerator Screw WPL-W11245710
...
27
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
30
Range Oven Door Lock Switch WPL-W10915404
...
34
Refrigerator Screw WPL-W11245710
