Amana AO27SB (BOM: P8554707S)

Model: AO27SB (BOM: P8554707S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

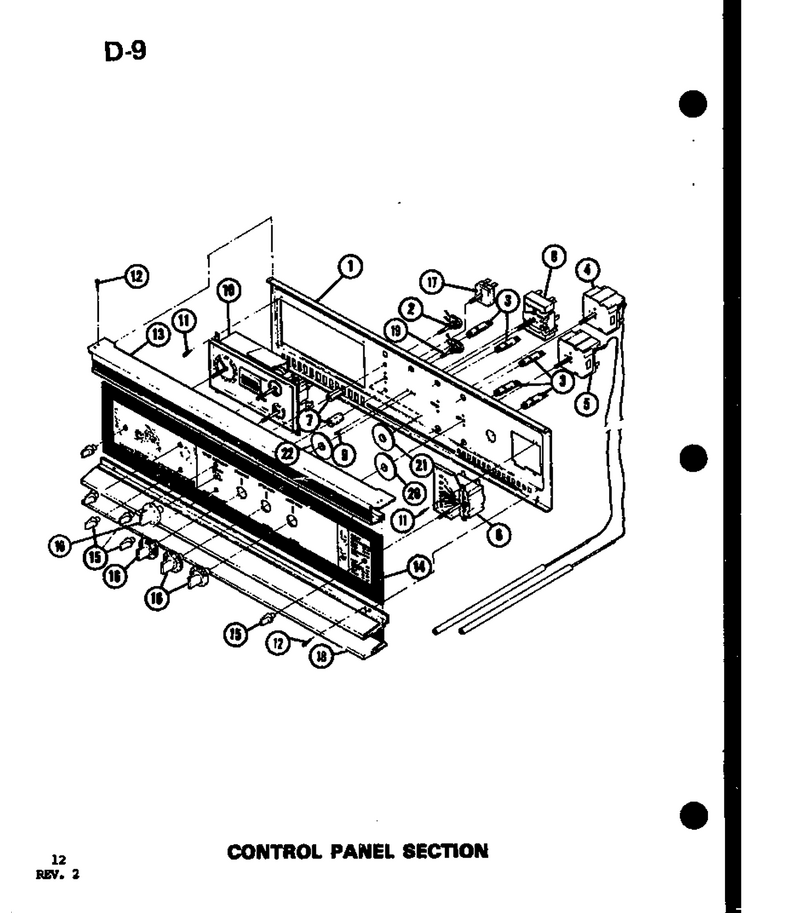

03 - Control Panel Section

...
...
1
Control Mtg Brkt. Pyro Wo WPL-R0199066
...
2
Switch, Oven Light WPL-Y0308168
...
4
Pyro. Thermostat With Top Heat WPL-R0711004
...
7
Switch Bushing ,metal WPL-Y0042012
...
10
Kit, Clock WPL-R0157764
...
11
Screw WPL-WP90767
...
12
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
13
Control Panel Top Trim WPL-R0199120
...
14
Control Panel Glass WPL-R0199122
...
15
Knob, Dual Timer WPL-R0181089
...
16
Knobs, Control WPL-R0199123
...
17
Switch, Rotary-10a,120v WPL-R0157762
...
18
Control Pan Vent Trim WPL-R0199112
...
20
Dial, Thermostat WPL-R0199229
...
22
Selector Switch Dial WPL-R0199231

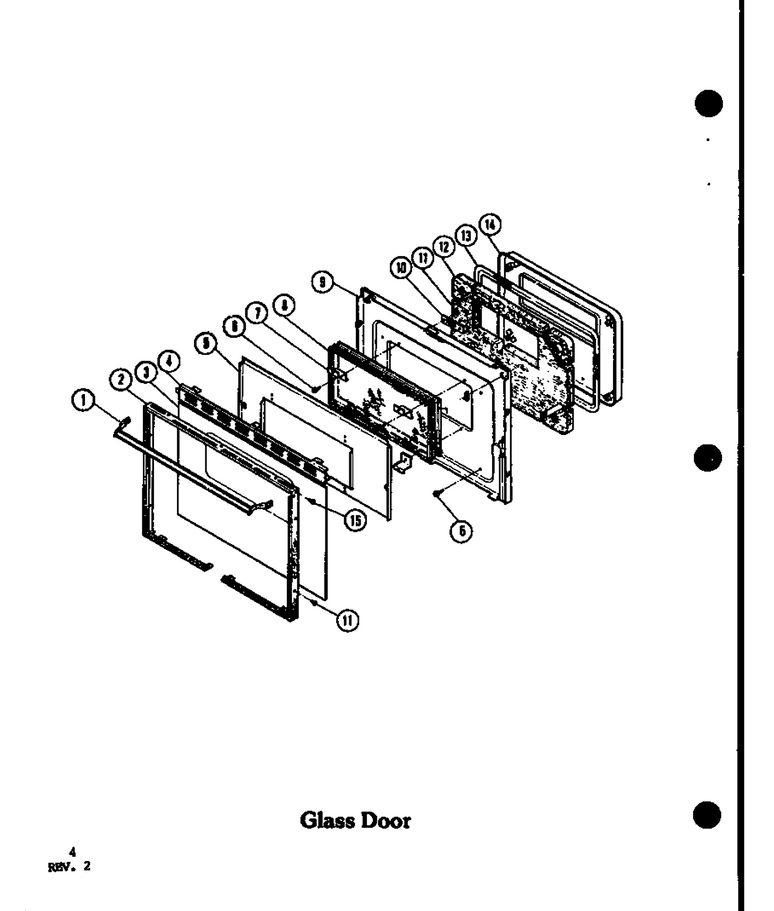

05 - Glass Door

...
...
1
Door Handle WPL-R0199101
...
2
Door Frame WPL-Y0042562
...
3
Door Glass WPL-R0199103
...
4
Filter Exhaust Ket595 WPL-Y0042024
...
5
Inner Baffle WPL-301830G
...
6
Screw 8-18x.875 B Hx Hd WPL-R0157871
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Window Assy WPL-R0157858
...
9
Door Liner, Charcoal Gray WPL-R0199242
...
10
Latch Plate WPL-Y0052039
...
11
Screw WPL-WP3400882
...
12
Insulation, Wrapper WPL-31975801
...
13
Gasket, Door (76``) WPL-31715903
...
14
Backer, Oven Door (Cg) WPL-40223CG
...
15
Screw 8-32x.375 Dk Gl Dr Hdl WPL-R0157878

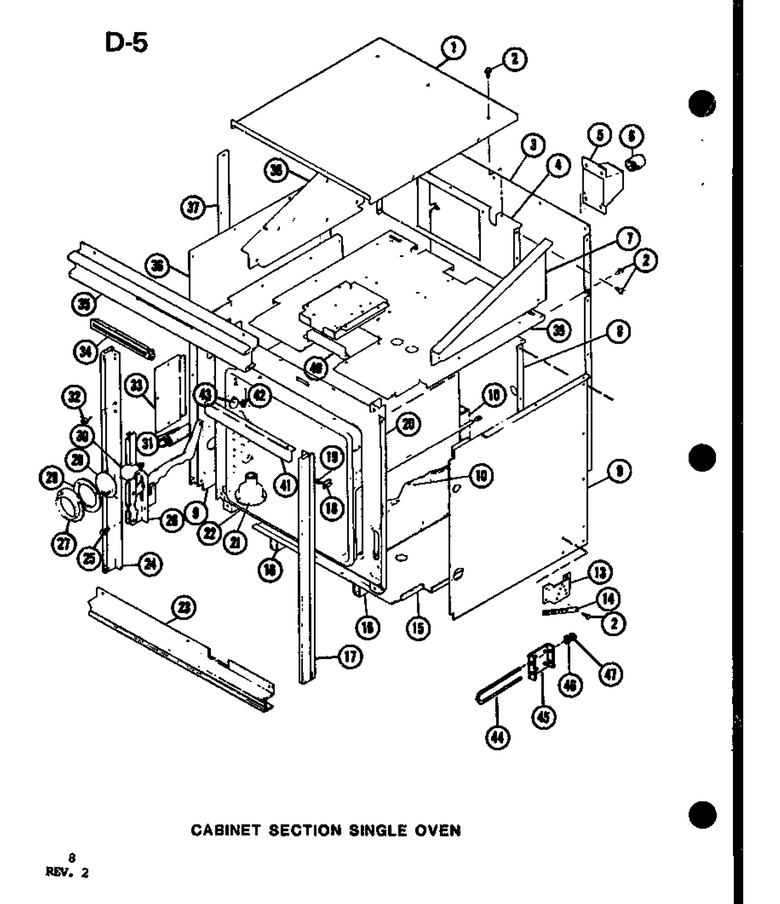

01 - Cabinet Section Single Oven

...
...
NI
5651105 C WPL-R0710027
...
1
Cabinet Top Pyro W.o. Mm WPL-Y0040286
...
2
Screw WPL-WP90767
...
3
Upper Cab. Back Pyro W/o WPL-R0157787
...
4
Cont. Comp. Back Pyro W/o WPL-R0157788
...
5
Lamp Cup WPL-R0157790
...
6
Socket, Oven Light WPL-Y0316385
...
7
Cont. Compart Side Rt Pyro WPL-R0157789
...
8
Insulat. Retain. Rear Pyro WPL-Y0040743
...
9
Insulation Retainer Sides Pyro WPL-R0157793
...
10
Insulation,wrapper WPL-R0157839
...
15
Oven Bottom-Lower WPL-Y0316867
...
16
Runner, Base-Pyro W/o WPL-Y0041019
...
17
Side Trim Right Ao27sb WPL-R0705544
...
18
Capillary Hole Cover Plate WPL-R0157808
...
19
Screw Cabinet Trim WPL-Y0041813
...
20
Main Front-Dk Gr WPL-R0199248
...
21
Smoke Eliminator WPL-R0710023
...
22
Oven Cavity WPL-311145E
...
23
Bottom Trim WPL-R0199110
...
24
Side Trim, L.h. WPL-R0705545
...
25
Screw WPL-WP90767
...
26
Hinge Assy WPL-Y0052095
...
27
Lens Retainer Stainless Steel WPL-R0199255
...
28
Gasket,oven Light WPL-Y0041987
...
29
Oven Light Lens Pyro. Walloven WPL-Y0042769
...
30
Light Bulb WPL-8009
...
31
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
32
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
33
Hinge Access Cover Pyro W.o. WPL-R0157821
...
34
Latch Handle Guide Pyro WPL-Y0042015
...
35
Control Pan Vent Trim WPL-R0199112
...
36
Upper Cabinet, R.h. WPL-R0703023
...
37
Capillary Shield Pyro W/o WPL-R0157824
...
38
Cont. Compart Side Lt Pyro WPL-R0157826
...
39
Top-Up Oven WPL-R0157828
...
40
Terminal Shield Black WPL-R0157830
...
41
Shield, Reflector (Cg) WPL-40850CG
...
42
Screw 8-18x5/16`` WPL-R0157833
...
43
Probe Recep Cover WPL-R0199256
...
44
Spring Adjustment Rod WPL-R0705538
...
45
Rod Brkt Dr Spring WPL-R0705543
...
46
Washer 3/4x5/16x 080 E L Hoods WPL-R0157987
...
47
Thermostat, Upper Oven, Self-C WPL-R0711002

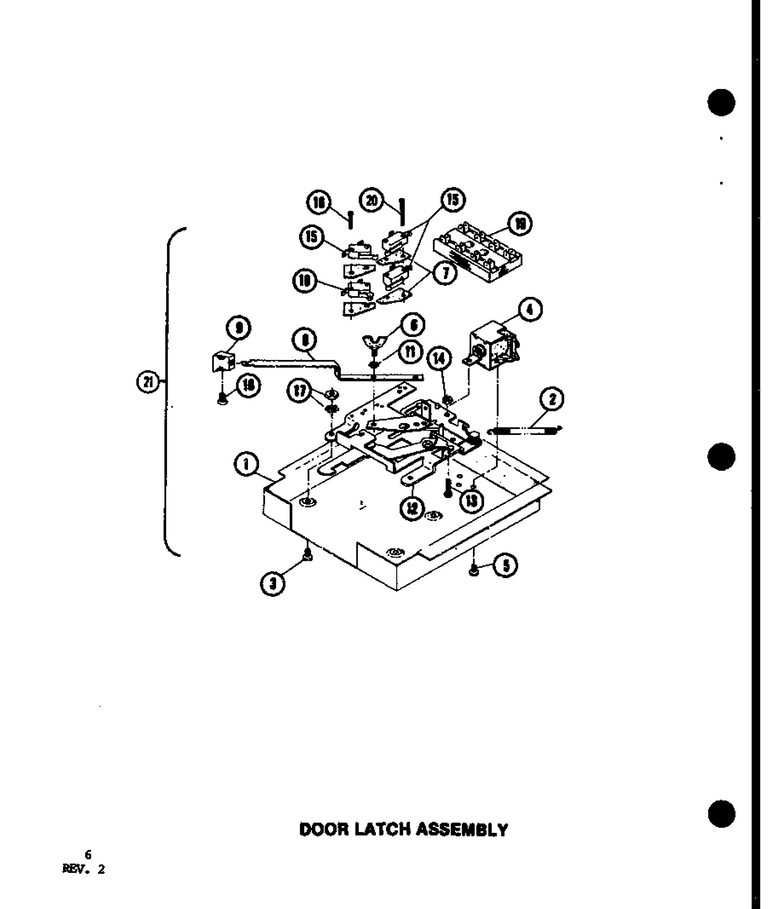

04 - Door Latch Assy

...
...
1
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
2
Spring WPL-R0157852
...
3
Screw WPL-M0221040
...
4
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
5
Screw WPL-M0234040
...
6
Bolt-Wing WPL-R0157779
...
7
Insulator-Switch WPL-R0157781
...
8
Latch Arm WPL-Y040538B
...
9
Door Latch Handle WPL-R0705536
...
10
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
11
Washer Handle Mounting WPL-R0157891
...
12
Door Latch Assy Wo WPL-Y0041909
...
13
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
14
Nut K WPL-M0282005
...
15
Switch-Clean/primary Interlock WPL-Y0067919
...
16
Screw 4-40x15/16`` WPL-Y0041821
...
17
8-Abx1/2 Hex Wash Hd WPL-R0199106
...
18
Main Contact Switch WPL-R0157873
...
20
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
21
Latch Assy WPL-R0710026

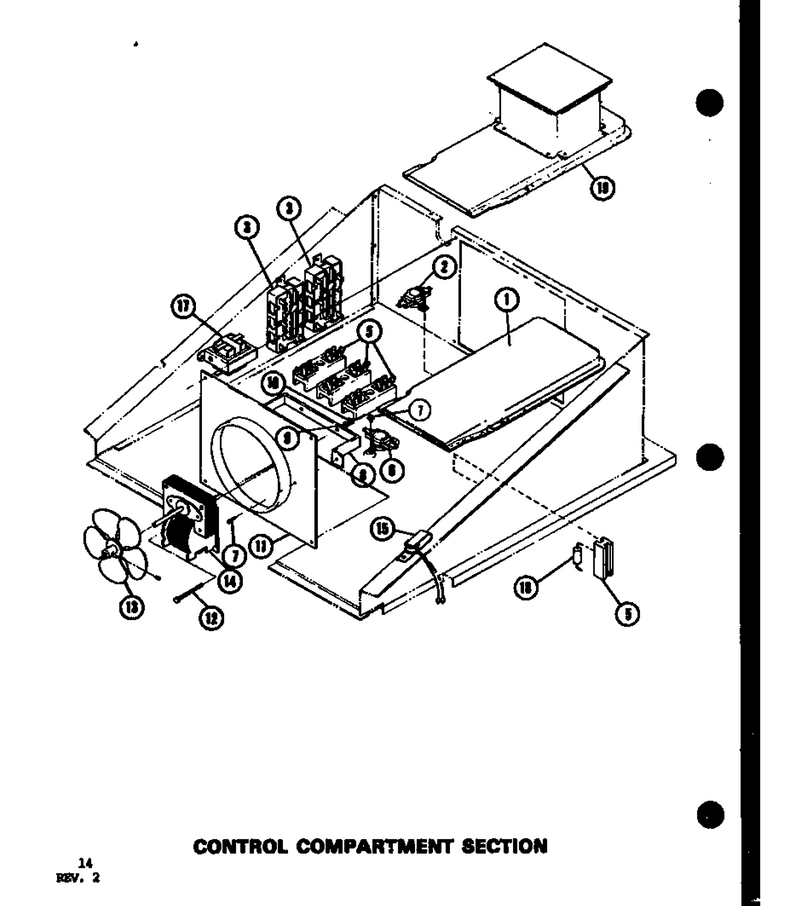

02 - Control Compartment Section

...
...
1
Upper Flue Box WPL-R0703026
...
2
Switch Fan Spdt WPL-Y0042056
...
3
Relay, Oven WPL-Y0091669
...
5
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
6
Limit Control-Upper Oven-200 WPL-Y0042045
...
7
Screw WPL-WP90767
...
8
Fan Motor Mount WPL-R0157890
...
9
Washer Handle Mounting WPL-R0157891
...
10
Nut K WPL-M0282005
...
11
Back, Control Compartment WPL-Y0315557
...
12
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
13
Blade, Fan WPL-Y0314548
...
14
Fan Motor WPL-R0157894
...
18
Resistor WPL-Y0042064
...
19
Upper Oven Flue Box WPL-R0705526

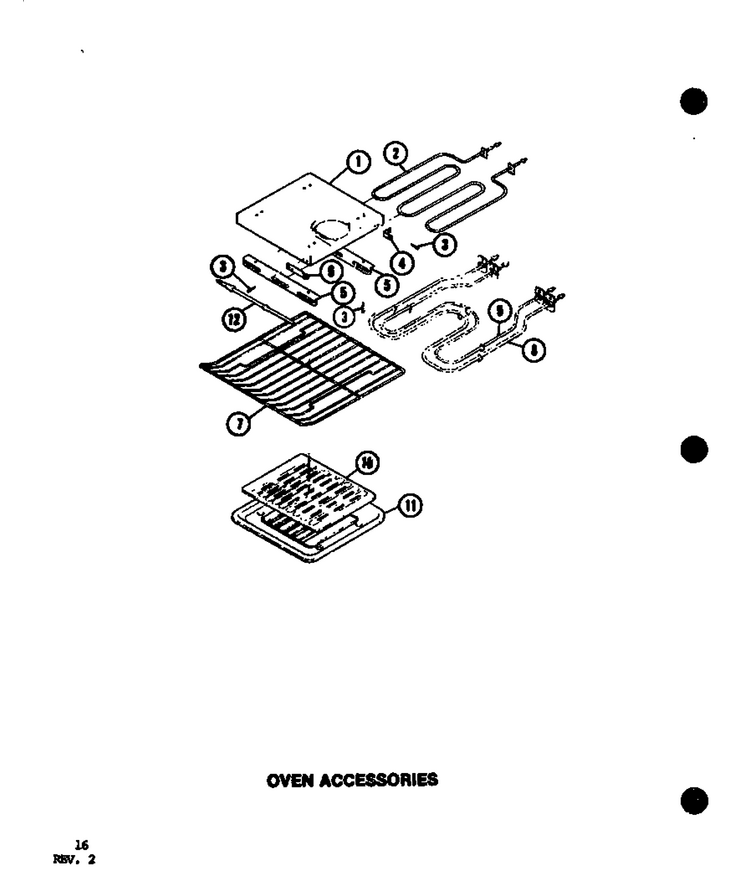

06 - Oven Accessories

...
...
1
Broil Element Reflector Pyro WPL-R0157902
...
2
Element, Broil (240v-2800w) WPL-Y0042138
...
3
Screw WPL-WP90767
...
4
Thermostat Mounting Bracket, R WPL-R0157904
...
5
Broil Element Support Pyro WPL-Y0040902
...
6
Thermostat Mtg Brkt Frt Pyro WPL-R0157906
...
7
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
9
Slo/cook Element 1000w-240v WPL-Y0042152
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
