Amana AO27DG (BOM: P1113405S)

Model: AO27DG (BOM: P1113405S)

Save Part Not Listed?
product name

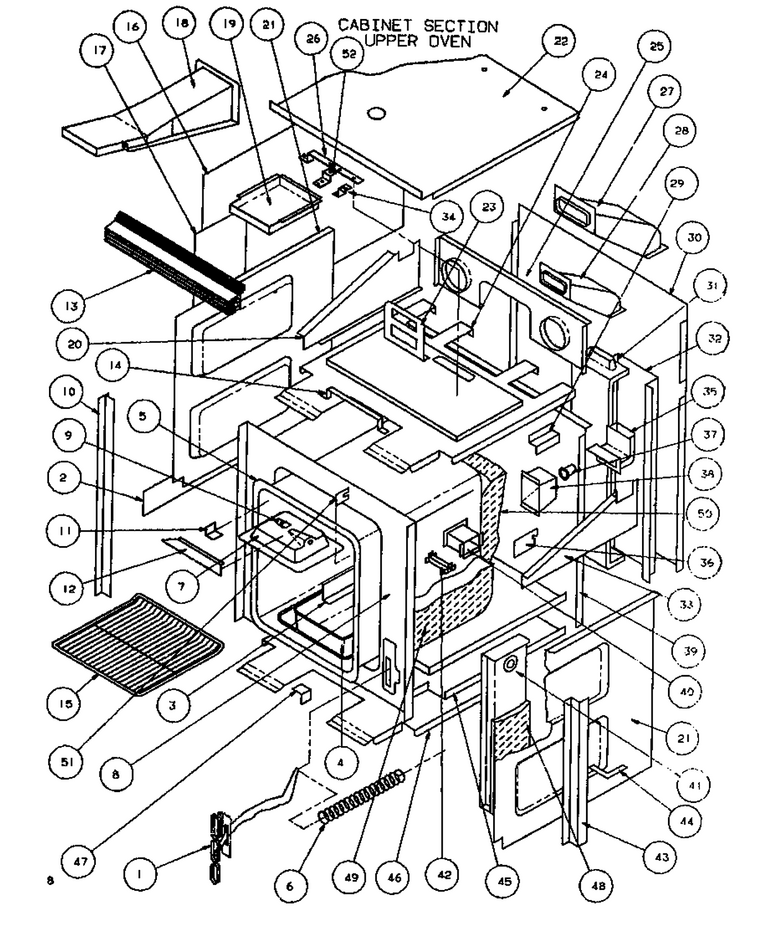

02 - Cabinet Section Upper Oven

...
...
NI
Insulation, Vertical Flue WPL-R0701547
...
1
Hinge Assy WPL-Y0052095
...
2
Side Panel, Center WPL-R0703180
...
3
Clock, Automatic WPL-R0705814
...
4
Kit, Lwr Burner Box WPL-R0703176
...
5
Oven Shell WPL-60796CG
...
6
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
7
Chamber Broil Burner WPL-Y0059415
...
8
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
9
Chip Cover WPL-R0199186
...
10
Trim, Side, Left WPL-Y0060761
...
11
Bracket, Broil Chamb. WPL-R0705831
...
12
Chip Cover Pyro Wo WPL-R0703178
...
13
Trim, Bottom WPL-R0705792
...
14
Shield, Terminal WPL-R0705822
...
15
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
16
Panel, Cabinet Side WPL-Y0060770
...
17
Panel, Side WPL-Y0052366
...
18
Flueway, Control Panel-Top WPL-31824201
...
19
Bracket, Door Latch WPL-R0703159
...
20
Control Compartment, Lh WPL-Y0060776
...
21
Retainer, Insulation-Side WPL-Y0316868
...
22
Panel, Cabinet Top WPL-Y0060843
...
23
Bracket, Flue Support WPL-R0705818
...
24
Oven Top, Upper Oven WPL-Y0060829
...
25
Panel, Back Control WPL-Y0060841
...
26
Lever, Solenoid WPL-Y0315542
...
27
Flue, Lower Oven WPL-Y0060805
...
28
Flue, Upper Oven WPL-Y0060799
...
29
Mtg. Bracket, Relay WPL-R0705830
...
30
Upper Cabinet Back WPL-R0710135
...
31
Vertical Flue WPL-Y0060808
...
32
Retainer, Insulation WPL-R0701545
...
33
Control Cover WPL-Y0060777
...
34
Bracket, Solenoid WPL-Y0060830
...
35
Vertical Flue, Upper Oven WPL-Y0060802
...
36
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
37
Oven Lamp Socket WPL-R0712501
...
38
Lamp, Cup WPL-R0705784
...
39
Retainer, Insul-Rear WPL-Y0054079
...
40
Air Duct WPL-R0703177
...
41
Vertical, Air Duct WPL-R0703166
...
42
Wire Protector WPL-Y0060787
...
43
Cover, Capillary WPL-R0705813
...
44
Retainer, Spring WPL-Y0060759
...
45
Oven Bottom, Upper WPL-R0703169
...
46
Oven Top, Lower Oven WPL-R0705816
...
47
Bracket, Bake Orifice WPL-Y0060846
...
48
Insulation, Vertical Flue WPL-Y0054700
...
49
Insulation, 4``x20x80`` WPL-Y0054296
...
50
Insulation,wrapper WPL-R0157838
...
51
Capillary Hole Cover WPL-R0703172
...
52
Bracket, Solenoid Lever WPL-Y0060831

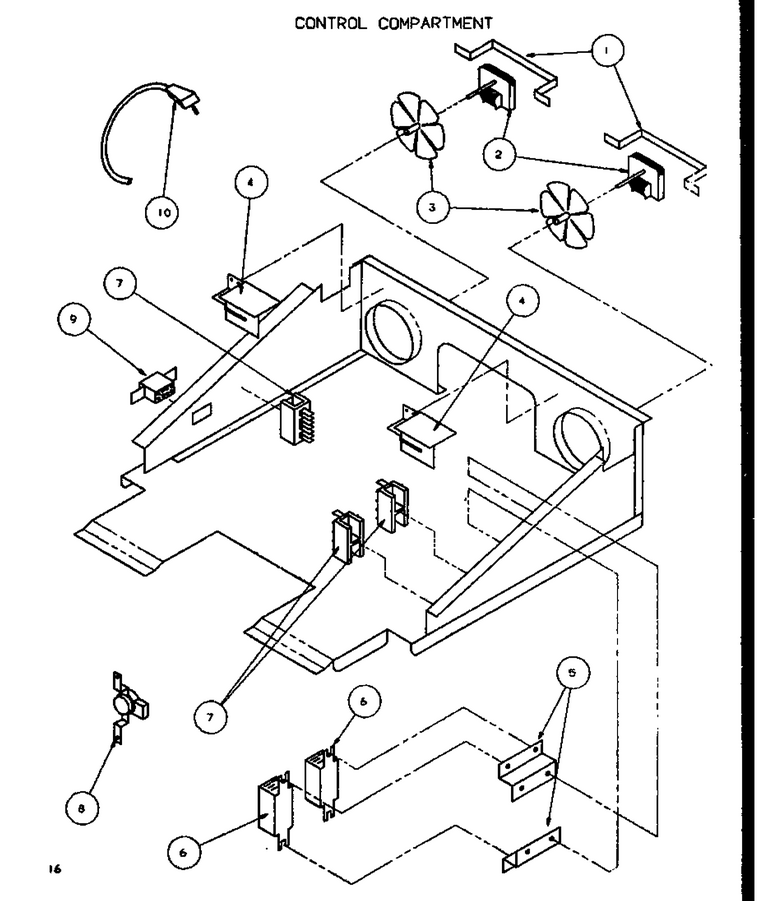

03 - Control Compartment

...
...
NI
Grommet-Fan WPL-Y0305243
...
1
Bracket, Motor Mount WPL-R0701533
...
2
Fan Motor WPL-R0157894
...
3
Blade, Fan WPL-Y0314548
...
4
Sail Switch WPL-R0702544
...
5
Mtg. Bracket, Relay WPL-R0705830
...
6
Relay WPL-Y0054074
...
7
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
8
Switch Fan Spdt WPL-Y0042056
...
9
Molex Receptacle 3 Circuit WPL-31748901
...
10
Supply Cord WPL-Y0054865

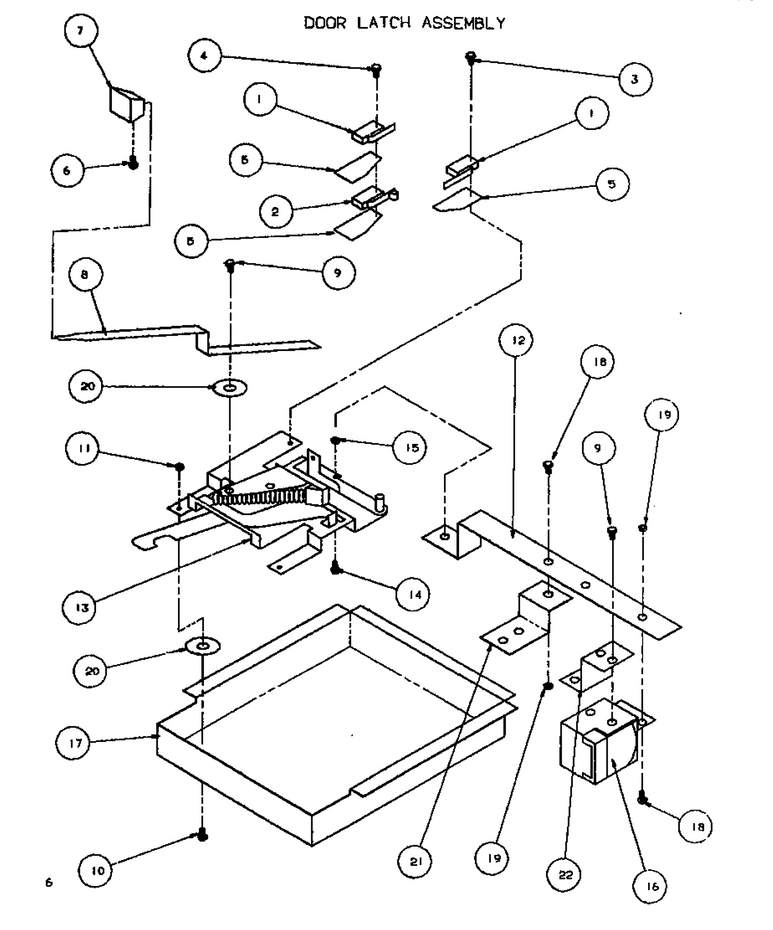

05 - Door Latch Assy

...
...
1
Switch, Clean, Primary Interl WPL-Y0042052
...
2
Main Contact Switch WPL-0042051
...
3
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
4
Screw 4-40x15/16`` WPL-Y0041821
...
5
Insulation, Esm WPL-Y0091523
...
6
Screw 6-32x5/8 Knob Door Lk WPL-Y0041777
...
7
Door Latch Handle WPL-R0705536
...
8
Latch Arm WPL-Y040538B
...
9
Screw WPL-M0207050
...
10
Screw WPL-M0221040
...
11
Nut WPL-M0282009
...
12
Lever, Solenoid WPL-Y0315542
...
13
Door Latch Assy Wo WPL-Y0041909
...
14
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
15
Nut K WPL-M0282005
...
16
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
17
Bracket, Door Latch WPL-R0703159
...
18
Screw, Shoulder Abno.8-18 X .550 WPL-R0700051
...
19
Nut WPL-WP486255
...
20
Washer WPL-R0700509
...
21
Bracket, Solenoid Lever WPL-Y0060831
...
22
Bracket, Solenoid WPL-Y0060830

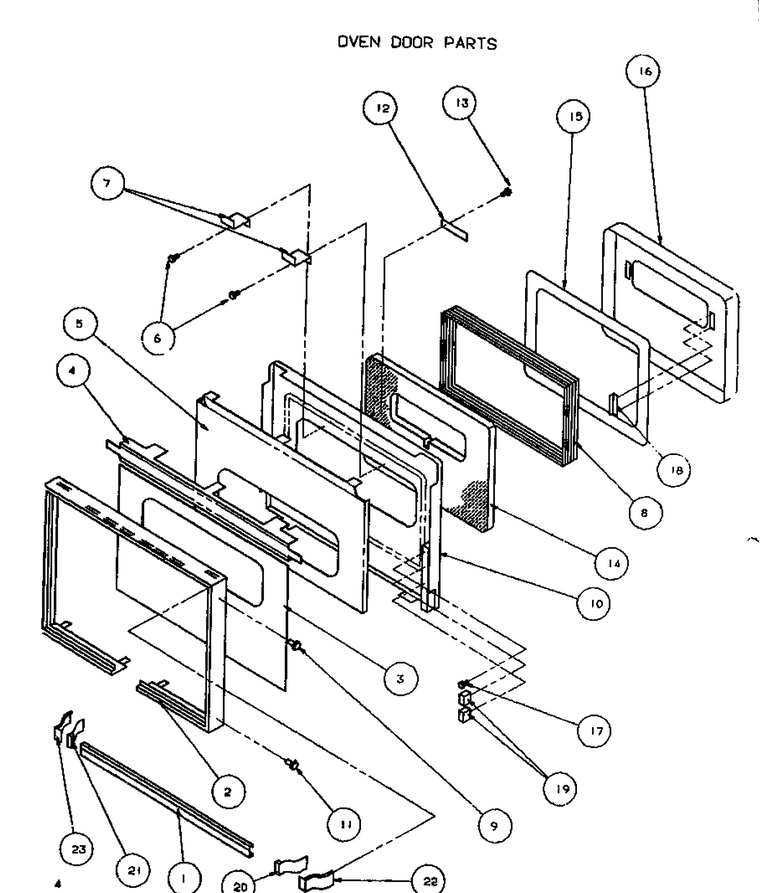

07 - Oven Door Parts

...
...
NI
Nut WPL-WP488130
...
1
Door Handle WPL-R0710151
...
2
Door Frame, Black WPL-R0710148
...
3
Door Glass D Doors Pk411 WPL-R0157876
...
4
Door Top Trim Pk411 WPL-R0157879
...
5
Inner Baffle WPL-301830G
...
6
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Window Assy WPL-R0710033
...
9
Screw 8-32x.375 Dk Gl Dr Hdl WPL-R0700044
...
10
Door Liner, Charcoal Gray WPL-R0703132
...
11
Black Screw 8-18x.500 WPL-R0700027
...
12
Latch Plate WPL-Y0052039
...
13
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
14
Insulation, Wrapper WPL-31975801
...
15
Gasket, Door (76``) WPL-31715903
...
16
Backer, Oven Door (Cg) WPL-40223CG
...
17
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
18
Retainer, Door Glass WPL-Y0052629
...
19
Cork Bumper WPL-R0706503
...
20
End Cap, Right WPL-R0703548
...
21
End Cap, Left WPL-R0703547
...
22
Bracket R.h. WPL-R0705852
...
23
Bracket L.h. WPL-R0705851

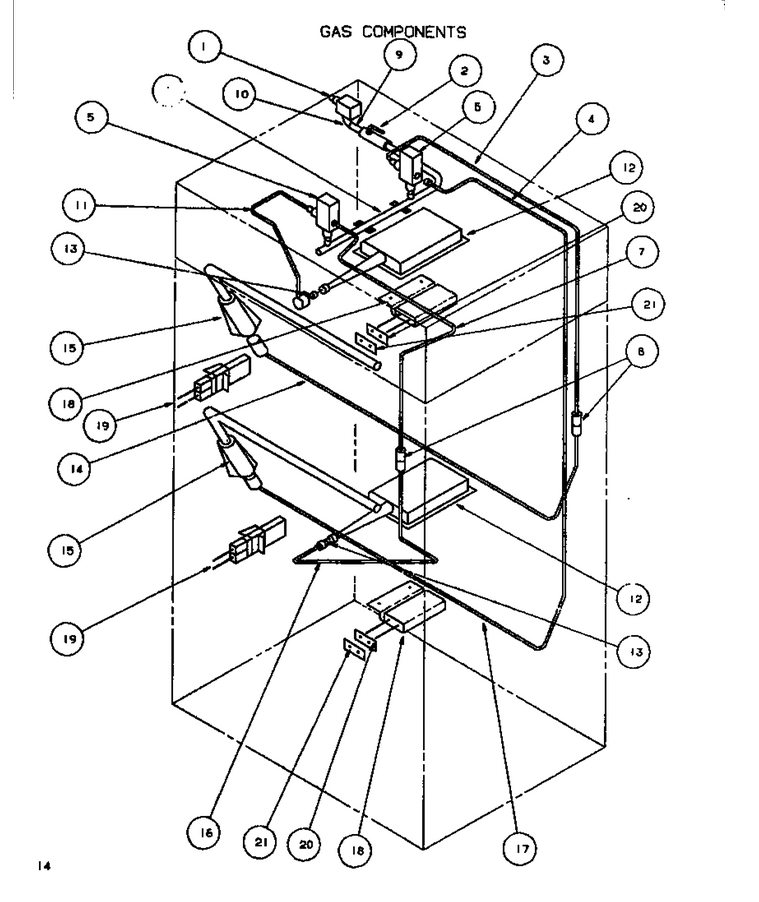

06 - Gas Components

...
...
1
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
2
Valve, Shut-Off WPL-Y0314271
...
3
Tubing WPL-R0705836
...
4
Tubing Assy. WPL-R0705837
...
5
Valve, Gas WPL-R0705838
...
6
Manifold Assy. WPL-Y0060751
...
7
Tube, Lower Union, Valve WPL-R0705839
...
8
Union WPL-R0705840
...
9
Nipple-1/2``-Pressure Regulator WPL-Y0097320
...
10
Elbow, Pipe-1/2`` X 90 Degree WPL-Y0097408
...
11
Tubing-Upper Broil To Valve WPL-Y0054839
...
12
Broil Burner Assy WPL-Y0054070
...
13
Orifice, No.52 Nat WPL-R0701539
...
14
Hood & Tubing Upper Bake WPL-Y0054834
...
15
Burner, Bake (Wall Oven) WPL-31761901
...
16
Tubing-Lower Burner To Union WPL-Y0054837
...
17
Hood & Tubing Upper Bake WPL-Y0054834
...
18
Ignitor- B WPL-WP31939701
...
19
Ignitor- B WPL-WP31939701
...
20
Bake Igniter Assembly WPL-R0704538
...
21
Plug, Ignitor Wires WPL-Y0059417

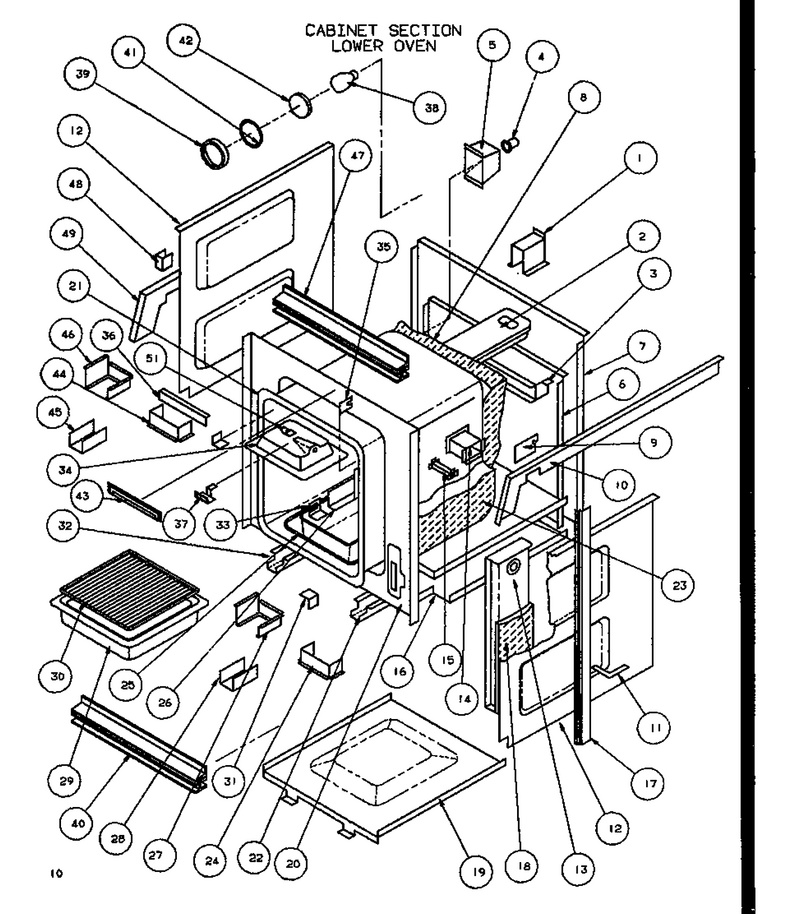

01 - Cabinet Section Lower Oven

...
...
NI
Connector, 3/8`` WPL-Y0058971
...
1
Rear Oven Support WPL-R0705811
...
2
Horizontal Flue WPL-R0703164
...
3
Retainer, Insul. Flue WPL-R0705812
...
4
Oven Lamp Socket WPL-R0712501
...
5
Lamp, Cup WPL-R0705784
...
6
Retainer, Insul-Rear WPL-Y0054079
...
7
Lower Cabinet Back WPL-R0703165
...
8
Insulation,wrapper WPL-R0157838
...
9
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
10
Air Channel, Rh WPL-R0703170
...
11
Retainer, Spring WPL-Y0060759
...
12
Retainer, Insulation-Side WPL-Y0316868
...
13
Vertical, Air Duct WPL-R0703166
...
14
Air Duct WPL-R0703177
...
15
Wire Protector WPL-Y0060787
...
16
Lower Oven Bottom WPL-R0703168
...
17
Trim, Side (Right Side) WPL-Y0060762
...
18
Insulation, Vertical Flue WPL-Y0054700
...
19
Oven Bottom (Cg) WPL-315521CG
...
20
See Note Front Frame -- (Not Field Replaceable WPL-Y00000000
...
21
Oven Shell WPL-60796CG
...
22
Runner, Base WPL-Y0060849
...
23
Insulation, 4``x20x80`` WPL-Y0054296
...
24
Retainer, Orifice Insul. WPL-R0701542
...
25
Kit, Lwr Burner Box WPL-R0703176
...
26
Clock, Automatic WPL-R0705814
...
27
Shield, Bake Orifice WPL-Y0060814
...
28
Air Channel, Lower Bake WPL-Y0054275
...
29
Procelain Broiler (Pan And Grid) WPL-4396923
...
30
Procelain Broiler (Pan And Grid) WPL-4396923
...
31
Bracket, Bake Orifice WPL-Y0060846
...
32
Runner, Base WPL-Y0060849
...
33
Wire Cover, Broil Ignitor WPL-R0710145
...
34
Chamber Broil Burner WPL-Y0059415
...
35
Capillary Hole Cover WPL-Y0063351
...
36
Chip Cover Pyro Wo WPL-R0703178
...
37
Mtg. Bracket, Oven Burner WPL-Y0060766
...
38
Light Bulb WPL-8009
...
39
Lens Retainer Stainless Steel WPL-R0199255
...
40
Trim, Bottom WPL-R0705828
...
41
Gasket,oven Light WPL-Y0041987
...
42
Cover Vent WPL-R0705707
...
43
Latch Handle Guide Pyro WPL-Y0042015
...
44
Retainer, Orifice Insul. WPL-R0701542
...
45
Air Channel, Up. Bake WPL-R0710140
...
46
Shield, Bake Orifice WPL-Y0060814
...
47
Trim, Center WPL-R0705827
...
48
Support, Oven Front WPL-Y0060838
...
49
Air Channel, Lt WPL-Y0060834
...
51
Chip Cover WPL-R0199186

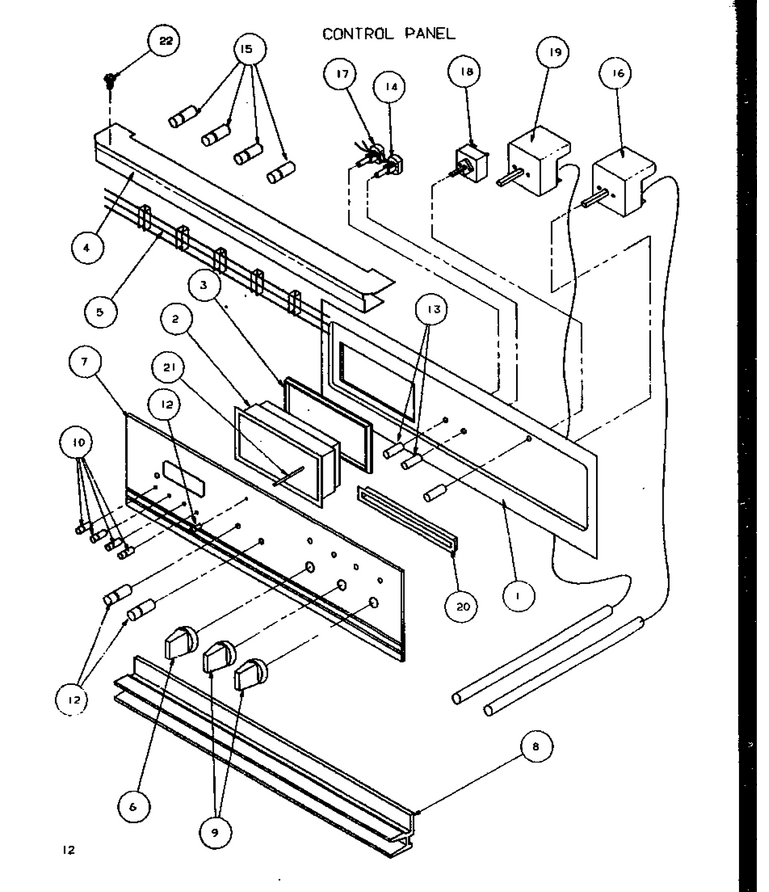

04 - Control Panel

...
...
1
Mounting Bracket WPL-R0703228
...
2
Clock, Electronic WPL-Y0302106
...
3
Bracket, Clock Mounting WPL-R0703163
...
4
Trim, Top WPL-Y0060755
...
5
Vent Grill WPL-Y0060812
...
6
Selector Knob WPL-R0705833
...
7
Control Gl WPL-Y0302154
...
8
Trim, Bottom WPL-R0705792
...
9
Knob, Oven Control WPL-0302884
...
10
Knob, Clock WPL-R0705835
...
12
Knob- Cloc WPL-315210B
...
13
Switch Bushing ,metal WPL-Y0042012
...
14
Switch, Oven Light WPL-Y0308168
...
15
Indicator Light WPL-Y0042183
...
16
Thermostat WPL-Y0304805
...
17
Switch, Oven Light WPL-Y0308168
...
18
Selector Switch Pyro W/o WPL-R0157765
...
19
Thermostat WPL-Y0304805
...
20
Latch Handle Guide Pyro W.o. WPL-Y0042018
...
21
Shaft Bit Generator WPL-R0704012
...
22
Screw No.8x3/8 Sq. Drive WPL-Y0041832
