Amana AO24SEW2 (BOM: P1132351N W)

Model: AO24SEW2 (BOM: P1132351N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

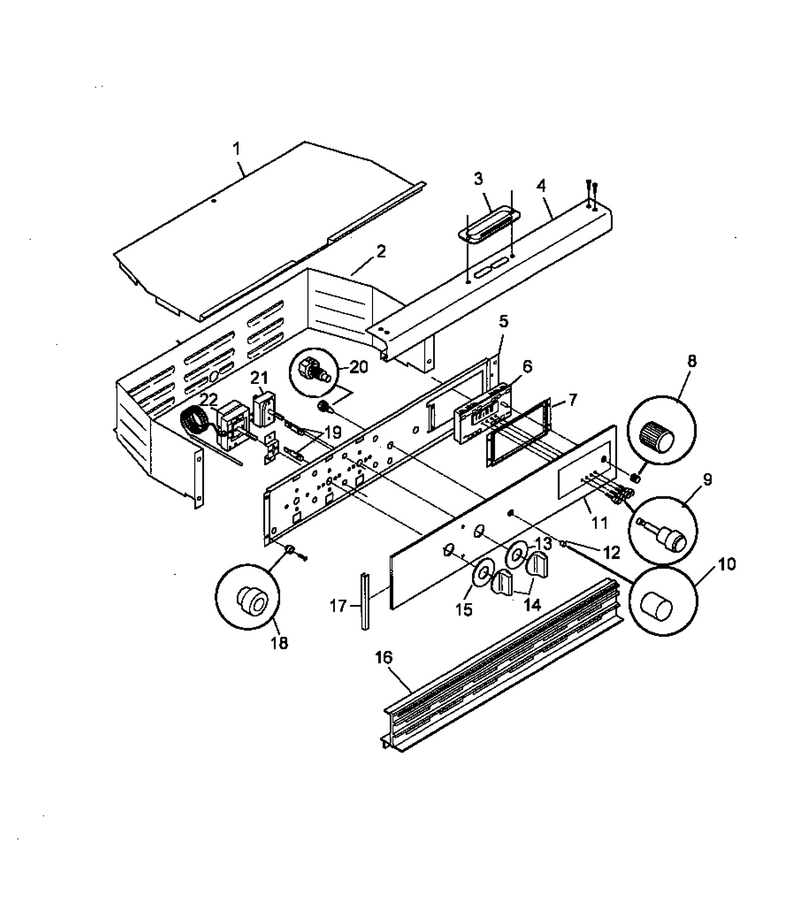

01 - Backguard Assy

...
...
NI
Spacer Dial WPL-R0751515
...
1
Cover, Control Housing WPL-R0762024
...
2
Housing, Control WPL-R0762016
...
3
Kit, Vent Deflector (White) WPL-R0762028
...
4
Trim, Canopy/shield(White) WPL-R0762006
...
5
Plate, Instument Mtg. WPL-R0762008
...
6
Clock WPL-R0760001
...
7
Bracket Clock WPL-R0751501
...
8
Knob- Bit WPL-Y0303420
...
9
Knob, Clock (White) WPL-R0762014
...
10
Knob, Light Switch-White WPL-R0751010
...
11
Glass Cont. Panel WPL-R0758006
...
12
Switch Bezel, White WPL-R0751008
...
13
Dial Selector Switch WPL-R0756505
...
14
Knob Control, White WPL-R0762027
...
15
Dial, Thermostat WPL-R0756504
...
16
Trim, Vent (White) WPL-R0762010
...
17
Trim, Control Panel WPL-R0759514
...
18
Bumper WPL-R0757001
...
19
Light/lamp, Ind, Red WPL-R0762025
...
20
Switch, Oven Light WPL-R0752506
...
21
Switch Selector WPL-R0752502
...
22
Thermostat WPL-R0761001

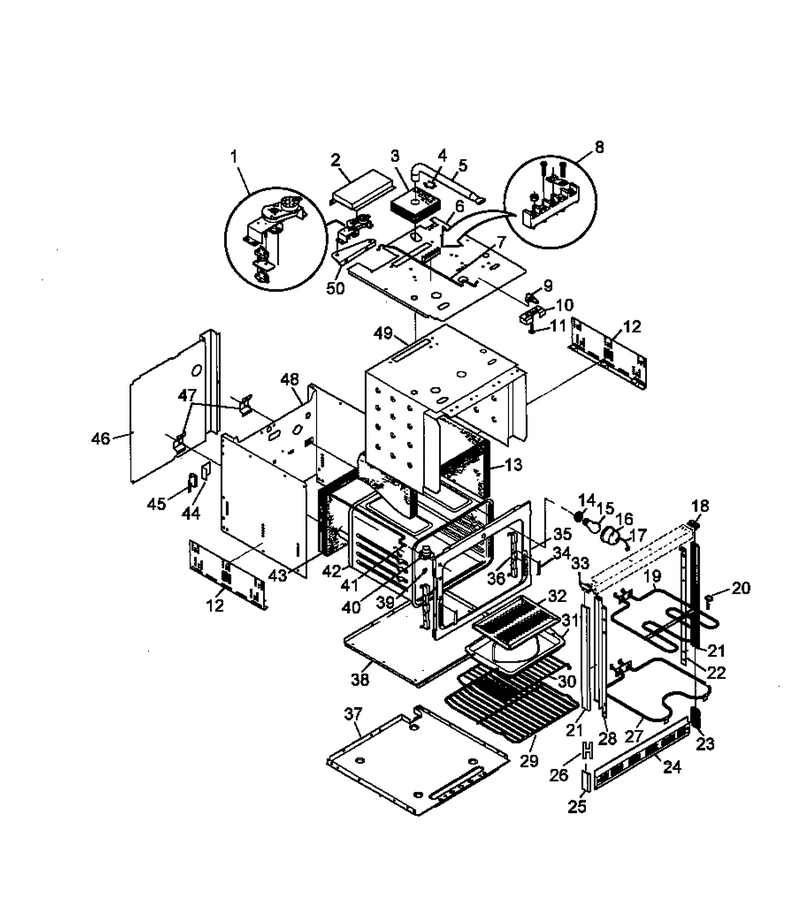

03 - Oven And Cavity Assy

...
...
NI
Screw, No.6-20x2`` WPL-R0760023
...
1
Motor, Latch Assy WPL-R0760006
...
2
Cover, Motor WPL-R0753009
...
3
Insulation, Vent WPL-R0755003
...
4
Clip, Insulation Retainer WPL-R0751509
...
5
Duct, Vent Tube WPL-R0753008
...
6
Wrapper, Outer Top WPL-R0753016
...
7
Rod WPL-R0756007
...
8
Block-Term WPL-WP8203546
...
9
Latch WPL-R0756008
...
10
Housing, Latch WPL-R0760014
...
11
Pin-Hng 5308012004 WPL-R0751508
...
12
Support, Adjustable WPL-R0762012
...
13
Insulation, Oven, Back WPL-R0762030
...
14
Socket, Oven Light WPL-Y0316385
...
15
Light Bulb WPL-8009
...
16
Lens, Glass Oven Light WPL-R0758008
...
17
Retainer-Lens WPL-R0751505
...
18
Trim WPL-10327102
...
19
Element, Broil WPL-R0762098
...
20
Clip, Broil Element WPL-R0751519
...
21
Trim, Side Outer(Wht) Rh WPL-R0759517
...
22
Trim, Inner Rh WPL-R0759505
...
23
Trim, Rh Bodyside Lwr WPL-R0762052
...
24
Trim, Bottom Vent WPL-R0759520
...
25
Trim, Lh Bottom Side WPL-R0759522
...
26
Spacer, Trim Adpt (White) WPL-R0181165
...
27
Element-Bake WPL-R0760012
...
28
Trim, Innerlh WPL-R0759506
...
29
Rack, Oven (Regular) WPL-R0760019
...
30
Rack, Oven WPL-R0760020
...
31
Procelain Broiler (Pan And Grid) WPL-4396923
...
32
Procelain Broiler (Pan And Grid) WPL-4396923
...
33
Cap, Trim White WPL-R0759519
...
34
Retainer- Door WPL-R0751506
...
35
Frame, Front WPL-R0758009
...
36
Hinge Assy WPL-R0760013
...
37
Wrapper, Base WPL-R0762018
...
38
Shield, Oven Bottom WPL-R0762017
...
39
Spacer, Oven WPL-R0757008
...
40
Vent Tube Assy WPL-R0760005
...
41
Rod, Switch WPL-R0756004
...
42
Liner, Oven Assy WPL-R0753014
...
43
Insulation, Oven, Back WPL-R0762030
...
44
Brkt Switch Mtg WPL-R0751511
...
45
Switch WPL-R0752503
...
46
Cover, Wire WPL-R0753013
...
47
Spring,oven Door WPL-R0751516
...
48
Wrapper WPL-R0762011
...
49
Shield, Wool WPL-R0755002
...
50
Brkt, Motor Mount WPL-R0756005

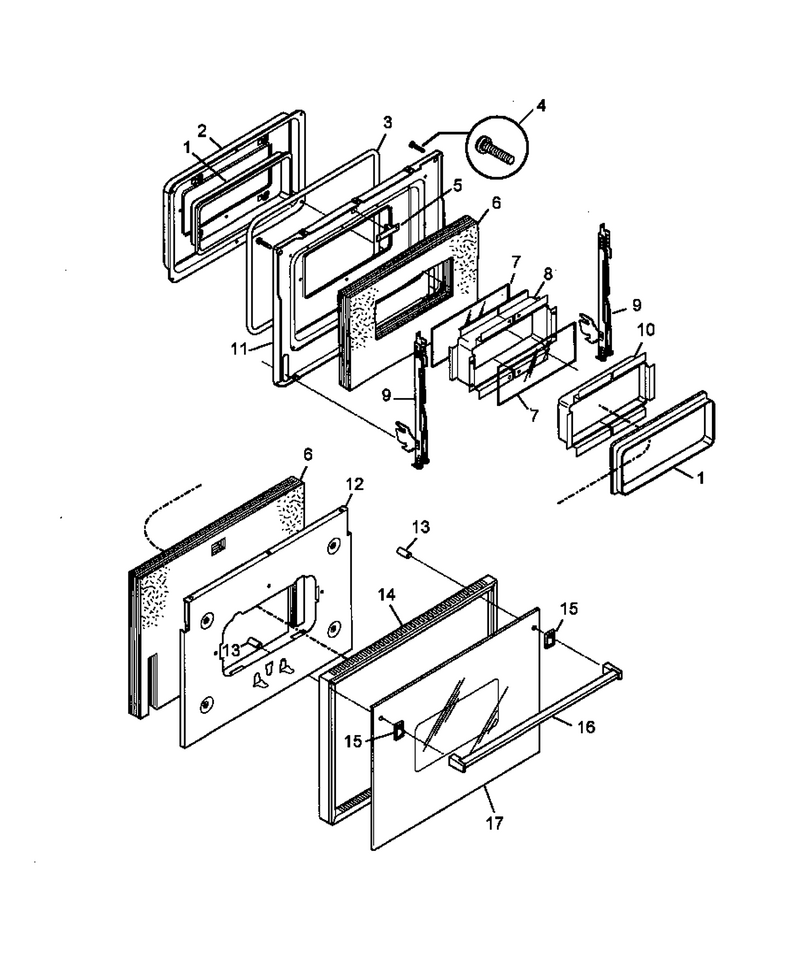

02 - Door Assy

...
...
NI
Button, Spacer WPL-R0757007
...
1
Seal, Window WPL-R0757006
...
2
C0ver, Inner Door WPL-R0753012
...
3
Seal, Door WPL-R0757004
...
4
Screw, Handle WPL-R0762023
...
5
Strike Plate, Upper Oven WPL-R0762029
...
6
Insulation, Oven Door WPL-R0762019
...
7
Glass,ov Dr, Heat Barrier WPL-R0758003
...
8
Spacer, Glass WPL-R0758004
...
9
Assy, Hinge (Ao24se2/sew) WPL-R0756506
...
10
Collar, Glass(Spacer) WPL-R0757005
...
11
Liner, Door Ass`y WPL-R0753015
...
12
Panel Air Wash WPL-R0760002
...
13
Spacer, Handle WPL-R0757003
...
14
Trim, Frame WPL-R0759516
...
15
Spacer, Handle (Wht) WPL-309882W
...
16
Handle WPL-R0759528
...
17
Glass Outer WPL-R0758007
