Amana AO24SB (BOM: P8556701S)

Model: AO24SB (BOM: P8556701S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

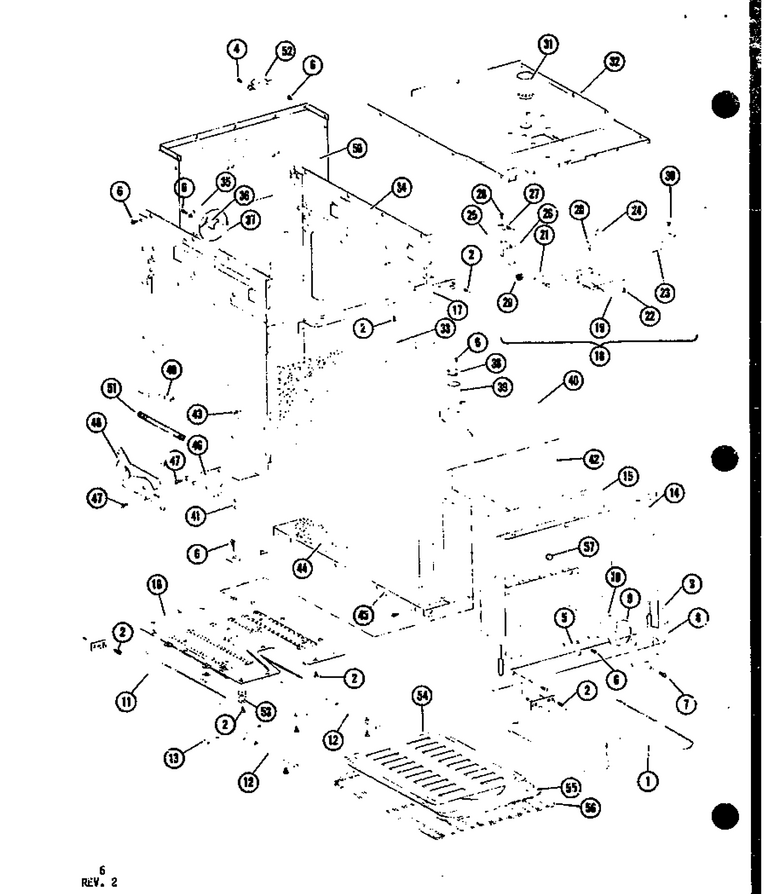

02 - Page 3

...
...
1
Bake Element WPL-R0710001
...
2
Screw WPL-R0157641
...
3
Hinge Arm Guide WPL-R0157642
...
4
Screw WPL-R0157643
...
5
Seal-End Cover WPL-R0157644
...
6
Screw, 8a X 3/8`` WPL-R0157645
...
7
Screw WPL-R0157646
...
8
Retainer-Light Lens WPL-R0157647
...
9
Light Lens Gasket WPL-4166868
...
10
Lens, Light WPL-CG981750
...
11
Broil Element WPL-R0199081
...
12
Retainer, Smoke Eliminator, Sh WPL-R0157650
...
13
Retainer WPL-R0157651
...
14
Front Frame, Upper, Double Ove WPL-R0157652
...
15
Door Seal WPL-R0157653
...
16
Smoke Eliminator WPL-R0157654
...
17
Support-Control Pnl WPL-R0157655
...
18
Door Latch Assy WPL-R0199083
...
19
Door Latch WPL-R0199220
...
20
Screw WPL-R0157658
...
21
Mtg Brkt-Switch WPL-R0157659
...
22
Screw WPL-R0157660
...
23
Latch Lever Arm WPL-R0157661
...
24
Knob-Latch WPL-R0157662
...
25
Insul Latch Switch WPL-R0157663
...
26
Shield-Switch WPL-R0157664
...
27
Switch WPL-R0157665
...
28
Screw WPL-R0157666
...
29
Nut 4-40 WPL-R0157667
...
30
Screw WPL-R0157668
...
31
Diluter Tube WPL-R0157669
...
32
Cabinet Top WPL-R0157670
...
33
Insulation-Back WPL-R0157671
...
34
Cab Assy-Upper WPL-R0157672
...
35
Oven Light Shield WPL-R0157673
...
36
Socket, Oven Light WPL-Y0316385
...
37
Light Bulb WPL-8009
...
38
Retainer-Vent Tube WPL-R0157676
...
39
Vent Tube WPL-R0157677
...
40
Insulation WPL-R0157678
...
41
Rear Anchor WPL-R0157679
...
42
Oven Liner Upper WPL-R0199075
...
43
Standoff-Cab WPL-R0157681
...
44
Insulation-Btm WPL-R0157685
...
45
Main Bottom WPL-R0157686
...
46
Cam Plate-R WPL-R0157687
...
47
Screw WPL-R0157689
...
48
Hinge Assy WPL-R0157690
...
49
Anchor Spring WPL-R0157692
...
50
Main Back WPL-R0157694
...
51
Oven Door Spring WPL-R0157696
...
52
Clamp-Conduit WPL-R0157697
...
53
Cover-Capillary WPL-R0157699
...
54
Procelain Broiler (Pan And Grid) WPL-4396923
...
55
Procelain Broiler (Pan And Grid) WPL-4396923
...
56
Oven Rack WPL-R0157704
...
57
Button WPL-R0199086

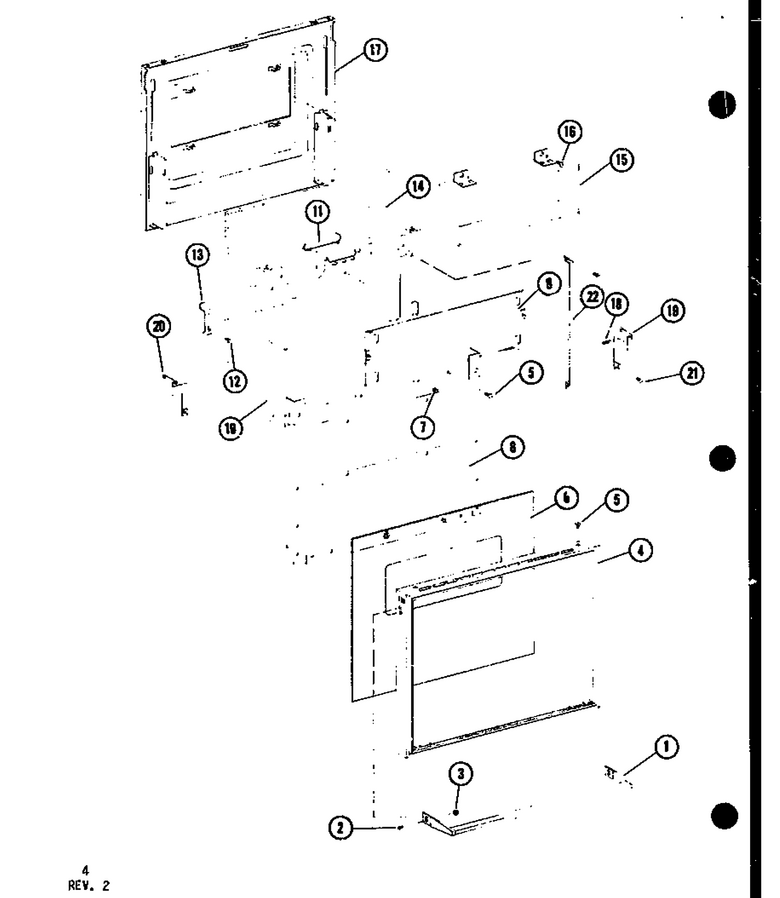

01 - Page 2

...
...
1
Door Handle WPL-R0199088
...
2
Screw 8 32x3/8 WPL-R0157713
...
3
Nut WPL-WP488130
...
4
Door Frame WPL-R0199087
...
5
Screw, 8a X 3/8`` WPL-R0157645
...
6
Door Glass WPL-R0199091
...
7
Bumper WPL-R0706501
...
8
Air Baffle WPL-R0705551
...
9
Shield-Window WPL-R0157720
...
10
Retainer-Ins WPL-R0157721
...
11
Shield-Slide Lock WPL-R0157722
...
12
Shoulder Rivet WPL-R0157723
...
13
Lock Slide WPL-R0157724
...
14
Pad-Insulation WPL-R0157725
...
15
Window Assy WPL-R0157726
...
16
Screw WPL-R0157643
...
17
Door Liner WPL-R0157728
...
18
Spring Shield Latch WPL-R0157729
...
19
Shield-Latch R WPL-R0157730
...
20
Shield-Latch L WPL-R0157731
...
21
Screw WPL-R0700018
...
22
Guide-Shield WPL-R0157733

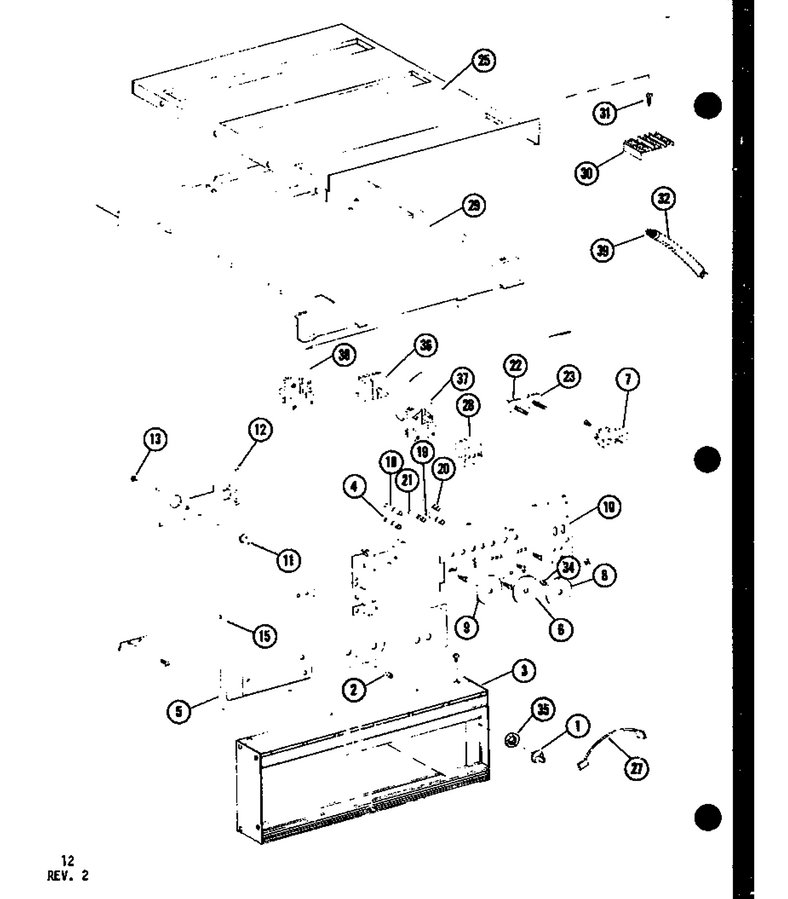

03 - Page 7

...
...
1
Knob WPL-WP4168403
...
2
Grommet WPL-R0157602
...
3
Panel Frame Assy WPL-R0199080
...
5
Glass, Control Panel WPL-R0199089
...
6
Disc Selector WPL-R0199095
...
7
Terminal Block WPL-R0157608
...
8
Disc-Thermostat WPL-R0157609
...
10
Plate-Control Mtg WPL-R0157611
...
11
Knob, Clock WPL-R0157612
...
12
Clock WPL-R0157613
...
13
Nut WPL-WP487939
...
15
Retainer WPL-R0157616
...
18
Lock Light WPL-R0157618
...
19
Clean Light WPL-R0157619
...
20
Clean Light WPL-R0157619
...
21
Serve Light WPL-R0157620
...
22
Switch-Oven Light WPL-R0157621
...
23
Switch-Oven Light WPL-R0157621
...
25
Top-Outer Jacket WPL-R0157624
...
27
Wiring Harness WPL-R0199221
...
28
Net-Thermal Relay WPL-R0157629
...
29
Sandwich Panel WPL-R0157630
...
30
Terminal Block WPL-R0157631
...
31
Screw WPL-R0157632
...
32
Conduit WPL-R0157633
...
34
Spacer WPL-R0157635
...
35
Bezel-Switch WPL-CG981781
...
36
Switch WPL-R0199094
...
37
Thermostat, Upper Oven WPL-R0199084
...
39
Wiring Harness WPL-R0199226
