Amana AO-27S (BOM: P8554701S)

Model: AO-27S (BOM: P8554701S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

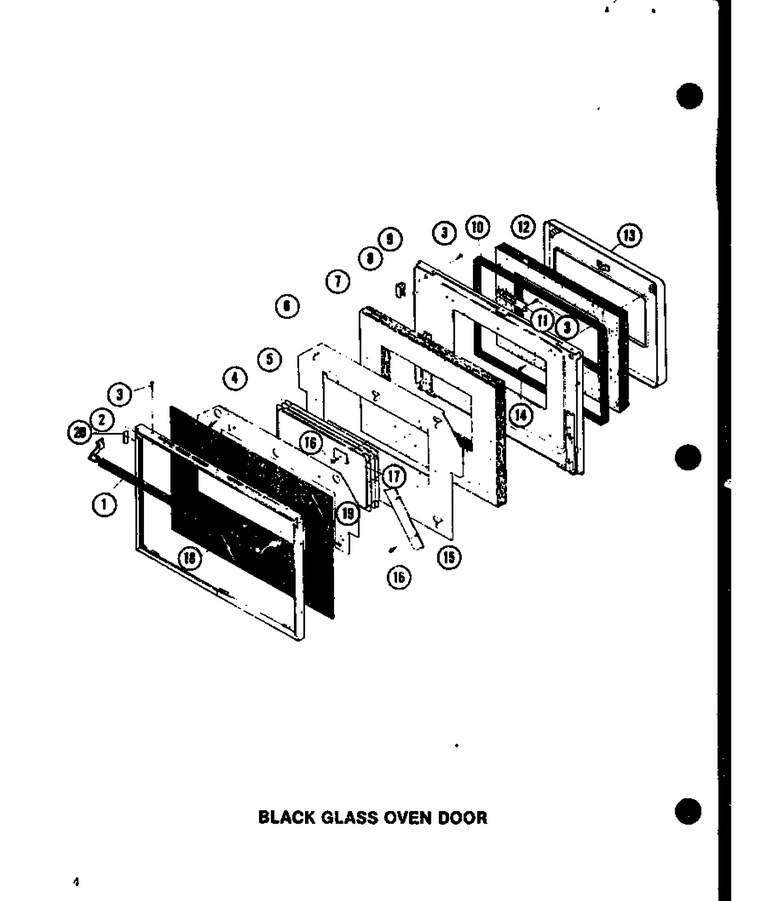

01 - Black Glass Oven Door

...
...
1
Handle-Door WPL-R0157854
...
2
Door Frame Dpk-411 WPL-R0157856
...
3
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
4
Upper Baffle WPL-R0157857
...
5
Window Assy WPL-R0157858
...
6
Inner Baffle Pk411 WPL-R0157860
...
7
Insulation,wrapper WPL-R0157861
...
8
Glass Support WPL-R0157862
...
9
Door Liner, Charcoal Gray WPL-R0157863
...
10
Gasket, Door (76``) WPL-31715903
...
11
Latch Plate WPL-Y0052039
...
12
Insulation, Wrapper WPL-31975801
...
13
Backer, Oven Door (Cg) WPL-40223CG
...
14
Screw 8-18x.875 B Hx Hd WPL-R0157871
...
15
Door, Air Channel WPL-R0157872
...
16
Screw WPL-WP90767
...
17
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
18
Door Glass D Doors Pk411 WPL-R0157876
...
19
Screw 8-32x.375 Dk Gl Dr Hdl WPL-R0157878
...
20
Door Top Trim Pk411 WPL-R0157879

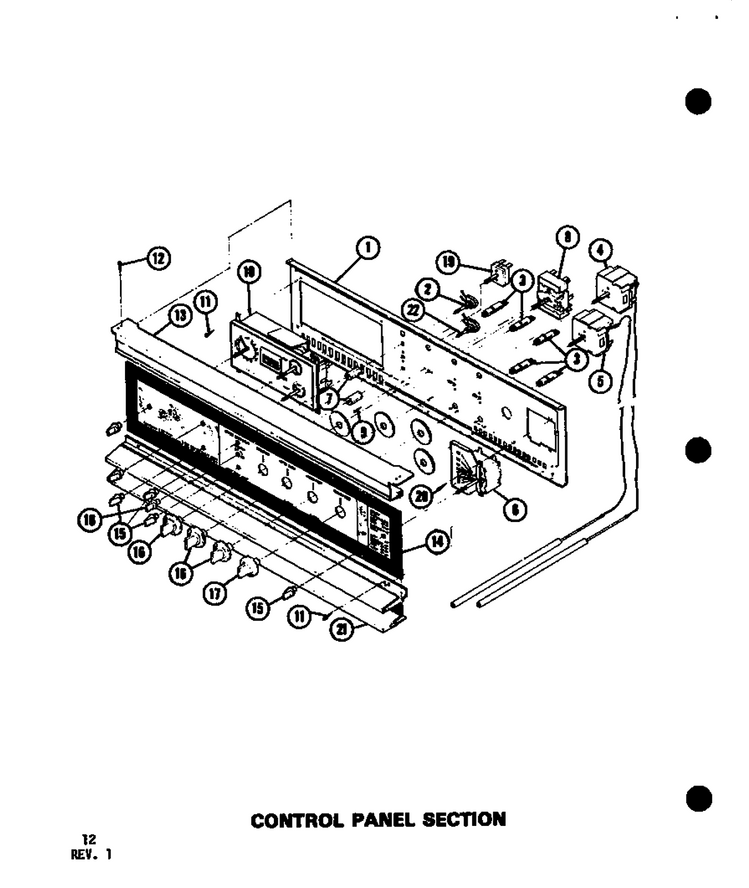

04 - Control Panel Section

...
...
1
Control Mtg Brkt. Pyro Wo WPL-R0157756
...
2
Oven Light Switch WPL-R0157757
...
3
Indicator Light WPL-Y0042183
...
4
Pyro. Thermostat With Top Heat WPL-R0157759
...
7
Switch Bushing ,metal WPL-Y0042012
...
10
Kit, Clock WPL-R0157764
...
11
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
12
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
13
Trim WPL-R0157768
...
14
Control Panel Glass WPL-R0157755
...
15
Knob, Dual Timer WPL-R0157772
...
16
Knob Control Amana Wo WPL-R0157777
...
18
Knob Control Amana Wo WPL-R0157777
...
19
Switch, Rotary-10a,120v WPL-R0157762
...
21
Control Panel Vent Trim Wo WPL-R0157782

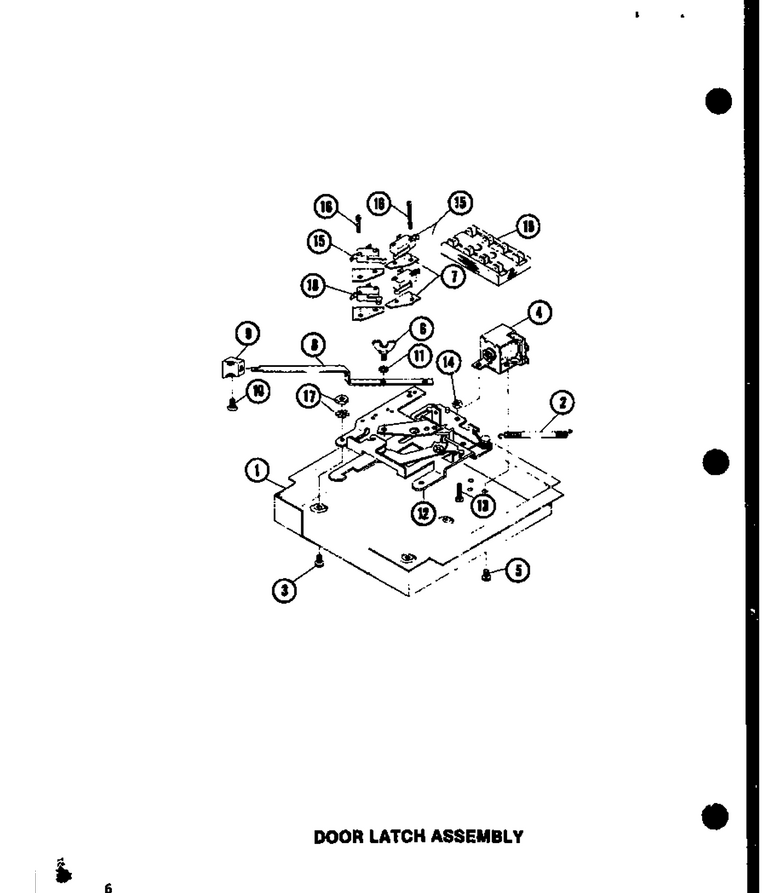

05 - Door Latch Assy

...
...
NI
Wire Jumper W-20 WPL-R0157883
...
1
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
2
Spring WPL-R0157852
...
3
Screw WPL-M0221040
...
4
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
5
Screw WPL-M0234040
...
6
Bolt-Wing WPL-R0157779
...
7
Insulator-Switch WPL-R0157781
...
8
Latch Arm WPL-R0157795
...
9
Latch Handle WPL-R0157809
...
10
Screw 6-32x5/8 Knob Door Lk WPL-Y0041777
...
11
Washer Handle Mounting WPL-R0157891
...
12
Door Latch Assy Wo WPL-Y0041909
...
13
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
14
Nut K WPL-M0282005
...
15
Switch-Clean/primary Interlock WPL-Y0067919
...
16
Screw 4-40x15/16`` WPL-Y0041821
...
17
Lock-Nut Nylon Ket595 WPL-R0157984
...
18
Main Contact Switch WPL-R0157873
...
19
Terminal Board WPL-R0157875

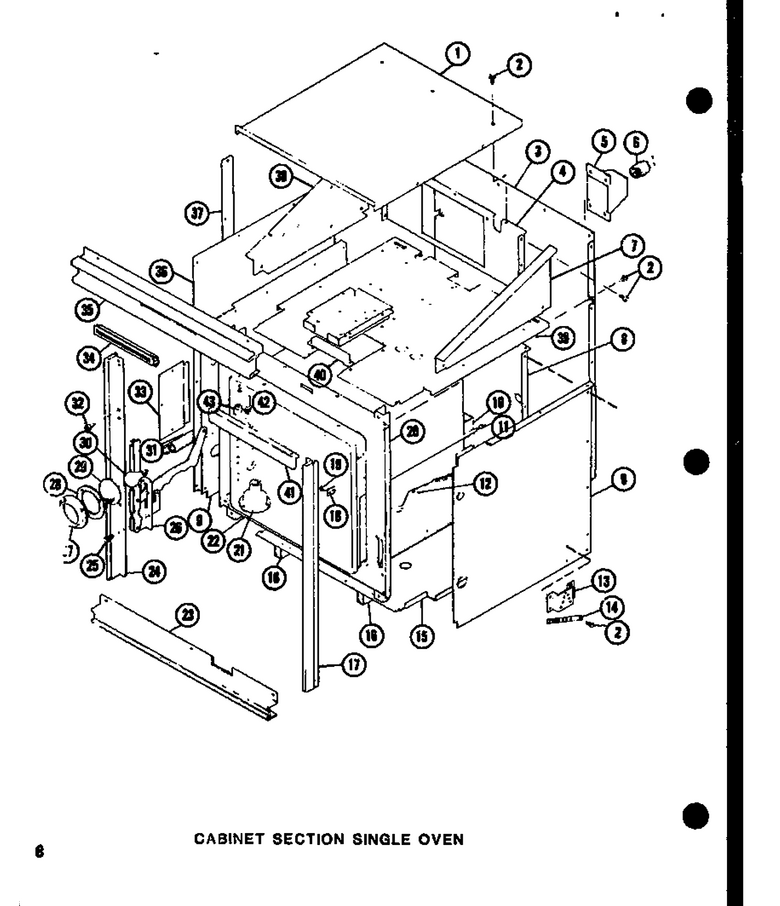

02 - Cabinet Section Single Oven

...
...
NI
Conduit Assy Qdo-650 WPL-R0157767
...
1
Cabinet Top Pyro W.o. Mm WPL-Y0040286
...
2
Screw WPL-WP90767
...
3
Upper Cab. Back Pyro W/o WPL-R0157787
...
4
Cont. Comp. Back Pyro W/o WPL-R0157788
...
5
Lamp Cup WPL-R0157790
...
6
Socket, Oven Light WPL-Y0316385
...
7
Cont. Compart Side Rt Pyro WPL-R0157789
...
8
Insulat. Retain. Rear Pyro WPL-Y0040743
...
9
Insulation Retainer Sides Pyro WPL-R0157793
...
10
Insulation,wrapper WPL-R0157794
...
11
Mullion Heater WPL-R0157796
...
12
Insulation,wrapper WPL-R0157839
...
13
Bracket, Spring Mounting WPL-R0157897
...
14
Brkt-Door Spring WPL-R0157798
...
15
Oven Bottom-Lower WPL-Y0316867
...
16
Runner, Base-Pyro W/o WPL-Y0041019
...
17
Side Trim Rt Pyro W/o WPL-Y0042505
...
18
Capillary Hole Cover Plate WPL-R0157808
...
19
Screw Cabinet Trim WPL-Y0041813
...
20
Main Front-Dk Gr WPL-R0199248
...
21
Smoke Eliminator WPL-R0157812
...
22
Oven Cavity WPL-311145E
...
23
Bottom Trim Pyro W/o WPL-Y0042502
...
24
Side Trim Lt Pyro W/o WPL-Y0042506
...
25
Screw WPL-WP90767
...
26
Hinge Assy WPL-Y0052095
...
27
Lens Retainer Stainless Steel WPL-R0157815
...
28
Gasket,oven Light WPL-Y0041987
...
29
Oven Light Lens Pyro. Walloven WPL-Y0042769
...
30
Light Bulb WPL-8009
...
31
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
32
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
33
Hinge Access Cover Pyro W.o. WPL-R0157821
...
34
Latch Handle Guide Pyro WPL-Y0042015
...
35
Control Panel Vent Trim Wo WPL-R0157782
...
36
Side-Up Cab WPL-R0157823
...
37
Capillary Shield Pyro W/o WPL-R0157824
...
38
Cont. Compart Side Lt Pyro WPL-R0157826
...
39
Oven Top WPL-R0157827
...
40
Terminal Shield Black WPL-R0157830
...
41
Broil Element Reflector, Lower WPL-R0157832
...
42
Screw 8-18x5/16`` WPL-R0157833
...
43
Probe Receptacle Cover WPL-R0157834

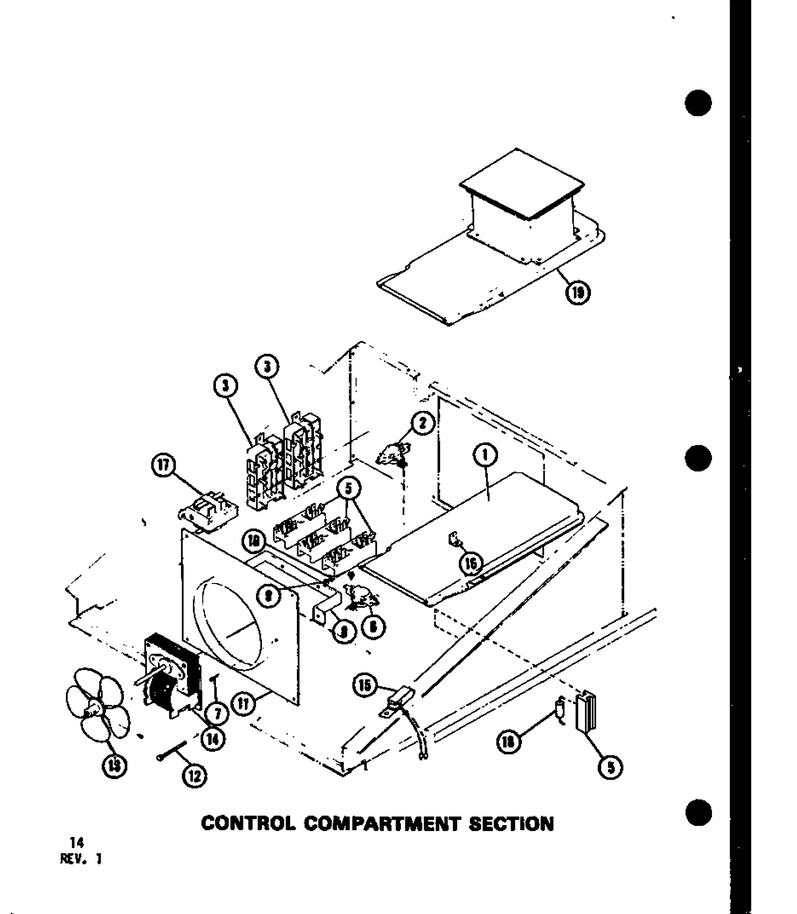

03 - Control Compartment Section

...
...
1
Flue Box, Upper WPL-Y0053254
...
2
Switch Fan Spdt WPL-Y0042056
...
3
Relay, Oven WPL-Y0091669
...
5
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
6
Limit Control-Upper Oven-200 WPL-Y0042045
...
7
Screw WPL-WP90767
...
8
Fan Motor Mount WPL-R0157890
...
9
Washer Handle Mounting WPL-R0157891
...
10
Nut K WPL-M0282005
...
11
Back, Control Compartment WPL-Y0315557
...
12
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
13
Blade, Fan WPL-Y0314548
...
14
Fan Motor WPL-R0157894
...
18
Resistor WPL-Y0042064

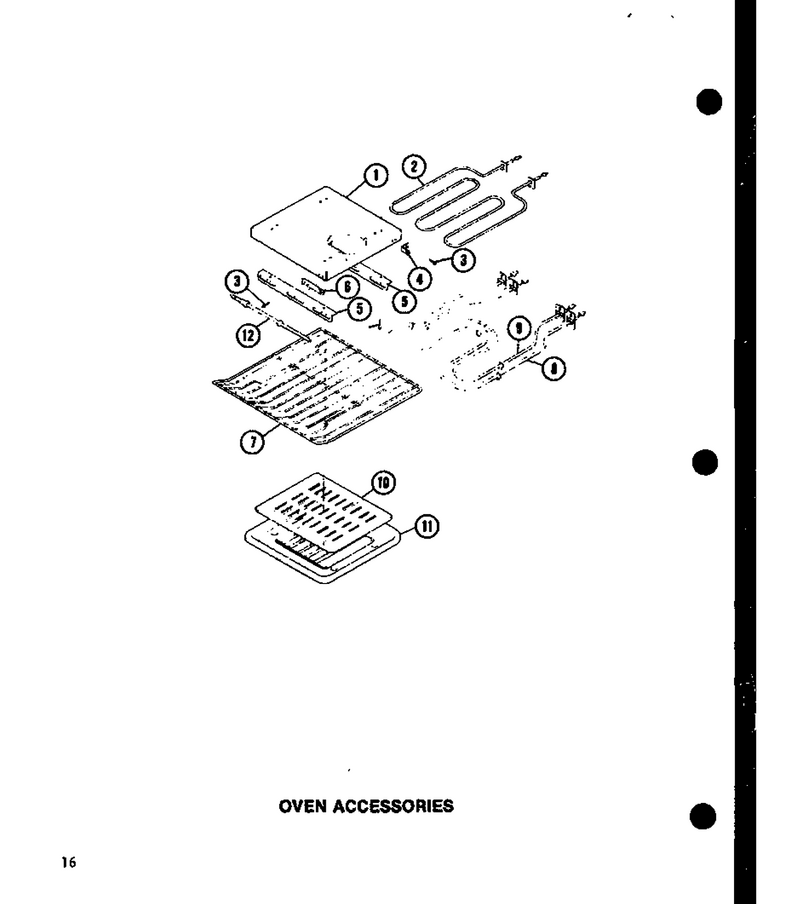

06 - Oven Accessories

...
...
1
Broil Element Reflector Pyro WPL-R0157902
...
2
Element, Broil (240v-2800w) WPL-Y0042138
...
3
Screw WPL-WP90767
...
4
Thermostat Mounting Bracket, R WPL-R0157904
...
5
Broil Element Support Pyro WPL-Y0040902
...
6
Thermostat Mtg Brkt Frt Pyro WPL-R0157906
...
7
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
8
Element, Bake WPL-R0157908
...
9
Slo/cook Element 1000w-240v WPL-Y0042152
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
