Amana AO-27DB (BOM: P8554706S)

Model: AO-27DB (BOM: P8554706S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

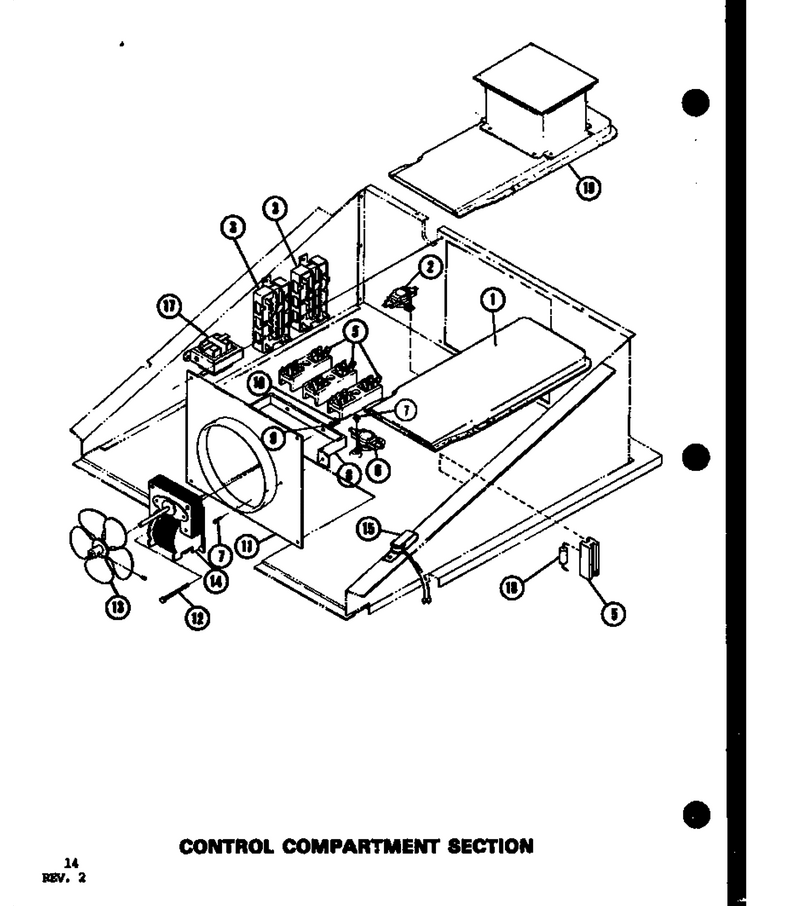

02 - Control Compartment Section

...
...
2
Switch Fan Spdt WPL-Y0042056
...
3
Relay, Oven WPL-Y0091669
...
5
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
6
Limit Control-Upper Oven-200 WPL-Y0042045
...
7
Screw WPL-WP90767
...
8
Fan Motor Mount WPL-R0157890
...
9
Washer Handle Mounting WPL-R0157891
...
10
Nut K WPL-M0282005
...
11
Back, Control Compartment WPL-Y0315557
...
12
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
13
Blade, Fan WPL-Y0314548
...
14
Fan Motor WPL-R0157894
...
15
Buzzer Typegzz09-X Terminal WPL-R0157888
...
17
Transformer Pyro W/o WPL-Y0042043
...
18
Resistor WPL-Y0042064
...
19
Upper Oven Flue Box WPL-R0705526

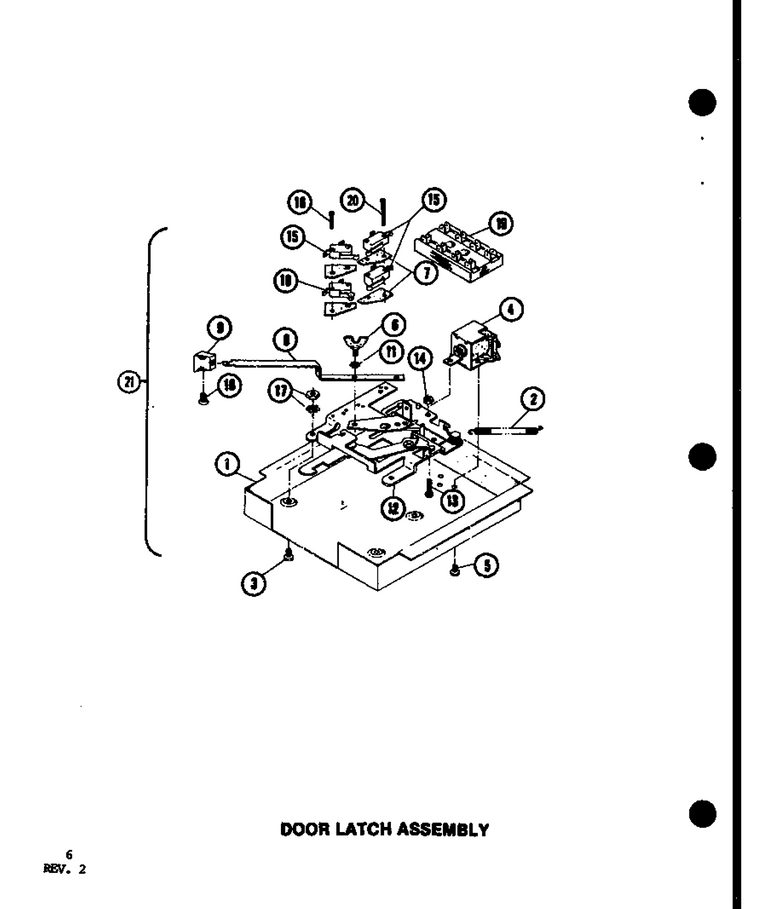

04 - Door Latch Assy

...
...
1
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
2
Spring WPL-R0157852
...
3
Screw WPL-M0221040
...
4
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
5
Screw WPL-M0234040
...
6
Bolt-Wing WPL-R0157779
...
7
Insulator-Switch WPL-R0157781
...
8
Latch Arm WPL-Y040538B
...
9
Door Latch Handle WPL-R0199068
...
10
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
11
Washer Handle Mounting WPL-R0157891
...
12
Door Latch Assy Wo WPL-Y0041909
...
13
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
14
Nut K WPL-M0282005
...
15
Switch-Clean/primary Interlock WPL-Y0067919
...
16
Screw 4-40x15/16`` WPL-Y0041821
...
17
8-Abx1/2 Hex Wash Hd WPL-R0199106
...
18
Main Contact Switch WPL-R0157873
...
19
Terminal Board WPL-R0157875
...
20
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
21
Complete Door Latch Assembly WPL-R0199108

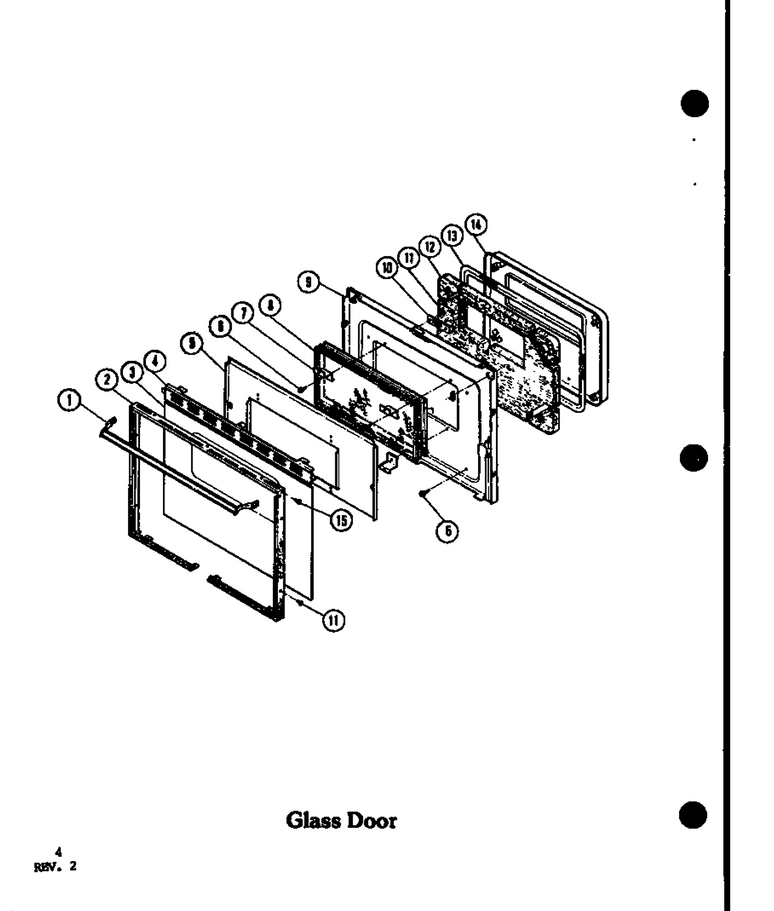

05 - Glass Door

...
...
1
Door Handle WPL-R0199101
...
2
Door Frame WPL-Y0042562
...
3
Door Glass WPL-R0199103
...
4
Filter Exhaust Ket595 WPL-Y0042024
...
5
Inner Baffle WPL-301830G
...
6
Screw 8-18x.875 B Hx Hd WPL-R0157871
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Window Assy WPL-R0157858
...
9
Door Liner, Charcoal Gray WPL-R0199242
...
10
Latch Plate WPL-Y0052039
...
11
Screw WPL-WP3400882
...
12
Insulation, Wrapper WPL-31975801
...
13
Gasket, Door (76``) WPL-31715903
...
14
Backer, Oven Door (Cg) WPL-40223CG
...
15
Screw 8-32x.375 Dk Gl Dr Hdl WPL-R0157878

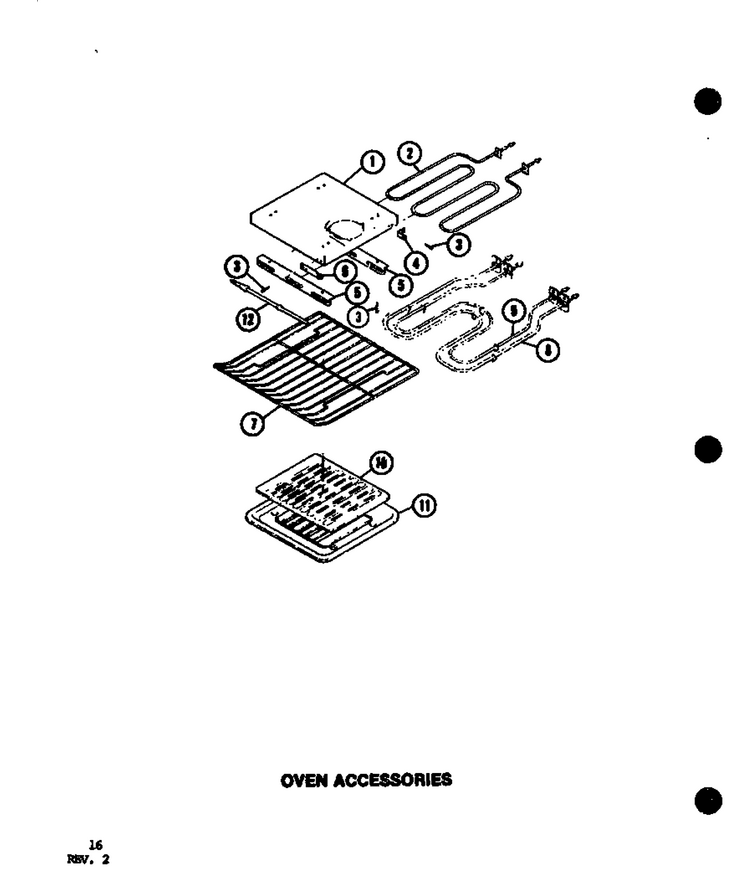

06 - Oven Accessories

...
...
1
Shield, Reflector (Cg) WPL-40850CG
...
2
Element, Broil (240v-2800w) WPL-Y0042138
...
3
Screw WPL-WP90767
...
4
Thermostat Mounting Bracket, R WPL-R0157904
...
5
Broil Element Support Pyro WPL-Y0040902
...
6
Thermostat Mtg Brkt Frt Pyro WPL-R0157906
...
7
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
9
Slo/cook Element 1000w-240v WPL-Y0042152
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Meat Probe WPL-R0157912

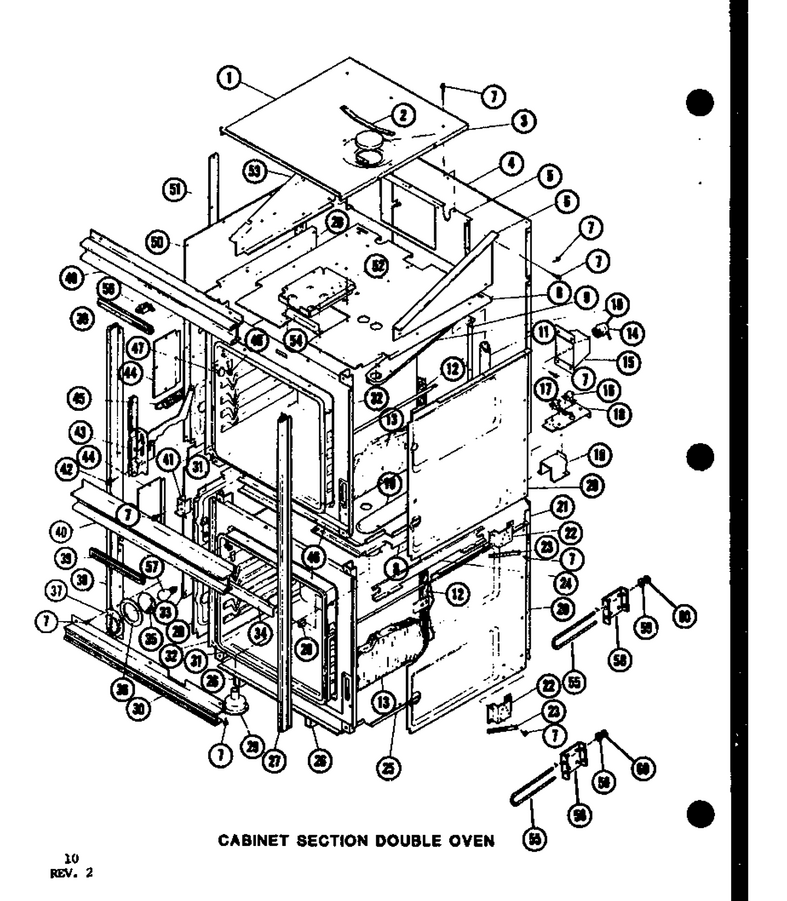

01 - Cabinet Section Double Oven

...
...
NI
5651105 C WPL-R0157835
...
1
Cabinet Top WPL-R0157783
...
2
Flue Collar Cap Bracket WPL-R0157785
...
3
Cover, Flue Collar WPL-R0157786
...
4
Upper Cab. Back Pyro W/o WPL-R0157787
...
5
Cont. Comp. Back Pyro W/o WPL-R0157788
...
6
Cont. Compart Side Rt Pyro WPL-R0157789
...
7
Screw WPL-WP90767
...
8
Top-Up Oven WPL-R0157828
...
9
Insulat. Retain. Rear Pyro WPL-Y0040743
...
10
Plug Block Baffle Ket570 WPL-R0157836
...
11
Tube, Lower Oven Vent-Pyro W/o WPL-Y0042406
...
12
Insulation,wrapper WPL-R0157838
...
13
Insulation,wrapper WPL-R0157839
...
14
Socket, Oven Light WPL-Y0316385
...
15
Lamp Cup WPL-R0157790
...
16
Limit Control-Lower Oven-225 WPL-Y0042046
...
17
Switch Fan Spdt WPL-Y0042056
...
18
Switch Plate Qdo-240 WPL-Y0040783
...
19
Rear Oven Support Pyro W/o WPL-R0157843
...
20
Insulation Retainer Sides Pyro WPL-R0157793
...
21
Lower Cabinet Back Pyro W/o WPL-R0157844
...
22
Bracket, Spring Mounting WPL-R0157897
...
23
Brkt-Door Spring WPL-R0157798
...
24
Lower Oven Air Channel Pyro WPL-R0199114
...
25
Oven Bottom-Lower WPL-Y0316867
...
26
Runner, Base-Pyro W/o WPL-Y0041019
...
27
Side Trim, R.h. WPL-R0199115
...
28
Capillary Hole Cover Plate WPL-R0157808
...
29
Smoke Eliminator WPL-R0157813
...
30
Bottom Trim WPL-R0199110
...
31
Oven Cavity WPL-311145E
...
32
Main Front-Dk Gr WPL-R0199248
...
33
Lower Cabinet Side Right WPL-R0157846
...
34
Broil Element Reflector, Lower WPL-R0157832
...
35
Oven Light Lens Pyro. Walloven WPL-Y0042769
...
36
Gasket,oven Light WPL-Y0041987
...
37
Lens Retainer Stainless Steel WPL-R0199255
...
38
Side Trim Left Ao27db WPL-Y0042566
...
39
Latch Handle Guide Pyro WPL-Y0042015
...
40
Center Trim WPL-R0199118
...
41
Front Oven Support Pyro W/o WPL-R0157848
...
42
Screw WPL-WP90767
...
43
Hinge Assy WPL-Y0052095
...
44
Hinge Access Cover Pyro W.o. WPL-R0157821
...
45
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
46
Upper Oven Bottom Pyro W/o WPL-Y0040741
...
47
Probe Recep Cover WPL-R0199256
...
48
Screw 8-18x5/16`` WPL-R0157833
...
49
Control Pan Vent Trim WPL-R0199112
...
50
Side-Up Cab WPL-R0157823
...
51
Capillary Shield Pyro W/o WPL-R0157825
...
52
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
53
Cont. Compart Side Lt Pyro WPL-R0157826
...
54
Terminal Shield Black WPL-R0157830
...
56
Receptacle Meat Probe WPL-Y0079498
...
57
Light Bulb WPL-8009

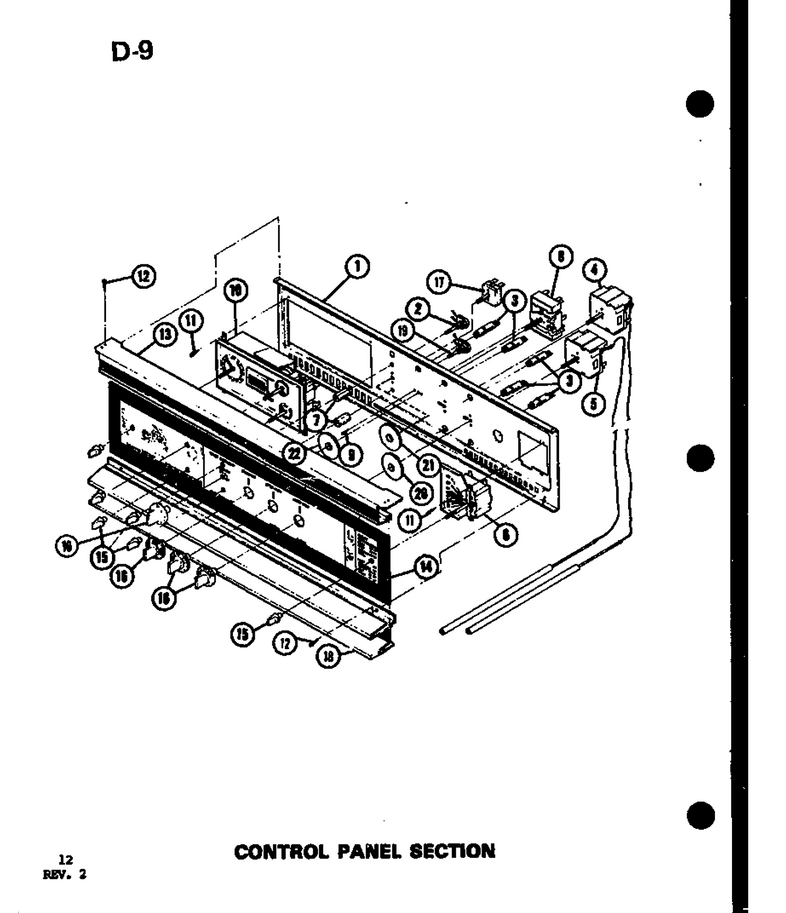

03 - Control Panel Section

...
...
1
Control Mtg Brkt. Pyro Wo WPL-R0199066
...
2
Oven Light Switch WPL-R0157757
...
3
Indicator Light WPL-Y0042183
...
4
Pyro. Thermostat With Top Heat WPL-R0157759
...
5
Lower Oven Thermostat WPL-R0157766
...
6
Meat Thermometer WPL-R0199119
...
7
Switch Bushing ,metal WPL-Y0042012
...
8
Selector Switch Pyro W/o WPL-R0157765
...
9
Screw WPL-WP3400882
...
10
Kit, Clock WPL-R0157764
...
11
Screw WPL-WP90767
...
12
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
13
Control Panel Top Trim WPL-R0199120
...
14
Control Panel Glass WPL-R0199121
...
15
Knob, Dual Timer WPL-R0157772
...
16
Knobs, Control WPL-R0199123
...
17
Switch, Rotary-10a,120v WPL-R0157762
...
19
Switch Rotiss Eo&go WPL-R0157780
...
20
Dial, Thermostat WPL-R0199229
...
21
Dial Slow Cook WPL-R0199230
...
22
Selector Switch Dial WPL-R0199231
