Amana AO-24S (BOM: P8537901S)

Model: AO-24S (BOM: P8537901S)

Save Part Not Listed?
product name

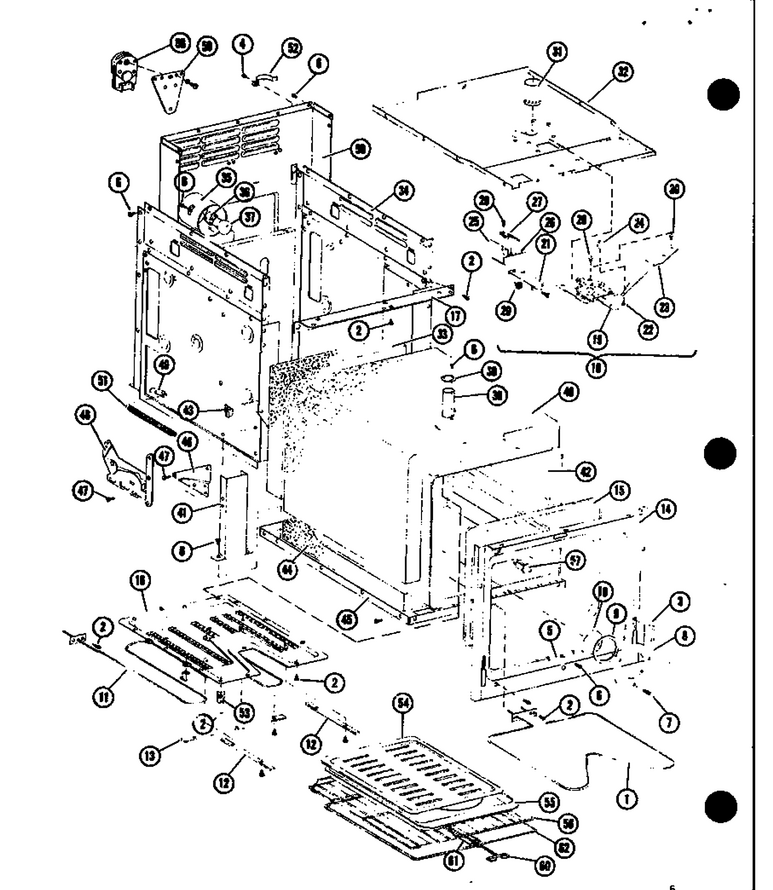

02 - Page 2

...
...
1
Bake Element WPL-R0157640
...
2
Screw WPL-R0157641
...
3
Hinge Arm Guide WPL-R0157642
...
4
Screw WPL-R0157643
...
5
Seal-End Cover WPL-R0157644
...
6
Screw, 8a X 3/8`` WPL-R0157645
...
7
Screw WPL-R0157646
...
8
Retainer-Light Lens WPL-R0157647
...
9
Light Lens Gasket WPL-4166868
...
10
Lens, Light WPL-CG981750
...
11
Broil Element WPL-R0157649
...
12
Retainer, Smoke Eliminator, Sh WPL-R0157650
...
13
Retainer WPL-R0157651
...
14
Front Frame, Upper, Double Ove WPL-R0157652
...
15
Door Seal WPL-R0157653
...
16
Smoke Eliminator WPL-R0157654
...
17
Support-Control Pnl WPL-R0157655
...
18
Latch Assy WPL-R0157656
...
19
Latch WPL-R0157657
...
20
Screw WPL-R0157658
...
21
Mtg Brkt-Switch WPL-R0157659
...
22
Screw WPL-R0157660
...
23
Latch Lever Arm WPL-R0157661
...
24
Knob-Latch WPL-R0157662
...
25
Insul Latch Switch WPL-R0157663
...
26
Shield-Switch WPL-R0157664
...
27
Switch WPL-R0157665
...
28
Screw WPL-R0157666
...
29
Nut 4-40 WPL-R0157667
...
30
Screw WPL-R0157668
...
31
Diluter Tube WPL-R0157669
...
32
Cabinet Top WPL-R0157670
...
33
Insulation-Back WPL-R0157671
...
34
Cab Assy-Upper WPL-R0157672
...
35
Oven Light Shield WPL-R0157673
...
36
Socket, Oven Light WPL-Y0316385
...
37
Light Bulb WPL-8009
...
38
Retainer-Vent Tube WPL-R0157676
...
39
Vent Tube WPL-R0157677
...
40
Insulation WPL-R0157678
...
41
Rear Anchor WPL-R0157679
...
42
Oven Liner WPL-R0157680
...
43
Standoff-Cab WPL-R0157681
...
44
Insulation-Btm WPL-R0157685
...
45
Main Bottom WPL-R0157686
...
46
Cam Plate-R WPL-R0157687
...
47
Screw WPL-R0157689
...
48
Hinge Assy WPL-R0157690
...
49
Anchor Spring WPL-R0157692
...
50
Main Back WPL-R0157694
...
51
Oven Door Spring WPL-R0157696
...
52
Clamp-Conduit WPL-R0157697
...
53
Cover-Capillary WPL-R0157699
...
54
Procelain Broiler (Pan And Grid) WPL-4396923
...
55
Procelain Broiler (Pan And Grid) WPL-4396923
...
56
Oven Rack WPL-R0157704
...
57
Safety Switch-Clean WPL-R0157706
...
58
Motor WPL-CG985566
...
59
Mtg Plate-Rotis WPL-R0157708
...
60
Skewer-Rotis WPL-R0157709
...
61
Spit-Rotis WPL-R0157710
...
62
Rack-Rotis WPL-R0157711

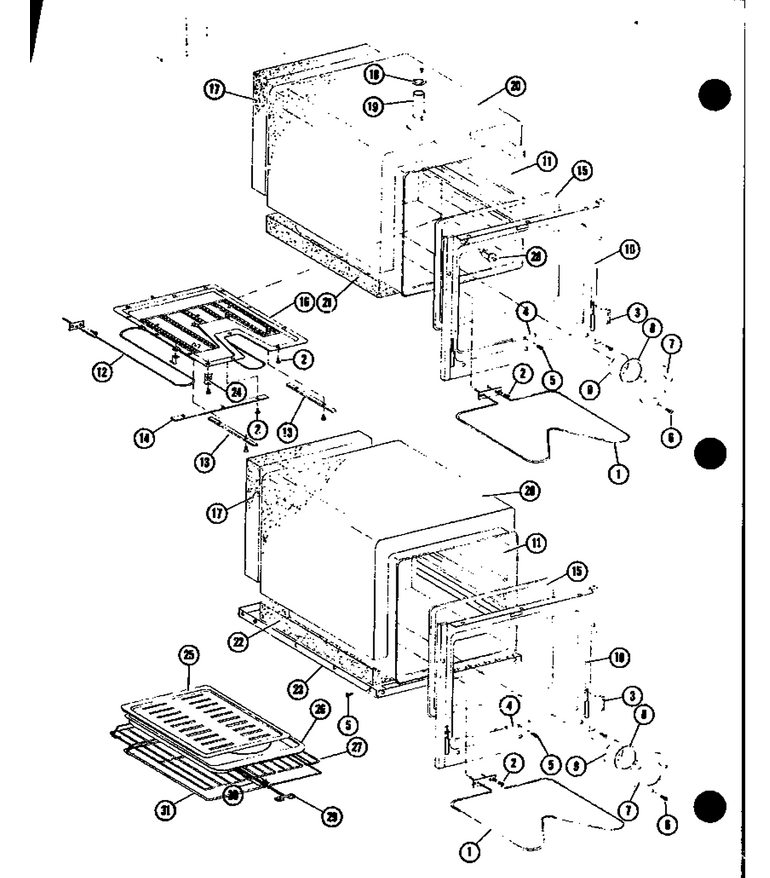

03 - Page 3

...
...
1
Bake Element WPL-R0157640
...
2
Screw WPL-R0157641
...
3
Hinge Arm Guide WPL-R0157642
...
4
Seal-End Cover WPL-R0157644
...
5
Screw, 8a X 3/8`` WPL-R0157645
...
6
Screw WPL-R0157646
...
7
Retainer-Light Lens WPL-R0157647
...
8
Light Lens Gasket WPL-4166868
...
9
Lens, Light WPL-CG981750
...
10
Glass-Control WPL-R0157605
...
11
Oven Liner WPL-R0157680
...
12
Broil Element WPL-R0157649
...
13
Retainer, Smoke Eliminator, Sh WPL-R0157650
...
14
Retainer WPL-R0157651
...
15
Door Seal WPL-R0157712
...
16
Smoke Eliminator WPL-R0157654
...
17
Insulation-Back WPL-R0157671
...
18
Retainer-Vent Tube WPL-R0157676
...
19
Vent Tube WPL-R0157677
...
20
Insulation WPL-R0157678
...
21
Insulation WPL-R0157682
...
22
Insulation-Btm WPL-R0157685
...
23
Main Bottom WPL-R0157686
...
24
Cover-Capillary WPL-R0157699
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Procelain Broiler (Pan And Grid) WPL-4396923
...
27
Oven Rack WPL-R0157704
...
28
Safety Switch-Clean WPL-R0157706
...
29
Skewer-Rotis WPL-R0157709
...
30
Spit-Rotis WPL-R0157710
...
31
Rack-Rotis WPL-R0157711

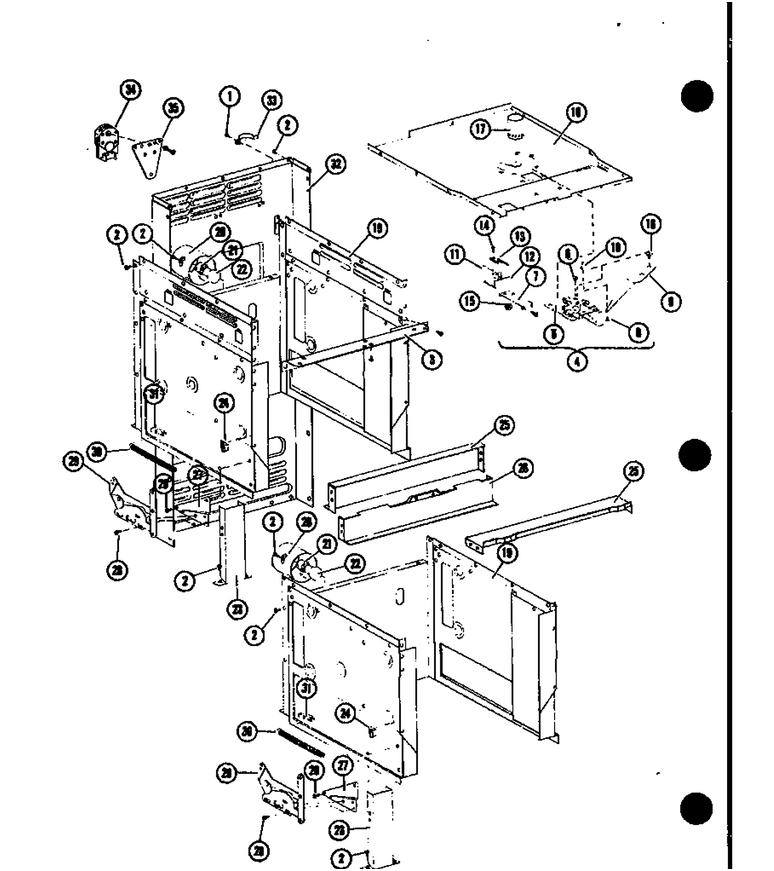

04 - Page 4

...
...
1
Screw WPL-R0157643
...
2
Screw, 8a X 3/8`` WPL-R0157645
...
3
Support-Control Pnl WPL-R0157655
...
4
Latch Assy WPL-R0157656
...
5
Latch WPL-R0157657
...
6
Screw WPL-R0157658
...
7
Mtg Brkt-Switch WPL-R0157659
...
8
Screw WPL-R0157660
...
9
Latch Lever Arm WPL-R0157661
...
10
Knob-Latch WPL-R0157662
...
11
Insul Latch Switch WPL-R0157663
...
12
Shield-Switch WPL-R0157664
...
13
Switch WPL-R0157665
...
14
Screw WPL-R0157666
...
15
Nut 4-40 WPL-R0157667
...
16
Screw WPL-R0157668
...
17
Diluter Tube WPL-R0157669
...
18
Cabinet Top WPL-R0157670
...
19
Cab Assy-Upper WPL-R0157672
...
20
Oven Light Shield WPL-R0157673
...
21
Socket, Oven Light WPL-Y0316385
...
22
Light Bulb WPL-8009
...
23
Rear Anchor WPL-R0157679
...
24
Standoff-Cab WPL-R0157681
...
25
Rear Supt WPL-R0157683
...
26
Front Supt WPL-R0157684
...
27
Cam Plate-R WPL-R0157687
...
28
Screw WPL-R0157689
...
29
Hinge Assy WPL-R0157690
...
30
Door Spring-Lower WPL-R0157691
...
31
Anchor Spring WPL-R0157692
...
32
Main Back WPL-R0157695
...
33
Clamp-Conduit WPL-R0157697
...
34
Motor WPL-CG985566
...
35
Mtg Plate-Rotis WPL-R0157708

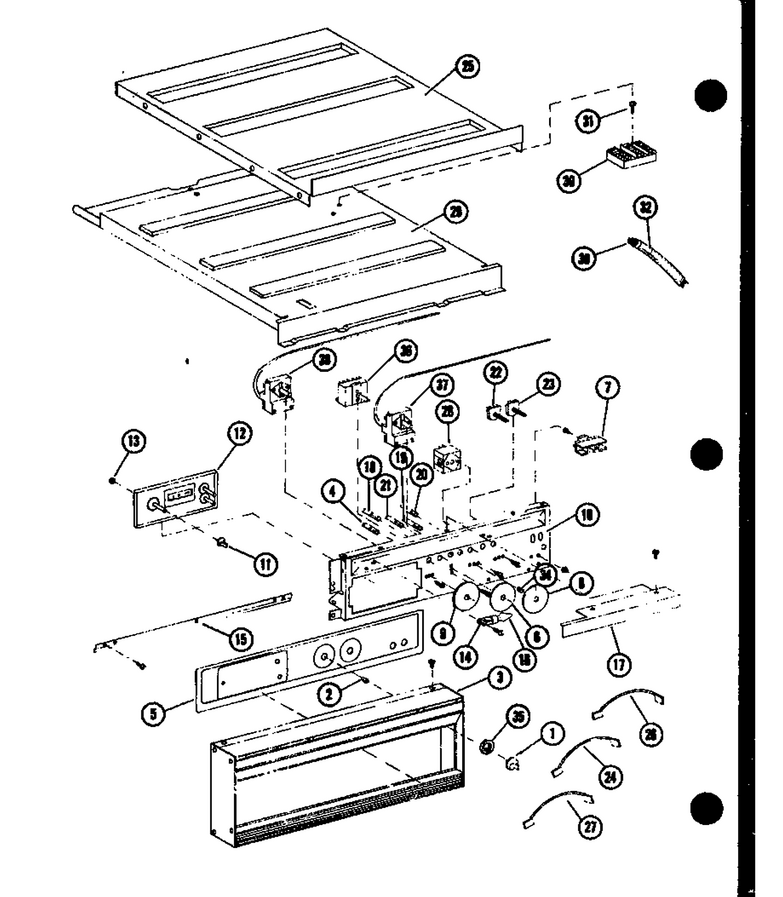

05 - Page 5

...
...
1
Knob-Selector WPL-R0157601
...
2
Grommet WPL-R0157602
...
3
Frame-Control WPL-R0157603
...
5
Glass, Control Panel WPL-D0157605
...
6
Disc-Selector WPL-R0157607
...
7
Terminal Block WPL-R0157608
...
8
Disc-Thermostat WPL-R0157609
...
10
Plate-Control Mtg WPL-R0157611
...
11
Knob, Clock WPL-R0157612
...
12
Clock WPL-R0157613
...
13
Nut WPL-WP487939
...
14
Lamp Base WPL-R0157615
...
15
Retainer WPL-R0157616
...
16
Lamp WPL-CG080129
...
17
Light Shield WPL-R0157617
...
18
Lock Light WPL-R0157618
...
19
Clean Light WPL-R0157619
...
20
Clean Light WPL-R0157619
...
21
Serve Light WPL-R0157620
...
22
Switch-Oven Light WPL-R0157621
...
23
Switch-Oven Light WPL-R0157621
...
24
Wiring Harness WPL-R0157622
...
25
Top-Outer Jacket WPL-R0157624
...
26
Wire Harness WPL-R0157625
...
27
Wire Harness WPL-R0157627
...
28
Net-Thermal Relay WPL-R0157629
...
29
Sandwich Panel WPL-R0157630
...
30
Terminal Block WPL-R0157631
...
31
Screw WPL-R0157632
...
32
Conduit WPL-R0157633
...
34
Spacer WPL-R0157635
...
35
Bezel-Switch WPL-CG981781
...
36
Switch-Selector WPL-R0157636
...
37
Thermostat WPL-R0199288

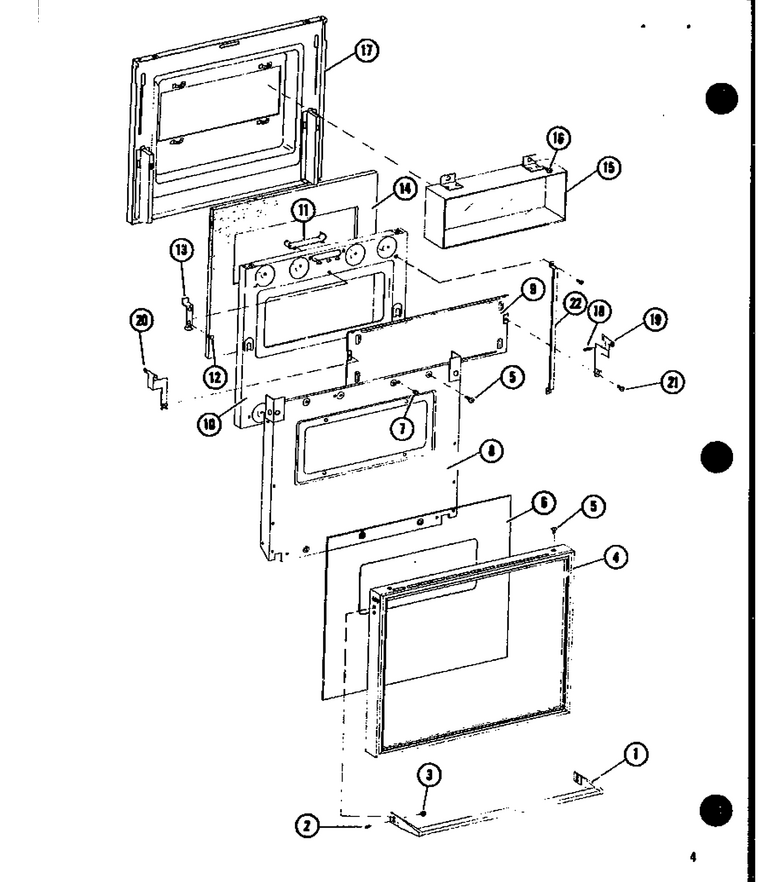

01 - Page 1

...
...
1
Oven Door Handle WPL-CG982009
...
2
Screw 8 32x3/8 WPL-R0157713
...
3
Nut WPL-WP488130
...
4
Door Frame WPL-R0157715
...
5
Screw, 8a X 3/8`` WPL-R0157645
...
6
Door Glass-Outer WPL-R0157717
...
7
Bumper WPL-R0706501
...
8
Air Baffle WPL-R0157719
...
9
Shield-Window WPL-R0157720
...
10
Retainer-Ins WPL-R0157721
...
11
Shield-Slide Lock WPL-R0157722
...
12
Shoulder Rivet WPL-R0157723
...
13
Lock Slide WPL-R0157724
...
14
Pad-Insulation WPL-R0157725
...
15
Window Assy WPL-R0157726
...
16
Screw WPL-R0157643
...
17
Door Liner WPL-R0157728
...
18
Spring Shield Latch WPL-R0157729
...
19
Shield-Latch R WPL-R0157730
...
20
Shield-Latch L WPL-R0157731
...
21
Screw WPL-R0700018
...
22
Guide-Shield WPL-R0157733
