Amana AO-24DB (BOM: P8556704S)

Model: AO-24DB (BOM: P8556704S)

Save Part Not Listed?
product name

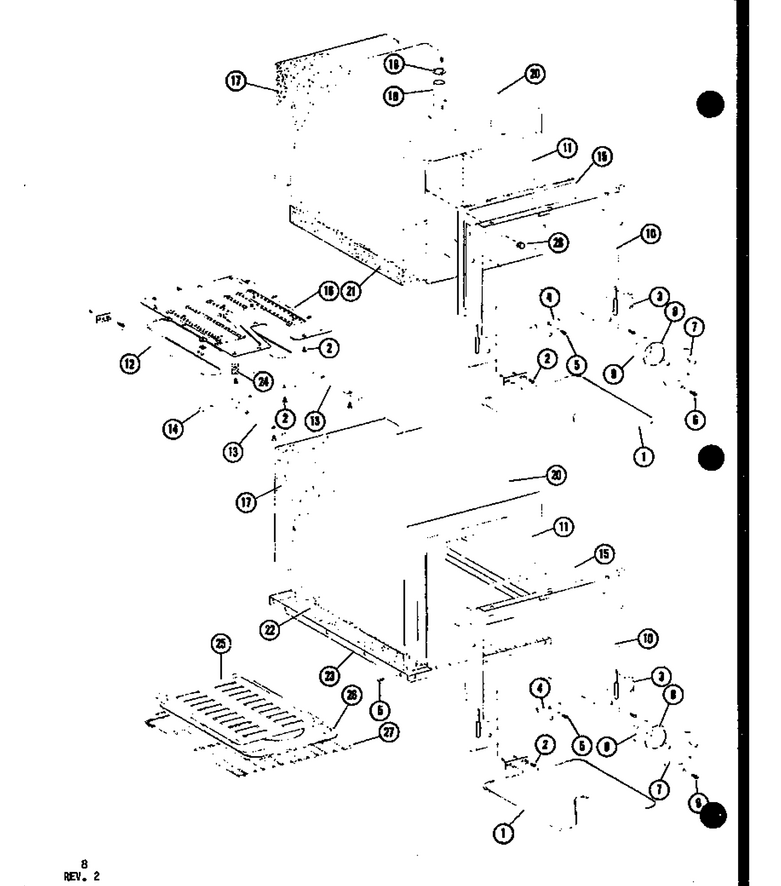

01 - Page 5

...
...
1
Bake Element WPL-R0710001
...
2
Screw WPL-R0157641
...
3
Hinge Arm Guide WPL-R0157642
...
4
Seal-End Cover WPL-R0157644
...
5
Screw, 8a X 3/8`` WPL-R0157645
...
6
Screw WPL-R0157646
...
7
Retainer-Light Lens WPL-R0157647
...
8
Light Lens Gasket WPL-4166868
...
9
Lens, Light WPL-CG981750
...
10
Front Frame WPL-R0157604
...
11
Oven Liner, Upper WPL-R0199216
...
12
Broil Element WPL-R0199081
...
13
Retainer, Smoke Eliminator, Sh WPL-R0157650
...
14
Retainer WPL-R0157651
...
15
Door Seal WPL-R0157712
...
16
Smoke Eliminator WPL-R0157654
...
17
Insulation-Back WPL-R0157671
...
18
Retainer-Vent Tube WPL-R0157676
...
19
Vent Tube WPL-R0157677
...
20
Insulation WPL-R0157678
...
21
Insulation WPL-R0157682
...
22
Insulation-Btm WPL-R0157685
...
23
Main Bottom WPL-R0157686
...
24
Cover-Capillary WPL-R0157699
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Procelain Broiler (Pan And Grid) WPL-4396923
...
27
Oven Rack WPL-R0199215
...
28
Button WPL-R0199086
