Amana AMH202 (BOM: P1331101M)

Model: AMH202 (BOM: P1331101M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

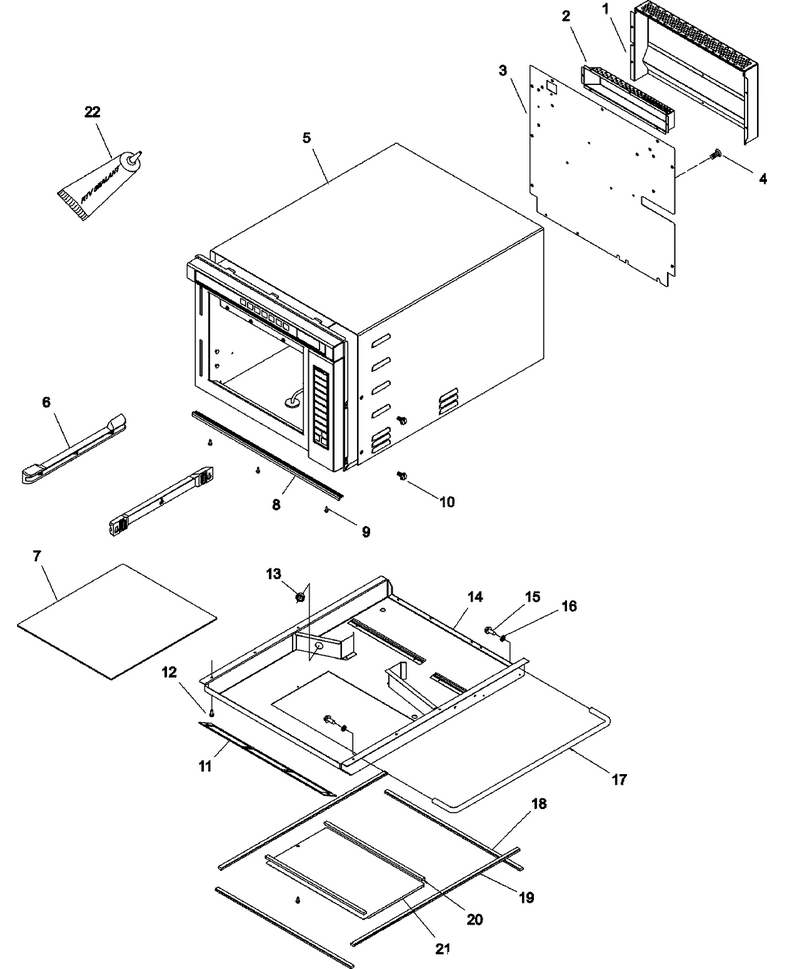

01 - Cabinet

...
...
1
Dilution Flue Assy WPL-59001960
...
2
Flue- Inner Dilution WPL-59001959
...
3
Rear Access Panel WPL-59001958
...
4
Screw WPL-WP90767
...
5
Wrapper Oc WPL-59001961
...
6
Rack Guide Assy WPL-59001879
...
7
Kit- Ceramic Plate & Sealer WPL-12002510
...
8
Trim- Oc WPL-59001878
...
9
Screw-Tf/oval WPL-13042002
...
10
Screw, T F WPL-M0249619
...
11
Grille, Air Inlet WPL-10853102
...
12
Screw WPL-WP489128
...
13
Snap Bushing WPL-A3293503
...
14
Basepan Assy WPL-59001962
...
17
Nut-Keps WPL-M0282019
...
18
Basepan Gasket- Cut WPL-59001882
...
19
Basepan Gasket- Cut WPL-59001883
...
20
Gasket (Inch) WPL-A3030301
...
21
Bottom Access Panel WPL-10782402
...
22
Sealer,rtv 2.8 Oz-Red-Hi-Temp WPL-59001950

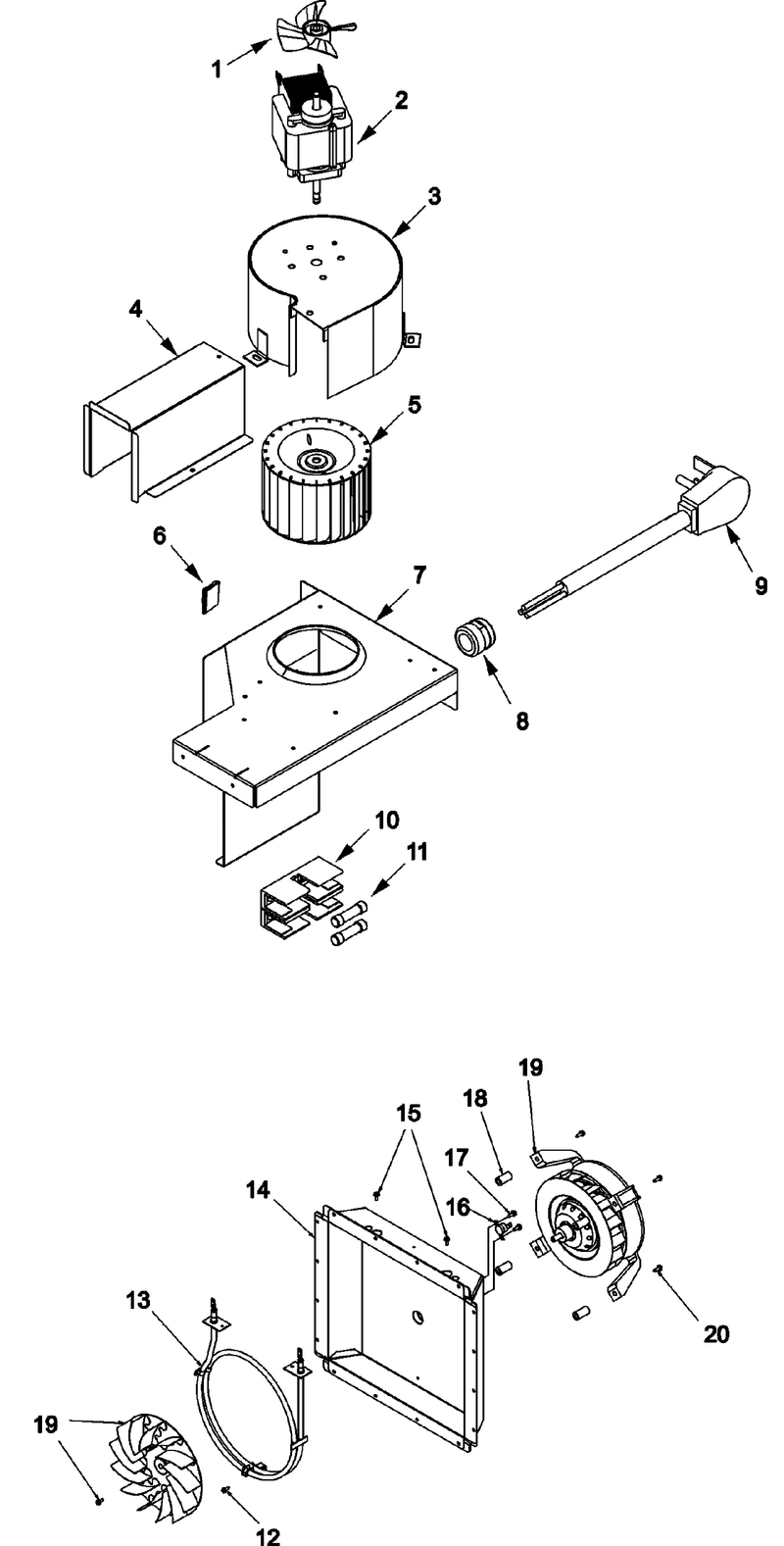

06 - Fuses, Blower, Heater Box,

...
...
1
Fan Blade WPL-B5706704
...
2
Screw WPL-M0253916
...
3
Scroll Weld WPL-10797203
...
4
Screw, Hex Head WPL-59001208
...
5
Wheel, Blower WPL-C3670809
...
6
Clip, Cord WPL-M0104102
...
7
Brkt- Blower Scroll WPL-59001983
...
8
Relief-Strain WPL-M0370011
...
9
Power Cord WPL-59001901
...
10
Fuse Holder WPL-10091101
...
11
Fuse, 25 Amp WPL-M0805201
...
12
Screw WPL-WP488234
...
13
Element-Convection WPL-59001713
...
14
Convection Box WPL-59001985
...
15
Screw WPL-W10856125
...
16
Cutout-Thermal Control WPL-59001707
...
17
Screw WPL-M0232012
...
18
Spacer- Convection WPL-59001903
...
19
Blower-Conv W/fan Blade & Bolt WPL-59001711
...
20
Bolt WPL-59001904

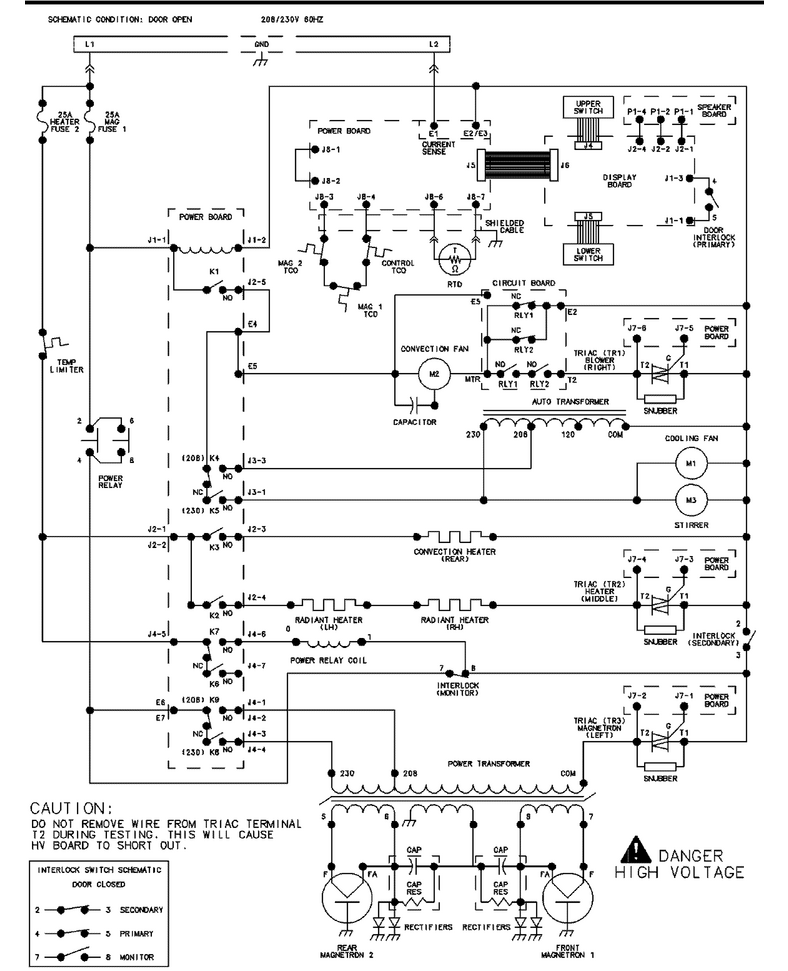

08 - Wiring Information

...
...
NI
Wiring Information WPL-15003582

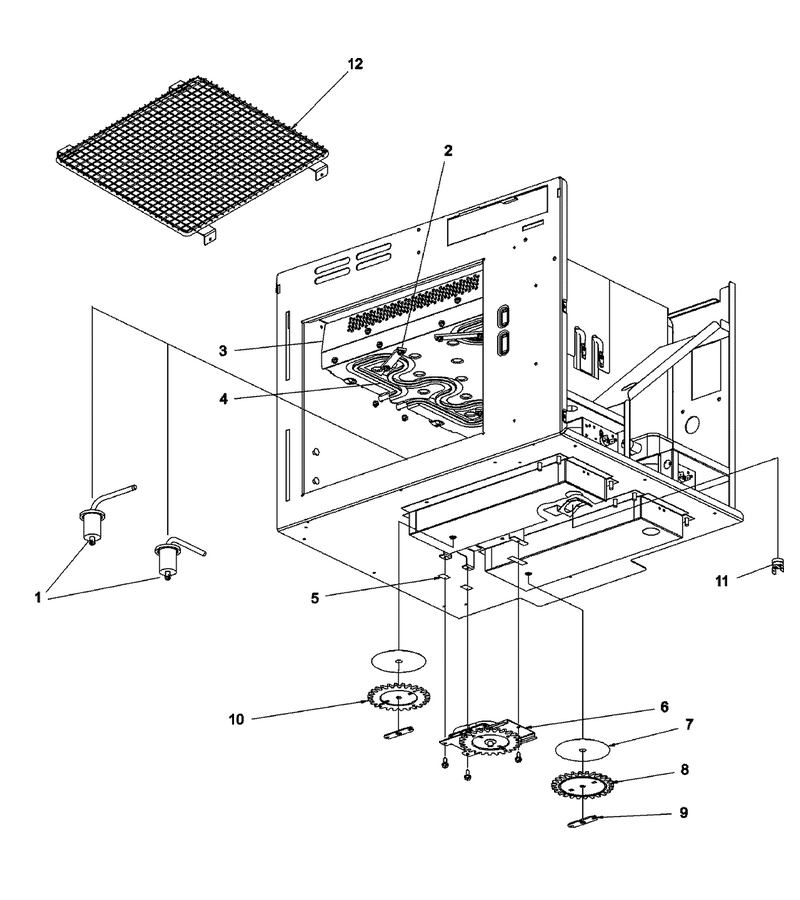

02 - Cavity

...
...
NI
Screw WPL-WP489128
...
1
Kit- Antenna Assy WPL-12002512
...
2
Clamp- Ceramic WPL-59001970
...
4
Element Block Mtg Kit W/screws WPL-12002607
...
5
Gasket (Inch) WPL-A3030301
...
6
Antenna Motor Kit (With Gear) WPL-12002615
...
7
Washer, Spur Gear WPL-10903002
...
8
Kit- Spur Gear WPL-12002580
...
9
Shaft, Ret-Gear WPL-59001205
...
10
Kit- Spur Gear WPL-12002581
...
11
Thermal-Cutout WPL-B5684131
...
12
Screw WPL-M0253916

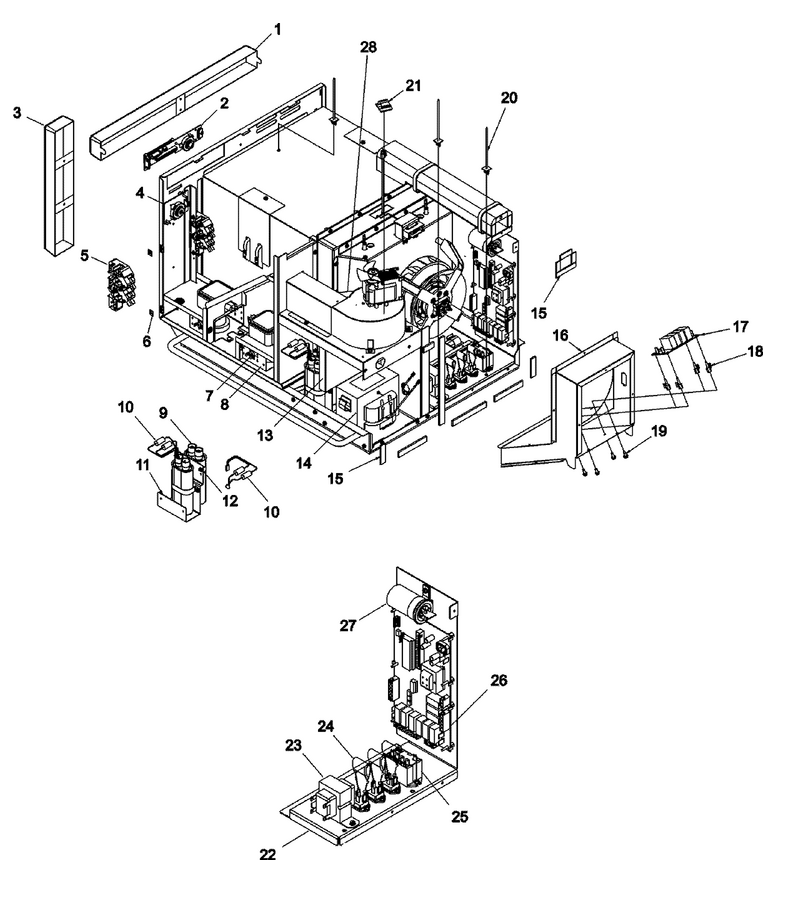

05 - Electrical Components

...
...
1
Assy, Touch Panel-Top WPL-59001705
...
2
Screw WPL-M0234114
...
3
Assy, Touch Panel-Side WPL-59001706
...
4
Support P-C Bd A WPL-M0590602
...
5
Screw- Tf WPL-59001919
...
6
Nut- Speed WPL-59001922
...
7
Screw T.c WPL-M0229916
...
8
Magnetron WPL-12096202
...
9
Capacitor-.69 WPL-59001160
...
10
Rectifier WPL-WP13091701
...
11
Brkt- Capacitor Mtg WPL-59001984
...
12
Screw WPL-M0253916
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Gasket (Inch) WPL-A3030301
...
16
Inlet Duct Assy WPL-59001977
...
17
Board- Halfwave WPL-59001925
...
18
Support P-C Bd A WPL-M0590602
...
19
Screw WPL-WP489349
...
20
Tie Wire WPL-WPM0322202
...
21
Clip, Cord WPL-M0104102
...
22
Brkt- Control Board Assy WPL-59001980
...
23
Transformer-Auto WPL-59001630
...
24
Triac WPL-D7681501
...
25
Screw WPL-M0253916
...
26
Support P-C Bd A WPL-M0590602
...
27
Starter Capacitor WPL-59001712
...
28
Screw WPL-WP489128

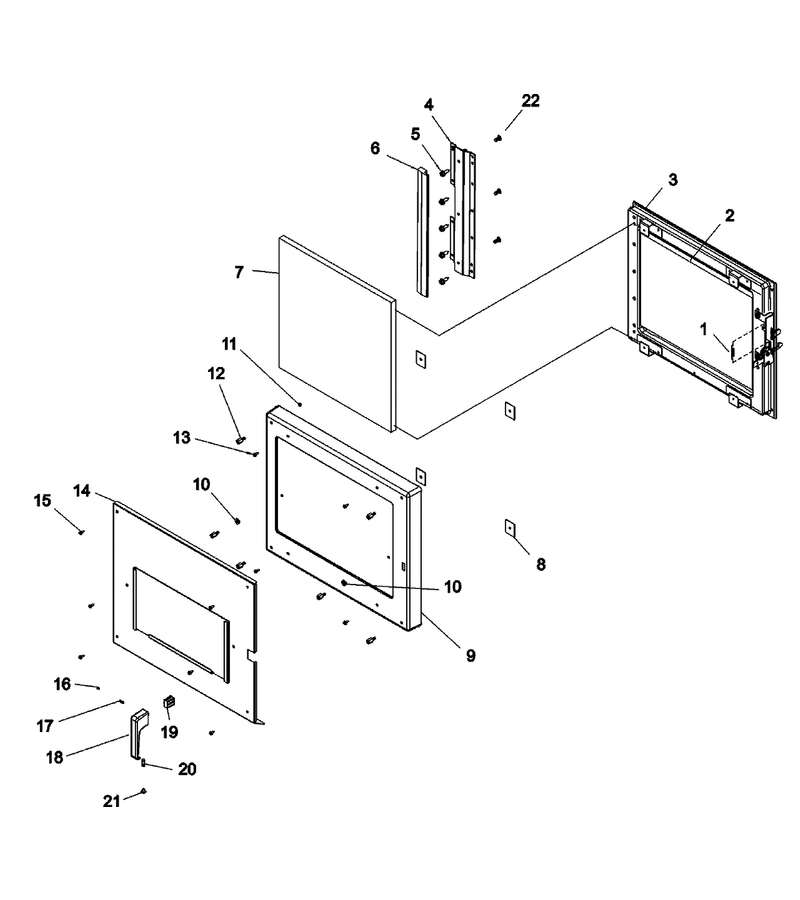

03 - Door

...
...
1
Spring-Door Latch WPL-59001721
...
2
Insul-Door (Small Sheet) WPL-59001719
...
3
Assy.-Inner Door WPL-59001986
...
4
Hinge- Door WPL-59001869
...
5
Screw WPL-WP12990527
...
6
Cover-Hinge (Magnetic) WPL-59001723
...
7
Insul-Door (Large Sheet) WPL-59001720
...
8
Spacer- Thermal WPL-59001870
...
9
Door-Outer WPL-59001716
...
10
Washer- Flat WPL-59001871
...
11
Nut WPL-WP488130
...
12
Spacer- Door Shield WPL-59001872
...
13
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
14
Door Shield Assy WPL-59001987
...
15
Screw-Decorative WPL-59001718
...
16
Plug, Button (Blk) WPL-12360703
...
17
Screw WPL-WP8533976
...
18
Door Handle WPL-12490902
...
19
Insert,handle WPL-12576901
...
20
Set Screw WPL-M0206943
...
21
Plug, Button (Wht) WPL-M0310305
...
22
Screw-Tc/flat WPL-13047402

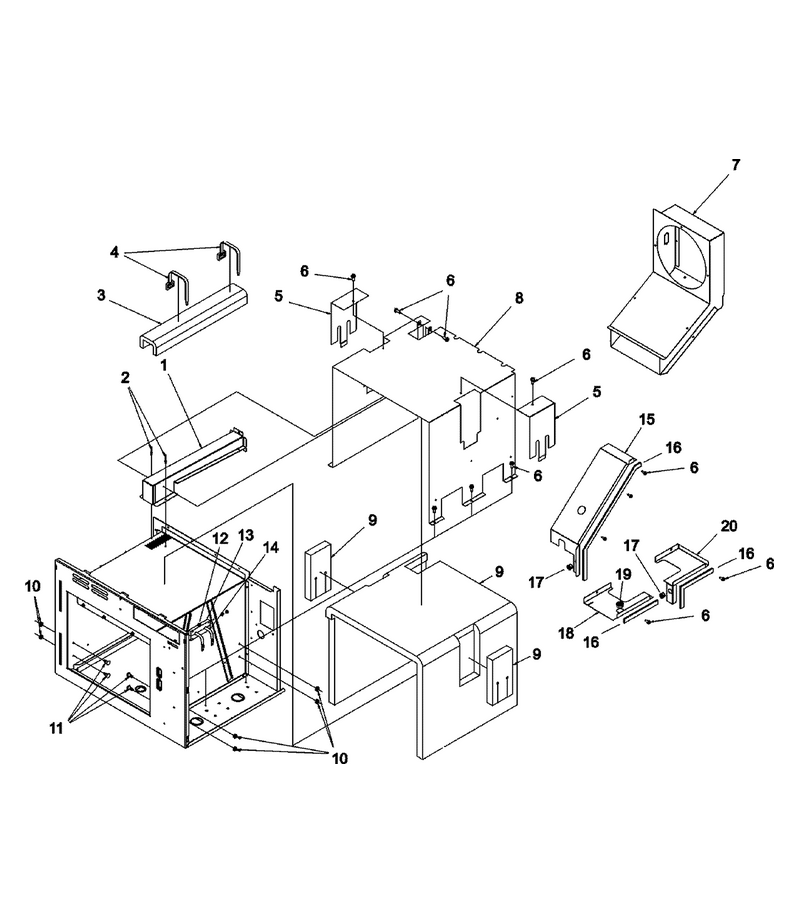

04 - Ducts

...
...
1
Flue Duct Assy WPL-59001886
...
2
Rivet WPL-WP210720
...
3
Insulation WPL-59001887
...
4
Wire-Tie WPL-M0321207
...
5
Access Plate WPL-59001972
...
6
Screw WPL-WP489128
...
7
Inlet Duct Assy WPL-59001977
...
8
Retainer- Insulation WPL-59001973
...
9
Insulation- Cavity WPL-59001891
...
10
Nut WPL-WP488130
...
11
Bolt- Shoulder WPL-59001892
...
12
Screw- Alan 9/64`` WPL-59001915
...
13
Element Block Mtg Kit W/screws WPL-12002607
...
14
Element Block Mtg Kit W/screws WPL-12002607
...
15
Baffle- Mag Air WPL-59001974
...
16
Gasket (Inch) WPL-A3030301
...
17
Bushing WPL-A3293501
...
18
Baffle- Front Air WPL-59001975
...
19
Snap Bushing WPL-M0571001
...
20
Baffle- Rear Air WPL-59001976

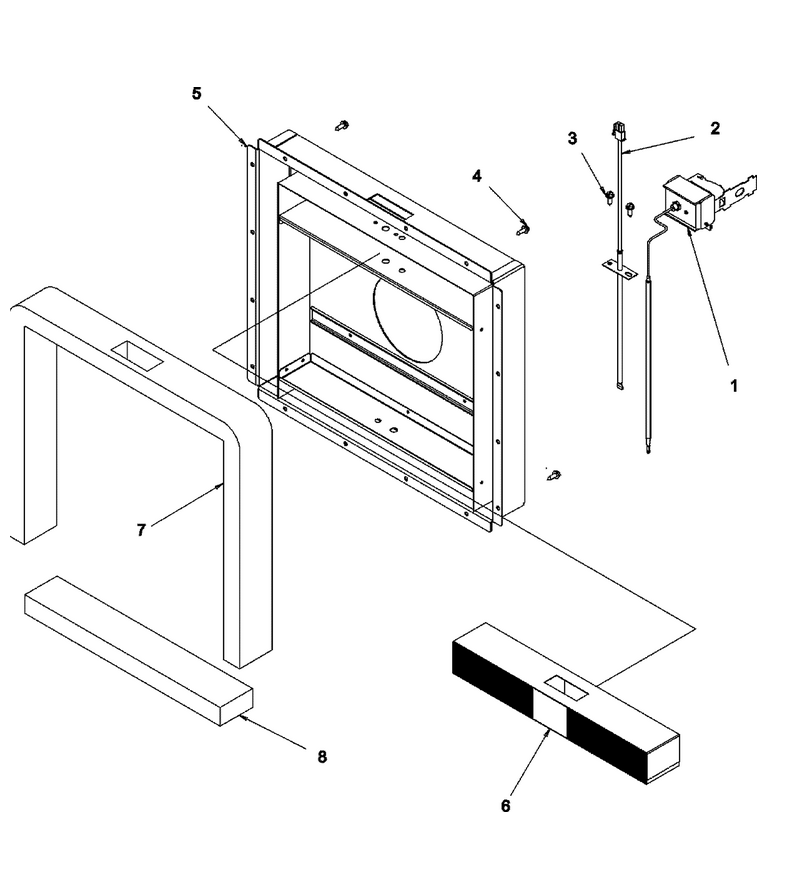

07 - Plenum Box, Sensor, Limiter,

...
...
1
Kit- Thermal Limiter WPL-12002514
...
2
Sensor-Temp WPL-59001709
...
3
Screw, Hex Head WPL-59001208
...
4
Screw WPL-WP489128
...
5
Plenum Box WPL-59001979
...
6
Catalytic Converter WPL-59001931
...
7
Insulation WPL-59001906
...
8
Insulation WPL-59001905
