Amana ALW210RMC (BOM: PALW210RMC0)

Model: ALW210RMC (BOM: PALW210RMC0)

Save Part Not Listed?
product name

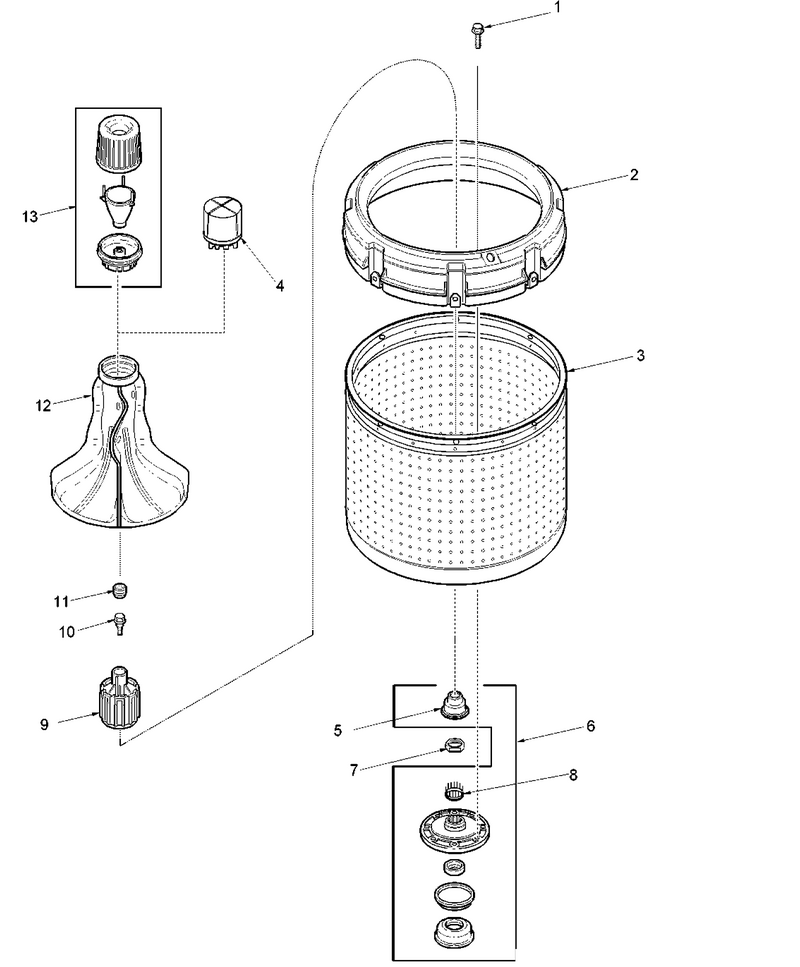

01 - Agitator, Drive Bell, Washtub And Hub

...
...
1
Screw WPL-WP3400527
...
2
Assembly, Balance Ring WPL-40002901
...
3
Assembly, Wash Tub S.s WPL-40000801
...
4
Cap,agitator(White) WPL-40074301W
...
5
Seal, Bell Drive WPL-40016101
...
6
Kit, Hub And Seal WPL-R9900457
...
7
Nut, Lock WPL-40016301
...
8
Insert WPL-WP40008301
...
9
Kit, Drive Bell And Seal WPL-R9900189
...
10
Screw, Shoulder 1/4 WPL-40065102
...
11
Plug, Bell WPL-40008401
...
12
Agitator, Flex Vane WPL-40000501W

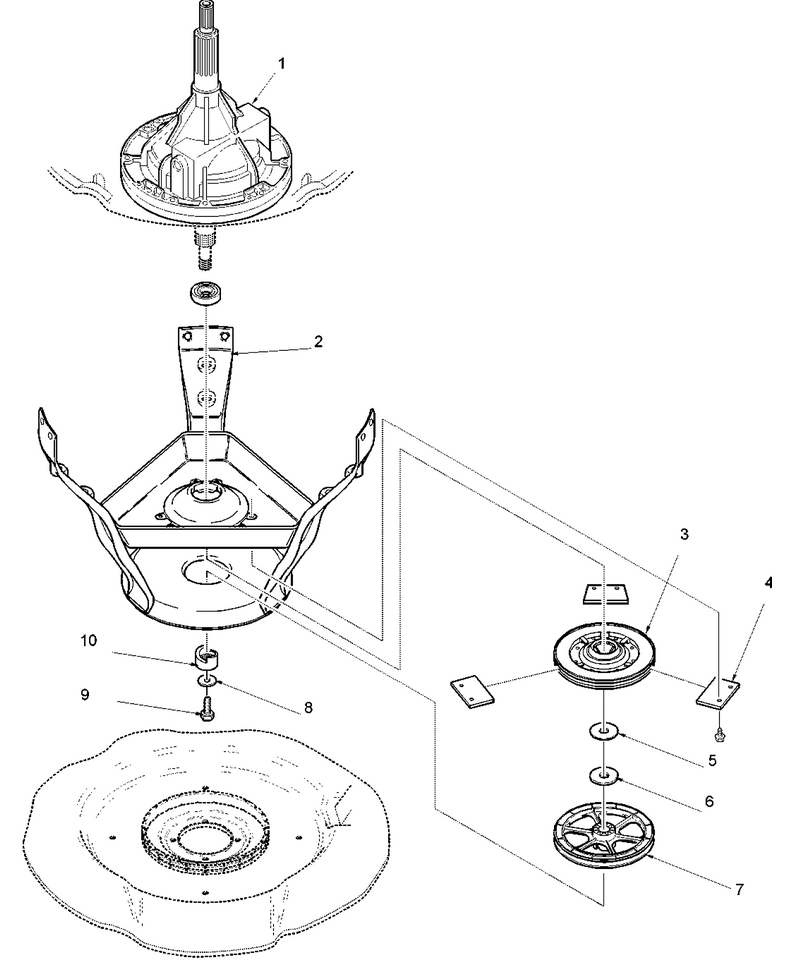

03 - Bearings, Brake, And Transmission

...
...
NI
Grease WPL-WP26594P
...
1
Assembly, Transmission (640) WPL-40065301
...
2
Assembly, Milk Stool WPL-40070002
...
3
Brake Assembly WPL-R9900474
...
4
Kit, Brake Pad WPL-R0000014
...
5
Washer, 2 Odx.63 Id WPL-40065701
...
6
Washer, Flat WPL-40063201
...
7
Pulley, Spin WPL-40047202
...
8
Washer WPL-WP40041501
...
9
Screw WPL-WP40063401
...
10
Clip WPL-WP40047402

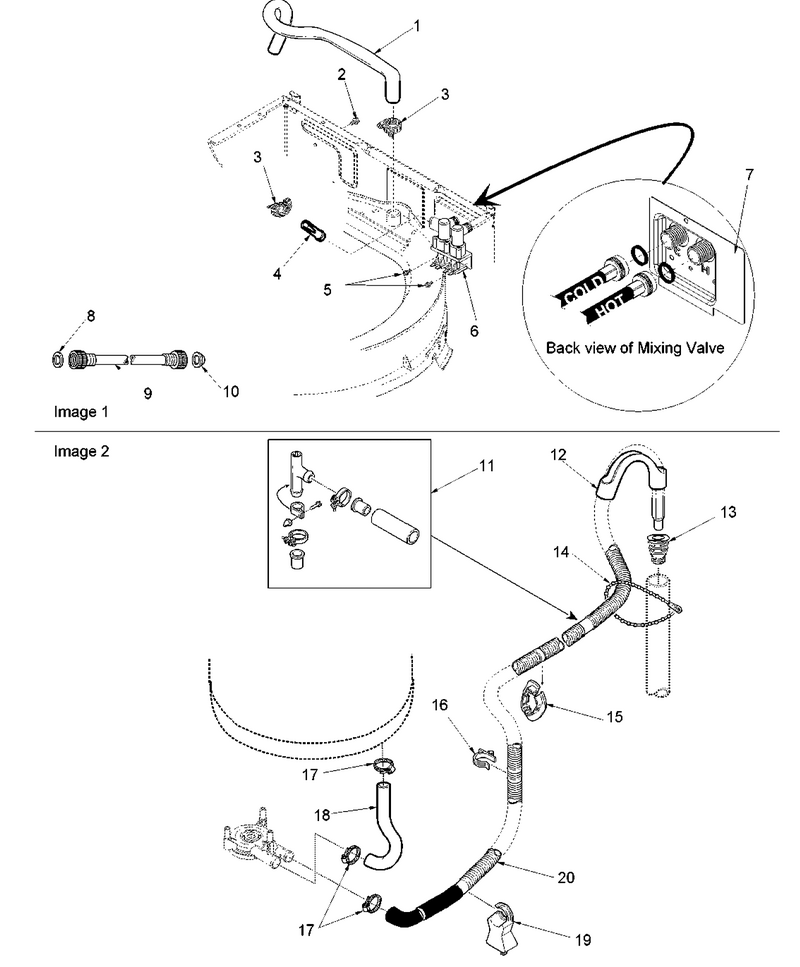

06 - Mixing Valve And Hoses

...
...
1
Hose WPL-WP27001184
...
2
Screw WPL-WP27001200
...
3
Clamp WPL-WP596669
...
4
Valve WPL-W10841299
...
5
Screw WPL-WP90767
...
6
Valve, Mixing E1 WPL-40097701
...
7
Plate, Mixing Value WPL-40098801
...
8
Gasket- In WPL-WPY013783
...
9
Hose-Fill WPL-W11629055
...
10
Strainer- WPL-WP22002960
...
11
Break-Sphn WPL-76660
...
12
Sleeve, Drain Hose WPL-33615
...
13
Adapter, Standpipe WPL-40008101
...
14
Strap, Standpipe Bead WPL-33489
...
15
Relief, Strain Drain WPL-40058501
...
16
Clip, Retainer-Hose WPL-36014
...
17
Clamp WPL-WP285655
...
18
Hose- Tub WPL-WP40094201
...
19
Stand, Hose WPL-40044901
...
20
Hose- Drai WPL-WP40053901

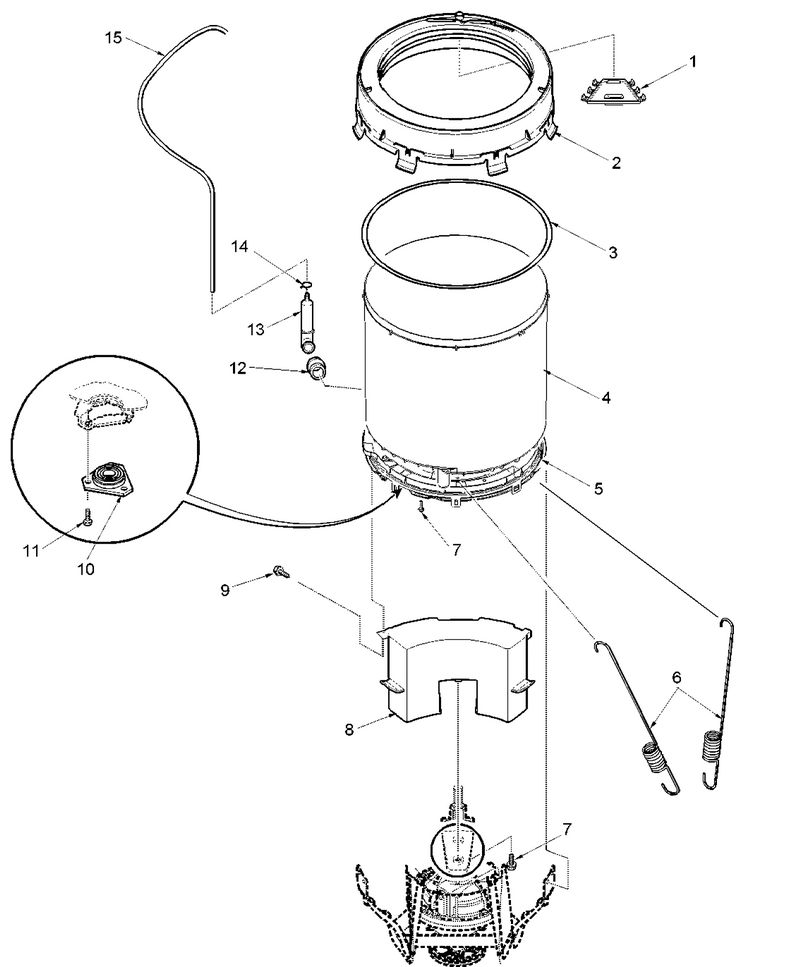

08 - Outer Tub And Pressure Tube

...
...
1
Cover, Outer Tub W Gasket WPL-27001195
...
2
Cover, Outer Tub W Gasket WPL-27001195
...
3
Gasket, Tub Cover WPL-40076601
...
4
Tub, Plastic Outer WPL-40111001P
...
5
Bottom, Outer Tub WPL-40001102
...
6
Spring- Ta WPL-WP40045202
...
7
Screw, 1/4-15x3/4 Hex WPL-40064301
...
8
Assembly Counter Weight WPL-40015901
...
9
Screw, 1/4-20x7/8 Hex WPL-40070401
...
10
Main Beari WPL-WP40004201P
...
11
Screw WPL-W10856106
...
12
Grommet WPL-40037801
...
13
Assembly, Pressure Bulb WPL-40008501
...
14
Clamp WPL-WP596669
...
15
Hose- Pres WPL-WP21001748

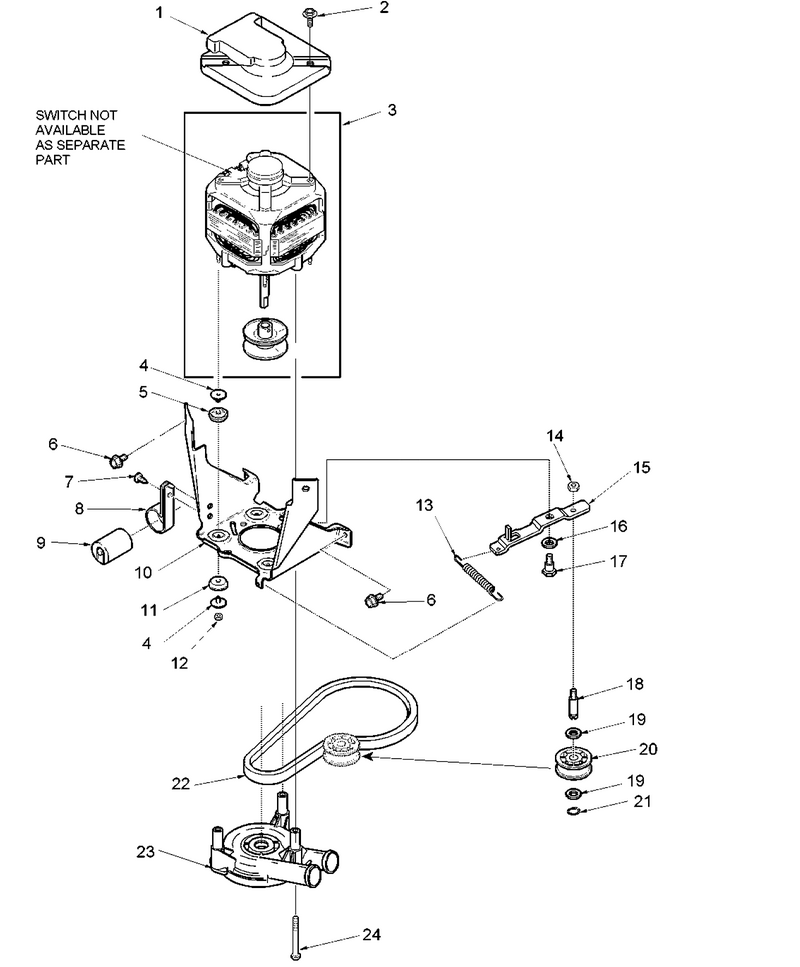

07 - Motor, Belt, Pump, And Idler Assy

...
...
NI
Motor Mount Lower Assembly WPL-40069501
...
1
Shield, Motor WPL-40112301
...
2
Screw WPL-WP4312464
...
3
Motor WPL-40116402
...
4
Post, Isolator WPL-40053701
...
5
Mount, Motor Upper WPL-40053801
...
6
Screw WPL-W10856106
...
7
Screw WPL-WP3390631
...
8
Clamp, Capacitor (Use W/357282 Motor) WPL-357030
...
9
Capacitor WPL-WP40084501
...
10
Bracket,motor Mount WPL-40015502R
...
11
Mount, Motor Lower WPL-40054301
...
12
Locknut WPL-WPY707702
...
13
Spring- Id WPL-WP40061401
...
14
Jamnut, 3/8-16 WPL-40038801
...
15
Lever, Idler WPL-40041001
...
16
Washer WPL-40054701
...
17
Screw, 1/4-20 WPL-40038901
...
18
Shaft WPL-WP56461
...
19
Washer WPL-WP233520
...
20
Idler Pull WPL-WP40045001
...
21
Ring- Reta WPL-WP23748
...
22
Belt WPL-WP27001007
...
23
Assembly, Pump Complete WPL-40040301
...
24
Screw WPL-WP40063701

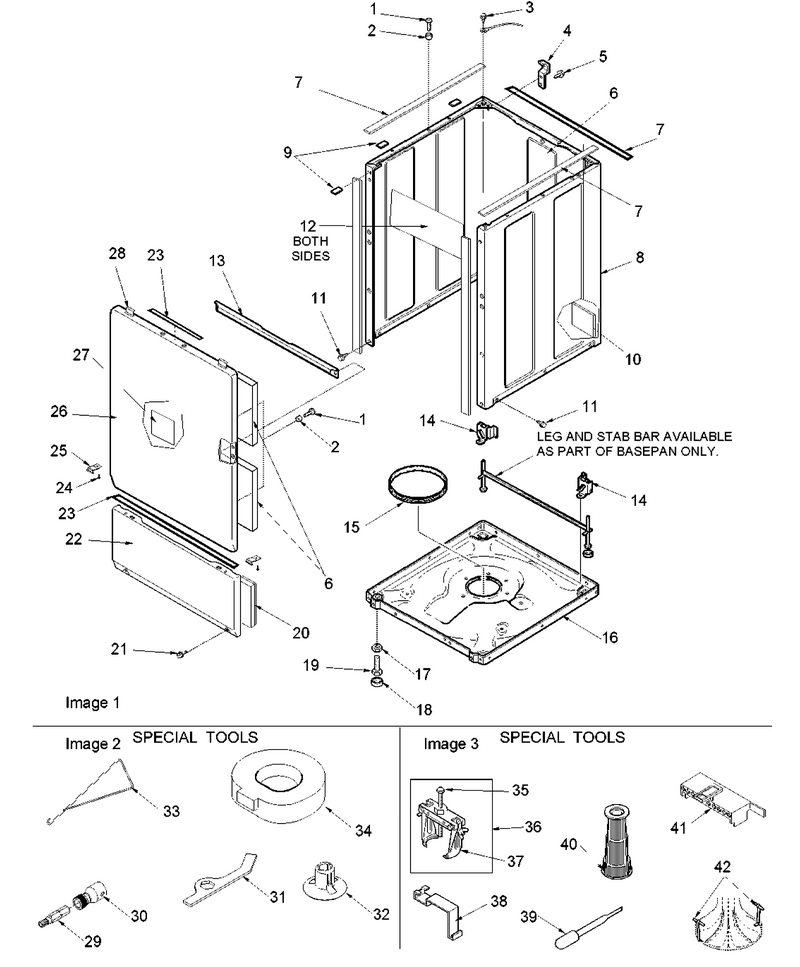

02 - Base, Cabinet, Front And Special Tools

...
...
NI
Assy,wire Harness Base WPL-40117501
...
1
Screw WPL-WPY014874
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WP3351614
...
4
Hinge, Top WPL-500003
...
5
Screw WPL-WP3390631
...
8
Cabinet, Dryer & Washer (Bsq) WPL-40076402CP
...
9
Pad, Bumper WPL-Y56128
...
11
Screw WPL-WP27001200
...
13
Brace, Top WPL-56486
...
14
Bracket, Self Leveling WPL-40031501
...
15
Ring, Friction WPL-40037401
...
16
Base Lev WPL-27001226
...
17
Nut- Lock WPL-WP210385
...
18
Foot, Rubber WPL-40016001
...
19
Leg, Adjustable (W/nut) WPL-22003428
...
21
Screw, No.12bx1/2 WPL-40034101
...
22
Panel, Access (Bsq) WPL-40045301CP
...
23
Tape, Foam WPL-40083101
...
24
Screw WPL-WP90767
...
25
Clip, Spring (Bottom) WPL-40034202
...
26
Panel, Front (Bsq) WPL-40035401CP
...
27
Sheet- Sou WPL-WP22001817
...
28
Fastener- WPL-WP22001650
...
29
T25 Tamper Resistant Bit WPL-282P4
...
30
Torx Bit Holder WPL-24161
...
31
Hex Wrench WPL-306P4
...
32
Brace- Shp WPL-27001185
...
33
Hook, Spring WPL-289P4
...
34
Brace- Shp WPL-27001185
...
35
Drive Bell Bolt WPL-294P4B
...
36
Bell Tool WPL-294P4
...
37
Drive Bell Arms WPL-294P5A
...
38
Tub Cover Gasket Tool WPL-273P4
...
39
Terminal Extractor Tool WPL-283P4
...
40
Seal Tool WPL-293P4
...
41
10 Circuit Plug WPL-34677
...
42
Agitator Hooks WPL-254P4P

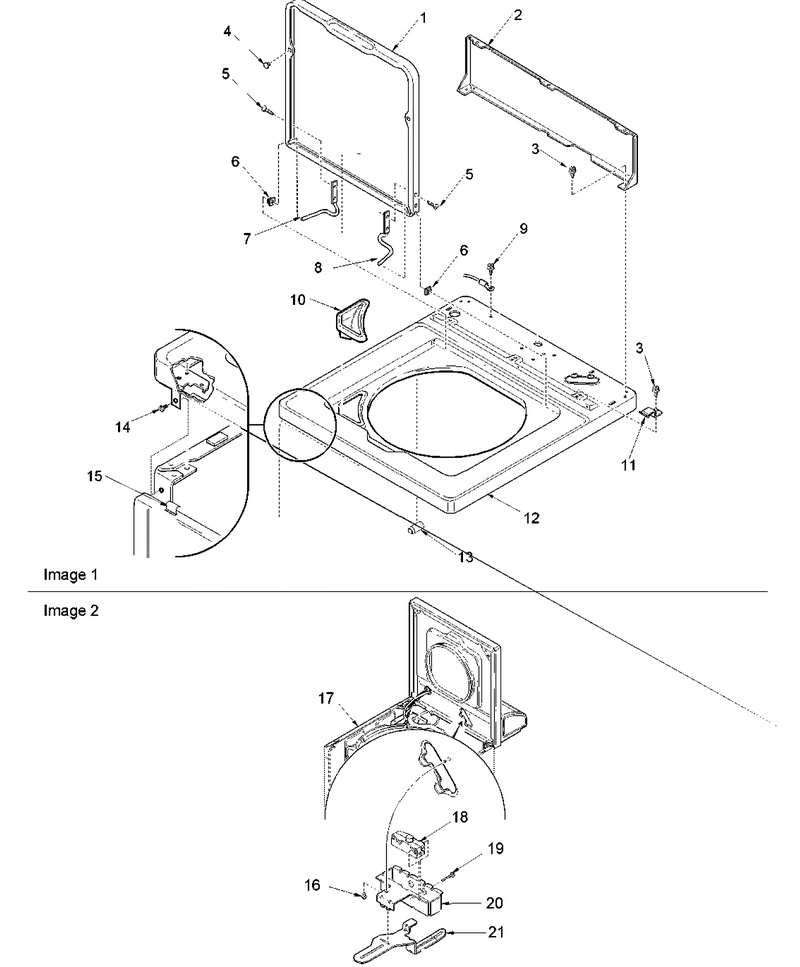

04 - Cabinet Top, Door, And Door Switch

...
...
1
Lid (Bsq) WPL-27001015
...
2
Panel,back(Home Hood) WPL-40051401P
...
3
Screw WPL-WP90767
...
4
Bumper WPL-40038001
...
5
Screw WPL-WPW10119828
...
6
Bushing, Hinge WPL-40008201
...
7
Hinge, Lid Left Stop WPL-40094002
...
8
Hinge, Lid Right Pass WPL-40094101
...
9
Screw WPL-WP3351614
...
10
Dispenser, Bleach WPL-40093901
...
11
Clip, Hold Down WPL-40063901
...
12
Top (Bsq W/l Brackets) WPL-27001183
...
13
Cap, Hinge WPL-40102101
...
14
Screw WPL-WP27001200
...
15
Fastener- WPL-WP22001650
...
16
Screw WPL-WP90767
...
17
Cabinet, Dryer & Washer (Bsq) WPL-40076402CP
...
18
Switch-Plg WPL-WP27001095
...
19
Screw, Tapping No.6b-20 WPL-40040701
...
20
Holder, Lid Switch WPL-40009801
...
21
Arm, Lid Switch WPL-40009701

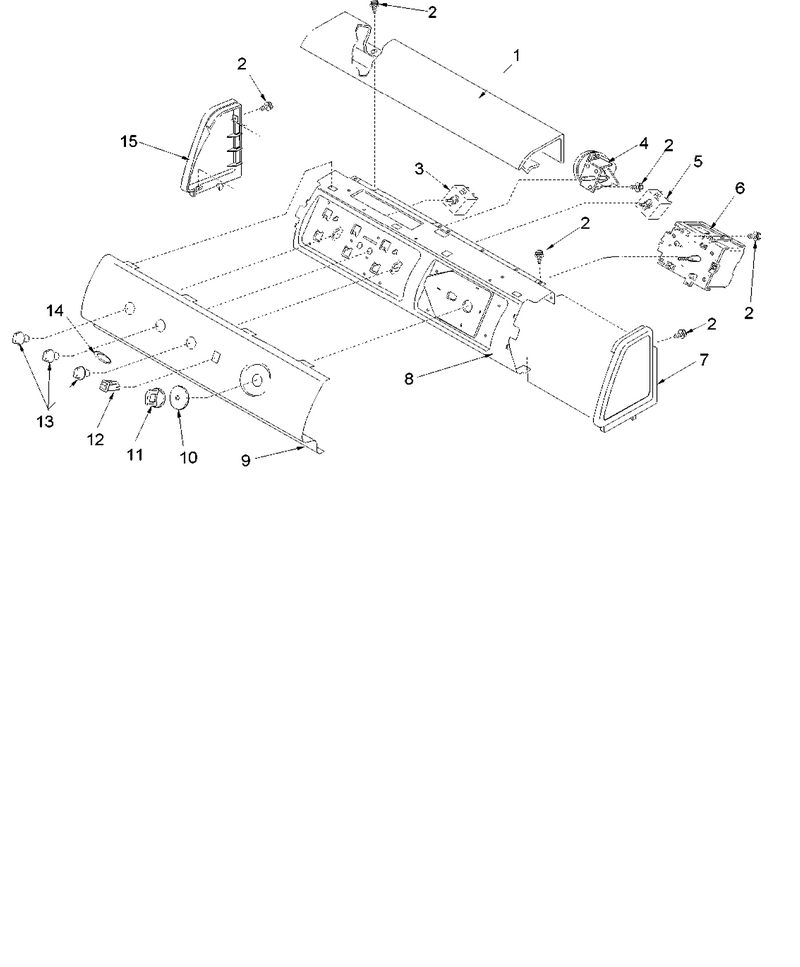

05 - Control Panels

...
...
NI
Assy,wire Harness Hood WPL-40100302
...
1
Cover, Top (Bsq) WPL-503674C
...
2
Screw WPL-WP90767
...
3
Switch, Temperature Select WPL-40077101
...
4
Switch, Pressure (3 Pos) WPL-40077201
...
6
Timer,6 Cycle(Mallory) WPL-40058701
...
7
Endcap Lt WPL-37001061
...
8
Support, Control Panel WPL-40039601
...
9
Panel,graphic-210 Mexico WPL-40122401C
...
10
Dial,timer Knob(Bisque) WPL-40013701C
...
11
Assy, Timer Knob (Bsq) WPL-40014001C
...
13
Assy, Selector Knob (Bsq)` WPL-40013401C
...
14
Medallion WPL-40083301
...
15
Endcap (Lt-Bsq) WPL-40012702C
