Amana ALG868QCW (BOM: PALG868QCW)

Model: ALG868QCW (BOM: PALG868QCW)

Save Part Not Listed?
product name

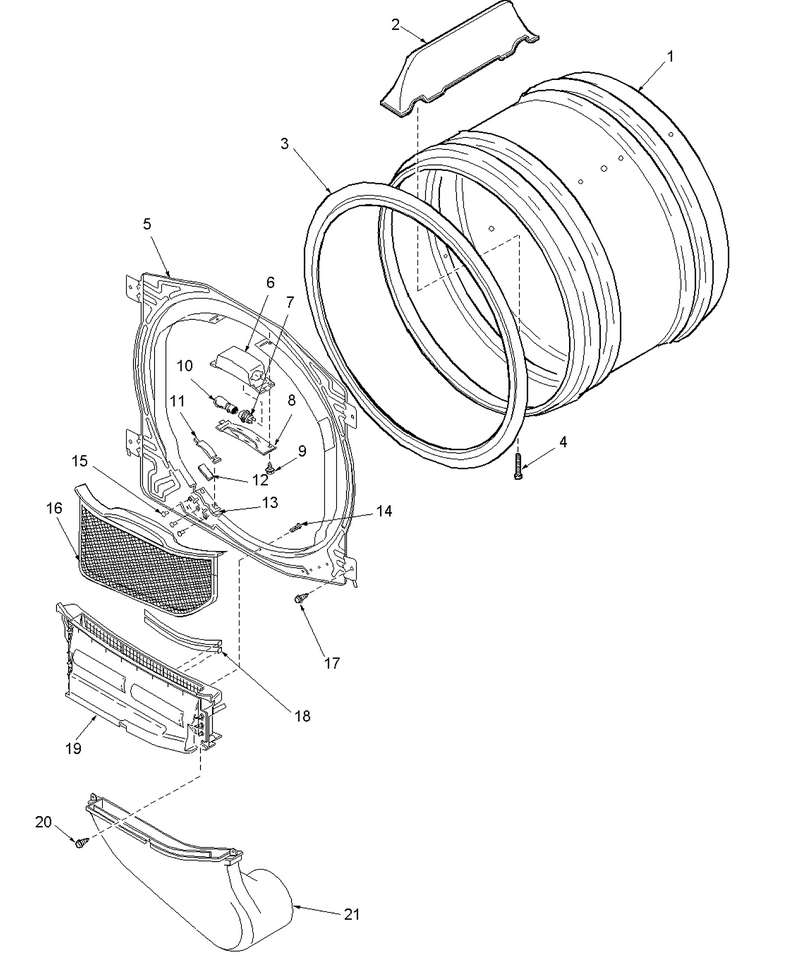

04 - Front Bulkhead, Air Duct & Drum

...
...
1
Cylinder A WPL-37001285
...
2
Baffle, Cylinder (Wht) WPL-503703
...
3
Seal- Cyli WPL-WP37001132
...
4
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
5
Bulkhead WPL-WP503616WP
...
6
Light Assembly WPL-Y504452
...
7
Light Assembly WPL-Y504452
...
8
Lens, Light WPL-40094301
...
9
Screw WPL-W10815455
...
10
Bulb-Light WPL-W10857122
...
11
Support WPL-WP37001298
...
12
Pad WPL-WP500121
...
13
Bracket WPL-12002090
...
14
Screw, 8b-16x5/8 Tap WPL-500226
...
15
Rivet, Pop 3/16 Steel WPL-504540
...
16
Filter- Li WPL-WP37001142
...
17
Screw WPL-WP3390631
...
18
Sensor, Moisture WPL-503625
...
19
Air Duct Assembly WPL-37001141
...
20
Screw, No.12 X 9/16 WPL-501285
...
21
Duct, Air Lower WPL-Y503626

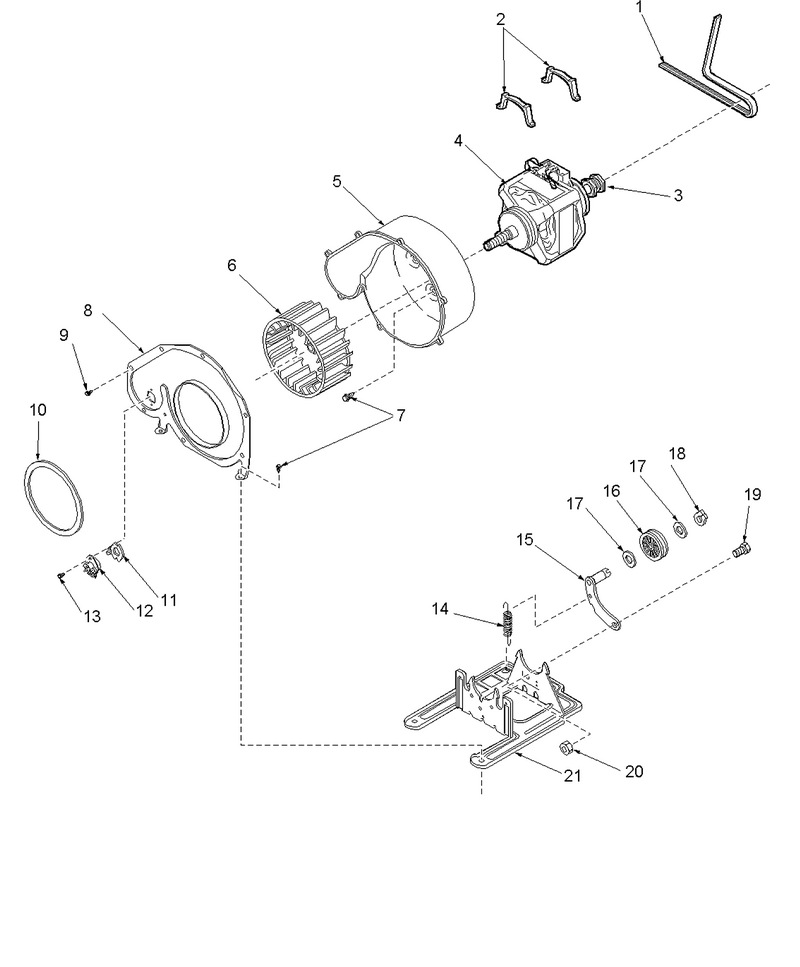

06 - Motor And Fan Assemblies

...
...
1
Belt WPL-WP40111201
...
2
Clamp WPL-WP660658
...
3
Motor-Drve WPL-WP2200376
...
4
Motor-Drve WPL-WP2200376
...
5
Housing, Blower WPL-56020
...
6
Assembly, Blower Fan WPL-56000
...
7
Screw WPL-WP27001200
...
8
Cover, Blower Housing WPL-500078
...
9
Screw, No.8 X 3/8 Ind H WPL-31260
...
10
Seal, Blower Housing WPL-37001119
...
11
Heatr-Stat WPL-WP61623
...
12
Thermostat WPL-WP503979
...
13
Screw WPL-WP489464
...
14
Spring- Id WPL-WP56076
...
15
Asy- Idler WPL-WP37001144
...
16
Pulley-Idr WPL-WPY54414
...
17
Washer WPL-WP233520
...
18
Ring- Reta WPL-WP23748
...
19
Complete R WPL-WFR500824
...
20
Nut WPL-WPW10139757
...
21
Mount, Motor WPL-503613

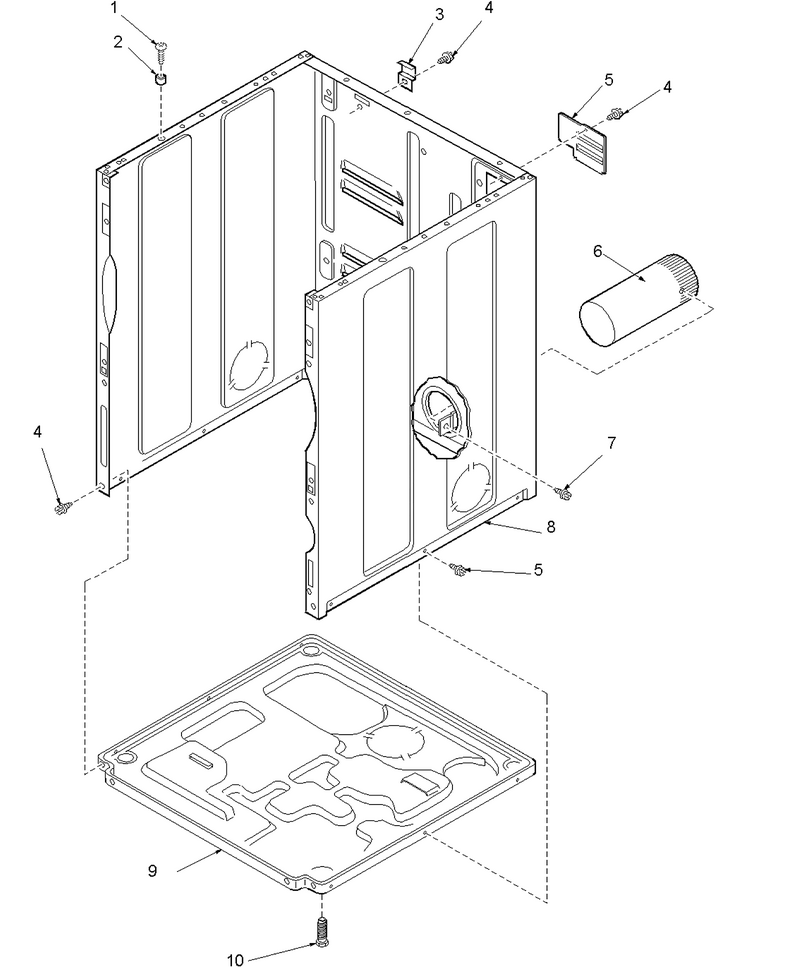

01 - Cabinet And Base

...
...
NI
Relief, Strain WPL-38384
...
1
Screw WPL-WPY014874
...
2
Locator, Panel WPL-505187
...
3
Hinge, Top WPL-500003
...
4
Screw WPL-WP27001200
...
5
Plate, Access Cover WPL-503293
...
6
Duct, Exhaust WPL-505518
...
7
Screw WPL-WP3390631
...
8
Cabinet As Pack WPL-37001284
...
9
Base, Dryer WPL-500070
...
10
Leg, Leveling (Plastic) WPL-Y500101

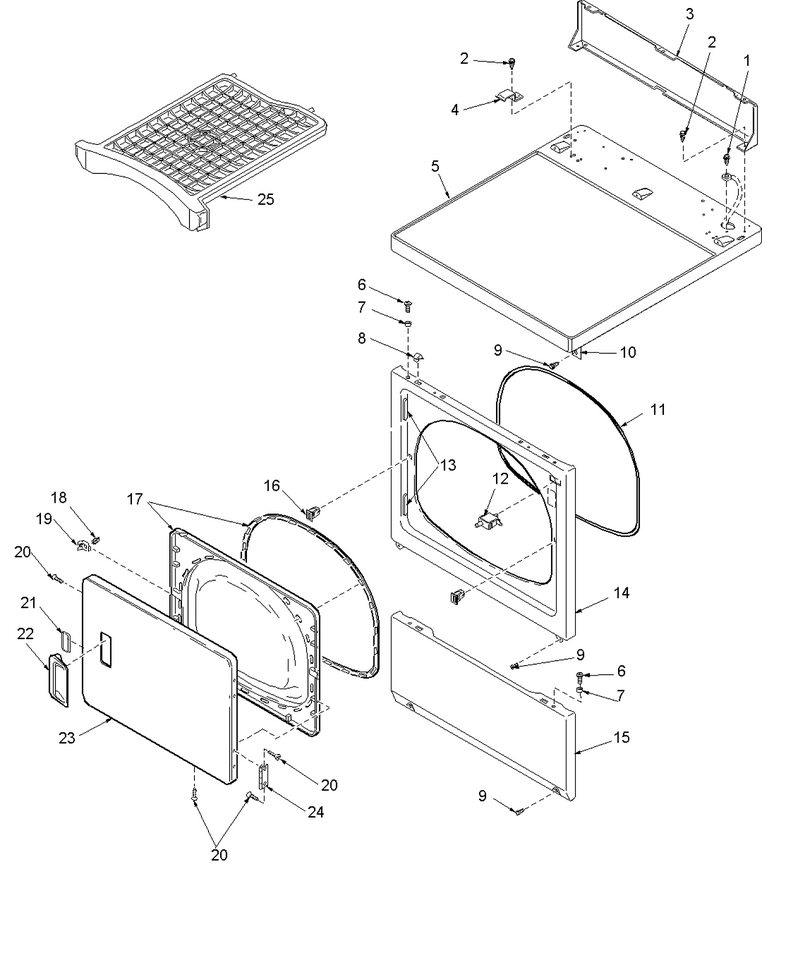

03 - Door And Front, Access, And Top Panels

...
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WP90767
...
3
Panel,back(Home Hood) WPL-40051401P
...
4
Clip, Hold Down WPL-Y503876
...
5
Assy,top Panel(White) WPL-40110201WP
...
6
Screw WPL-WPY014874
...
7
Locator, Panel WPL-505187
...
8
Fastener- WPL-WP22001650
...
9
Screw WPL-WP27001200
...
10
Shock Susp WPL-WFR500084
...
11
Seal WPL-W10856845
...
12
Switch-Dor WPL-W10169313
...
13
Plug, Hinge Hole WPL-503126
...
14
Panel, Front (Wht) WPL-503656WP
...
15
Assy,panel Access(White) WPL-40110401WP
...
16
Door Catch La-1003 WPL-LA-1003
...
17
Seal & Liner, Assy(Inner Door) WPL-37001028
...
18
Strike WPL-WP500039
...
19
Bracke, Door Strike WPL-500223
...
20
Screw, 8b-16x5/8 Tap WPL-500226
...
21
Wedge, Door Handle WPL-505328
...
22
Pull, Door (Wht) WPL-R9800012
...
23
Assy,door Dryer(White) WPL-40110301W
...
24
Hinge, Door & Top WPL-Y503676

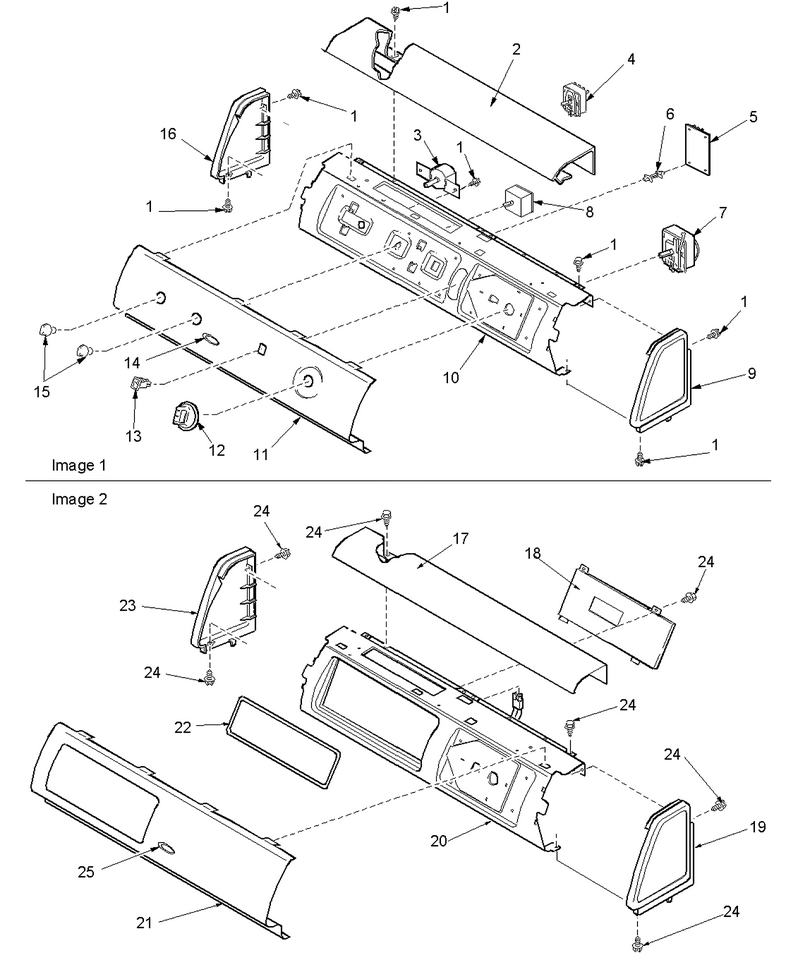

02 - Control Panel

...
...
NI
Harness, Hood Wire WPL-40092601
...
1
Screw WPL-WP90767
...
2
Cover, Top (Wht) WPL-503674W
...
3
Switch, Temperature Select WPL-62173
...
4
Switch, Signal WPL-504166
...
5
Assy,moist Sensor Board WPL-40084301
...
6
Support, Circuit Board WPL-501523
...
7
Timer, 5 Cycle WPL-40112801
...
9
Endcap (Rt-Wht) WPL-40012701W
...
10
Panel,support WPL-40039611
...
11
Panel,graphic(White) WPL-40109903W
...
12
Assy, Timer Knob (Wht) WPL-40013601W
...
13
Switch, Rocker (Wht) WPL-38424W
...
14
Medallion WPL-40083301
...
15
Assy, Selector Knob (Wht) WPL-40013401W
...
16
Endcap (Lt-Wht) WPL-40012702W
...
25
Medallion WPL-40083301

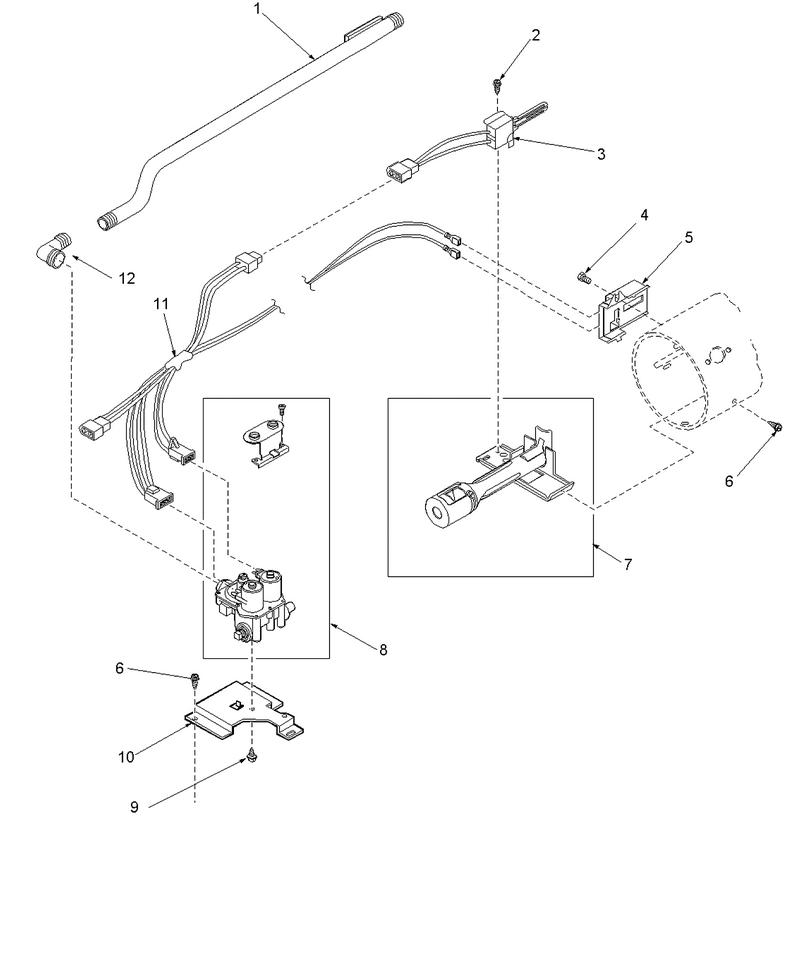

05 - Gas Valve, Igniter & Gas Conversion Kit

...
...
NI
Harness, Wire (Gas Valve) WPL-37001007
...
1
Pipe, Lead-In WPL-500647
...
2
Screw, 6b-20x5/16 WPL-51782
...
3
Ignitor WPL-WP37001308
...
4
Screw WPL-WP3177991
...
5
Sensor WPL-WP338906
...
6
Screw WPL-WP3390631
...
7
Assembly, Burner WPL-Y56234
...
8
Assembly, Gas Valve WPL-Y504091
...
9
Screw WPL-WP489128
...
10
Complete T WPL-WFR500821
...
11
Harness, Wire (Gas Valve) WPL-37001007
...
12
Elbow, Brass WPL-40049801

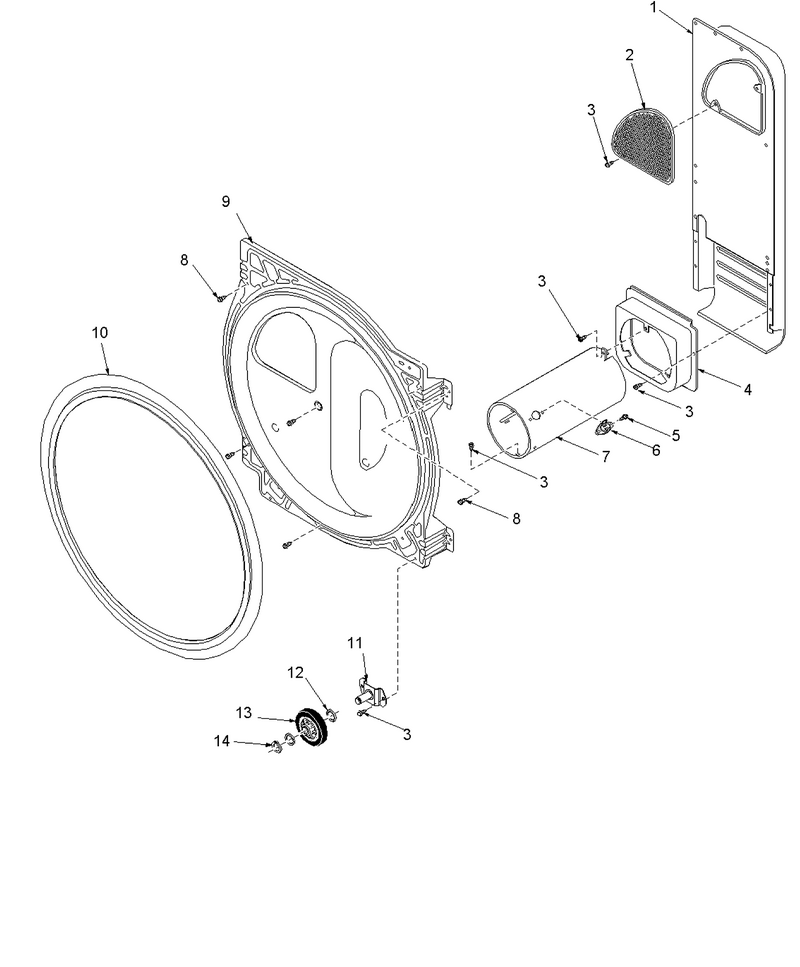

07 - Rear Bulkhead, Rollers & Air Duct Assy

...
...
1
Duct, Heat WPL-503490
...
2
Cover, Heat Duct WPL-500074
...
3
Screw WPL-WP3390631
...
4
Shroud, Heat Duct WPL-500122
...
5
Screw, 6b-20x5/16 WPL-51782
...
6
Thermostat, Limit WPL-Y61886
...
7
Duct, Combustion WPL-Y61888
...
8
Screw WPL-WP27001200
...
9
Bulkhead, Rear WPL-502614WP
...
10
Seal- Cyli WPL-WP37001132
...
11
Brakt-Roll WPL-WP40113601
...
12
Washer WPL-WP233520
...
13
Support WPL-WP37001042
...
14
Ring- Reta WPL-WP23748
