Amana ALG643RMC1 (BOM: PALG643RMC1)

Model: ALG643RMC1 (BOM: PALG643RMC1)

Save Part Not Listed?
product name

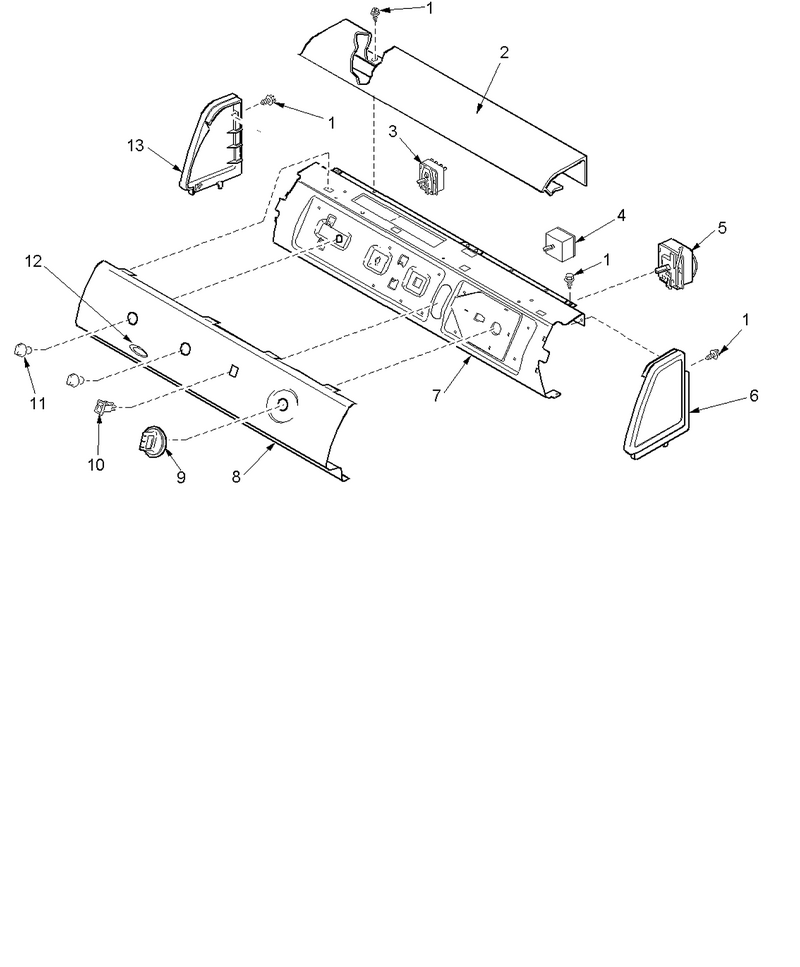

02 - Control Panel

...
...
NI
Harness, Wire WPL-40011702
...
1
Screw WPL-WP90767
...
2
Cover, Top (Bsq) WPL-503674C
...
3
Switch, Temp Selector WPL-40084201
...
4
Buzzer, Adjustable WPL-40070501
...
5
Timer WPL-R0000410
...
6
Endcap Lt WPL-37001061
...
7
Panel, Support WPL-40039610
...
8
Panel, Graphic (Bsq) WPL-40092101C
...
9
Assy, Timer Knob (Bsq) WPL-40013601C
...
10
Switch, Rocker (Bsq) WPL-38424L
...
11
Knob, Selector (Bsq) WPL-40013402C
...
12
Medallion WPL-40083301
...
13
Endcap (Lt-Bsq) WPL-40012702C

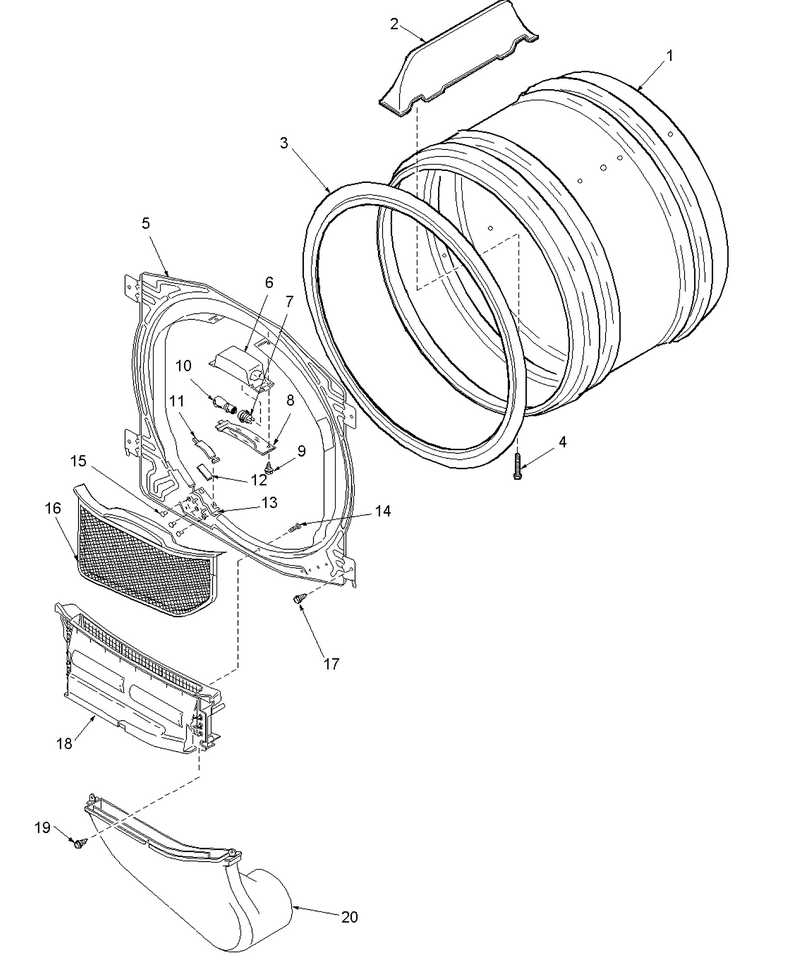

04 - Front Bulkhead, Air Duct & Drum

...
...
1
Cylinder A WPL-37001285
...
2
Baffle, Cylinder (Wht) WPL-503703
...
3
Seal- Cyli WPL-WP37001132
...
4
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
5
Bulkhead WPL-WP503616WP
...
6
Light Assembly WPL-Y504452
...
7
Light Assembly WPL-Y504452
...
8
Lens, Light WPL-40094301
...
9
Screw WPL-W10815455
...
10
Bulb-Light WPL-W10857122
...
11
Support WPL-WP37001298
...
12
Pad WPL-WP500121
...
13
Bracket WPL-12002090
...
14
Screw, 8b-16x5/8 Tap WPL-500226
...
15
Screw WPL-W10815455
...
16
Filter- Li WPL-WP37001142
...
17
Screw WPL-WP3390631
...
18
Air Duct Assembly WPL-37001141
...
20
Duct, Air Lower WPL-Y503626

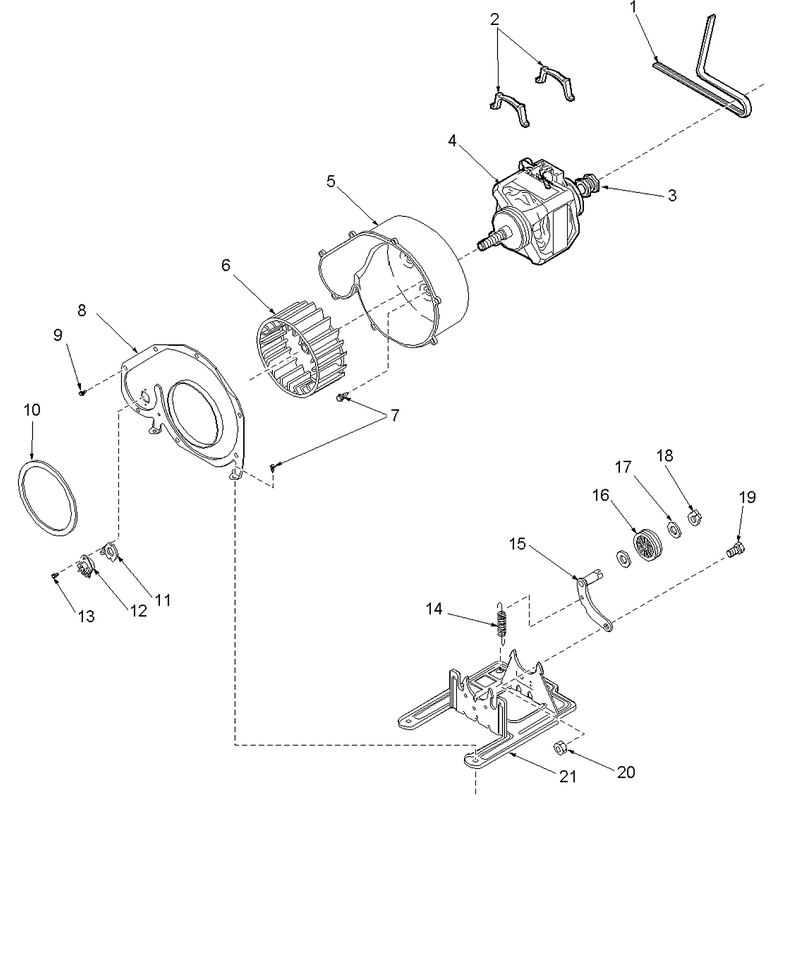

06 - Motor And Fan Assemblies

...
...
1
Belt WPL-WP40111201
...
2
Clamp WPL-WP660658
...
3
Motor-Drve WPL-WP2200376
...
4
Motor-Drve WPL-WP2200376
...
5
Housing, Blower WPL-56020
...
6
Assembly, Blower Fan WPL-56000
...
7
Screw WPL-WP27001200
...
8
Cover, Blower Housing WPL-500078
...
9
Screw, No.8 X 3/8 Ind H WPL-31260
...
10
Seal, Blower Housing WPL-37001119
...
11
Heatr-Stat WPL-WP61623
...
12
Thermostat WPL-WP503979
...
13
Screw, No.8 X 3/8 Ind H WPL-31260
...
14
Spring- Id WPL-WP56076
...
15
Asy- Idler WPL-WP37001144
...
16
Pulley-Idr WPL-WPY54414
...
17
Washer WPL-WP233520
...
18
Ring- Reta WPL-WP23748
...
19
Complete R WPL-WFR500824
...
20
Nut WPL-WPW10139757
...
21
Mount, Motor WPL-503613

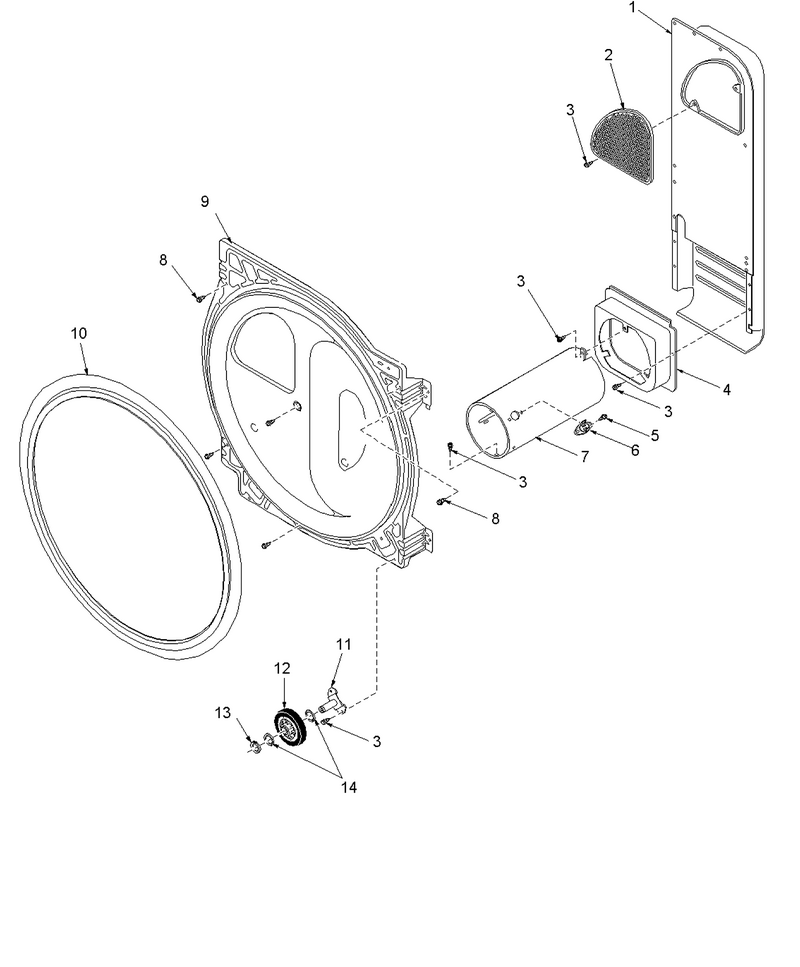

07 - Rear Bulkhead, Rollers & Air Duct Assy

...
...
1
Duct, Heat WPL-503490
...
2
Cover, Heat Duct WPL-500074
...
3
Screw WPL-WP3390631
...
4
Shroud, Heat Duct WPL-500122
...
5
Screw, 6b-20x5/16 WPL-51782
...
6
Thermostat, Limit WPL-Y61886
...
7
Duct, Combustion WPL-Y61888
...
8
Screw WPL-WP27001200
...
9
Bulkhead, Rear WPL-502614WP
...
10
Seal- Cyli WPL-WP37001132
...
11
Brakt-Roll WPL-WP40113601
...
12
Support WPL-WP37001042
...
13
Ring- Reta WPL-WP23748
...
14
Washer WPL-WP233520

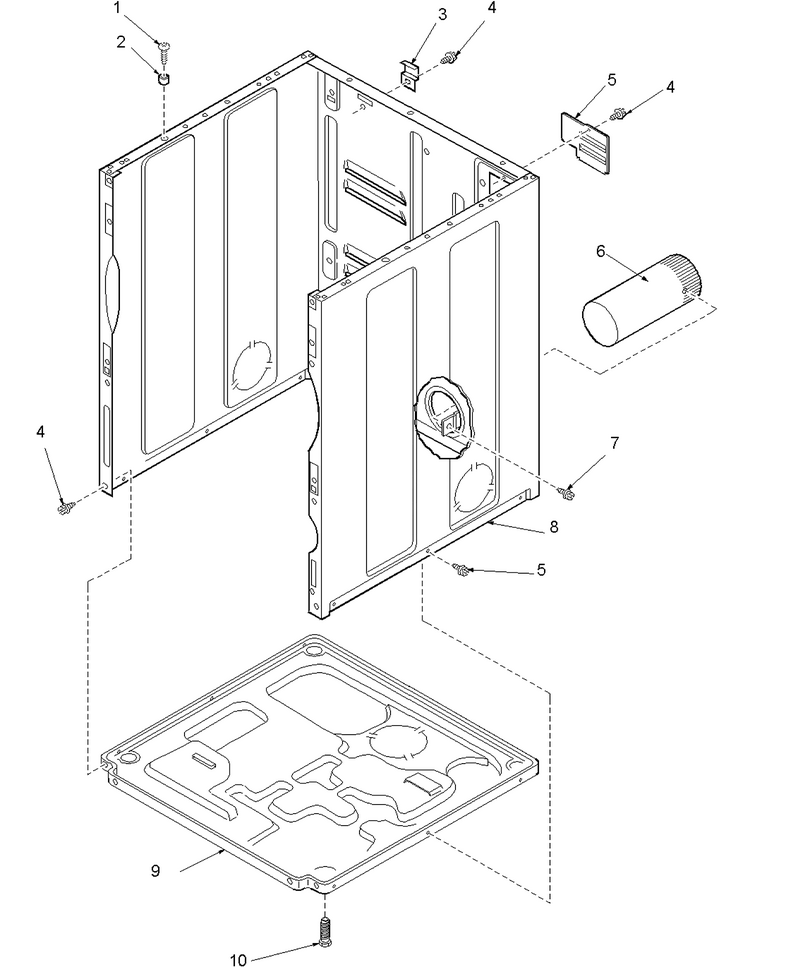

01 - Cabinet And Base

...
...
NI
Relief, Strain WPL-38384
...
1
Screw WPL-WPY014874
...
2
Locator, Panel WPL-505187
...
3
Hinge, Top WPL-500003
...
4
Screw WPL-WP27001200
...
5
Plate, Access Cover WPL-503293
...
6
Duct, Exhaust WPL-505518
...
7
Screw WPL-WP3390631
...
8
Cabinet, Dryer & Washer (Bsq) WPL-40076402CP
...
9
Base, Dryer WPL-500070
...
10
Leg, Leveling (Plastic) WPL-Y500101

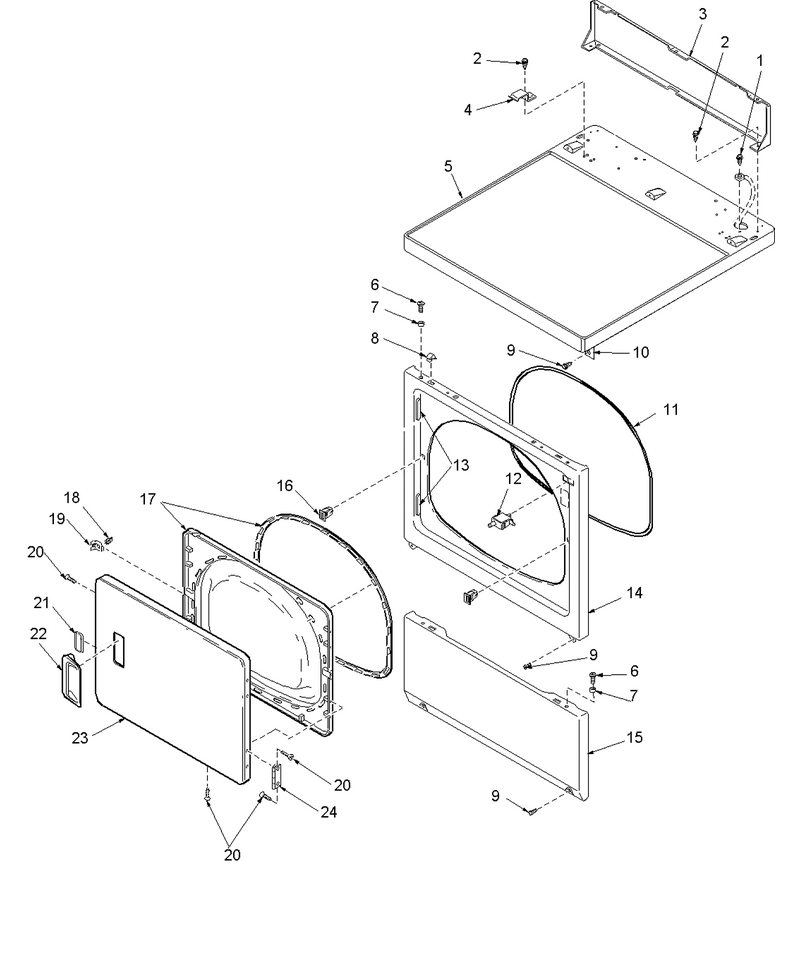

03 - Door And Front, Access, And Top Panels

...
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WP90767
...
3
Panel, Home Hood Back WPL-40121401
...
4
Clip, Hold Down WPL-Y503876
...
5
Panel, Top (Bsq) WPL-37001033
...
6
Screw WPL-WPY014874
...
7
Locator, Panel WPL-505187
...
8
Fastener- WPL-WP22001650
...
9
Screw WPL-WP27001200
...
10
Bracket,top Mount WPL-40130801
...
11
Seal WPL-W10856845
...
12
Switch-Dor WPL-W10169313
...
13
Plug, Hinge Hole WPL-503126
...
14
Panel, Front (Bsq) WPL-503656CP
...
15
Panel, Access (Bsq) WPL-40045301CP
...
16
Door Catch La-1003 WPL-LA-1003
...
17
Seal & Liner, Assy(Inner Door) WPL-37001028
...
18
Strike WPL-WP500039
...
19
Bracket,door Strike WPL-40116201
...
20
Screw, 8b-16x5/8 Tap WPL-500226
...
21
Wedge, Door Handle WPL-505328
...
22
Pull, Door (Bsq) WPL-503646C
...
23
Door Handl WPL-12002135
...
24
Hinge, Door & Top WPL-Y503676

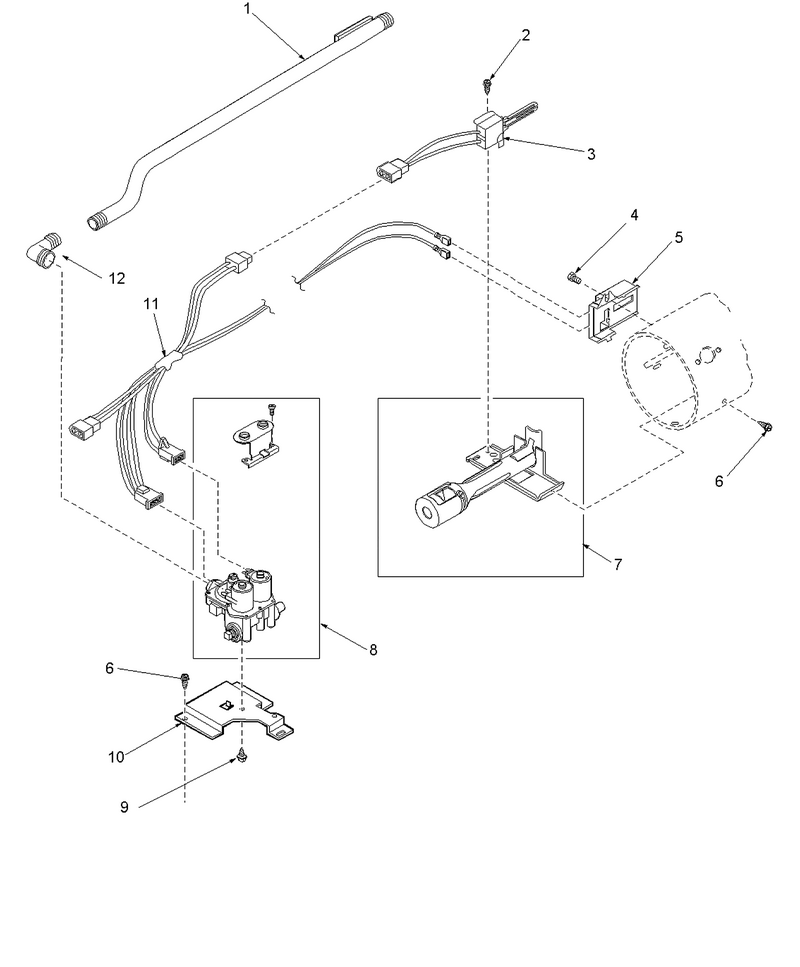

05 - Gas Valve, Igniter & Gas Conversion Kit

...
...
1
Pipe, Lead-In WPL-500647
...
2
Screw, 6b-20x5/16 WPL-51782
...
3
Ignitor WPL-WP37001308
...
4
Screw WPL-WP3177991
...
5
Sensor WPL-WP338906
...
6
Screw WPL-WP3390631
...
7
Assembly, Burner WPL-Y56234
...
8
Assembly, Gas Valve WPL-Y504091
...
9
Screw WPL-WP489128
...
10
Complete T WPL-WFR500821
...
11
Harness, Wire (Gas Valve) WPL-37001007
...
12
Elbow, Brass WPL-40049801
