Amana ALD510D (BOM P1331003M)

Model: ALD510D (BOM P1331003M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

03 - Electrical Components

...
...
NI
Foam WPL-56001449
...
001
Screw WPL-56001470
...
002
Foam WPL-56001451
...
003
Fuse, 12 Amp WPL-M0805105
...
004
Thermal Cut-Out, Cavity WPL-56001426
...
005
Screw WPL-W10491985
...
006
Motor, Stirrer WPL-56001460
...
007
Powercord (Eu) WPL-56001476
...
008
Screw WPL-56001461
...
009
Air Deflector- Rear WPL-56001428
...
010
Screw WPL-8169475
...
011
Screw WPL-WP56001173
...
012
Wrapper WPL-56001429
...
013
Screw WPL-8169475
...
014
Blower Motor Assy WPL-56001459
...
015
Thermal Cut-Out, Mag WPL-56001432
...
016
Magnetron WPL-56001462
...
017
Bulb/ Socket Assy WPL-56001463
...
018
Interlock Switch Assembly WPL-56001413
...
019
Capacitor Hv WPL-56001464
...
020
Diode Hv WPL-56001436
...
021
Transformer Hv WPL-56001465
...
022
Screw WPL-WP56001173
...
023
Screw WPL-56001222
...
024
Base WPL-56001466
...
025
Foot, Base WPL-56001224
...
026
Hinge, Lower WPL-56001439
...
027
Air Guide WPL-56001440
...
028
Rivet Assy WPL-56001450
...
029
Tray Assy WPL-56001441
...
030
Cover/stirrer Blade-Kit/rivets WPL-12002625
...
032
Screw WPL-56001153
...
033
Holder, Capacitor WPL-56001467
...
034
Nut, Hinge WPL-56001051
...
035
Fuse Block / Filter Assy WPL-56001468
...
036
Foam WPL-56001449
...
037
Harness Main WPL-56001469
...
038
Screw WPL-WP56001173
...
039
Supporter Wire WPL-56001447
...
040
Screw WPL-56001470
...
041
Foam WPL-56001473
...
042
Fuse Hv WPL-56001474
...
043
Relay Assembly WPL-56001480
...
044
Foot Cover WPL-56001482
...
045
Foam WPL-56001483

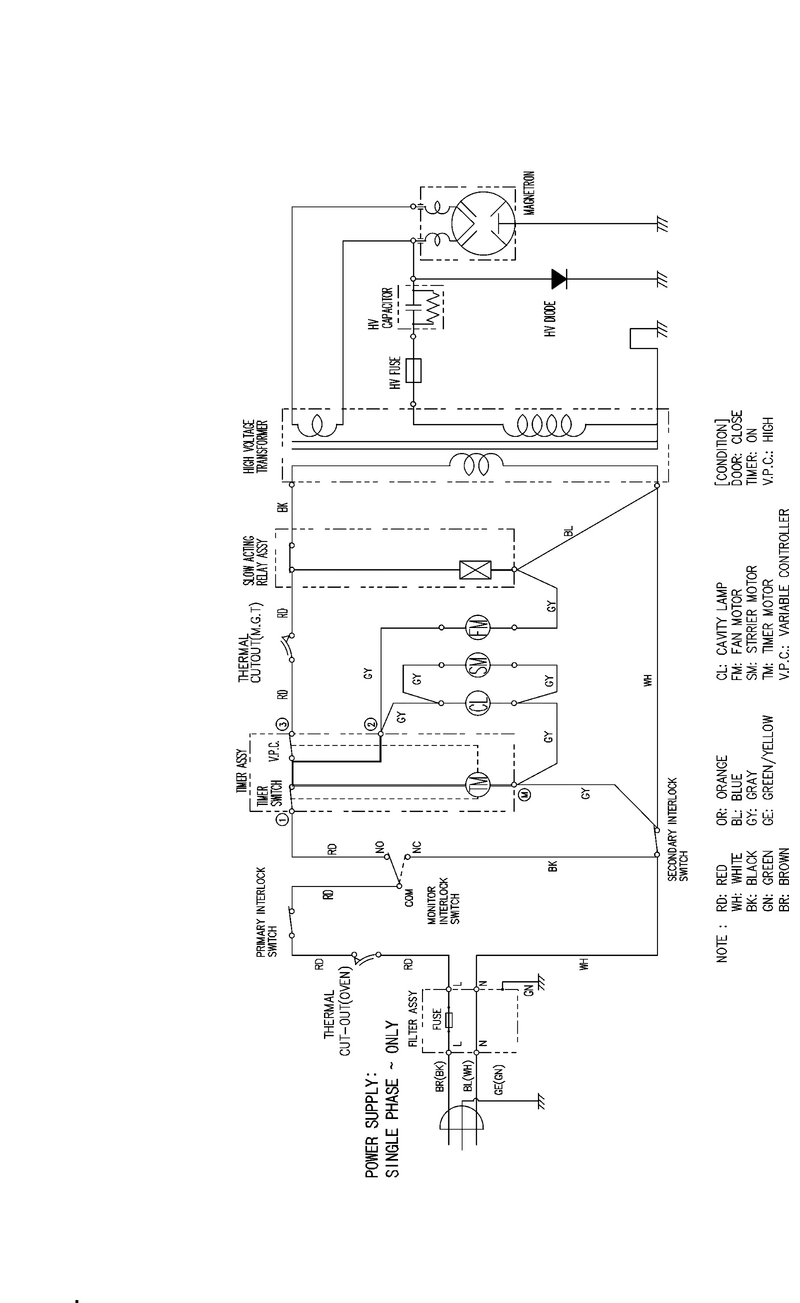

05 - Wiring Information

...
...
NI
Wiring Information WPL-NLA

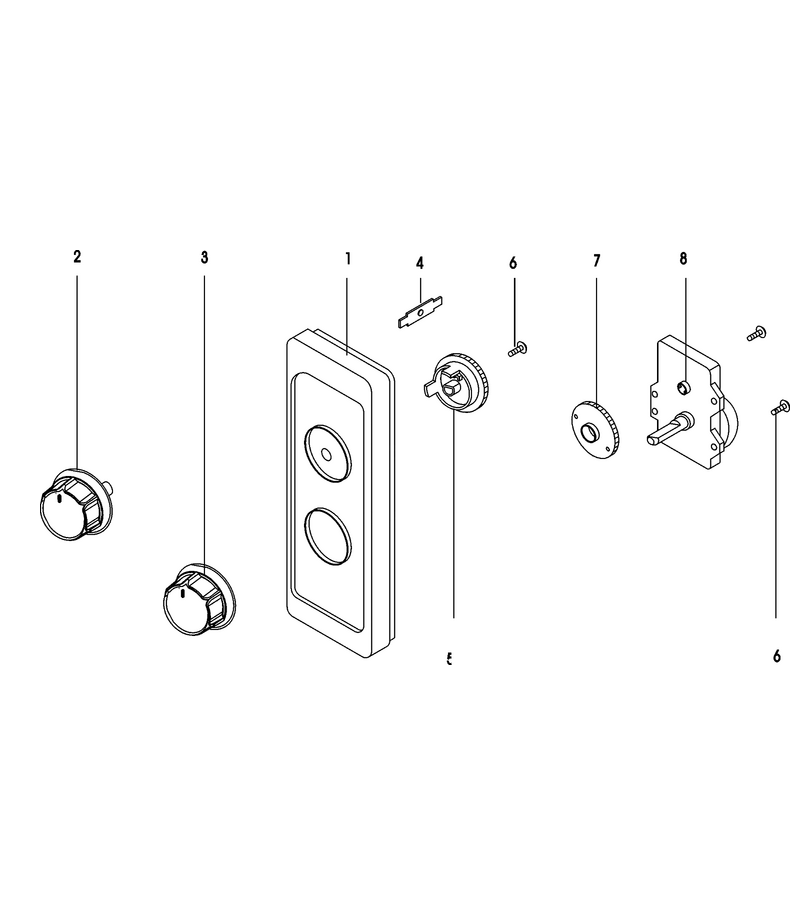

02 - Control Panel

...
...
001
Control Panel Assembly WPL-56001418
...
002
Knob-Vpc WPL-56001416
...
003
Knob WPL-56001417
...
004
Spring Flat WPL-56001419
...
005
Coupler Vpc Knob WPL-56001420
...
006
Screw WPL-8169475
...
007
Coupler Timer WPL-56001421
...
008
Timer, Dial WPL-56001458

...
...
001
Svc Man, Intl Comm Micro WPL-16026969
...
002
Tech Sht, Intl Comm Micro Dial WPL-16026970

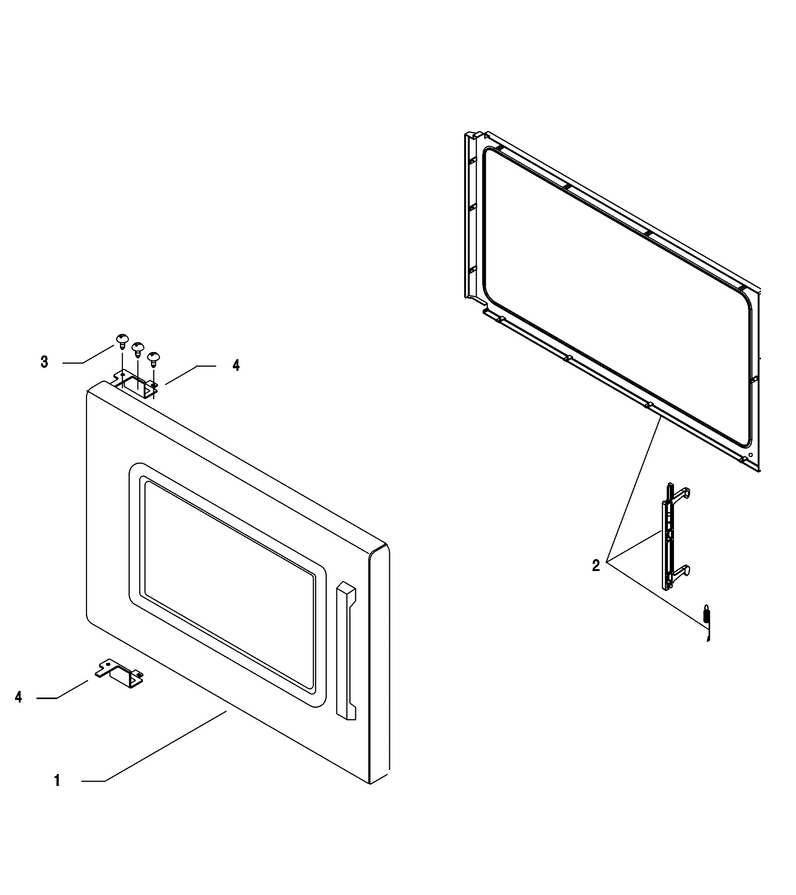

01 - Door

...
...
001
Door Assy WPL-56001423
...
002
Spring/latch/choke Cover Kit WPL-12002624
...
003
Screw WPL-56001217
