Amana ALD10D (BOM: P1331011M)

Model: ALD10D (BOM: P1331011M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

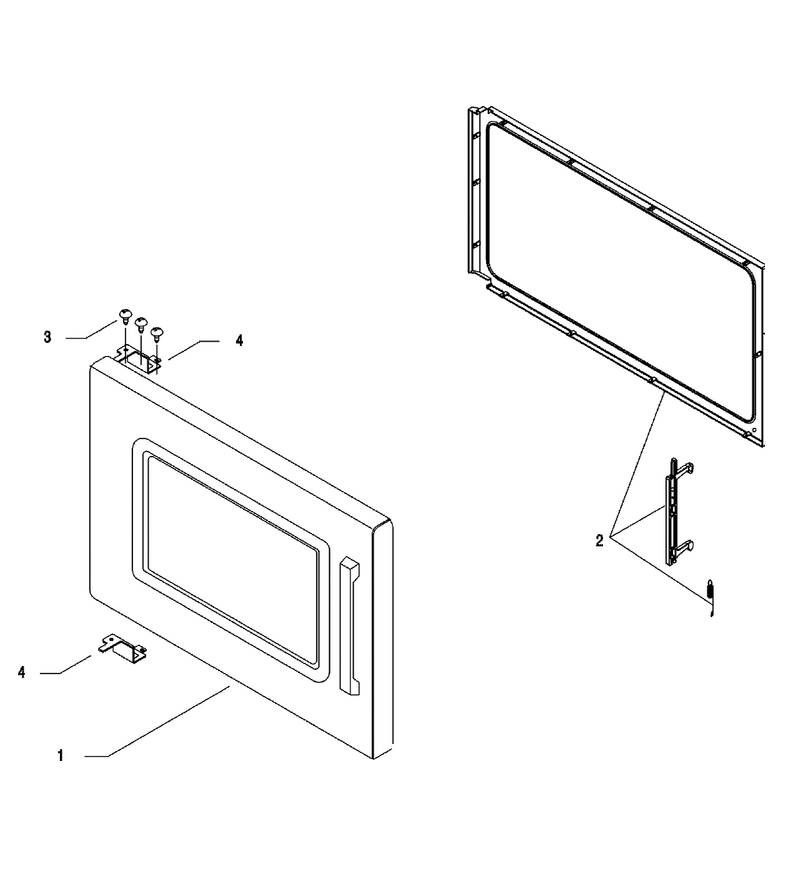

02 - Door

...
...
1
Door Assy WPL-56001423
...
2
Spring/latch/choke Cover Kit WPL-12002624
...
3
Screw WPL-56001217
...
4
Cap, Top Hinge WPL-56001409

...
...
1
Svr Man, Comm Microwave WPL-16025638
...
2
Tech Sht, Comm Micro Electr WPL-16025640

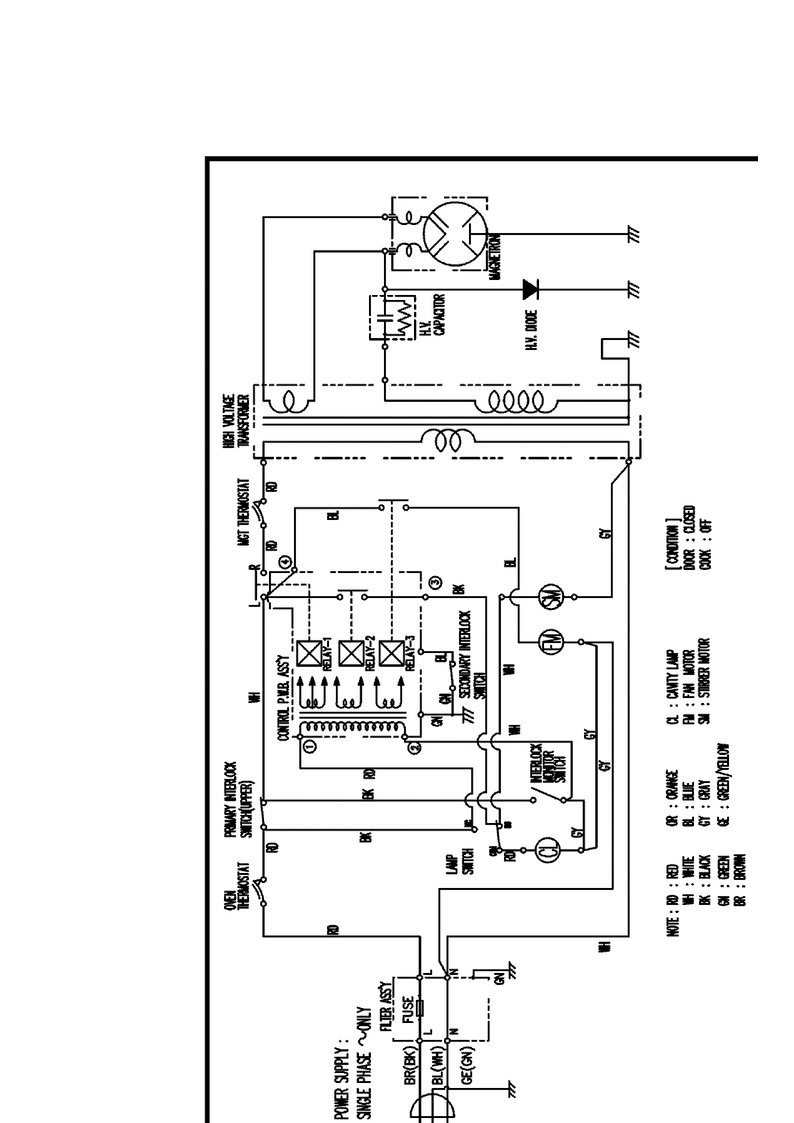

05 - Wiring Information

...
...
NI
Wiring Information WPL-15003851

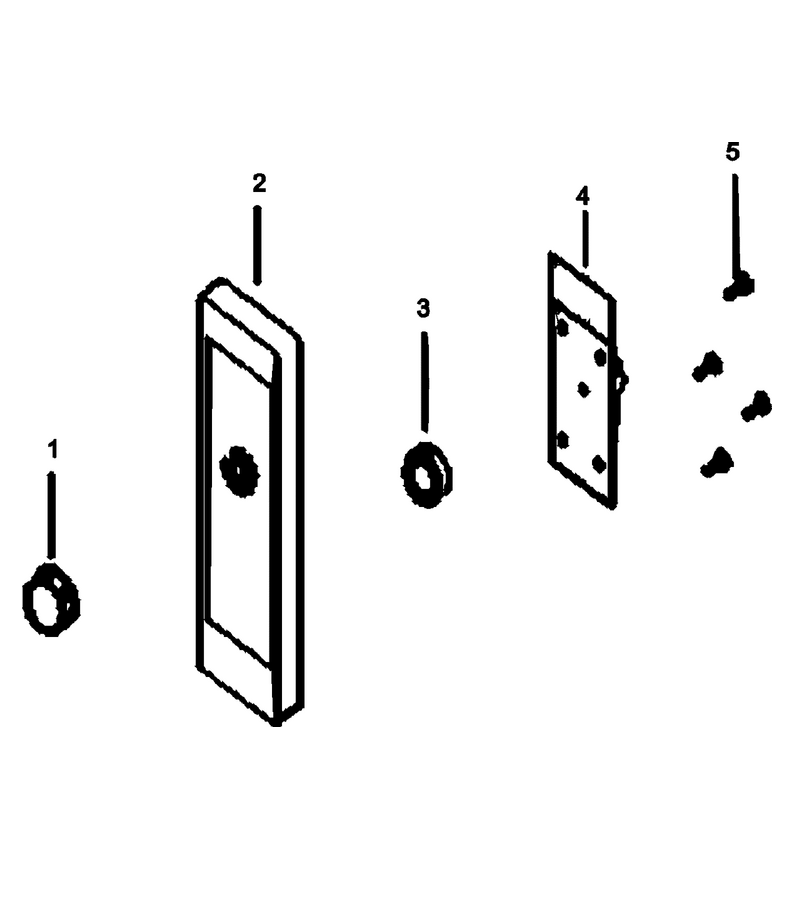

01 - Control Panel

...
...
1
Knob WPL-56001484
...
2
Touch Panel Assembly WPL-56001455
...
3
Holder Led WPL-56001485
...
4
Circuit Board WPL-56001486
...
5
Screw WPL-8169475

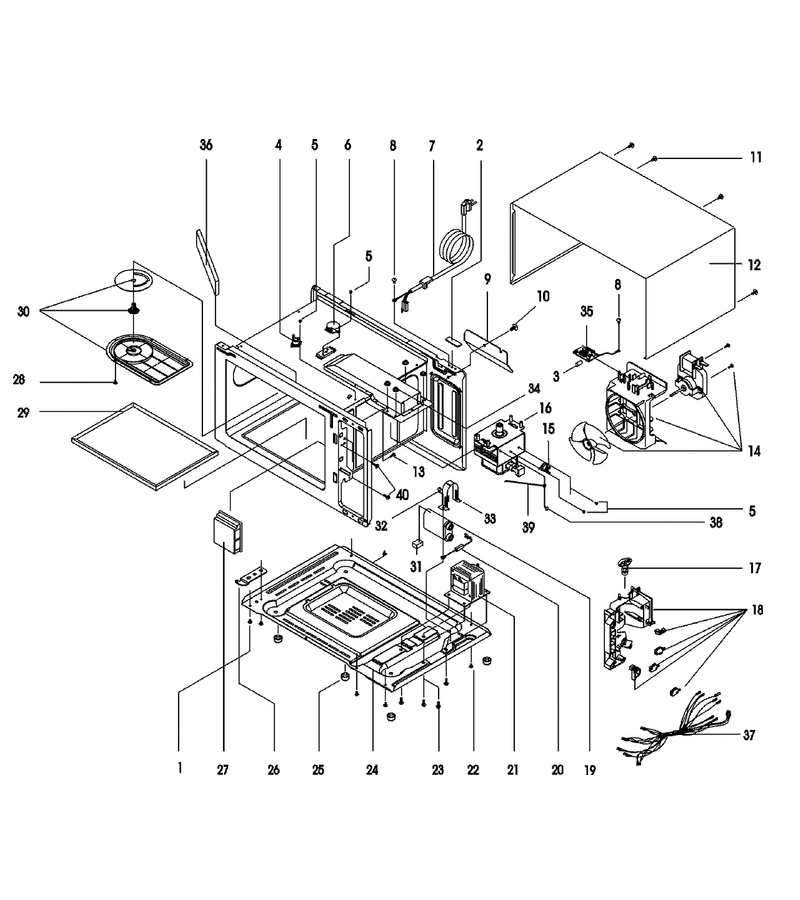

03 - Electrical Components

...
...
1
Screw WPL-56001217
...
2
Foam WPL-56001451
...
3
Fuse WPL-WP8183507
...
4
Thermal Cut-Out, Cavity WPL-56001426
...
5
Screw WPL-W10491985
...
6
Motor, Stirrer WPL-56001337
...
7
Powercord WPL-56001454
...
8
Screw WPL-56001217
...
9
Air Deflector- Rear WPL-56001428
...
10
Screw WPL-8169475
...
11
Screw WPL-WP56001173
...
12
Wrapper WPL-56001429
...
13
Screw WPL-8169475
...
14
Blower Motor Assy WPL-56001411
...
15
Thermal Cut-Out, Mag WPL-56001432
...
16
Magnetron WPL-56001433
...
17
Bulb/ Socket Assy WPL-56001034
...
18
Interlock Switch Assembly WPL-56001413
...
19
Capacitor- 1.05 Mf WPL-56001435
...
20
Diode Hv WPL-56001436
...
21
Transformer Hv WPL-56001437
...
22
Screw WPL-WP56001173
...
23
Screw WPL-56001222
...
24
Base WPL-56001438
...
25
Foot, Base WPL-56001456
...
26
Hinge, Lower WPL-56001439
...
27
Air Guide WPL-56001440
...
28
Rivet Assy WPL-56001450
...
29
Tray Assy WPL-56001441
...
30
Cover/stirrer Blade-Kit/rivets WPL-12002625
...
31
Foam WPL-56001449
...
32
Screw WPL-56001217
...
33
Holder, Capacitor WPL-56001218
...
34
Nut, Hinge WPL-56001051
...
35
Fuse Block / Filter Assy WPL-56001444
...
36
Foam Upper WPL-56001445
...
37
Harness Main WPL-56001453
...
38
Screw WPL-WP56001173
...
39
Supporter Wire WPL-56001447
...
40
Screw WPL-56001448
