Amana AKT3650SS (BOM: PAKT3650SS1)

Model: AKT3650SS (BOM: PAKT3650SS1)

Save Part Not Listed?
product name

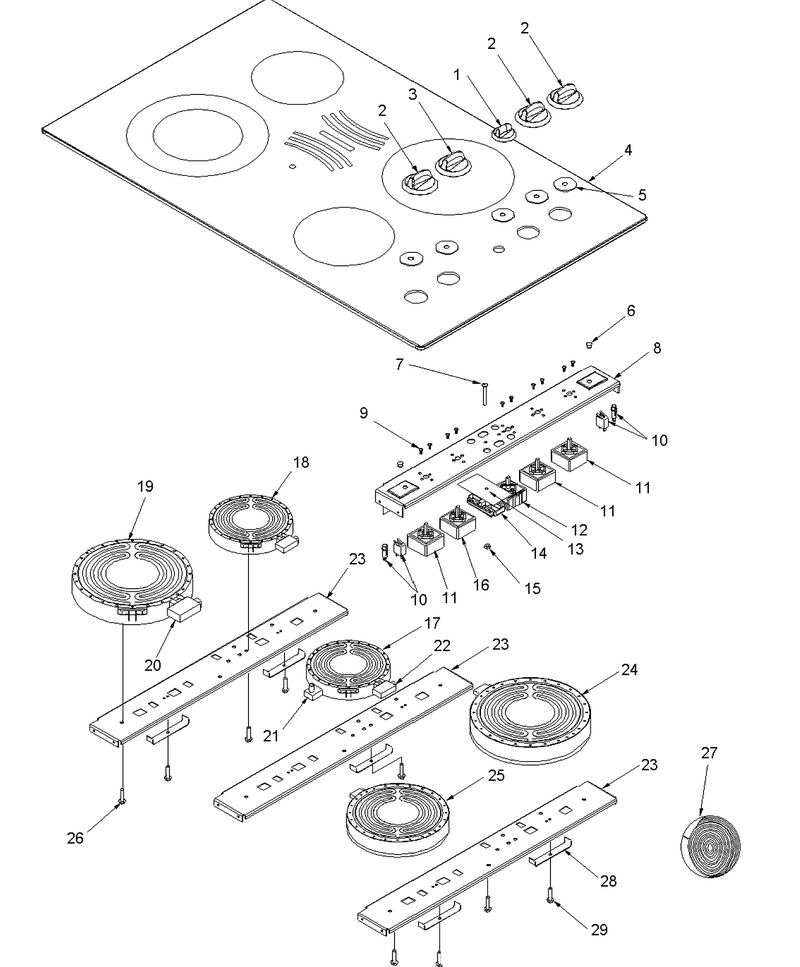

01 - Cooktop Assembly

...
...
NI
Screw, No.6-20 X .625 Truss Hd WPL-31750321
...
1
Knob,warm Zone(Black) WPL-31918405B
...
2
Knob,infinite(Black) WPL-31926601B
...
3
Knob,dual Infinite(Black) WPL-31926603B
...
4
Assy,main Top/trim-36``(Stn Stl WPL-32069201SS
...
5
Seal, Inlet WPL-Y0308941
...
7
Screw WPL-M0227520
...
8
Bracket,control Mtg WPL-32049801
...
9
Screw WPL-WP488234
...
10
Light,indicator WPL-32049701
...
11
Switch- In WPL-WP74011243
...
12
Switch, Infinite (120p-1241) WPL-32064302
...
14
Light, Indicator WPL-Y0307442
...
15
Nut WPL-WP7103P070-60
...
16
Switch-Inf WPL-12002422
...
17
Element, Warming Zone WPL-32007002
...
18
Elmnt-Surf WPL-WP32082801
...
19
Elmnt-Surf WPL-W10823726
...
20
Limiter-Dual WPL-0316689
...
21
Light,indicator-Hot Surface WPL-31913001
...
22
Limiter, Temp. (4) WPL-8053620
...
23
Bracket, Element Mtg. WPL-31911601
...
24
Elmnt-Surf WPL-W10823710
...
25
Elmnt-Surf WPL-W10823699
...
26
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
27
Tape, Inch WPL-74007878
...
28
Spring, Element WPL-Y0306683
...
29
Screw, No.8-18 X 3/8 Pph WPL-31750425

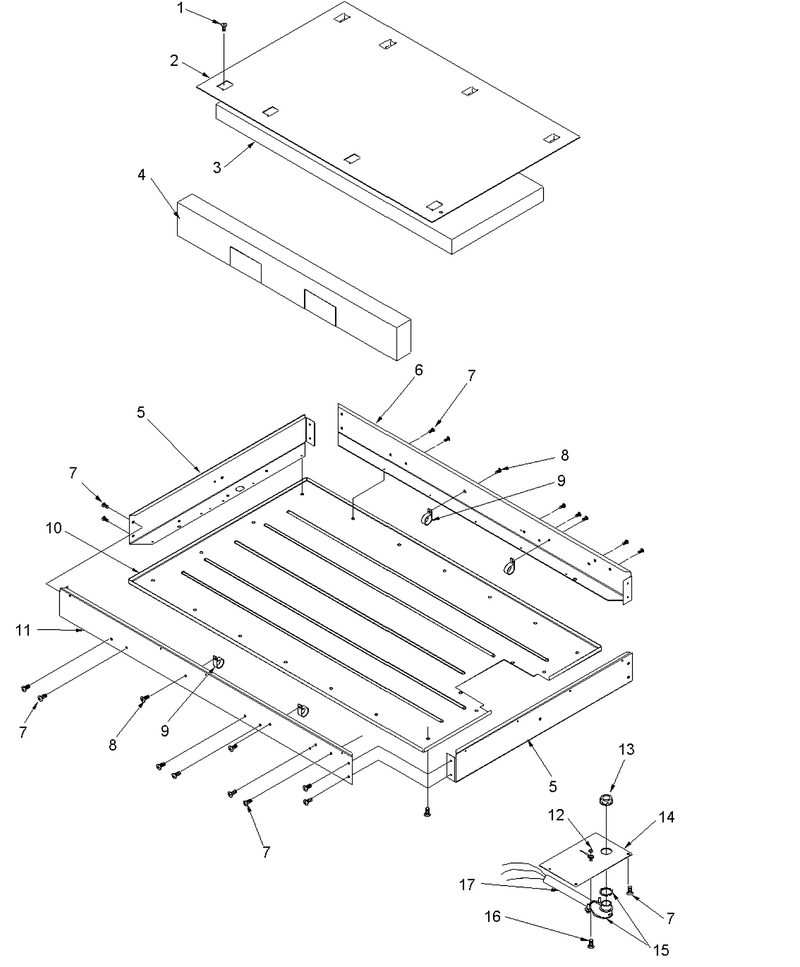

02 - Heater Box Assembly

...
...
NI
Screw WPL-WP3388228
...
1
Pop Rivet K WPL-Y0307447
...
2
Panel, Access 36`` WPL-31913401
...
3
Insulation,bot Burner Box WPL-31974402
...
4
Insulation,burner Box-36`` WPL-32060101
...
5
End, Heater Box WPL-Y0316069
...
6
Side Heater Box WPL-31913601
...
7
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
8
Screw WPL-74009538
...
9
Clamp, Tube (1/2``) WPL-Y0307456
...
10
Baffle, Heater Box WPL-31913801
...
11
Side Heater Box WPL-31913501
...
12
Hex Nut (Nkl) WPL-31750124
...
13
Bushing, Conduit WPL-M0327601
...
14
Plate, Conduit WPL-Y0307451
...
15
Connector, Conduit WPL-M0321505
...
16
Screw, Grd No.10-32 X 1/2 Panhd WPL-31750523
...
17
Harness, Conduit WPL-31988601
