Amana AKT3040SS (BOM: PAKT3040SS1)

Model: AKT3040SS (BOM: PAKT3040SS1)

Save Part Not Listed?
product name

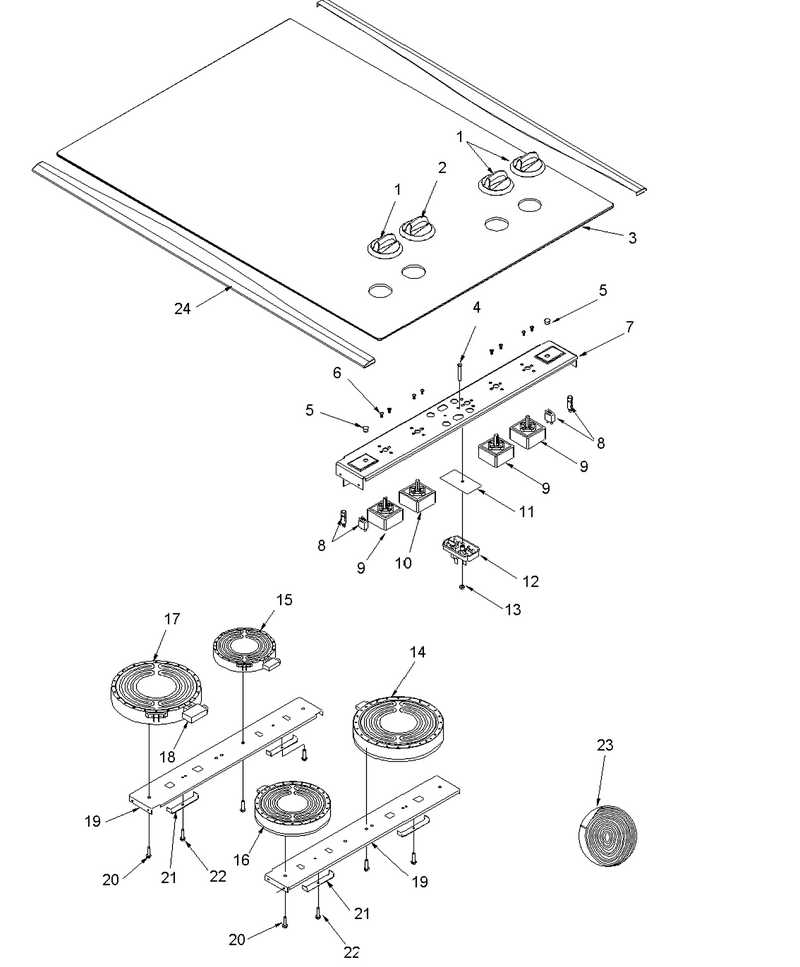

01 - Cooktop Assembly

...
...
NI
Knob, Grommet WPL-74008211
...
1
Knob,infinite(Black) WPL-31926601B
...
2
Knob,dual Infinite(Black) WPL-31926603B
...
4
Screw WPL-M0227520
...
6
Screw WPL-WP488234
...
7
Bracket,control Mtg WPL-32049801
...
8
Light,indicator WPL-32049701
...
9
Switch- In WPL-WP74011243
...
10
Switch-Inf WPL-12002422
...
11
Insulation, Ind. Light WPL-0307444
...
12
Light, Indicator WPL-Y0307442
...
13
Nut WPL-WP7103P070-60
...
14
Elmnt-Surf WPL-W10823710
...
15
Elmnt-Surf WPL-WP32082801
...
16
Elmnt-Surf WPL-W10823699
...
17
Elmnt-Surf WPL-W10823726
...
18
Limiter-Dual WPL-0316689
...
19
Bracket, Element Mtg. WPL-31911601
...
20
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
21
Spring, Element WPL-Y0306683
...
22
Screw, No.8-18 X 3/8 Pph WPL-31750425
...
23
Tape, Inch WPL-74007878
...
24
Assy,main Top/trim-30``(Stn Stl WPL-32069101SS

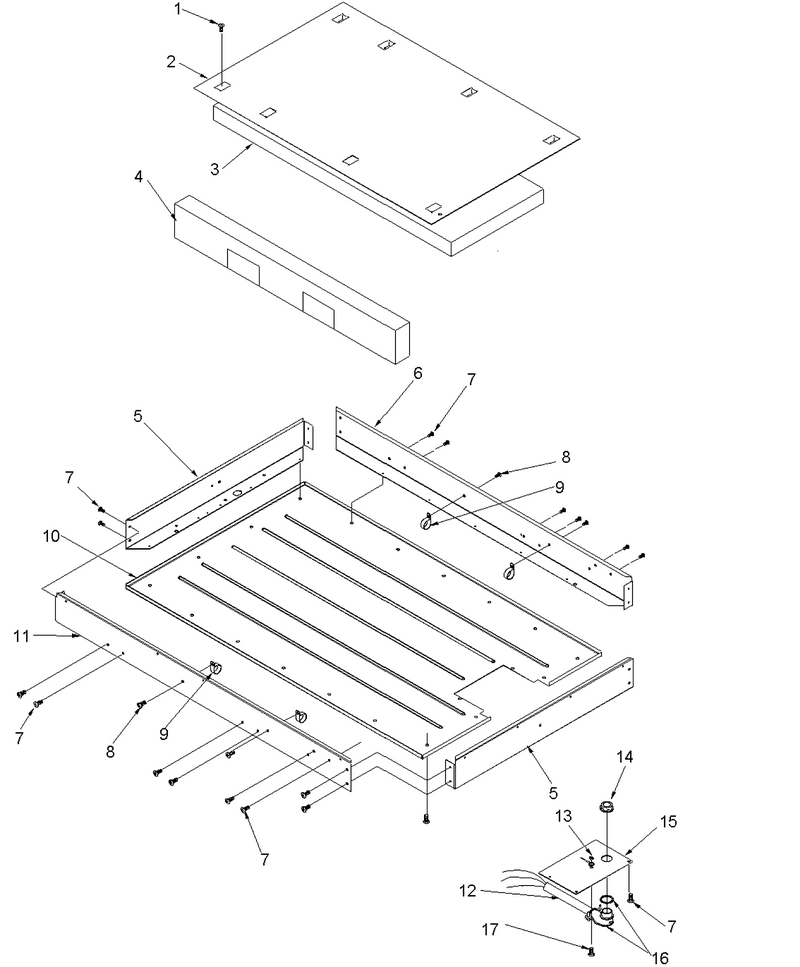

02 - Heater Box Assembly

...
...
NI
Screw WPL-WP3388228
...
1
Pop Rivet K WPL-Y0307447
...
2
Baffle, Heater Box WPL-0316074
...
3
Insulation,bot Burner Box WPL-31974401
...
4
Insulation,burner Box-30`` WPL-32060001
...
5
End, Heater Box WPL-Y0316069
...
6
Side, Heater Box WPL-Y0316071
...
7
Screw WPL-W11245710
...
8
Screw WPL-74009538
...
9
Clamp, Tube (1/2``) WPL-Y0307456
...
10
Panel, Access WPL-Y0316649
...
11
Side, Heater Box WPL-Y0316070
...
12
Harness, Conduit WPL-31939501
...
13
Hex Nut (Nkl) WPL-31750124
...
14
Bushing, Conduit WPL-M0327601
...
15
Plate, Conduit WPL-Y0307451
...
16
Connector, Conduit WPL-M0321505
...
17
Screw, Grd No.10-32 X 1/2 Panhd WPL-31750523
