Amana AKT3000W (BOM: P1131595N W)

Model: AKT3000W (BOM: P1131595N W)

Save Part Not Listed?
product name

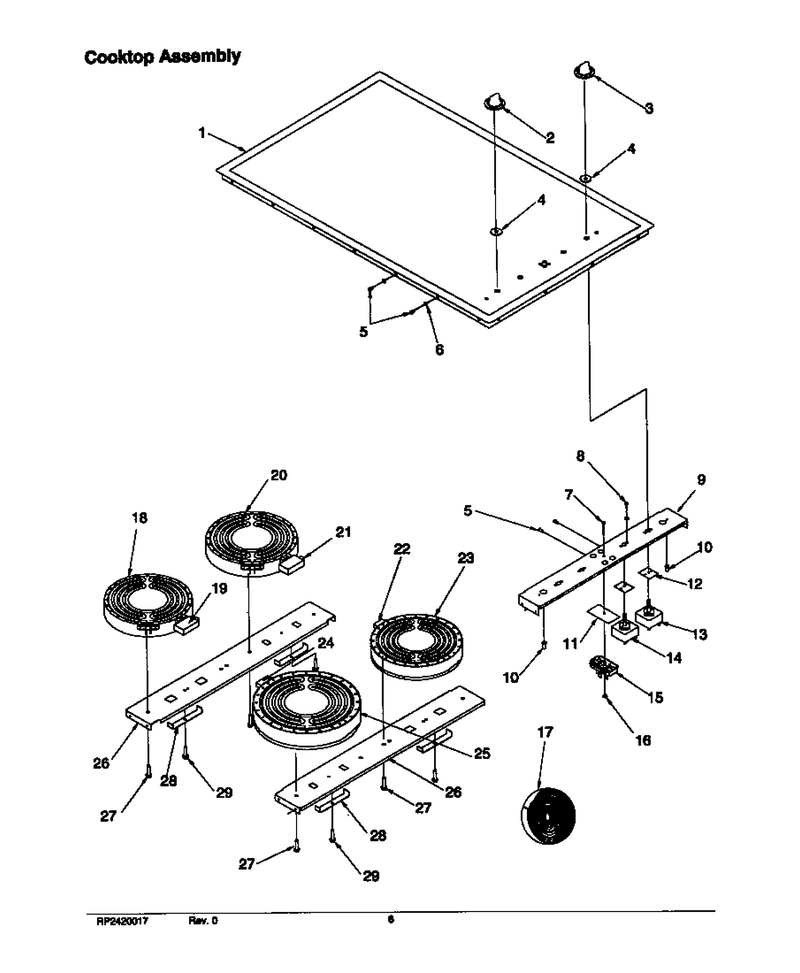

01 - Cooktop Assy

...
...
1
Assy, Frame & Glass WPL-316075W
...
2
Knob, Control (White) WPL-315344W
...
4
Cover, Hole-Gas Valve WPL-Y0316066
...
5
Screw WPL-W11245710
...
6
Lock Washer WPL-M0272803
...
7
Screw WPL-M0227520
...
8
Screw WPL-WP3400882
...
9
Brkt, Control WPL-0316073
...
10
Light, Indicator WPL-Y0307458
...
11
Insulation, Ind. Light WPL-0307444
...
12
Switch Gas WPL-31953701
...
13
Switch- In WPL-WP74011243
...
15
Light, Indicator WPL-Y0307442
...
16
Nut WPL-WP7103P070-60
...
17
Tape, Inch WPL-74007878
...
18
Elmnt-Surf WPL-WP32082801
...
19
Limiter, Temp. (4) WPL-8053620
...
20
Elmnt-Surf WPL-W10823699
...
21
Limiter, Temp. (4) WPL-8053620
...
22
Limiter, Temp. (4) WPL-8053620
...
23
Elmnt-Surf WPL-W10823699
...
24
Limiter, Temp. (4) WPL-8053620
...
25
Elmnt-Surf WPL-W10823708
...
26
Brkt, Element WPL-0316072
...
27
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
28
Spring, Element WPL-Y0306683
...
29
Screw, No.8-18 X 3/8 Pph WPL-31750425

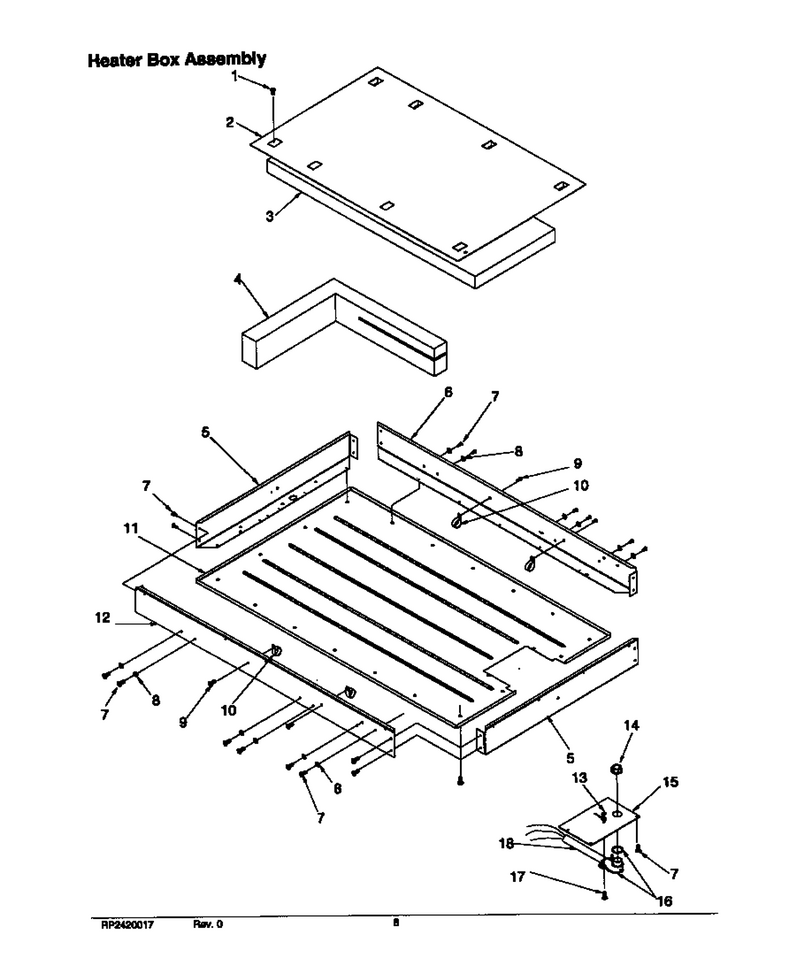

02 - Heater Box Assy

...
...
NI
Screw WPL-74009538
...
1
Pop Rivet K WPL-Y0307447
...
2
Baffle, Heater Box WPL-0316074
...
3
Insulation WPL-Y0307480
...
4
Insulation WPL-0307479
...
5
End, Heater Box WPL-Y0316069
...
6
Side, Heater Box WPL-Y0316070
...
7
Screw WPL-W11245710
...
8
Lock Washer WPL-M0272803
...
9
Screw WPL-74009538
...
10
Clamp, Tube (1/2``) WPL-Y0307456
...
11
Panel, Access WPL-Y0316649
...
12
Side, Heater Box WPL-Y0316071
...
13
Hex Nut (Nkl) WPL-31750124
...
14
Bushing, Conduit WPL-M03287601
...
15
Plate, Conduit WPL-Y0307451
...
16
Connector, Conduit WPL-M0321505
...
17
Screw, Grd No.10-32 X 1/2 Panhd WPL-31750523
...
18
Conduit, Wire Harness WPL-Y0309082
