Amana AKS3030SS (BOM: P1142527NSS)

Model: AKS3030SS (BOM: P1142527NSS)

Save Part Not Listed?
product name

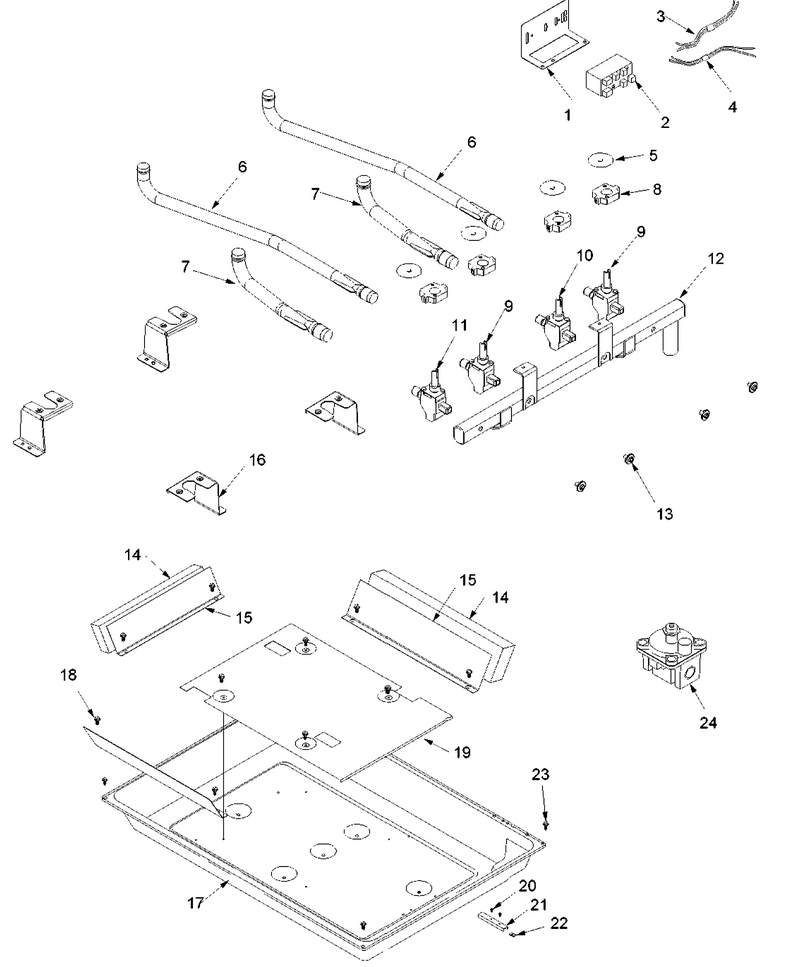

01 - Burner Box

...
...
NI
Cord, Power Supply WPL-Y0316704
...
1
Bracket WPL-WPW10116817
...
2
Module-Spk WPL-WP31962701
...
3
Harness, Ignition Wire 20`` WPL-31941701
...
4
Harness, Ignition Wire 31`` WPL-31941601
...
5
Shield, Switch WPL-Y0314316
...
6
Venturi, Left WPL-31899701
...
7
Venturi, Right WPL-31899601
...
8
Switch- Sp WPL-WPY0316705
...
9
Valve, Top Burner (9.7k) WPL-31759502
...
10
Valve, Top Burner (7.6k) WPL-31759503
...
11
Valve, Top Burner (12.5k) WPL-31891901
...
12
Pipe, Manifold WPL-31793901
...
13
Screw WPL-W10491986
...
14
Insulation, Burner Box WPL-31974701
...
15
Shield, Burner Box-Side WPL-Y0316984
...
16
Brkt, Venturi Mtg WPL-Y0315640
...
17
Burner Box, 30`` Gas Cktp WPL-31950901
...
18
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
19
Shield, Burner Box-Bottom WPL-Y0316983
...
20
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
21
Bracket-Insulation WPL-Y0305003
...
22
Clip, Tinnerman WPL-Y0304999
...
23
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
24
Regulator, Pressure WPL-Y0308866

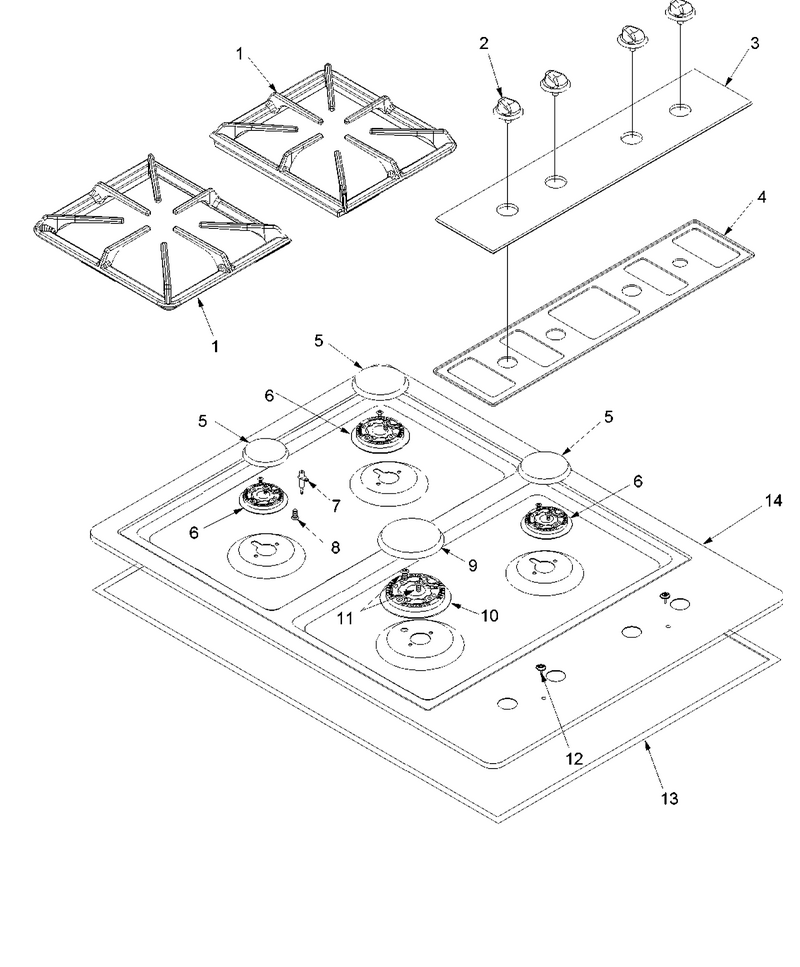

02 - Main Top

...
...
1
Grate, Single Cast (Matte Blk) WPL-32012201MB
...
2
Knob- Top WPL-WP31905407B
...
3
Glass, Control Panel (Blk) WPL-31688701B
...
4
Frame-Control Pnl Glass (Blk) WPL-316399B
...
5
Cap, Burner 9k (Matte Blk) WPL-31782601MB
...
6
Top Burner WPL-WPY0315768
...
7
Igntr-Surf WPL-WPY0316773
...
8
Screw, Electrode WPL-Y0316775
...
9
Cap-Burner WPL-WP31782701MB
...
10
Burnr-Head WPL-WP7504P109-60
...
11
Screw WPL-WPY04100059
...
12
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
13
Seal WPL-Y0301012
...
14
Main Top-30`` Gas Cooktop (Ss) WPL-32012601SS
