product name

Amana AKS30 (BOM: P1142501NE,)

Model: AKS30 (BOM: P1142501NE,)

Save Part Not Listed?
product name

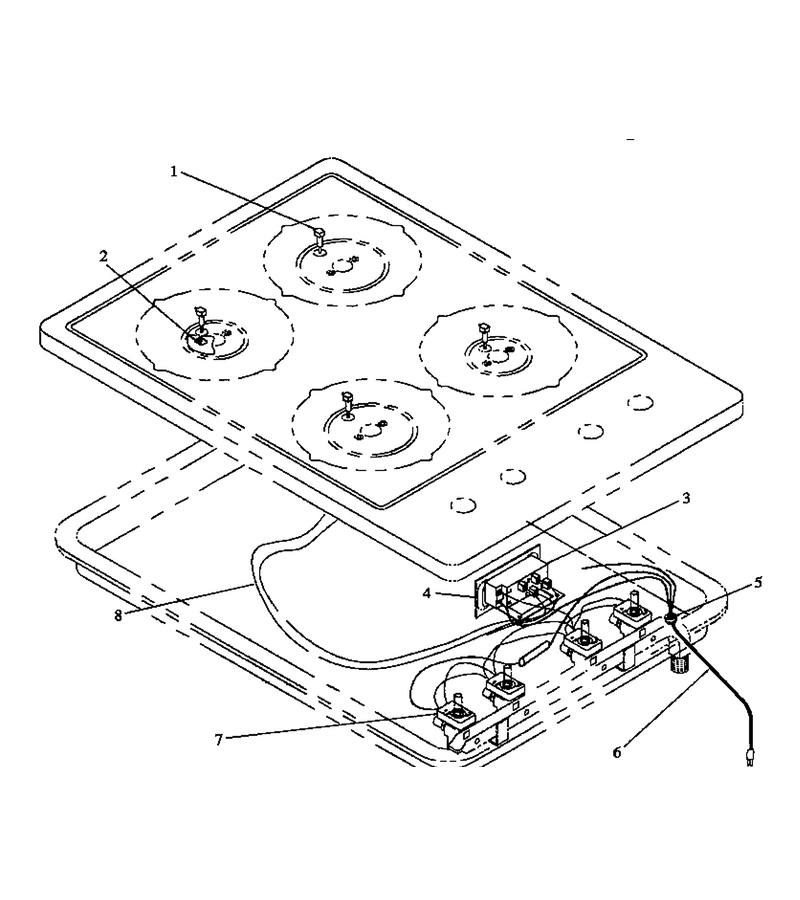

02 - Electrical Components

...
...
NI
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079357
...
1
Elctr-Kit WPL-WP3185804
...
2
Clip, Electrode WPL-Y07714200
...
3
Kit,spark Module(Service) WPL-Y0305451
...
4
Bracket, Spark Module WPL-0304971
...
5
Strain Relief WPL-Y0042109
...
6
Supply Cord Kgt591-593 WPL-Y0042030
...
7
Switch-Lic WPL-WPY0300521
...
8
Harness,ign Wire 20`` WPL-Y0307394

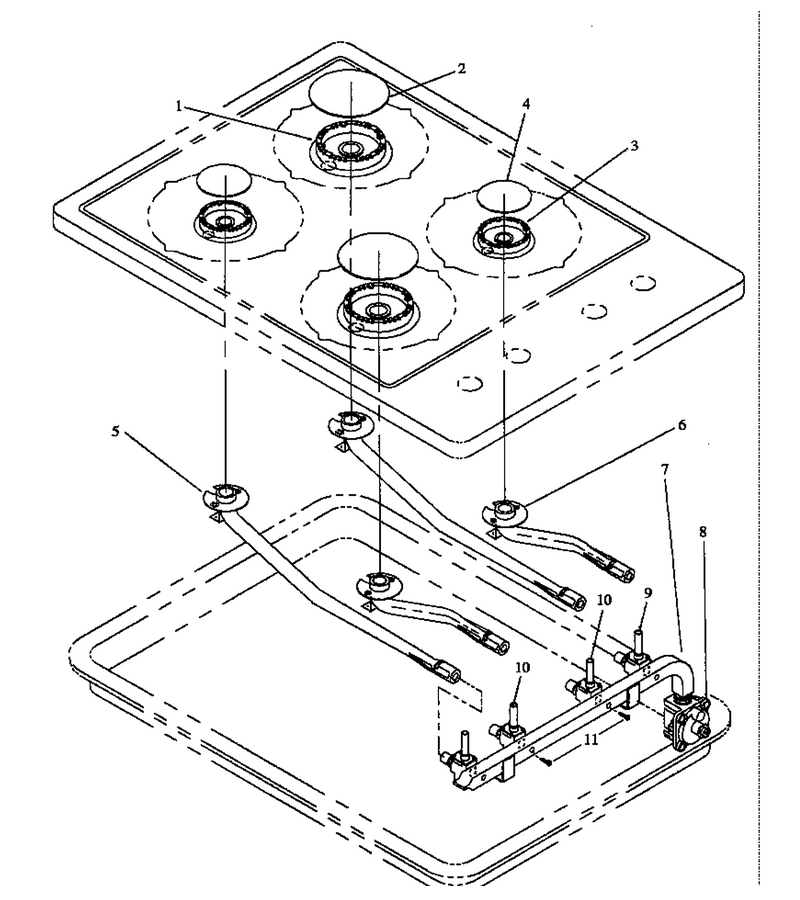

03 - Gas Components

...
...
NI
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079357
...
1
Burner, 4`` Die Cast WPL-Y0307339
...
2
Cap, Burner (Large) WPL-314638B
...
3
Burner 3`` Die Cast WPL-Y0306073
...
4
Cap, Burner (Small) WPL-314637B
...
5
Tube, Venturi (Lh) WPL-0308245
...
6
Tube, Venturi (Rh) WPL-Y0308246
...
7
Assy- Mani WPL-Y0314136
...
8
Regulator-5``/10`` Side Inlet WPL-Y0063684
...
9
Valve, 180 Degree WPL-Y0308253
...
10
Valve, 180 Degree WPL-Y0308252
...
11
Screw WPL-W10491986

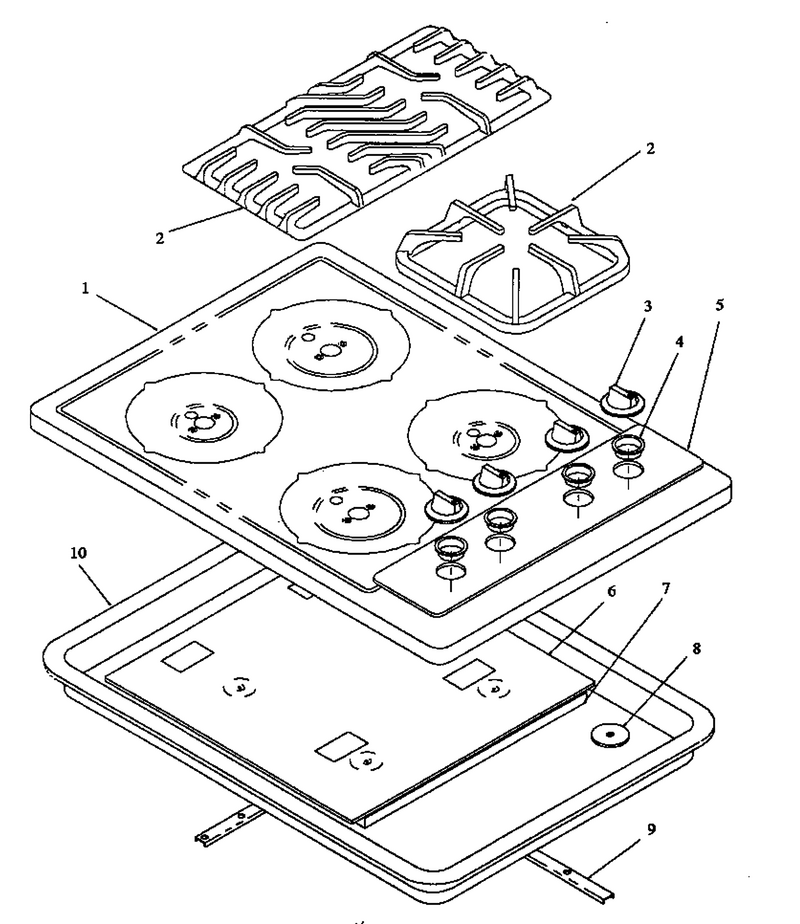

01 - Chassis Components

...
...
NI
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
1
Net-Cktp,gas Maintop(Chrome) WPL-307367K
...
2
Surface Grate WPL-307398B
...
3
Knob, Top Cont (Black) WPL-307973B
...
4
Bushing, Snap (Blk) WPL-308655B
...
5
Glass, Cont Pnl (Black) WPL-308242B
...
6
Shield, Bot. Burner Box WPL-Y0308942
...
7
Insulation WPL-Y0308940
...
8
Seal, Inlet WPL-Y0308941
...
9
Mounting Bracket Assembly WPL-31789101
...
10
Box, Burner (Black) WPL-308508B
