Amana AKM1B (BOM: P8554903S)

Model: AKM1B (BOM: P8554903S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

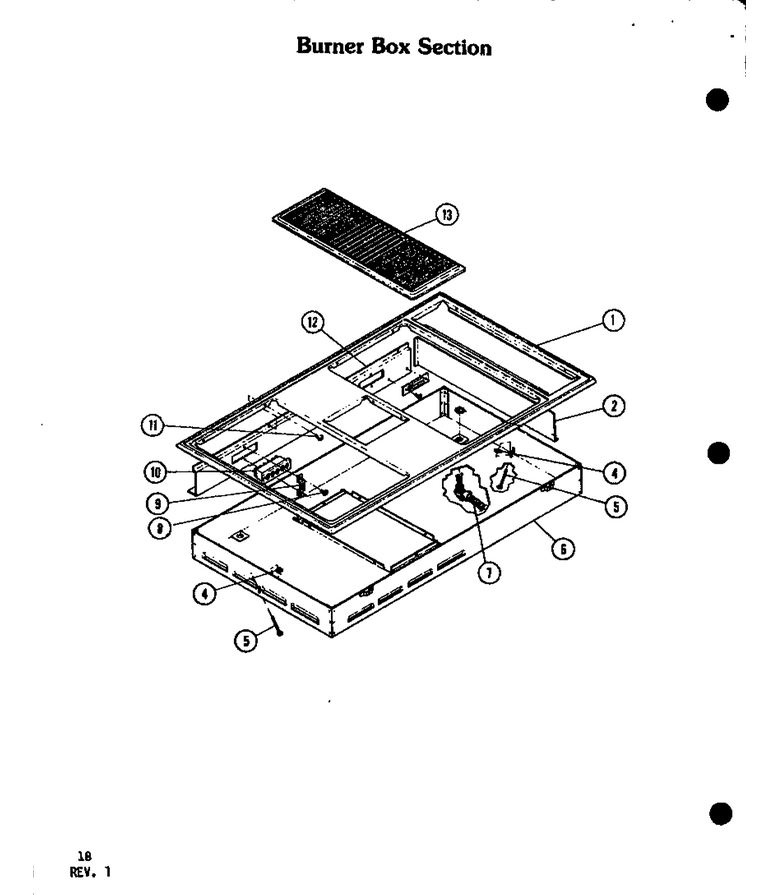

01 - Burner Box Section

...
...
NI
Element, Contact-Module Top WPL-Y0042123
...
1
Main Top, Chrome WPL-Y0040087
...
2
Switch Shield Et-590 595 WPL-Y0040821
...
4
Nut 1/4-20 Sq. Et590 595 WPL-R0157965
...
5
Screw 1/4-20-4`` 590 595 WPL-R0157966
...
6
Burner Box W/a W/vent Ket595 WPL-R0157967
...
7
5651118 C WPL-Y0043748
...
8
Insulation, Wrapper WPL-31975801
...
9
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
10
Plug Block Modular Top WPL-Y0042210
...
11
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
12
Plug Block Baffle WPL-R0157973
...
13
Vent Cover WPL-R0705542

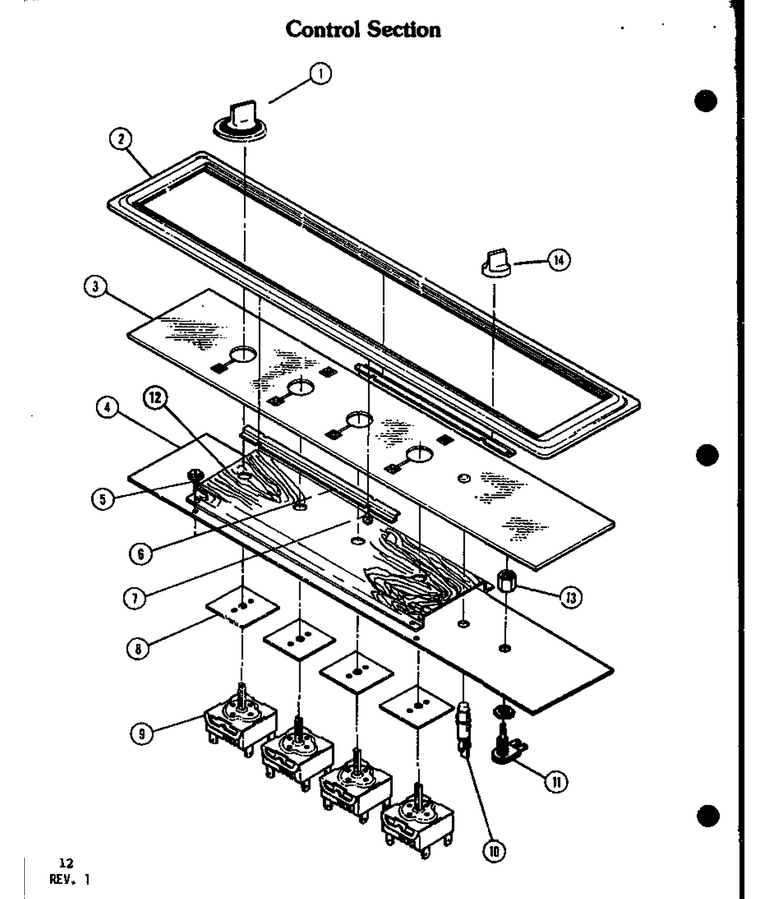

02 - Control Section

...
...
NI
5644003 W.j. WPL-R0157951
...
1
Knob WPL-R0703502
...
2
Frame, Control Panel WPL-R0705539
...
3
Control Panel Glass WPL-R0199127
...
4
Switch Mounting Bracket WPL-R0157943
...
5
Screw WPL-WP90767
...
6
Glass Retainer Ket595-590 WPL-Y0040962
...
7
Screw, Retainer Mounting WPL-R0157945
...
8
Switch Gas WPL-31953701
...
9
Infinite Switch WPL-R0702506
...
10
Indicator Light WPL-Y0042183
...
11
Switch, Oven Light WPL-Y0308168
...
12
Wood Gr Trim Panel WPL-R0705522
...
13
Switch Bushing ,metal WPL-Y0042012
...
14
Knob, Dual Timer WPL-R0181089
