Amana AKGD3050SS (BOM: P1131633NSS)

Model: AKGD3050SS (BOM: P1131633NSS)

Save Part Not Listed?
product name

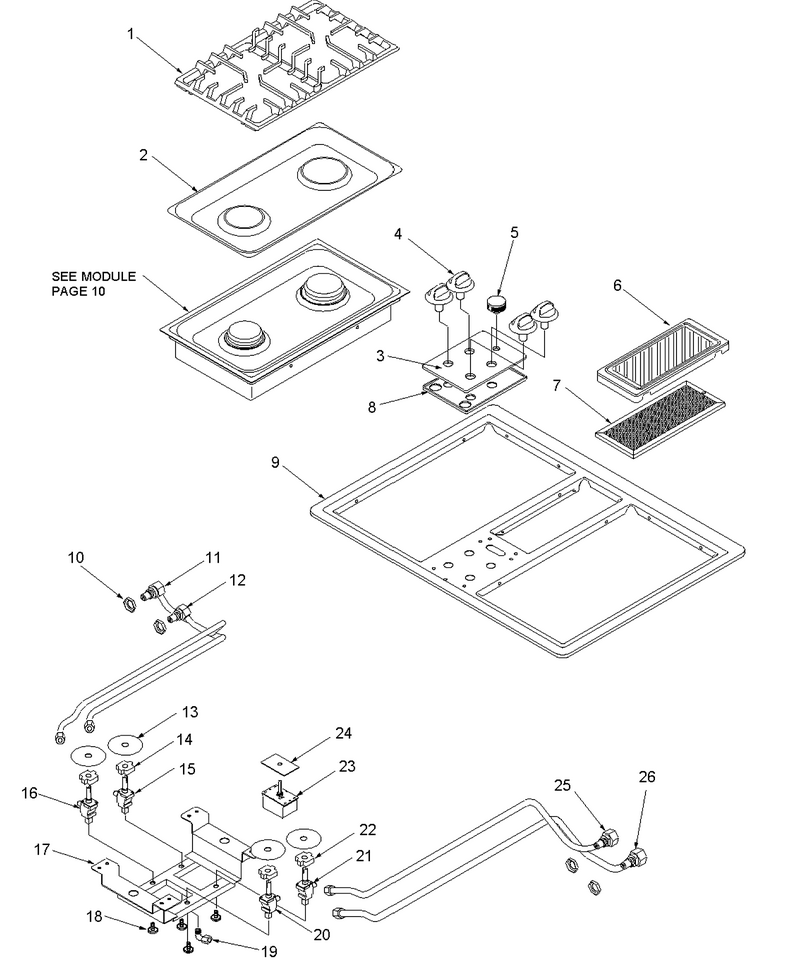

02 - Main Top

...
...
NI
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
1
Grate-Double Cast(Matte Blk)9k WPL-316175MB
...
3
Glass,control Panel WPL-31909001B
...
4
Knob- Top WPL-WP31760504B
...
5
Knob, Fan Switch (Black) WPL-31760705B
...
6
Cover, Casting Vent-Gas WPL-316648G
...
7
Filter, Exhaust (Blk) WPL-315689B
...
8
Frame-Glass Control Panel(Blk) WPL-315725B
...
9
Maintop- 3 WPL-77001231
...
10
Nut, Pal 3/4-16 X 1.062 WPL-31750116
...
11
Assy, Tube Orifice Left Rear WPL-31752301
...
12
Assy, Tube Orifice Left Front WPL-31752401
...
13
Shield, Switch WPL-Y0314316
...
14
Switch, Spark (270 Deg) WPL-Y0315727
...
15
Valve, Gas 270deg Lr 9.7k 2800 WPL-31755602
...
16
Valve, Gas Lf 270deg 12k 3100 WPL-31755702
...
17
Manifold, Gas WPL-Y0317060
...
18
Screw WPL-W10491986
...
19
Fitting, 90 Deg Elbow WPL-Y0316881
...
20
Valve, Gas 270 Deg Rf 9.7k3100 WPL-31755902
...
21
Valve, Gas 270 Deg Rr 7.6k 280 WPL-31755802
...
22
Switch, Spark/fan WPL-Y0315728
...
23
Control, Fan Speed Variable WPL-Y0316913
...
24
Shield, Switch-Variable WPL-31726301
...
25
Assy, Tube Orifice Right Rear WPL-31752501
...
26
Assy, Tube Orifice Right Front WPL-31752601

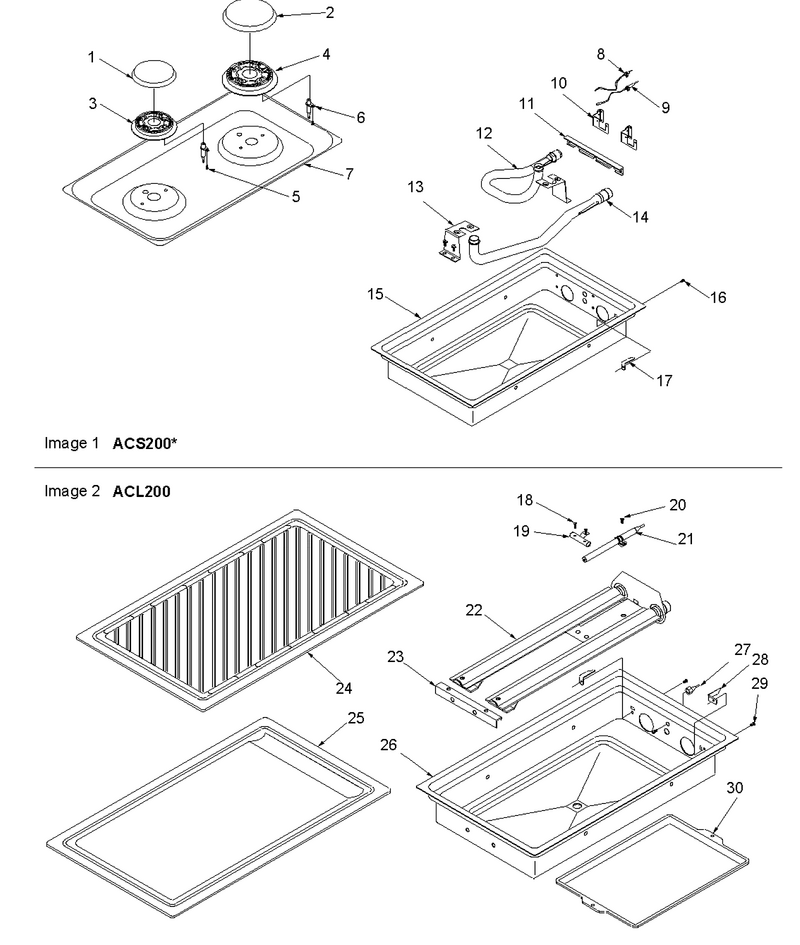

03 - Module/cartridge

...
...
NI
Screw WPL-WPY04100059
...
1
Cap, Burner 9k (Matte Blk) WPL-31782601MB
...
2
Cap-Burner WPL-WP31782701MB
...
3
Top Burner WPL-WPY0315768
...
4
Burnr-Head WPL-WP7504P109-60
...
5
Screw, Electrode WPL-Y0316775
...
6
Igntr-Surf WPL-WPY0316773
...
7
Top, Module-Sealed Burner (Ss) WPL-Y0316364
...
8
Electrode, Burner Ign. 1o``wire WPL-Y0315751
...
9
Electrode, Burner Ign. 21``wire WPL-Y0316389
...
10
Brkt, Venturi WPL-31749501
...
11
Brkt, Venturi Clamping WPL-31813601
...
12
Venturi, Rear Burner-Hw WPL-31909401
...
13
Brkt, Burner Mtg. WPL-Y0315755
...
14
Venturi, Front Burner-Hw WPL-31909301
...
15
Module Pan,gas Sealed Brnr(Bla WPL-31907201B
...
16
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
17
Strike, Grille Pan WPL-31892401
...
18
Screw WPL-M0227520
...
19
Flash Tube Kgt591 WPL-Y0040841
...
20
Screw WPL-WP3400882
...
21
Grille, Electrode WPL-Y0042217
...
22
Burner, Grille WPL-0046387
...
23
Grille Burner Rear Support WPL-Y0041041
...
24
Grille , Low Smoke (Blk) WPL-31902101B
...
25
Griddle, Cast (Gas) WPL-31902001B
...
26
Module Pan & Deflector WPL-31789702CG
...
27
Ground Pin Xst311 Kgt591 WPL-Y0041898
...
28
Strike, Grille Pan WPL-31892401
...
29
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
30
Pan, Grease Kgt591 WPL-32067501

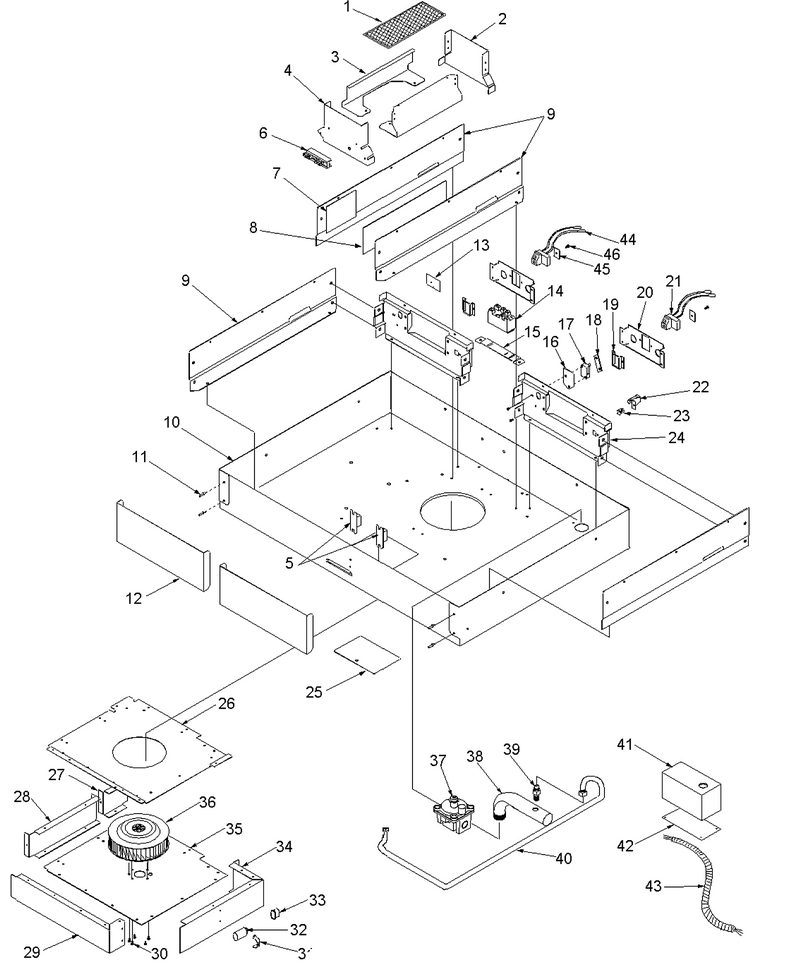

01 - Cavity

...
...
NI
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
1
Shield, Fan (Enameled) WPL-31902901CG
...
2
Plenum, End WPL-31756001
...
3
Plenum Side WPL-31752701
...
4
Plenum, End WPL-31756001
...
5
Relay, Blower Cutout WPL-Y0307599
...
6
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
7
Insul,control Shield 7`` WPL-31885301
...
8
Insulation, Control Shield 16`` WPL-31756701
...
9
Shield, Control WPL-31752801
...
10
Burner Box-Gas WPL-77001141
...
11
Rivet, Pop WPL-Y0097822
...
12
Shield, Front WPL-31788701
...
13
Plate, Burner Box WPL-31743201
...
14
Module-Spk WPL-WP31962701
...
15
Brkt, Spark Module WPL-Y0317026
...
16
Insulation, Esm WPL-Y0091523
...
17
Switch, Hi-Temp Micro WPL-31751601
...
18
Nut, Speed No.4-40 (Blk) WPL-31750107
...
19
Brkt, Plug Block Mtg WPL-Y0040983
...
20
Plate, Orifice Mtg WPL-31745201
...
21
Plug Block WPL-Y0042215
...
22
Brkt, Contact WPL-Y0316850
...
23
Element, Contact-Module Top WPL-Y0042123
...
24
Brkt, Orifice Mtg Plate WPL-Y0315737
...
25
Panel, Access WPL-31743301
...
26
Plenum, Top WPL-31904801
...
27
Plenum, Side WPL-31754401
...
28
Plenum, Duct Filler WPL-31754501
...
29
Plenum, Front WPL-31754301
...
30
Screw (Plain M4 Metric .236) WPL-31750722
...
31
Brkt, Capacitor WPL-0317082
...
32
Motor Capacitor-Fan WPL-0316874
...
33
Cap, Capacitor WPL-31756201
...
34
Plenum, Rear WPL-31754201
...
35
Plenum, Bottom WPL-31754101
...
36
Assy, Fan/motor WPL-Y0315697
...
37
Pressure Regulator WPL-0302495
...
38
Tube, Gas Inlet WPL-31752901
...
39
Fitting 1/4 Npt X 3/8 Comp WPL-Y0303219
...
40
Tube-Gas Inlet WPL-Y0316764
...
41
Box, Junction-Motor WPL-31755001
...
42
Cover, Junction Box WPL-31755101
...
43
Conduit, 3/8`` X 5 1/4`` WPL-31756402
...
44
Wire, Ignition Jumper WPL-Y0317084
...
45
Terminal, Insulator WPL-Y0041998
...
46
Screw, No.8-32 X1/2 Nyl Hex Hd WPL-31750417
