Amana AKG-20S (BOM: P8512405S)

Model: AKG-20S (BOM: P8512405S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
Owners Manual WPL-A4400111
...
1
Knob, Control K WPL-D8503301
...
2
Bushing WPL-A4402501
...
3
Cover Cont Box WPL-D8517801
...
4
Screw WPL-WP59002061
...
5
Indicator Light WPL-C2711401
...
6
Holder WPL-A4409901
...
7
Thermostat, Essex WPL-D8503901
...
9
Screw WPL-M0200414
...
10
Bracket WPL-B5001701
...
11
Nut WPL-WP7103P070-60
...
12
Wick-Felt A WPL-A4402601
...
13
Seal-Shaft A WPL-B5001601
...
15
Control Box Assy WPL-D8523702
...
16
Connector-Conduit WPL-A4410001
...
17
Panel Glass WPL-D8560601
...
18
Conduit Cable WPL-B5008601
...
19
Wire Splice WPL-A4403201
...
20
Screw WPL-WP400021-1
...
23
Cover-Htr Box WPL-D8518301
...
24
Screw WPL-WP59002061
...
25
Channel WPL-B5001401
...
26
Channel WPL-B5001301
...
27
Insulation Kit WPL-R0157513
...
28
Insul-Lo-Con K WPL-C2702001
...
29
Spring-Retainer WPL-B5008701
...
30
Element Kit, Small WPL-R0157501
...
31
Element Kit, Large WPL-R0157502
...
32
Htr Box WPL-D8518501
...
35
Heater Panel WPL-D8519503
...
36
Trim-Frame WPL-D8519401
...
37
Spring, Element WPL-74008213
...
38
Retainer WPL-A4409701
...
39
Tape, Vinyl Foam, Roll WPL-M0275028
...
43
Clip-Htr Box WPL-B5001501

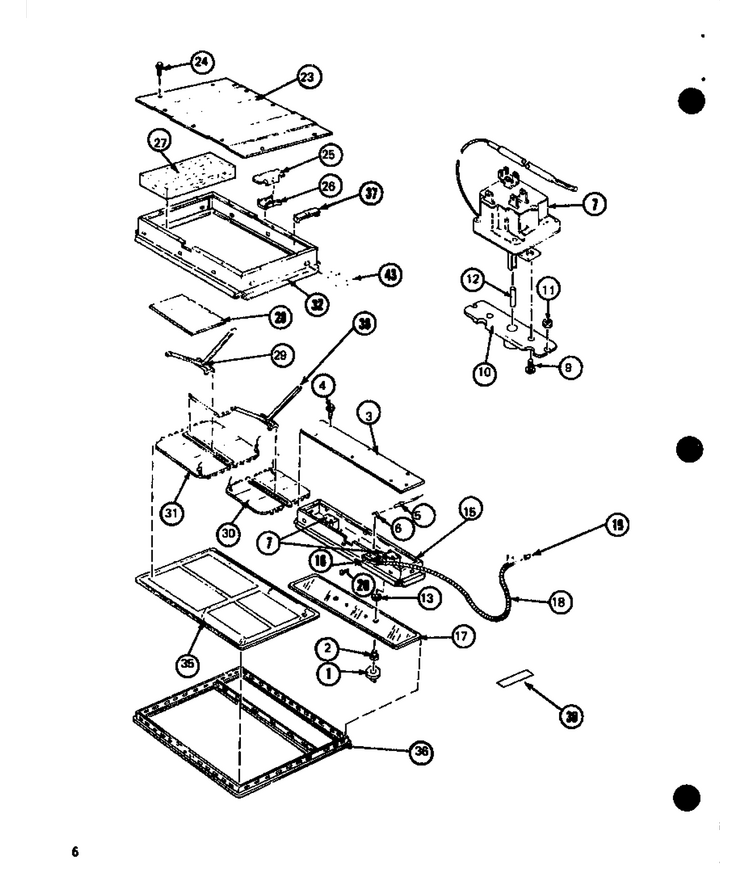

Schematic Image Zoomed
