Amana AKG-1B (BOM: P8512401S)

Model: AKG-1B (BOM: P8512401S)

Save Part Not Listed?
product name

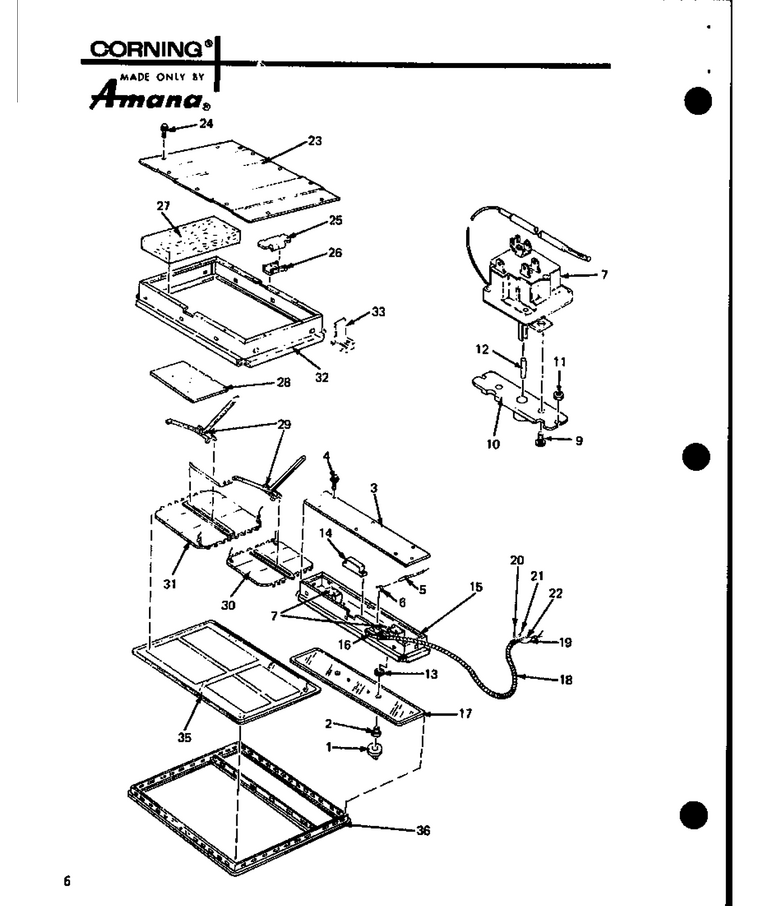

01 - Page 1

...
...
NI
Vinyl Tape, Heater Panel WPL-CG985066
...
1
Knob, Control K WPL-CG985602
...
2
Shaft Bushing WPL-CG983061
...
3
Cover Cont Box WPL-D8517801
...
4
Screw WPL-M0216516
...
5
Harness-Pilot WPL-A4409801
...
6
Holder WPL-A4409901
...
7
Thermostat, Essex WPL-D8503901
...
9
Screw WPL-M0202514
...
10
Control Mounting Bracket WPL-CG980149
...
11
Nut WPL-WP7103P070-60
...
12
Wick-Felt A WPL-A4402601
...
13
Control Shaft Seal WPL-CG980131
...
14
Terminal Block WPL-CG981146
...
15
Control Box Assy WPL-D8523701
...
16
Connector-Conduit WPL-A4410001
...
17
Glass Pnl WPL-D8518101
...
18
Conduit Cable WPL-B5008601
...
19
See Note Bare Wire -- (12 Ga) WPL-Y00000000
...
20
See Note Black Wire -- (14 Ga) WPL-Y00000000
...
21
See Note Red Wire -- (14 Ga) WPL-Y00000000
...
22
See Note White Wire -- (14 Ga) WPL-Y00000000
...
23
Cover-Htr Box WPL-D8518301
...
24
Screw WPL-M0216516
...
25
Channel WPL-B5001401
...
26
Channel WPL-B5001301
...
27
Kit, Insulation WPL-CG980005
...
28
Insulation Lo-Con K WPL-C2702002
...
29
Hld Down Assy WPL-CG983436
...
30
Element Kit, Small WPL-C2711005
...
31
Element Kit, Large WPL-C2710904
...
32
Htr Box WPL-D8518501
...
33
Clip WPL-CG985568
...
35
Glass-Ceramic Heater Panel Akg WPL-CG984553
...
36
Trim-Frame WPL-D8519401
Schematic Image Zoomed
