Amana AKF1B (BOM: P8512502S)

Model: AKF1B (BOM: P8512502S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

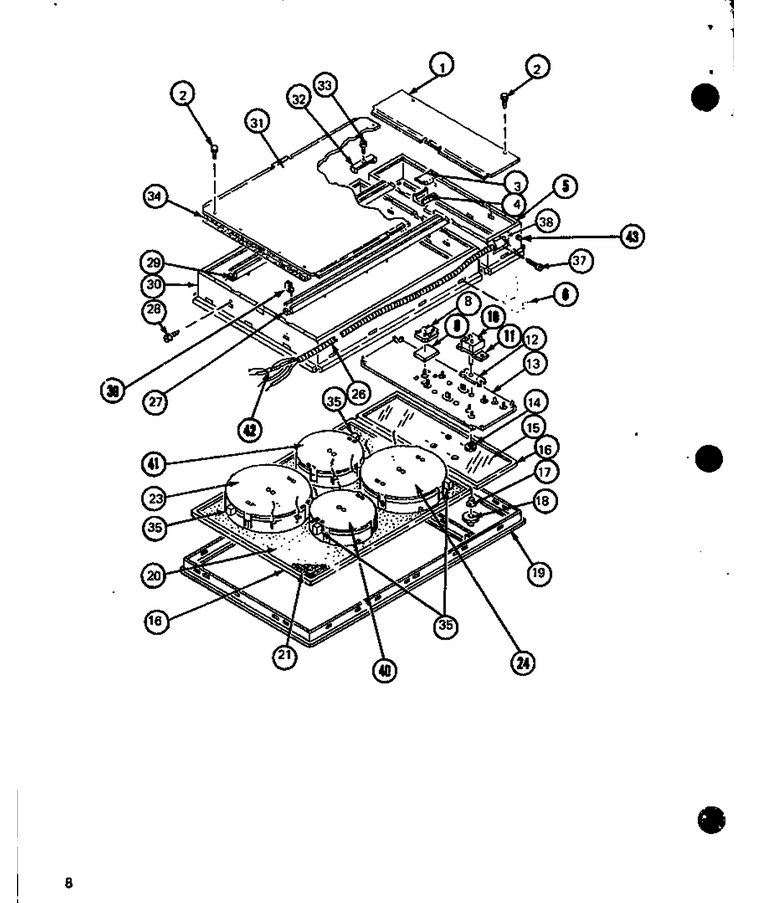

01 - Page 2

...
...
NI
Nut WPL-WP7103P070-60
...
1
Cover Assy A WPL-D8503501
...
2
Screw WPL-WP489349
...
3
Channel WPL-B5001401
...
4
Channel WPL-B5001301
...
5
Control Box WPL-D8524002
...
6
Clip-Htr Box WPL-B5001501
...
8
Light-Indicator A WPL-C2702601
...
9
Insulation, Ind. Light WPL-A4402901
...
10
Proportioner WPL-C2702702
...
11
Bracket WPL-A4403301
...
12
Bracket WPL-B5001701
...
13
Cover Assy A WPL-D8503501
...
14
Seal-Shaft A WPL-B5001601
...
15
Control Pnl Glass WPL-D8521202
...
16
Tape, Vinyl Foam, Roll WPL-M0275028
...
17
Bushing WPL-A4402501
...
18
Knob Control K WPL-D8572402
...
19
Frame WPL-D8504502
...
20
Net-Panel,heater WPL-D8519902
...
21
Insualtion WPL-C2708401
...
23
See Svc Ltr Cba-136 WPL-D8527201
...
24
See Svc Ltr Cba-136 WPL-D8527201
...
26
Conduit Wire Assy WPL-C2712301
...
27
Hold Down Bar WPL-D8517501
...
28
Screw WPL-WP90767
...
29
Hold Down Bar WPL-D8517502
...
30
Htr Box WPL-D8518601
...
31
Cover-Htr Box WPL-C2708801
...
32
Spring, Element WPL-74008213
...
33
Screw (3) WPL-67006425
...
34
Baffle WPL-C2708701
...
35
See Serv Ltr Cba-136 WPL-C2702401
...
37
Screw (3) WPL-67006425
...
38
Conduit Cap A WPL-A4403101
...
39
Clip WPL-M0110503
...
40
Element-Small WPL-D8527301
...
41
Element-Small WPL-D8527301
...
42
Wire Splice WPL-A4403201
...
43
Rivet WPL-M0010211
Schematic Image Zoomed
