Amana AKF-1B (BOM: P8512501S)

Model: AKF-1B (BOM: P8512501S)

Save Part Not Listed?
product name

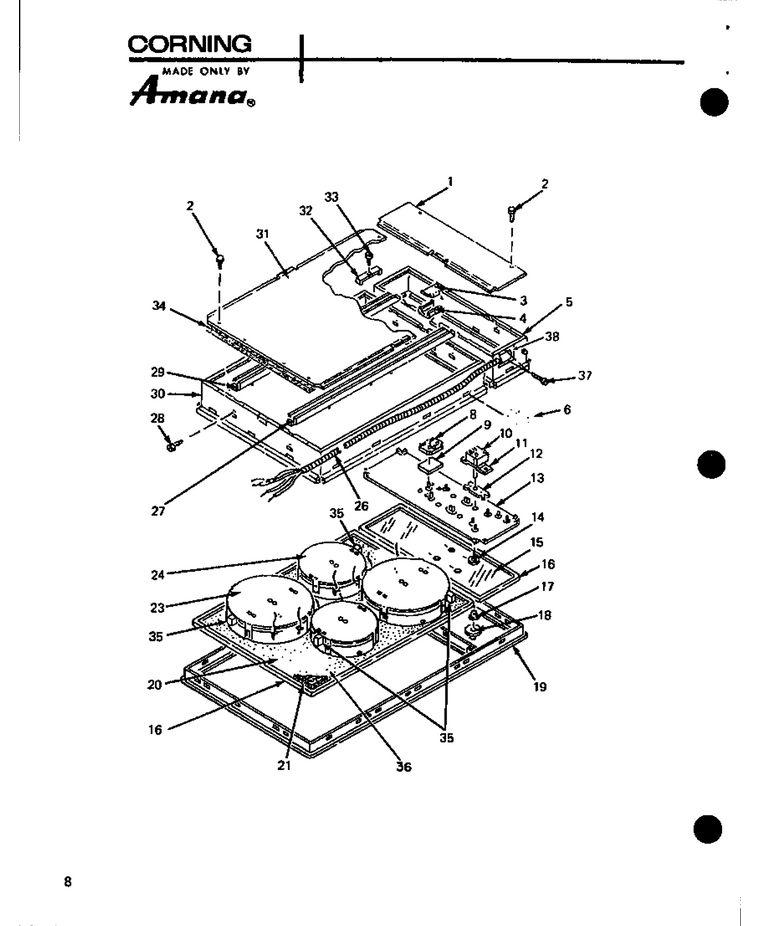

01 - Page 2

...
...
NI
Screw WPL-M0202528
...
1
Cover Assy A WPL-D8503501
...
2
Screw WPL-M0216516
...
3
Channel WPL-B5001401
...
4
Channel WPL-B5001301
...
5
Box, Control WPL-CG984189
...
6
Clip WPL-CG985568
...
8
Light-Indicator A WPL-C2702601
...
9
Insulation, Ind. Light WPL-A4402901
...
10
Proportioner WPL-CG984853
...
11
Bracket WPL-A4403301
...
12
Bracket WPL-B5001701
...
13
Panel-Control Mtg WPL-CG982909
...
14
Control Shaft Seal WPL-CG980131
...
15
Control Panel Glass WPL-D8521201
...
16
Tape, Vinyl Foam, Roll WPL-M0275028
...
17
Shaft Bushing WPL-CG983061
...
18
Knob Control K WPL-D8572402
...
19
Frame WPL-D8504502
...
20
Heater Panel WPL-CG984935
...
21
Insulation, Hot Light WPL-CG984963
...
23
See Svc Ltr Cba-136 WPL-D8527201
...
24
Element-Small WPL-D8527301
...
26
Conduit WPL-CG985574
...
27
Hold Down Bar WPL-D8517501
...
28
Screw WPL-WP90767
...
29
Hold Down Bar WPL-D8517502
...
30
Box-Heater WPL-CG984195
...
31
Heater Box Cover WPL-CG983142
...
32
Spring, Element WPL-74008213
...
33
Screw (3) WPL-67006425
...
34
Baffle-Htr Box WPL-CG983143
...
35
Switch, Hot Light WPL-CG984976
...
36
Tape, Vinyl Foam, Roll WPL-M0275028
...
37
Screw (3) WPL-67006425
...
38
Conduit Cap A WPL-A4403101
